Holden Barina XC (2001 – 2005) Fuse Box Location & Diagrams
The Holden Barina XC (2001–2005) fuse box diagrams show the locations and functions of the vehicle’s fuses. Find clear information about fuse box locations, fuse assignments, and the electrical circuits protected by each fuse.
Fuse Box Location
Engine Compartment Fuse Box

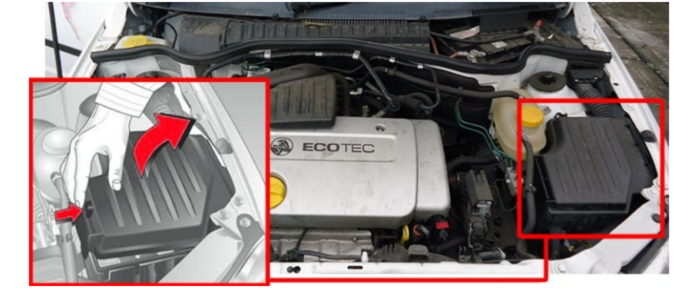

The fuses are located between the passenger side headlamp and the coolant surge tank. To open the fuse compartment, press the retaining clip towards the compartment lid and lift the lid upwards. Remove the lid completely to access the fuses.
To help in replacing fuses, there is a special fuse gripping tool located beside the spare fuses in the fuse box.
Fuse Box Diagrams
Engine Compartment Fuse Box

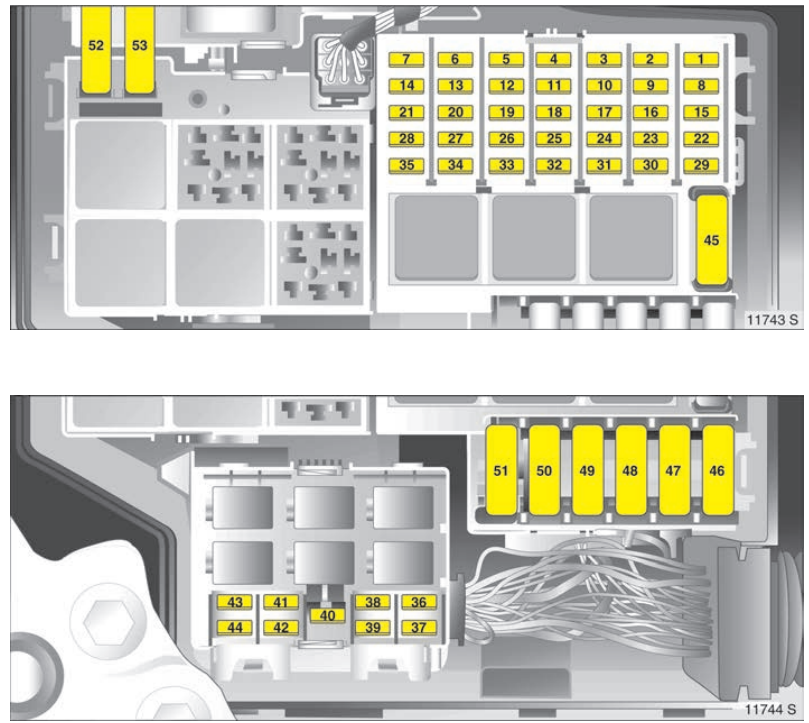

| № | Amps | Function |
|---|---|---|
| 1 | 7.5A | Central control unit |
| 2 | 7.5A | Engine control unit |
| 3 | 7.5A | Instruments, horn, information display, hazard warning flashers |
| 4 | 5A | Number plate light |
| 5 | – | – |
| 6 | 10A | Automatic transmission (if fitted) |
| 7 | – | – |
| 8 | 10A | Starter |
| 9 | 20A | Fuel injection system, fuel pump |
| 10 | 10A | Horn |
| 11 | 15A | Central control unit |
| 12 | 15A | Information display, radio |
| 13 | – | – |
| 14 | – | – |
| 15 | 2001 & 2002: 10A 2003-2005:15A | Windscreen washer system Windscreen washer |
| 16 | 5A | Courtesy lamp |
| 17 | 20A | Central control unit |
| 18 | – | – |
| 19 | – | – |
| 20 | – | – |
| 21 | – | – |
| 22 | 20A | Central control unit |
| 23 | 20A | Windscreen wipers |
| 24 | 5A | Radio, information display courtesy lamp, instruments, EPS, immobiliser |
| 25 | 10A | Brake lights |
| 26 | 10A | Cigarette lighter |
| 27 | – | – |
| 28 | – | – |
| 29 | 20A | Windscreen washer system |
| 30 | 15A | Engine control unit |
| 31 | 15A | Air conditioning system (if fitted) |
| 32 | 10A | Heated rear window (if fitted) |
| 33 | – | – |
| 34 | – | – |
| 35 | 5A | Radio |
| 36 | 10A | Dipped beam (left) |
| 37 | 10A | Dipped beam (right) |
| 38 | 5A | Park and tail lights (left) |
| 39 | 5A | Park and tail lights (right) |
| 40 | – | – |
| 41 | – | – |
| 42 | 10A | Fog lights |
| 43 | 10A | Headlights – high beam (left) |
| 44 | 10A | Headlights – hiqh beam (right) |
| 45 | 30A | Air conditioning (if fitted) |
| 46 | 20A | Engine control unit |
| 47 | 30A | Heated rear window (if fitted) |
| 48 | 30A | Starter |
| 49 | 50A | EPS |
| 50 | – | – |
| 51 | – | – |
| 52 | 40A | Cooling fan (without air conditioninq) |
| 53 | 30A | Air conditioning cooling fan (if fitted) |
