Hyundai Elantra (1996–2000) Fuse Box Location & Diagrams
Looking for the fuse box location in your Hyundai Elantra (1996–2000)? This guide provides detailed interior and engine compartment fuse box diagrams, along with complete fuse assignments and descriptions. Whether you’re troubleshooting electrical issues, replacing a blown fuse, or identifying a specific circuit, these diagrams make it easy to locate the correct fuse and restore your vehicle’s electrical system.
Fuse Box Location

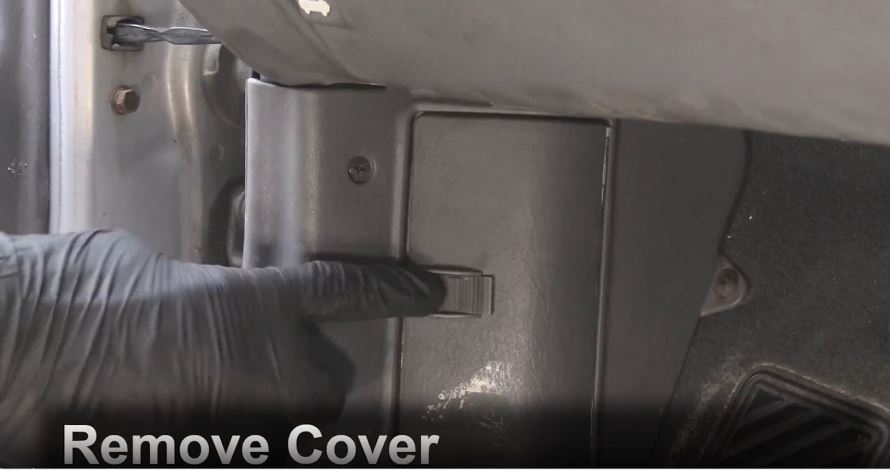

Passenger Compartment Fuse Box
The passenger compartment fuse box is located beneath the dashboard on the driver’s side. Remove the fuse panel cover to access the fuses and relay layout.

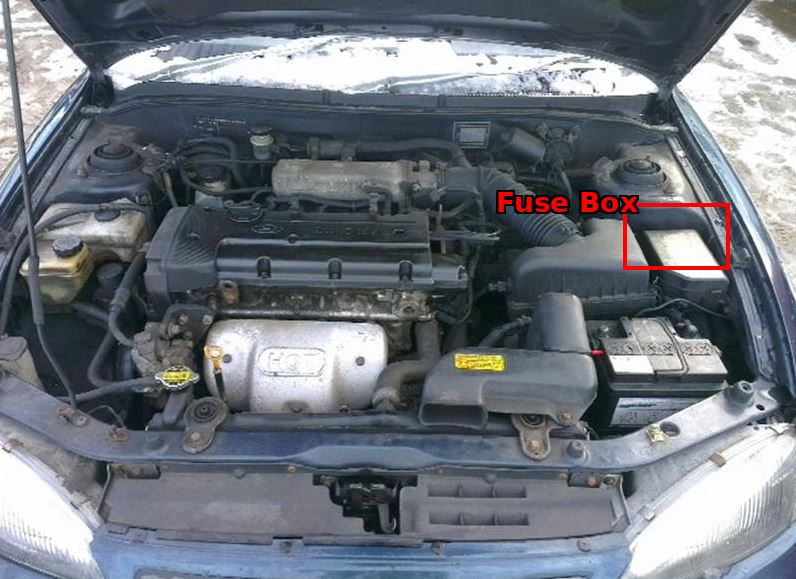

Engine Compartment Fuse Box
The engine compartment fuse box is located on the right side of the engine bay, next to the battery. Lift the cover to access the main fuses and relays.
Fuse Box Diagrams

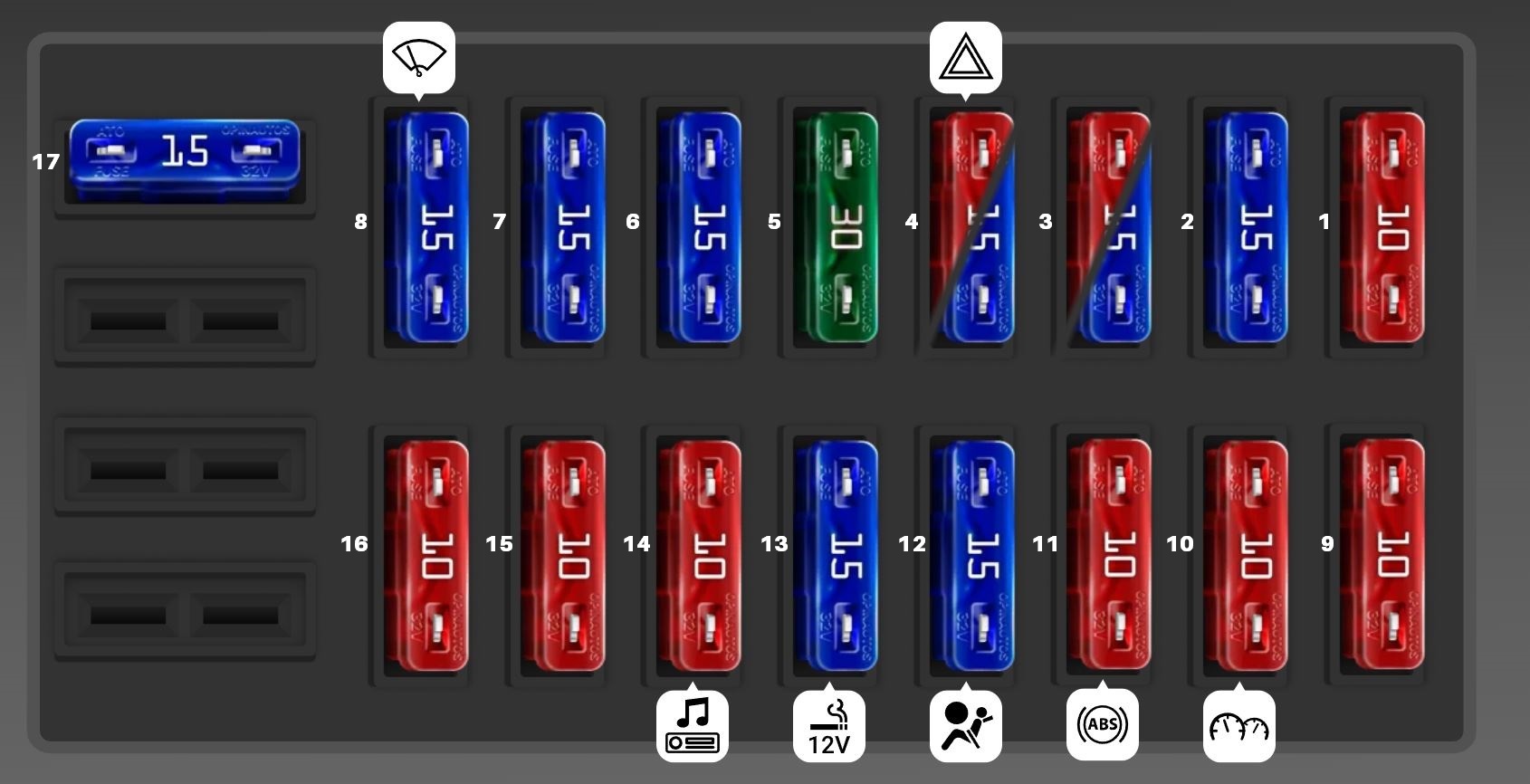

Passenger Compartment Fuse Box
| Fuse No. / Type | Rating | Description |
|---|---|---|
| 1 (ATO) | 10A | Air Bag Warning Lamp, Air Conditioner |
| 2 (ATO) | 15A | Door Central Lock |
| 3 (ATO) | 10A | Stop Lamp |
| 3 (ATO) | 15A | Stop Lamp |
| 4 (ATO) | 10A | Hazard Lights |
| 4 (ATO) | 15A | Hazard Lights |
| 5 (ATO) | 30A | Rear Window Heater |
| 6 (ATO) | 15A | Sunroof, Rear Fog Lamp |
| 7 (ATO) | 15A | Seat Heater |
| 8 (ATO) | 15A | Wiper, Washer, ETACS |
| 9 (ATO) | 10A | Backup Lamp, Turn Signal Lamp |
| 10 (ATO) | 10A | ETACS, Instrument Cluster |
| 11 (ATO) | 10A | ABS |
| 12 (ATO) | 15A | Air Bag |
| 13 (ATO) | 15A | Cigarette Lighter, Courtesy Mirror, Clock |
| 14 (ATO) | 10A | Automatic Transmission (ATM), Interlock, Audio (Radio) |
| 15 (ATO) | 10A | ELC, ECT, Rear Fog Lamp |
| 16 (ATO) | 10A | Sunroof, Headlamp, Cruise Control |
| 17 (ATO) | 15A | Rear Wiper, Rear Washer |
| 18 (ATO) | Spare | Spare Fuse |
| 19 (ATO) | Spare | Spare Fuse |
| 20 (ATO) | Spare | Spare Fuse |

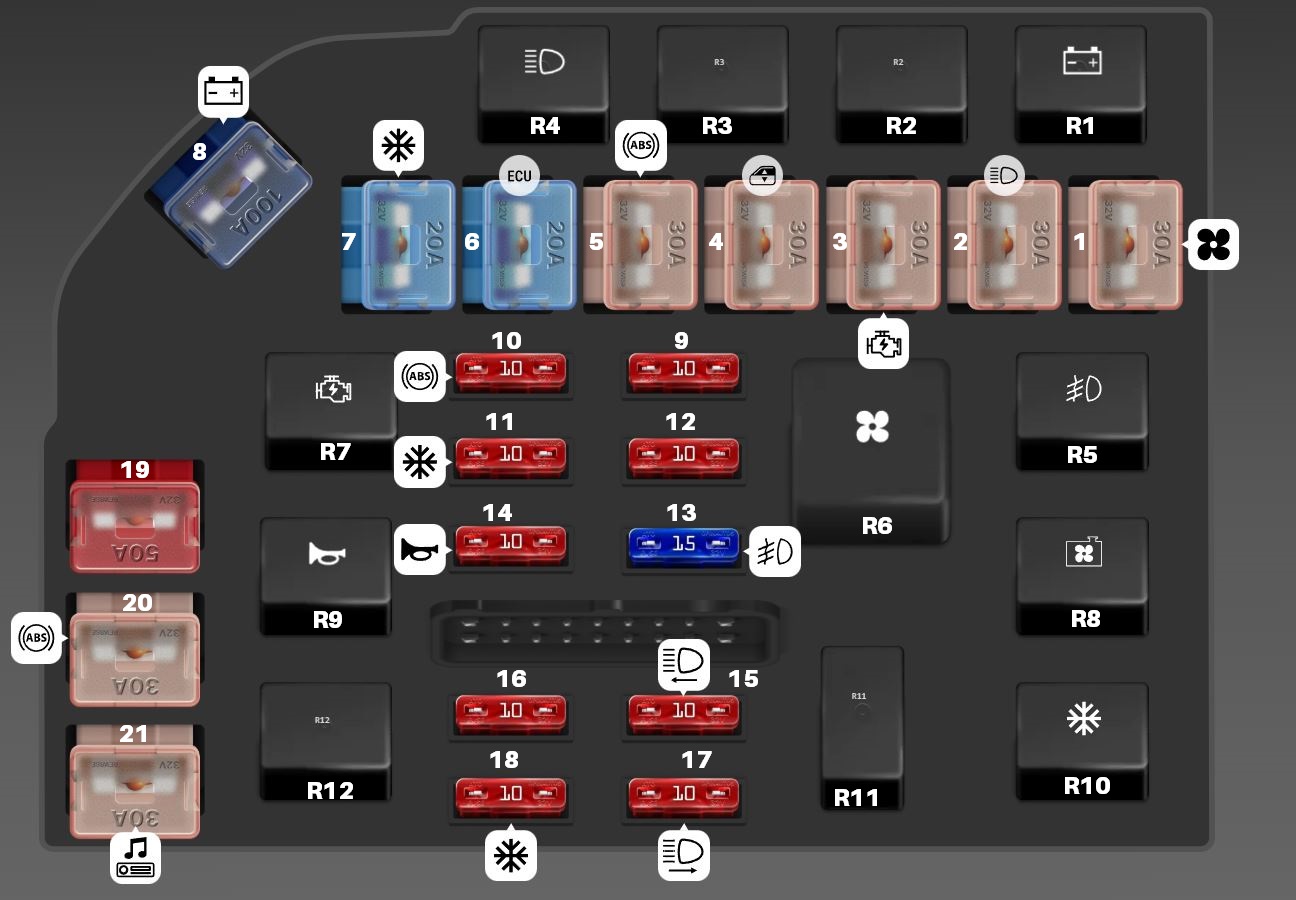

Engine Compartment Fuse Box
| Fuse No. / Type | Rating | Description |
|---|---|---|
| 1 (FLM) | 30A | AC Blower Motor |
| 2 (FLM) | 30A | Headlamps |
| 3 (FLM) | 30A | Ignition |
| 4 (FLM) | 30A | Power Windows |
| 5 (FLM) | 30A | Anti-lock Braking System (ABS) |
| 6 (FLM) | 20A | Engine Control Unit (ECU) |
| 7 (FLM) | 20A | Air Conditioning |
| 8 (FLM) | 100A | Alternator, Battery & Charging System |
| 9 (ATO) | 10A | Left Tail Light |
| 10 (ATO) | 10A | Anti-lock Braking System (ABS) |
| 11 (ATO) | 10A | Right Tail Light |
| 12 (ATO) | 10A | Air Conditioning |
| 13 (ATO) | 15A | Front Fog Lights |
| 14 (ATO) | 10A | Horn |
| 15 (ATO) | 10A | Left Headlight |
| 16 (ATO) | 10A | Anti-Theft System (Burg Alarm B+) |
| 17 (ATO) | 10A | Right Headlight |
| 18 (ATO) | 10A | Air Conditioning |
| 19 (FLM) | 50A | Battery Power (B+) |
| 20 (FLM) | 30A | Anti-lock Braking System (ABS) |
| 21 (FLM) | 30A | Audio System (Radio) |
