Isuzu Trooper (1984 & 1985) Fuse Box Location & Diagrams
The Isuzu Trooper (1984 & 1985) fuse box contains essential fuses that protect the vehicle’s electrical circuits. This blog covers the fuse box location, fuse assignments, and diagrams, helping you identify the correct fuse for various electrical components and systems.

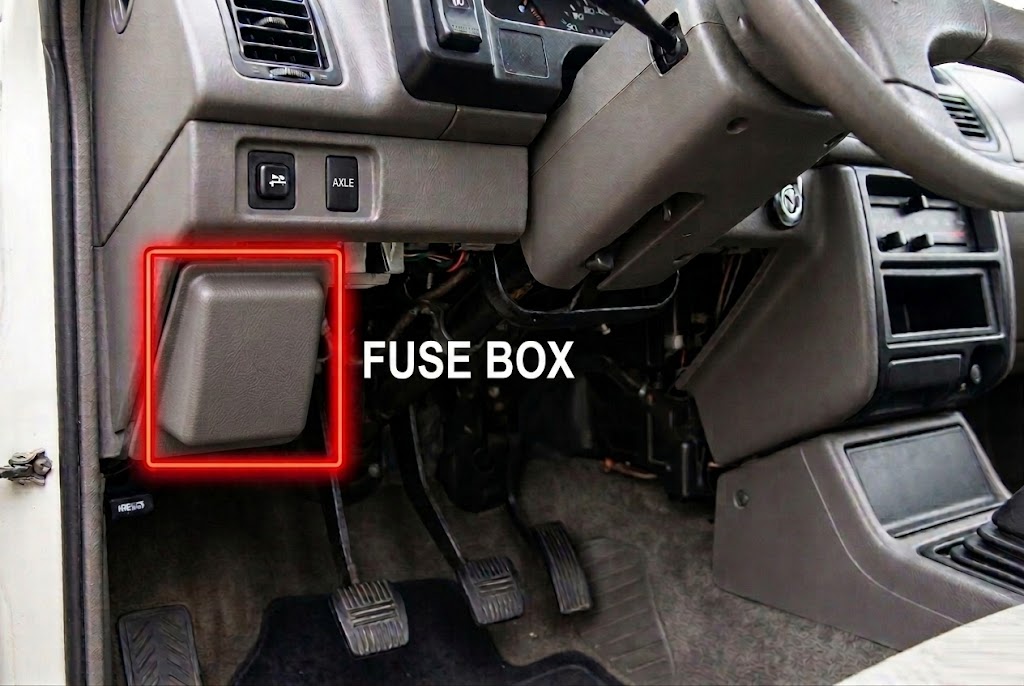

Fuse Box Location
Passenger Compartment Fuse Box
Located underneath the dashboard on the driver’s side.

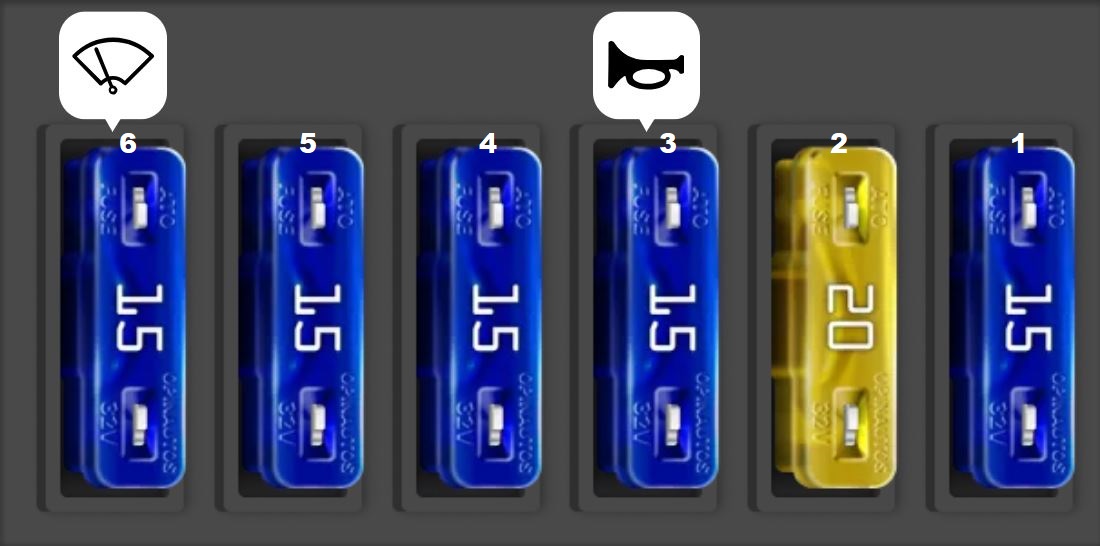

Fuse Box Diagrams
Passenger Compartment Fuse Box
| Type | No. | Description |
| Fuse ATO 15A | 1 | TAIL |
| Fuse ATO 20A | 2 | AIR CON |
| Fuse ATO 15A | 3 | HORN – CIGAR |
| Fuse ATO 15A | 4 | BACK TURN |
| Fuse ATO 15A | 5 | REGULATOR |
| Fuse ATO 15A | 6 | WIPER |
