Jaguar F-Pace (2017 – 2020) Fuse Box Location & Diagrams
The Jaguar F-Pace (2017–2020) fuse box protects essential electrical components, including lighting, power systems, and vehicle electronics. Understanding the fuse box locations and diagrams helps owners identify fuse positions, check circuit functions, and efficiently troubleshoot electrical problems affecting different systems.
Fuse Box Location

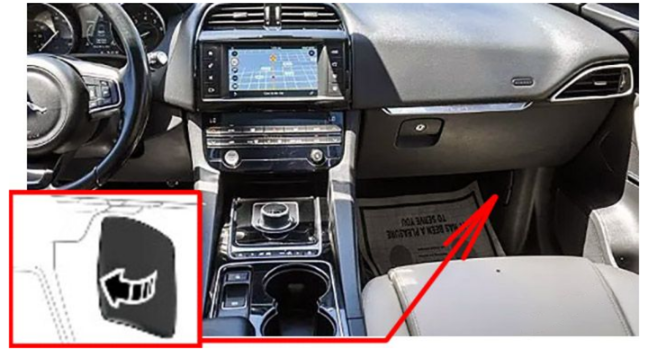

Passenger Compartment Fuse Box
The fuse panel is located on the right-side A-pillar, below the dashboard: Use a suitable tool to unclip and release the rearward edge of the panel. Pull to remove.

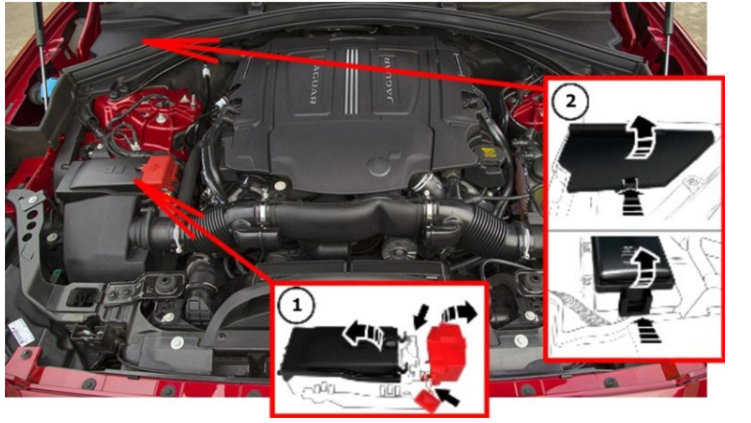

Engine Compartment Fuse Box
- Engine compartment front fuse box: Lift up the positive booster terminal cover. Press and hold the fuse box cover’s securing clips. Lift to open the cover.
- Engine compartment rear fuse box: Remove the under-hood cover. To do this, lightly press and hold the securing clip, then lift to release and pull to remove. Press and hold the fuse box cover’s securing clip. Lift to open the cover and pull to remove.

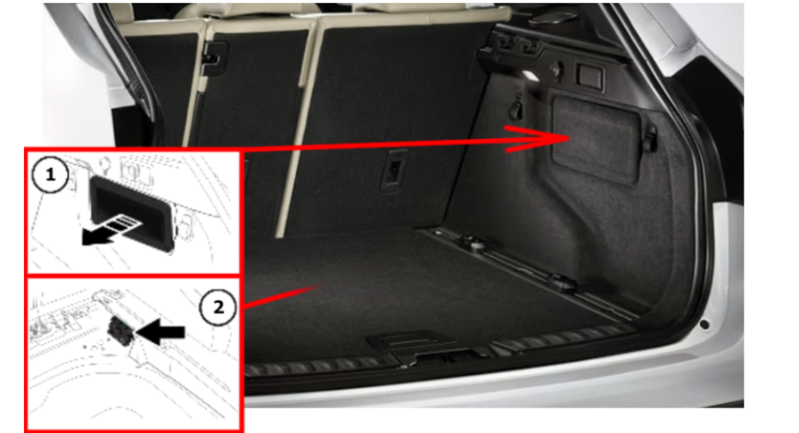

Luggage Compartment Fuse Box
- Luggage compartment upper fuse box: Remove the right-side luggage compartment access panel. To do this, pull on the rear edge of the access panel.
- Luggage compartment lower fuse box: Remove the luggage compartment floor panel and the spare wheel tool kit.
Fuse Box Diagrams

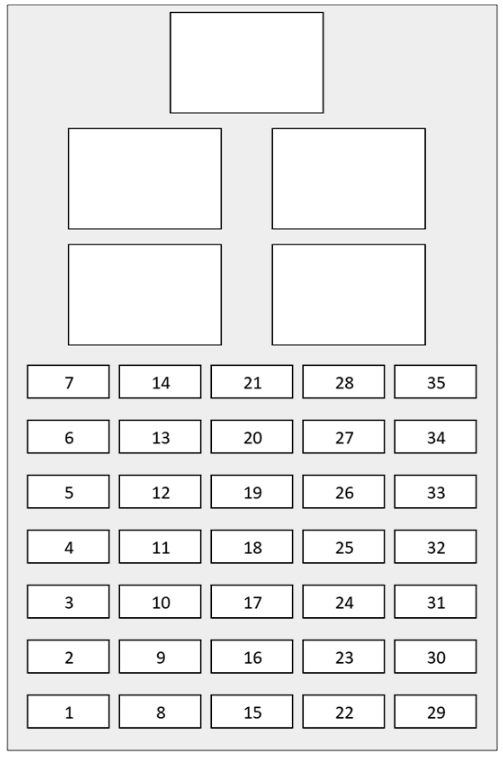

Passenger Compartment Fuse Box
| № | Amps | Circuit |
|---|---|---|
| 1 | 20A | Sunroof. |
| 2 | 5A | Brake pedal switch. |
| 3 | 5A | Immobilizer. |
| 4 | 5A | Diagnostic socket. |
| 5 | 5A | Battery back-up sounder. |
| 6 | 20A | Second row auxiliary power socket. |
| 7 | 20A | Cubby box auxiliary power socket. |
| 8 | 20A | Left-side front seat. |
| 9 | 20A | Right-side front seat. |
| 10 | 30A | Left-side front seat. |
| 11 | 30A | Right-side front seat. |
| 12 | 20A | 2017-2018: Side steps. |
| 13 | 20A | Front auxiliary power socket. |
| 14 | 20A | Rear seat recline. |
| 15 | – | – |
| 16 | 5A | 2017: Electrical supply. 2018-2020: Steering wheel module. |
| 17 | 5A | Door handles antenna. |
| 18 | 15A | Horns. |
| 19 | – | – |
| 20 | 20A | Driver’s heated or climate seat. |
| 21 | 20A | Front passenger’s heated or climate seat. |
| 22 | 25A | Right-side front door module. |
| 23 | 25A | Left-side rear door module. |
| 24 | 25A | Right-side rear door module. |
| 25 | 25A | Left-side front door module. |
| 26 | 2A | 2018-2020: Electronic toll road collection. |
| 27 | – | – |
| 28 | 10A | Steering angle sensor. |
| 29 | 5A | Passive entry. |
| 30 | 20A | Passive entry. |
| 31 | – | – |
| 32 | 5A | Tire Pressure Monitoring System (TPMS). |
| 33 | 15A | Air Conditioning (A/C). |
| 34 | 10A | USB socket. |
| 35 | – | – |
Engine Compartment Fuse Box

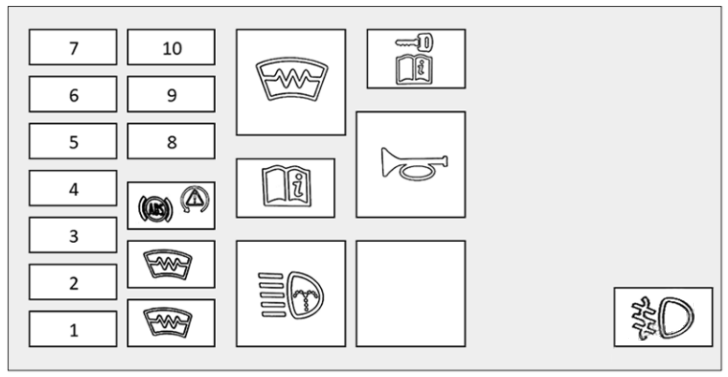

Fuse Box №1 Diagram
| № | Amps | Circuit |
|---|---|---|
| 1 | 5A | Left-side headlight motor. |
| 2 | 5A | Headlights. |
| 3 | 5A | Right-side headlight motor. |
| 4 | – | – |
| 5 | – | – |
| 6 | 30A | Headlight power wash. |
| 7 | – | – |
| 8 | – | – |
| 9 | 10A | Front fog lights. |
| 10 | 15A | Intercooler water pump. |

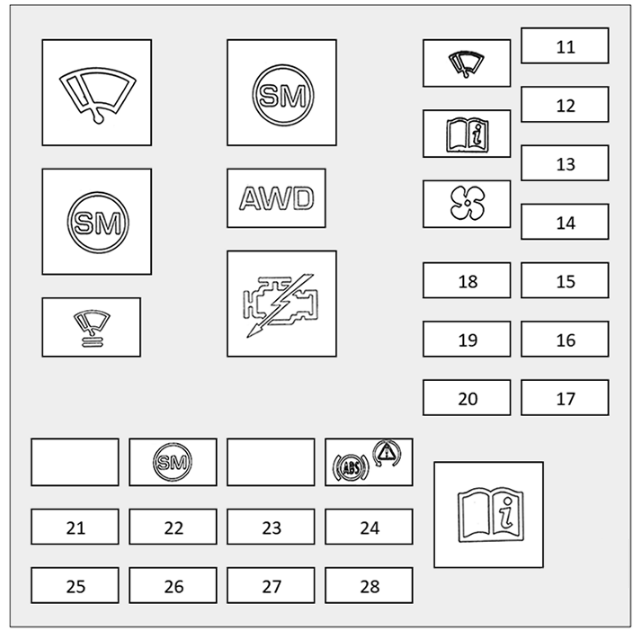

Fuse Box №2 Diagram
| № | Amps | Circuit |
|---|---|---|
| 11 | 15A | Engine management system. |
| 12 | 15A | Engine management system. |
| 13 | 10A | 2017: Gear selector. Fuel system. Engine management system. 2018-2020: Engine management system. |
| 14 | 10A/15A | Engine management system. |
| 15 | 10A | 2017: Engine cooling. Engine mounts. Engine management system. 2018-2020: Engine management system. |
| 16 | 25A | Engine management system. |
| 17 | 20A | Exhaust sensors. |
| 18 | 20A | Exhaust sensors. |
| 19 | 20A | Exhaust sensors (3.0L gasoline). |
| 20 | 20A | 2018-2020: Engine management system. |
| 21 | – | – |
| 22 | 5A | Intercooler water pump. |
| 23 | 5A | Engine management system. Starter motor monitor. Electrical power management. |
| 24 | 15A | Transmission control module. |
| 25 | 30A | Starter motor. |
| 26 | 5A | Engine management system. |
| 27 | 25A | Transfer box. |
| 28 | 30A | Fuel pump. |
Luggage Compartment Fuse Box

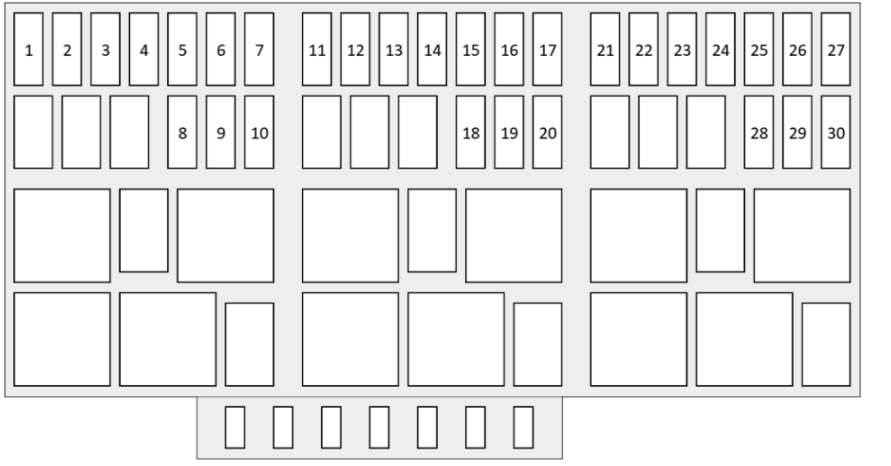

Fuse Box №1 Diagram
| № | Amps | Circuit |
|---|---|---|
| 1 | 20A | Luggage compartment auxiliary power socket. |
| 2 | 5A | Heated rear seats. |
| 3 | 20A | Left-side heated rear seat. |
| 4 | 20A | Right-side heated rear seat. |
| 5 | 10A | Adaptive dynamic suspension. Electronic differential. |
| 6 | 10A | Message center. |
| 7 | 5A | 2017: Electrical power management. |
| 8 | 25A | Trailer socket. |
| 9 | 10A | Diesel Exhaust Fluid (DEF). |
| 10 | 25A | Diesel Exhaust Fluid (DEF). |
| 11 | 10A | Rear-view mirror. Blind spot monitor. Camera. |
| 12 | 10A | Entertainment system. |
| 13 | 10A | Heated steering wheel. |
| 14 | 10A | Head-Up Display (HUD). |
| 15 | 5A | Camera. |
| 16 | – | – |
| 17 | 5A | Adaptive cruise control. |
| 18 | 20A | Trailer socket. |
| 19 | – | – |
| 20 | 10A | Telematics. |
| 21 | – | – |
| 22 | 15A | Driver’s door switches. Driver’s seat. Driver’s seat switches. Front passenger seat. |
| 23 | – | – |
| 24 | 20A | Rear auxiliary power socket. |
| 25 | – | – |
| 26 | 15A | Rear wiper. |
| 27 | 30A | Electrically deployable tow hitch. Trailer. |
| 28 | 30A | Fuel system. |
| 29 | 30A | Powered tailgate. |
| 30 | 5A | Diesel fuel pump. |

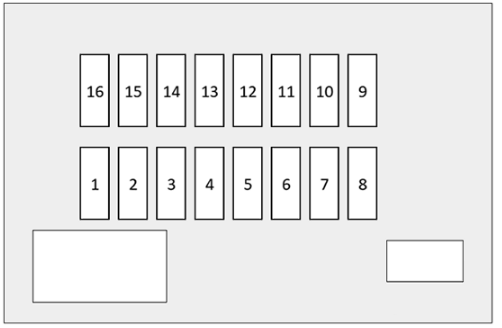

Fuse Box №2 Diagram
| № | Amps | Circuits protected |
|---|---|---|
| 1 | 15A | Touch screen. Climate control panel. |
| 2 | 10A | Audio amplifier. |
| 3 | 10A | 2018-2020: Gesture tailgate. |
| 4 | 10A | Navigation. |
| 5 | 15A | Audio head unit. |
| 6 | 15A | Portable media connector panel. |
| 7 | – | – |
| 8 | – | – |
| 9 | – | – |
| 10 | – | – |
| 11 | – | – |
| 12 | – | – |
| 13 | – | – |
| 14 | – | – |
| 15 | 15A | Heating and ventilation. |
| 16 | 20A | Auxiliary heater. |
