Jaguar F-Pace (2021 – 2026) Fuse Box Location & Diagrams
The Jaguar F-Pace (2021–2026) fuse box protects various electrical systems, including safety features, lighting, infotainment, and vehicle controls. Understanding the fuse box locations and diagrams helps owners locate specific fuses, identify their functions, and troubleshoot electrical issues quickly for better vehicle maintenance.
Fuse Box Location
Passenger Compartment Fuse Box

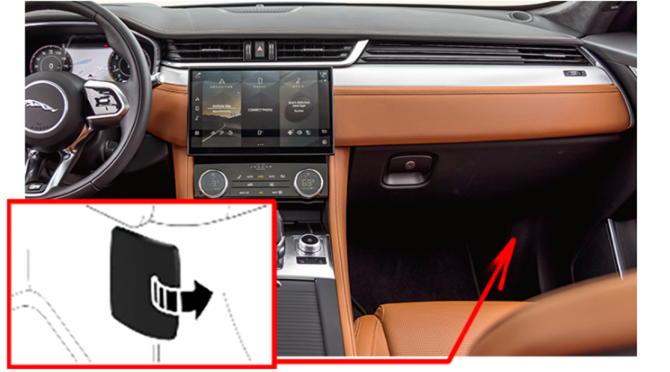

The fuse panel is located on the right-side A-pillar, below the fascia: Use a suitable tool to unclip and release the rearward edge of the panel. Pull to remove.
Engine Compartment Fuse Box

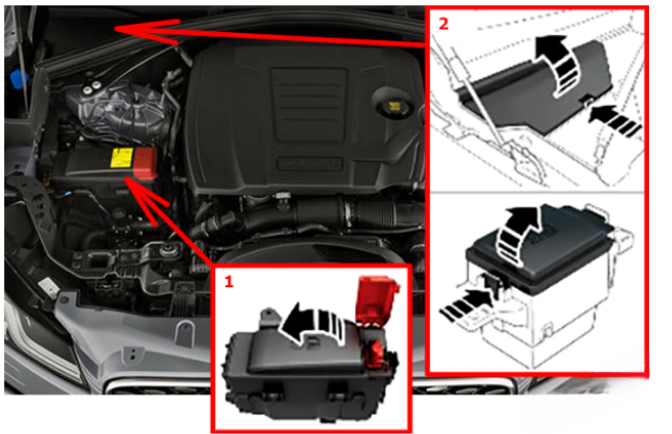

- Engine compartment front fuse box: Lift up the positive booster terminal cover. Press and hold the fuse box cover’s securing clips. Lift to open the cover.
- Engine compartment rear fuse box: Remove the under-hood cover. To do this, lightly press and hold the securing clip, then lift to release and pull to remove. Press and hold the fuse box cover’s securing clip. Lift to open the cover and pull to remove.
Luggage Compartment Fuse Box

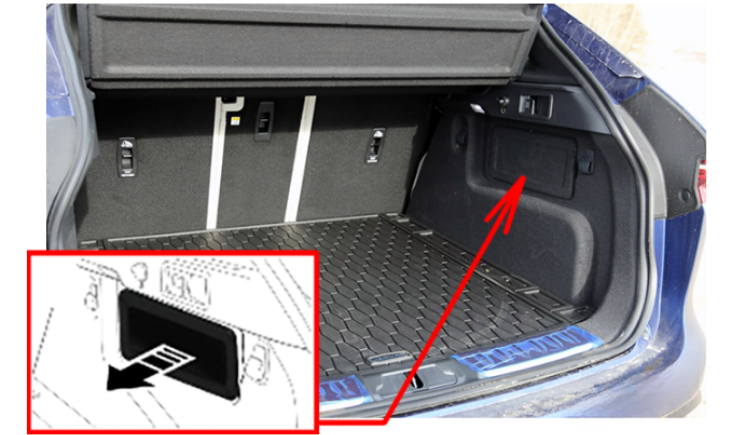

Remove the right-side luggage compartment access panel. To do this, pull on the rear edge of the access panel.
Fuse Box Diagrams

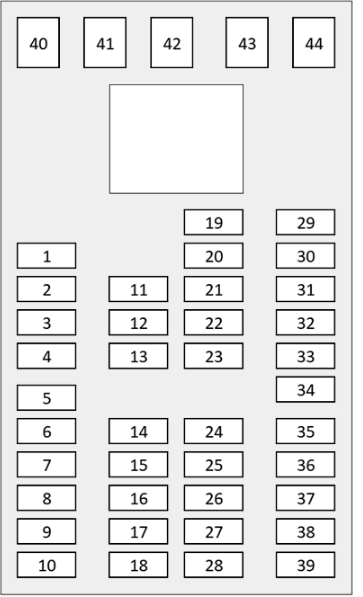

Passenger Compartment Fuse Box
| № | Amps | Circuit |
|---|---|---|
| 1 | – | – |
| 2 | – | – |
| 3 | 25A | Right-side rear door. |
| 4 | 25A | Right-side front door. |
| 5 | 20A | Sunroof. |
| 6 | – | – |
| 7 | 5A | Immobiliser antenna. |
| 8 | 5A | Diagnostic socket. |
| 9 | 5A | Battery back-up sounder. |
| 10 | – | – |
| 11 | 5A | Tyre Pressure Monitoring System (TPMS). |
| 12 | – | – |
| 13 | 25A | Left-side front door. |
| 14 | 20A | Rear seat. |
| 15 | 30A | Right-side front seat. |
| 16 | 30A | Left-side front seat. |
| 17 | 20A | Right-side front seat. |
| 18 | 20A | Left-side front seat. |
| 19 | 20A | Cubby box USB socket. |
| 20 | 20A | Second row USB socket. |
| 21 | 20A | Front auxiliary power socket. |
| 22 | 10A | Wireless charging. |
| 23 | 25A | Left-side rear door. |
| 24 | 15A | Horns. |
| 25 | 5A | Radio Frequency (RF) receivers. |
| 26 | 5A | Steering wheel controls. |
| 27 | – | – |
| 28 | 5A | Electronic road pricing. |
| 29 | – | – |
| 30 | – | – |
| 31 | 10A | Heated steering wheel. |
| 32 | 20A | Left-side front heated or climate seat |
| 33 | 20A | Right-side front heated or climate seat |
| 34 | 5A | Ioniser. |
| 35 | 5A | Keyless entry. |
| 36 | – | – |
| 37 | – | – |
| 38 | 20A | Keyless entry. |
| 39 | 5A | Driver assistance systems. |
| 40 | – | – |
| 41 | – | – |
| 42 | – | – |
| 43 | – | – |
| 44 | – | – |
Engine Compartment Fuse Box

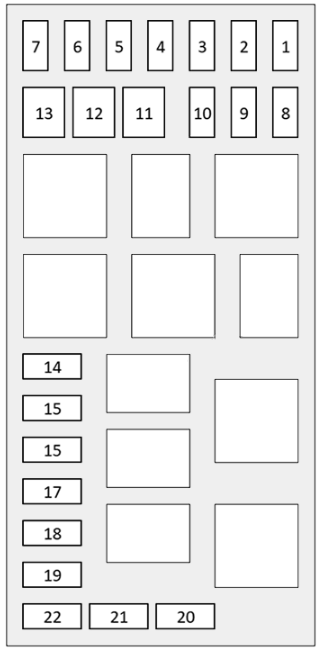

Fuse Box №1
| № | Amps | Circuit |
|---|---|---|
| 1 | 25A | Left-side headlight. |
| 2 | 25A | Right-side headlight. |
| 3 | 5A | Driver assistance systems. |
| 4 | 5A | Hybrid systems. |
| 5 | – | – |
| 6 | – | – |
| 7 | – | – |
| 8 | 30A | Headlight washers. |
| 9 | 10A | Transmission cooling. |
| 10 | 15A | Engine cooling. |
| 11 | 60A | 2021: Anti-lock Braking System (ABS). |
| 12 | 40A | 2021: Heated front screen: Right side. |
| 13 | 40A | 2021: Heated front screen: Left side. |
| 14 | – | – |
| 15 | 10A | Front fog lights. |
| 16 | 15A | 2021: Hybrid system cooling. |
| 17 | 15A | 2022-2026: Hybrid system cooling. |
| 18 | 15A | 2021: Hybrid system cooling. |
| 19 | 15A | 2022-2026: Hybrid system cooling. |
| 20 | 40A | 2021: Glow plugs. |
| 21 | 40A | 2021: Glow plugs. |
| 22 | – | – |

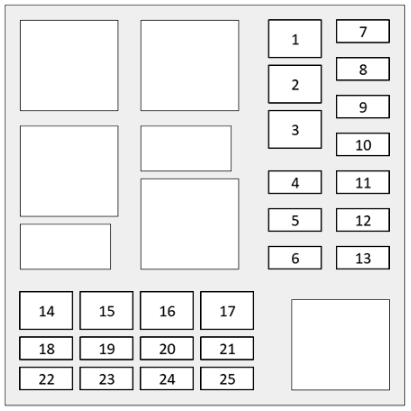

Fuse Box №2
| № | Amps | Circuit |
|---|---|---|
| 1 | 30A | 2021: Windscreen wipers. |
| 2 | 40A | 2021: Engine management system. |
| 3 | 20A | 2021: Rear blower motor. |
| 4 | 20A | Engine management system. |
| 5 | 20A | Engine management system. |
| 6 | – | – |
| 7 | 10A | Engine management system. |
| 8 | 10A | Engine management system. |
| 9 | 10A | Engine management system. |
| 10 | 10A | Engine cooling. |
| 11 | 10A | Engine cooling. |
| 12 | 25A | Engine management system: Petrol vehicles. |
| 13 | 20A | Diesel Exhaust Fluid (DEF). |
| 14 | 40A | 2021: Transmission. |
| 15 | 40A | 2021: Starter motor. |
| 16 | – | – |
| 17 | 60A | 2022-2026: Anti-lock Braking System (ABS). |
| 18 | 15A | Engine management system. |
| 19 | 5A | Engine cooling. |
| 20 | 5A | Engine starting. |
| 21 | 15A | Transmission. |
| 22 | – | – |
| 23 | 5A | Hybrid systems. |
| 24 | 25A | All Wheel Drive (AWD). |
| 25 | – | – |

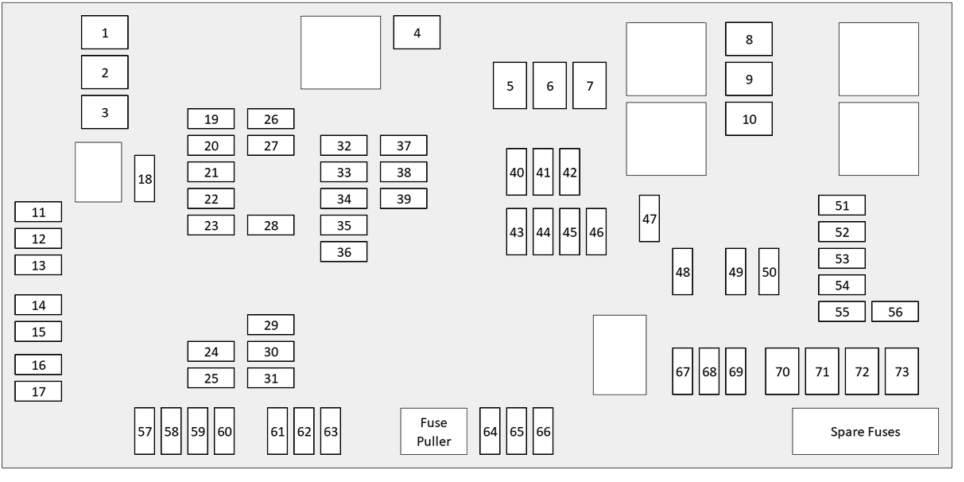

Luggage Compartment Fuse Box
| № | Amps | Circuit |
|---|---|---|
| 1 | – | – |
| 2 | – | – |
| 3 | – | – |
| 4 | – | – |
| 5 | – | – |
| 6 | – | – |
| 7 | – | – |
| 8 | – | – |
| 9 | – | – |
| 10 | – | – |
| 11 | 5A | Climate and comfort systems. |
| 12 | 20A | Left-side rear heated seat. |
| 13 | 20A | Right-side rear heated seat. |
| 14 | 15A | Chassis control systems. |
| 15 | 5A | Heated rear seats. |
| 16 | 5A | Acoustic Vehicle Alert System (AVAS). |
| 17 | – | – |
| 18 | 15A | Rear wiper. |
| 19 | 5A | Blind spot monitor. |
| 20 | – | – |
| 21 | 15A | Seats. |
| 22 | – | – |
| 23 | – | – |
| 24 | 5A | Telematics. |
| 25 | – | – |
| 26 | 20A | Loadspace USB socket. |
| 27 | 20A | Centre console rear USB socket. |
| 28 | 5A | Adaptive cruise control radar. |
| 29 | 15A | Climate and comfort systems. |
| 30 | 20A | Auxiliary heater. |
| 31 | – | – |
| 32 | – | – |
| 33 | 2A | Electronic toll charge. |
| 34 | 10A | Interior mirror. |
| 35 | – | – |
| 36 | 5A | Forward facing camera. |
| 37 | – | – |
| 38 | 10A | Instrument panel. |
| 39 | 10A | Head-Up Display (HUD). |
| 40 | 10A | Gesture tailgate. |
| 41 | – | – |
| 42 | 10A | Climate and comfort systems. |
| 43 | – | – |
| 44 | 15A | Touchscreen. |
| 45 | 10A | Audio/video input/output. |
| 46 | 10A | Touchscreen. |
| 47 | 30A | Fuel pump. |
| 48 | 25A | Diesel Exhaust Fluid (DEF). |
| 49 | – | – |
| 50 | – | – |
| 51 | – | – |
| 52 | – | – |
| 53 | – | – |
| 54 | – | – |
| 55 | – | – |
| 56 | – | – |
| 57 | 15A | Hybrid system. |
| 58 | 10A | Proximity sensors. |
| 59 | 30A | Powered tailgate. |
| 60 | – | – |
| 61 | 10A | Hybrid system. |
| 62 | – | – |
| 63 | 15A | Hybrid system cooling. |
| 64 | – | – |
| 65 | 10A | Diesel Exhaust Fluid (DEF). |
| 66 | – | – |
| 67 | 15A | Trailer socket: Ignition. |
| 68 | 15A | Trailer socket: Battery. |
| 69 | 30A | Deployable side steps. |
| 70 | – | – |
| 71 | 30A | Trailer socket. |
| 72 | – | – |
| 73 | – | – |
