The KIA Carnival (2021–2026) features multiple fuse boxes that protect essential electrical systems throughout the vehicle. This article provides fuse box locations, detailed fuse diagrams, and fuse assignments to help you quickly identify the correct fuse for troubleshooting, maintenance, or replacing a blown fuse with confidence.

Fuse Box Locations

Passenger Compartment Fuse Box

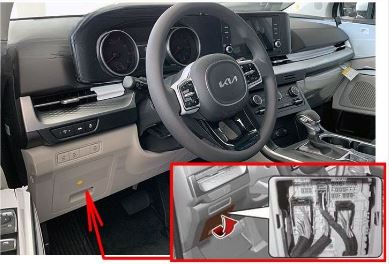

The fuse box is located in the driver’s side panel bolster. Open the fuse panel cover.

Passenger Compartment Fuse Box Location

Engine Compartment Fuse Box

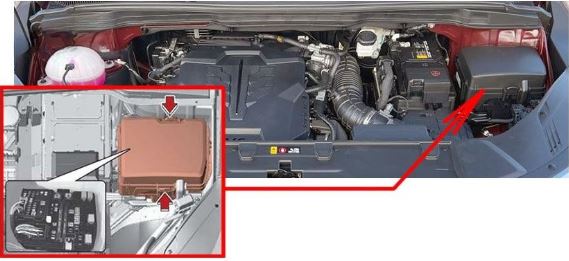

The fuse box is located in the engine compartment near the battery. Remove the fuse panel cover by pressing the tab and pulling the cover up.

Engine Compartment Fuse Box Location

Fuse Box Diagrams

Passenger Compartment Fuse Box

KIA Carnival (2021 – 2024)

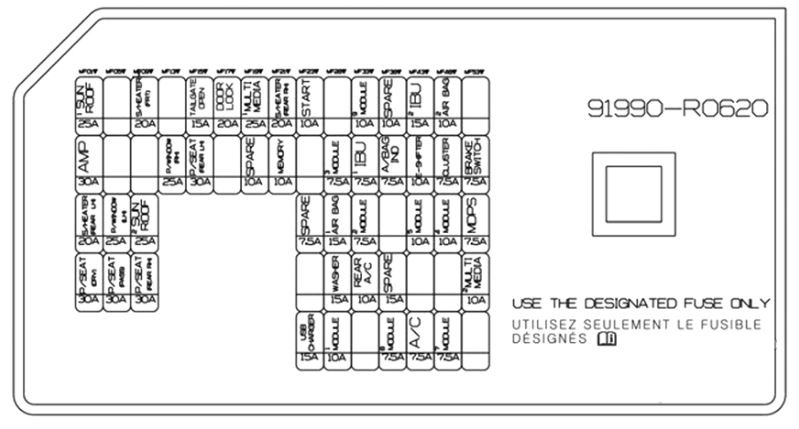

Passenger Compartment Fuse Box Diagram 2022-2024

№AmpsCircuit Protected
SUNROOF 125AFront Sunroof Motor
AMP30ABOSE AMP (Amplifier)
S/HEATER (REAR LH)20A2nd Seat Left Handle side Air Ventilation Control Module, 2nd Seat Warmer Control Module
P/SEAT (DRV)30ADriver IMS (Integrated memory system) Control Module, Driver Power Seat Switch
P/WINDOW (LH)25ADriver Safety Power Window Module, Rear Power Window Switch Left Handle side, Rear Safety Power Window Module Left Handle side
P/SEAT (PASS)30APassenger Walk-In Module, Passenger Power Seat Switch
S/HEATER (FRT)20AFront Air Ventilation Seat Control Module, Front Seat Warmer Control Module
SUNROOF 225ARear Sunroof Motor
P/SEAT (REAR RH)30A2nd Seat Right Handle side Relax Module
P/WINDOW (RH)25APassenger Power Window Switch, Passenger Safety Power Window Module, Rear Power Window Switch Right Handle side, Rear Safety Power Window Module Right Handle side
TAILGATE OPEN15ATailgate Open Relay
P/SEAT (REAR LH)30A2nd Seat Left Handle side Relax Module
DOOR LOCK20ADoor Lock Relay, Door Unlock Relay, FUEL FILLER OPENER
MULTIMEDIA 125AAudio, Audio/Video & Navigation Head Unit, Fuse – MULTIMEDIA2
S/HEAT (REAR RH)20A2nd Seat Warmer Control Module, 2nd Seat Right Handle side Air Ventilation Control Module
MEMORY10AFront/Rear Air Conditioner Control Module, Front Air Conditioner Control Panel, Instrument Cluster, Rear Seat Multimedia Monitor Left Handle side/Right Handle side, Driver/Passenger Power Outside Mirror, Driver IMS (Integrated memory system) Control Module, Power Tailgate Module, Rear Occupant Alert (ROA) Sensor #1 /#2
START10AW/O Smart Key: Ignition Switch
USB CHARGER15ALuggage USB Charger Left Handle side, Luggage USB Charger Unit, Driver Seat USB Jack, Passenger Seat USB Jack
MODULE 37.5AIBU (Integrated Body Control Unit), ADAS Unit, Lane Departure Warning (LDW) Camera, Crash Pad Switch, Electric Parking Brake Switch, Front Upper Console Switch, Auto Transmission Shift Lever Indicator, Rear Radar Left Handle side/Right Handle side
AIR BAG115ASRS (Supplemental Restraint System) Control Module (IG1), Passenger Occupant Detection Sensor
WASHER15AMultifunction Switch (IG2)
MODULE 110AIBU (Integrated Body Control Unit), Audio, Audio/Video & Navigation Head Unit, Keyboard, ADAS Unit, Front Tray Power Outlet Left Handle side/Right Handle side, AMP (Amplifier) (BOSE), Rear Seat Multimedia Monitor Left Handle side/Right Handle side
MODULE 910AData Link Connector, Hazard Switch, Crash Pad Switch, Auto Transmission Shift Lever, Crash Pad Switch (Lower), Driver Door Module, 2nd Seat Left Handle side/Right Handle side Relax Module, Driver/Passenger Door Outside Handle, Driver/Passenger Door Outside Handle Antenna
IBU 17.5AIBU (Integrated Body Control Unit) (IG1)
MODULE 27.5AStop Lamp Switch
REAR A/C10ARear Air Conditioner Control Module, E/R Junction Block (Blower RR Relay)
A/BAG IND7.5AInstrument Ouster, AIR BAG (TELLTALE LAMP)
MODULE 87.5AAC Inverter Module, AC Inverter (Rear/Luggage), E/R Junction Block (W/S Heated Glass 1/2 Relay), Front Air Ventilation Seat Control Module, 2nd Seat Left Handle side/Right Handle side Air Ventilation Control Module, 2nd Seat Warmer Control Module, 2nd Seat Left Handle side/Right Handle side Relax Module
IBU215AIBU (Integrated Body Control Unit) (B+)
E-SHIFTER10AWith SBW: Electronic Auto Transmission Shift Lever Switch
MODULE 510AOverhead Console Indicator
A/C7.5AFront Air Conditioner Control Module, Front Air Conditioner Control Panel
AIR BAG 210ASRS (Supplemental Restraint System) Control Module (B+)
CLUSTER7.5AInstrument Cluster (IG1)
M0DULE 410AData Link Connector, Audio, Audio/Video & Navigation Head Unit, Keyboard, Wireless Charger, Electro Chromic Mirror, Front/Rear Air Conditioner Control Module, Front Air Conditioner Control Panel, Rear Power Window Switch Left Handle side/Right Handle side, Right Handle side Overhead Console, Rear Safety Power Window Switch Left Handle side/ Right Handle side, Driver IMS (Integrated memory system) Control Module, 2nd Seat Left Handle side/Right Handle side Relax Module, Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module, 2nd Seat Warmer Control Module, 2nd Seat Left Handle side/ Right Handle side Air Ventilation Control Module
MODULE 77.5AIBU (Integrated Body Control Unit) (IG2)
BRAKE SWITCH7.5AIBU (Integrated Body Control Unit), Stop Lamp Switch
MDPS7.5AMDPS Unit (MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering)).
MULTIMEDIA 210AW/O BOSE AMP: Audio/Video & Navigation Head Unit
KIA Carnival (2025 – 2026)

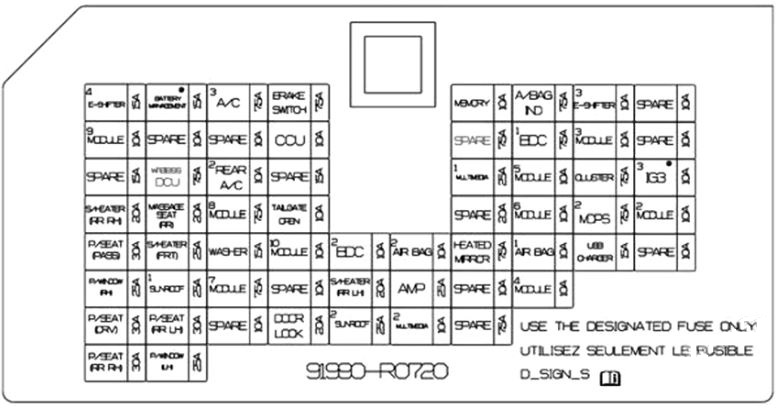

Passenger Compartment Fuse Box Diagram 2025-2026

Fuse NameAmpCircuit Protected 1
E-SHIFTER 415ASCU (Shift-by-wire Control Unit) (B+)
BATTERY MANAGEMENT15AHEV: BMS (Battery Management System) (B+)
A/C 37.5ADATC (Dual Automatic Temperature Control), MTC (Manual Temperature Control), Engine Room Junction Block (Front Blower Relay, PTC Heater2 Relay)
BRAKE SWITCH7.5ABDC (Body Domain Controller), Stop Lamp Switch
MEMORY10AInstrument Cluster, DATC (Dual Automatic Temperature Control), MTC (Manual Temperature Control), Advanced Driver Assistance Systems Parking ECU, Crash Pad Switch, Console Switch (Upper), Built-in Cam Unit, Rear A/C Control Switch, Mood Lamp Module, BDC (Body Domain Controller)
A/BAG IND7.5APassenger Airbag Indicator (IG1)
E-SHIFTER 310ASCU (Shift-by-wire Control Unit) (IG1)
SPARE10ANot Used
MODULE 910AETCS (Electronic Toll Collection System), Key Inter Lock Solenoid, FRONT TRAY USB INDICATOR, Hazard Switch, ATM (Automatic Transmissionjshift dial, Rain Sensor
SPARE10ANot Used
SPARE10ANot Used
CCU10ACCU (Central Communication Unit)
SPARE7.5ANot Used
BDC17.5ABDC (Body Domain Controller) (IG1)
MODULE 310ADCU (Data Connectivity Unit), CCU (Central Communication) Unit, DAU (Door Area Unit)
SPARE10ANot Used
SPARE15ANot Used
Wireless DCU7.5ADCU (Data Connectivity Unit) (B+)
REAR A/C 210ADATC (Dual Automatic Temperature Control), MTC (Manual Temperature Con trol), Engine Room Junction Block (Rear Blower Relay)
SPARE15ANot Used
MULTIMEDIA25ACCNC (Connected Car Navigation Cockpit)
MODULE 510AETCS (Electronic Toll Collection System), I_S_MIRR_DCM (Digital Center Mirror), I_S_MIRR_ECM (Electronic Chromic Mirror), DATC (Dual Automatic Temperature Control), MTC (Manual Temperature Control), CCNC (Connected Car Navigation Cockpit), Built-in Cam Unit, FRONT TRAY WIRELESS CHARGER, Front Console (FPM Finger Print Module), Power Window Switch RL/RH, AMP (Amplifier) (BOSE), Head Lamp Module LH/RH
CLUSTER7.5AInstrument Cluster, HUD (Head-Up Display)
IG3 310AHEV: CCU (Central Communication Unit) (IG3)
REAR RH S/HEAT20A2nd Seat Warmer Control Module, 2nd Seat RH Air Ventilation Control Module
REAR MASSAGE SEAT20A2nd Seat Massage Module
MODULE 87.5AAC Inverter Module, AC Inverter (Rear), Engine Room Junction Block (Windshield Heated Glass 1/2 Relay), Powemet Domain Controller extended, 20AH (20HR) [BATTERY LITHIUM TYPE-SUB]
TAIL GATE10ATail Gate Open Relay
SPARE20ANot Used
MODULE 610AOverhead Console Indicator, Powemet Domain Controller extended
MDPS 27.5AMDPS (Motor Driven Power Steering)
MODULE 210AAMP (Amplifier) (BOSE), Air Cleaner, DCU (Data Connectivity Unit), Advanced Driver Assistance Systems Parking ECU, Built-in Cam Unit, BDC (Body Domain Controller), CCNC (Connected Car Navigation Cockpit), CCNC Keyboard Switch
PASSENGER P/SEAT30APassenger Walk-In Module, Passenger Power Seat Switch
FRONT S/HEAT25AFront Seat Warmer Control Module, Front Seat Air Ventilation Control Module
WASHER15AMulti Function Switch
MODULE 1010APower Tail Gate Module, Driver/Passenger Door Outside Handle Antenna, Front Air Ventilation Seat Control Module, 2nd Seat LH/RH Relax Module
BDC 210ABDC (Body Domain Controller) (B+), DAU (Door Area Unit), Driver/Passenger Door Outside Handle Antenna, Ultra Wide Band & Bluetooth Low Energy MASTER/ SLAVE, Ultra Wide Band Front LH/RH, Ultra Wide Band Rear LH/RH
AIR BAG 210AACU (Airbag Control Unit), ODS (Occupant Detection System)
HEATED MIRROR7.5ADriver/Passenger Outside Handle
AIR BAG 110AAirbag Control Unit (IG1)
USB CHARGER15ADriver/Passenger Seat USB Charger, Luggage USB Charger LH, Luggage USB Charger Unit, FRONT TRAY USB CHARGER
SPARE10ANot Used
PASSENGER P/WINDOW25ARear Power Window Switch RH, Rear Safety Power Window Module RH, Passen ger Power Window Switch, Passenger Safety Power Wndow Module
SUNROOF 125AFront Sunroof Motor
MODULE 77.5ABDC (Body Domain Controller) (IG2)
SPARE10ANot Used
REAR LH S/HEAT20A2nd Seat Warmer Control Module, 2nd Seat LH Air Ventilation Control Module
AMP25AAMP (Amplifier) (BOSE)
SPARE10ANot Used
MODULE 410ACrash Pad Switch, Advanced Driver Assistance Systems Parking ECU, Front/Rear Corner Radar LH/RH, Front View Camera, Console Switch (Upper)
DRIVER P/SEAT30ADriver IMS (Integrated Memory System) Control Module, Driver Power Seat Switch
REAR LH P/SEAT30A2nd Seat LH Relax Module
SPARE10ANot Used
DOOR LOCK20ADoor Lock Relay, Door Unlock Relay, FUEL FILLER OPENER
SUNROOF 225ARear Sunroof Motor
MULTIMEDIA 210ACCRC (Connected Car Rear Cockpit)
SPARE7.5ANot Used
REAR RH P/SEAT30A2nd Seat RH Relax Module
DRIVER P/WINDOW25ARear Power Window Switch LH, Rear Safety Power Window Module LH, Driver Power Window Switch, Driver Safety Power Window Module

Engine Compartment Fuse Box

KIA Carnival (2021 – 2024)

Engine Compartment Fuse Box Diagram 2022-2024

№AmpsCircuit Protected
COOLING FAN80ACooling Fan Motor
W/S HEATED GLASS 150AW/S Heated Glass 1 Relay
B+450AICU Junction Block (Fuse – SUNROOF 1, AMP, P/WINDOW (RH), S/HEATER (FRT), P/SEAT (REAR LH))
W/S HEATED GLASS 250AW/S Heated Glass2 Relay
B+550AICU Junction Block (Fuse – SUNROOF2, P/WINDOW (LH), S/HEATER (REAR LH), P/SEAT (DRV), P/SEAT (PASS), P/SEAT (REAR RH))
PSD 240APower Sliding Door Module
ESC 140AESC (Electronic Stability Control) Module
POWER TAILGATE30APower Tailgate Module
MDPS100AMDPS Unit (Motor Driven Power Steering – is the same as EPS).
B+660APCB Block (Engine Control Relay, Wiper On Relay, Fuse – IG1, IG2, HORN B/ALARM HORN ECU 1, A/C2
ESC 260AESC (Electronic Stability Control) Module
POWER OUTLET 140APower Outlet Relay
PSD 140APower Sliding Door Module
E-SHIFTER 130AWith SBW: SCU (Shift by wire Control Unit)
REAR HEATED40AREAR HEATED Relay
BLOWER RR40ABLOWER RR Relay
B+350AICU Junction Block (IPS3/IPS4/IPS6/IPS7/IPS8)
BLOWER FRT40ABLOWER FRT Relay
B+250AICU Junction Block (IPS 1 /IPS2/IPS5/IPS9/IPS10)
B+140AICU Junction Block (Long Term Load Latch Relay, Fuse – AIR BAG2, START, MODULE9, TAILGATE OPEN, IBU2, BRAKE SWITCH, DOOR LOCK, S/HEATER (REAR RH))
INVERTER40AAC Inverter Module
TRAILER30ATrailer Connector
FUEL PUMP20AFUEL PUMP Relay
E-SHIFTER 210AWith SBW: SCU (Shift by wire Control Unit), Electronic Auto Transmission Shift Lever Switch
POWER OUTLET 420ARear Power Outlet
POWER OUTLET 320AFront Power Outlet
TCU215ATCM (Transmission Control Module)
DOOR LOCK RR LH10APCB Block (Rear Door LH Lock/Unlock Relay)
AMS10ABattery Sensor
TCU 115ATCM (Transmission Control Module)
REAR A/C10ARear Air Conditioner Control Module
W/S HEATED GLASS 310AFront Air Conditioner Control Module, Front Air Conditioner Control Panel
HEATED MIRROR10ADriver/Passenger Power Outside Mirror, Front Air Conditioner Control Module, Front Air Conditioner Control Panel
A/C 110AFront Air Conditioner Control Module
IG140AIG1 Relay, ACC Relay
IG240AIG2 Relay, E/R Junction Block (START 1 Relay)
WIPER FRT 27.5AIBU (Integrated Body Control Unit), ECM (Engine Control Module)
SENSOR 620AECM (Engine Control Module)
SENSOR 120AIgnition Coil #1 /#2/#3/#4/#5/#6
SENSOR 810ANot Used
ECU 210AECM (Engine Control Module)
SENSOR 510AE/R Junction Block (FUEL PUMP Relay)
MODULE7.5AFront Radar Unit
SENSOR 920AECM (Engine Control Module)
SENSOR 320AECM (Engine Control Module)
SENSOR 215AOxygen Sensor #3
WIPER FRT 130AFront Wiper (Low) Relay, Front Wiper Motor
WIPER RR15ARear Wiper Relay, Rear Wiper Motor
HORN15AHorn Relay
A/C210AAir Conditioner Compressor Relay
B/ALARM HORN15ABurglar Alarm Horn Relay
E-SHIFTER 37.5AWith SBW: SCU (Shift by wire Control Unit)
TCU 310ATCM (Transmission Control Module)
SENSOR 410AAir Conditioner Compressor Relay, Cooling Fan Motor, Oxygen Sensor #1 /#2/#4, Purge Control Solenoid Valve, Canister Closer Valve, Variable Oil Pump Solenoid, Variable Intake Solenoid Valve, Oil Control Valve #1 / #2/#3/#4 (Intake/Exhaust)
SENSOR 715AInjector #1 /#2/#3/#4/#5/#6 (MPI)
ECU 115AECM (Engine Control Module)
ESC 37.5AESC (Electronic Stability Control) Module
POWER OUTLET 220ALuggage Power Outlet
KIA Carnival (2025 – 2026)
Non-Hybrid

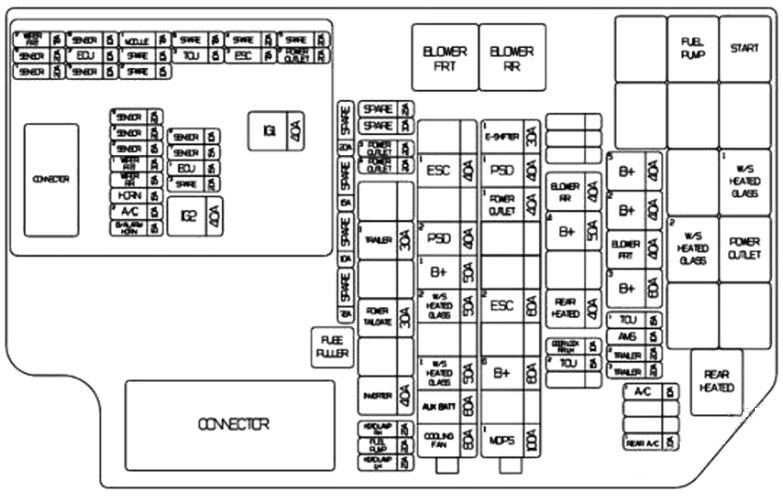

Engine Compartment Fuse Box Diagram 2025-2026 Non Hybrid

Fuse NameAmpCircuit Protected
COOLING FAN80ACooling Fan Motor
AUX BATT60AParking Lithium Battery
W/S HEATED GLASS 150AFront Heated Glass LH
PTC HEATER 250APositive Temperature Coefficient Heater 2
W/S HEATED GLASS 250AFront Heated Glass RH
B+150APDC JUNCTION BLOCK (IPS)
PSD 240APower Sliding Door 2
FUEL HEATER40AFuel Heater Relay
ESC 140AECS1 (Electronically Controlled Suspension)
SPARE30ANOT USED
MDPS 1100AMDPS Unit (Motor Driven Power Steering Unit)
SPARE80ANOT USED
B+660APOWER (AFTER MAIN RELAY)
GLOW60ASmartstream D2.2: Glow Control Unit
ESC 260AECS2 (Electronically Controlled Suspension)
PTC HEATER 150APositive Temperature Coefficient Heater 1
DCU 140ADCU (Data Connectivity Unit)
POWER OUTLET 140APOWER OUTLET 3, POWER OUTLET 4
PSD 140APower Sliding Door 1
E-SHIFTER 130ASCU (Shift-by-wire Control Unit)
B+360APDC JUNCTION BLOCK (E-SHIFTER, P/SEAT RH, P/SEAT DRV, P/SEAT PASS, P/WINDOW LH, P/WINDOW RH, S/HEATER RH, S/HEATER FRT, P/SEAT REAR LH, SUNROOF, S/HEATER REAR RH, MASSAGE SEAT RR, WIRELESS DCU, CUPHOLER FRT, MODULE9
FRONT BLOWER40AFront Blower Motor
B+240APDC JUNCTION BLOCK (IPS)
B+540APDC JUCTION BLOCK (AMP, AIG BAG2, MODULE10, MULTIMEDIA2, CUPHOLDER REAR)
REAR BLOWER40ARear Blower Motor
B+450APDC JUNCTION BLCOK (LONG TERM LATCH RELAY, SHORT TERMLOAD, BDC2, BRAKE SWITCH, SUNROOF2, S/HEATER RR LH, DR LOCK, TAILGATE LATCH)
SPARE50ANOT USED
REAR HEATED40AREAR HEATED GLASS, O/S MIRROR HEATED GLASS
INVERTER40AInverter
SPARE20ANOT USED
POWER TAILGATE30APower Tail Gate Module
SPARE30ANOT USED
TRAILER 130ATrailer Connector
SPARE30ANOT USED
HEAD AMP RH25AHead Lamp Module RH
AMS10A12V Battery Sensor
TCU 215ATRANSMISSION CONTROL UNIT
DOOR LOCK RR LH10ADOOR LOCK REAR LH
SPARE20ANOT USED
FUEL PUMP20AFuel Pump Relay
HEAD LAMP LH25AHead Lamp Module LH
TRAILER 220ATrailer Connector
TCU 115ATRANSMISSION CONTROL UNIT
TRAILER 320ATrailer Connector
REAR A/C 110AREAR Air Conditioning
SPARE10ANOT USED
SPARE20ANOT USED
SPARE20ANOT USED
SPARE20ANOT USED
A/C 110AAir Conditioning
SPARE10ANOT USED
POWER OUTLET 320AFront Power Outlet
POWER OUTLET 420ARear Power Outlet
IG140AIG1 Relay, ACC Relay
IG240AIG2 Relay, E/R Junction Block (START1 Relay)
SPARE320ANOT USED
WIPER FRT 27.5AWiper Relay low
SENSOR 620AECM (Engine Control Module)
SENSOR 120AIgnition Coil #1/#2/#3/#4/#5/#6
SENSOR 810ANOT USED
ECU 210AECM (Engine Control Module)
SENSOR 510AE/R Junction Block (FUEL PUMP Relay)
MODULE7.5ANOT USED
SENSOR 920AECM (Engine Control Module)
SENSOR 320AECM (Engine Control Module)
SENSOR 215AOxygen Sensor #3, Oil Level Sensor
WIPER FRT 130AWiper Relay high
WIPER RR15ARear Wiper Relay, Rear Wiper Motor
HORN15AHorn Relay
A/C 210AAir Conditioner Compressor Relay
B/ALARM HORN15ABurglar Alarm Horn Relay
TCU 310ATCM (Transmission Control Module)
SENSOR 410AAir Conditioner Compressor Relay, Cooling Fan Motor, Oxygen Sensor #1/#2/#4, Purge Control Solenoid Valve, Canister Closer Valve, Variable Oil Pump Solenoid, Variable Intake Solenoid Valve, Oil Control Valve #1/#2/#3/#4 (Intake/Exhaust)
SENSOR 715AInjector #1/#2/#3/#4/#5/#6
ECU 115AECM (Engine Control Module)
ESC 37.5AELECTRONIC SABILITY CONTROL
POWER OUTLET 220ALuggage Power Outlet
SPARE 210ANOT USED
SPARE 110ANOT USED
SPARE 520ANOT USED
SPARE 420ANOT USED
SPARE 67.5ANOT USED
Hybrid

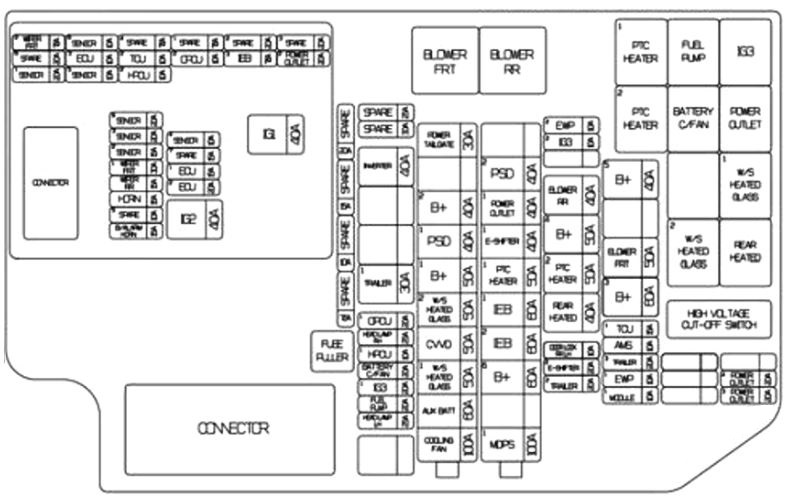

Engine Compartment Fuse Box Diagram 2025-2026 Hybrid

Fuse NameAmpCircuit Protected
COOLING FAN100ACooling Fan Motor
AUX BATT60AParking Lithium Battery
W/S HEATED GLASS 150AFront Heated Glass LH
CWD50AContinuously Variable Vavle Duration
W/S HEATED GLASS 250AFront Heated Glass RH
B+150APDC JUNCTION BLOCK (IPS)
PSD 140APower Sliding Door 1
B+240APDC JUNCTION BLOCK (IPS)
SPARE40ANOT USED
POWER TAILGATE30APower Tailgate
SPARE30ANOT USED
MDPS 1100AMDPS Unit (Motor Driven Power Steering Unit)
SPARE80ANOT USED
B+660APOWER (AFTER MAIN RELAY)
IEB 260AIntegrated Electric Brake 2
IEB 160AIntegrated Electric Brake 1
PTC HEATER 150APositive Temperature Coefficient Heater 1
E-SHIFTER 140AVCU (Vehicle Control Unit)
POWER OUTLET 140APower Outlet 1
PSD 240APower Sliding Door 2
B+30ANOT USED
B+360APDC JUNCTION BLOCK (E-SHIFTER, P/SEAT RH, P/SEAT DRV, P/SEAT PASS, P/WINDOW LH, P/WINDOW RH, S/HEATER RH, S/HEATER FRT, P/SEAT REAR LH, SUNROOF, S/HEATER REAR RH, MASSAGE SEAT RR, WIRELESS DCU, CUPHOLER FRT, MODULE9
FRONT BLOWER50AFront Blower Motor
SPARE50ANOT USED
B+540APDC JUCTION BLOCK (AMP, AIG BAG2, MODULE10, MULTIMEDIA2, CUPHOLDER REAR)
REAR BLOWER40ARear Blower Motor
B+450APDC JUNCTION BLCOK (LONG TERM LATCH RELAY, SHORT TERMLOAD, BDC2, BRAKE SWITCH, SUNROOF2, S/HEATER RR LH, DR LOCK, TAILGATE LATCH)
PTC HEATER 250APositive Temperature Coefficient Heater 2
REAR HEATED40AREAR HEATED GLASS, O/S MIRROR HEATED GLASS
INVERTER40AInverter
SPARE40ANOT USED
SPARE40ANOT USED
TRAILER 130ATrailed
SPARE20ANOT USED
AMS10A12V Battery Sensor
E-SHIFTER 220AVCU (Vehicle Control Unit)
DOOR LOCK RR LH10ADOOR LOCK REAR LH
TRAILER 220ATrailer2
FUEL PUMP20AFuel Pump Relay, Fuel Heater Relay
HEAD LAMP LH25AHead Lamp Module LH
TRAILER 320ATrailer 3
TCU115ATransmission Control Unit
EWP110AElectric Water Pump 1
MODULE 110AVESS (Virtual Engine Sound System)
HEAD LAMP RH25AHead Lamp Module RH
OPCU 120AOil Pump Control Unit 1
IG3 120AIGNITION3 1
HPCU 110AHybrid Power Control Unit
BATTERY C/FAN20ABattery Cooling Fan
SPARE10ANOT USED
SPARE10ANOT USED
EWP210AElectric Water Pump 2
IG3 210AIGNTION3 2
SPARE20ANOT USED
SPARE10ANOT USED
SPARE10ANOT USED
POWER OUTLET 320AFront Power Outlet
POWER OUTLET 420ARear Power Outlet
ECU 115AEngine Control Unit 1
ECU 220AEngine Control Unit 2
SENSOR 120AIgnition Coil
SENSOR 215AOxygen Sensor UP/DOWN, Oil Level Sensor
SENSOR 320AECM (Engine Control Module) Power
SENSOR 920AAir Pump
SENSOR 410AOil Control Valve, Variable Oil Pump Solenoid, Purge Control Solenoid Valve, Oil Level Sensor, ELCM, RCV, Cooling Fan Ignition, Fuel Pump Relay
SENSOR 510ANOT USED
SPARE 620ANOT USED
SPARE 715ANOT USED
SPARE 510ANOT USED
HORN15AHorn
B/ALARM HORN15ABurglar Alarm Horn
WIPER FRT 130AWiper Fronf 1
WIPER FRT 27.5AWiper Front 2
WIPER RR15ARear Wiper
IG240Algnition 2 Relay
IG140AIgnition 1 Relay
POWER OUTLET 220APower Outlet 2
SPARE 320ANOT USED
ECU 310AEngine Control Unit Ignition
SENSOR 610ACWD (Continuously Variable Vavle Duration), Electric Water Pump Ignition
HPCU 215AHybrid Power Control Unit 2
IEB 37.5AIntegrated Electric Brake 3
SPARE7.5ANOT USED
SPARE 17.5ANOT USED
OPCU 220AOil Pump Control Unit2
TCU 210ATransmission Control Unit
SPARE 220ANOT USED

Related Posts:

Related Posts

Leave a Comment

Your email address will not be published. Required fields are marked *

Scroll to Top
