Land Rover Discovery Sport (2020 – 2026) Fuse Box Location & Diagrams
The Land Rover Discovery Sport (2020–2026) fuse box protects essential electrical systems throughout the vehicle. Knowing its location and fuse diagram helps identify the correct fuse for lighting, accessories, engine controls, and other electrical components when diagnosing common electrical problems.
Fuse Box Location

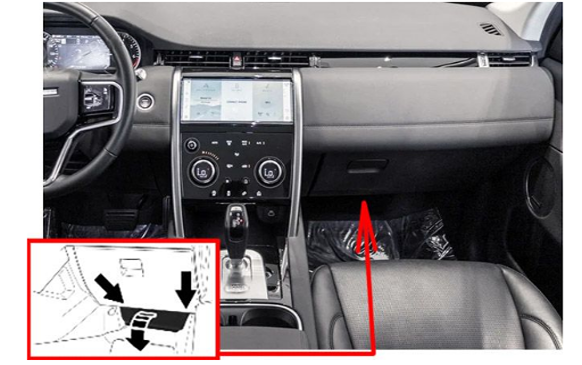

Passenger Compartment Fuse Box
The fuse box is located below the glove box. Remove the lower access panel to access the fuses.

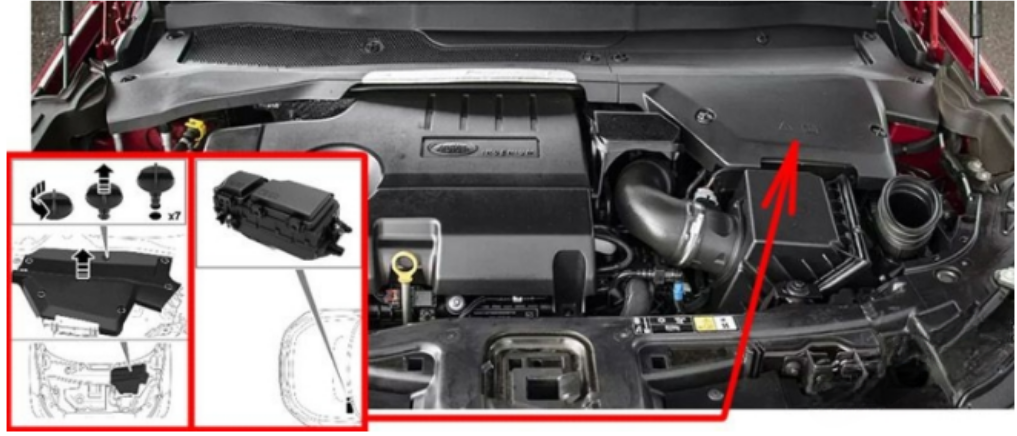

Engine Compartment Fuse Box
The fuse box is under the left engine cover.
- Remove the left-side cover: Unscrew the turnbuckle clips counter-clockwise and remove. Lift the front edge of the cover and slide it forward to remove.
- Unlatch the tabs securing the fuse box covers.

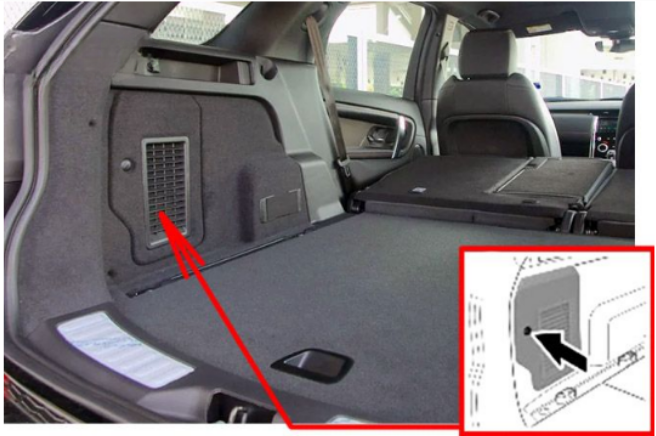

Luggage Compartment Fuse Box
Rotate the latch and remove the panel from the left side of the loadspace.
Fuse Box Diagrams

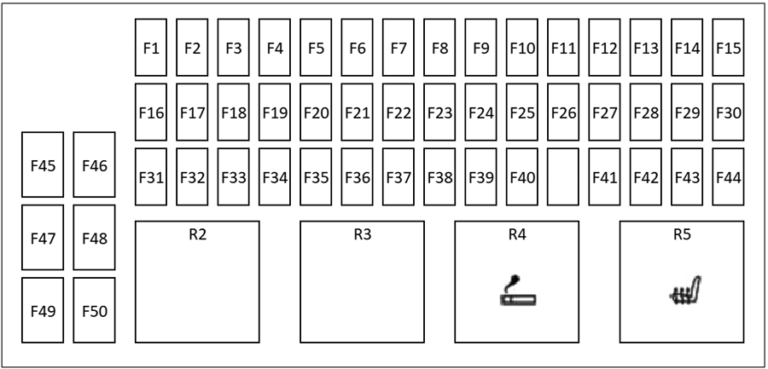

Passenger Compartment Fuse Box
| № | Amps | Circuits protected |
|---|---|---|
| 1 | 30 | Front left-side seat. |
| 2 | 30 | Front right-side seat. |
| 3 | 25 | Passenger’s door module. |
| 4 | 25 | Driver’s door module. |
| 5 | 5 | Keyless entry. |
| 6 | – | – |
| 7 | – | – |
| 8 | 5 | 2020-2023: Plug-In Hybrid Vehicles only: PHEV Junction Box. |
| 9 | 5 | 2020: Tyre Pressure Monitoring System (TPMS). 2021-2023: RF receiver. 2024-2026: Radio Frequency (RF) receiver. Tire Pressure Monitoring System (TPMS). |
| 10 | 5 | Battery back-up sounder. |
| 11 | 5 | Instrument panel. |
| 12 | 20 | 2020-2023: Fuel system. 2024-2026: Auxiliary heater. |
| 13 | 5 | Diagnostic socket. |
| 14 | 5 | Vehicle immobiliser. |
| 15 | 5 | Steering wheel. |
| 16 | 20 | Keyless entry. |
| 17 | 5 | 2020: Brake pedal switch. |
| 18 | 20 | Front blind. |
| 19 | 20 | Left-side front heated and climate seat. |
| 20 | 5 | Mirror. Camera. |
| 21 | 5 | Blind spot monitor. |
| 22 | 5 | 2020: Camera. |
| 23 | – | – |
| 24 | 10 | Head-Up Display module. |
| 25 | 10 | Instrument panel. |
| 26 | 20 | 2020-2023: Cigar lighter. 2024-2206: Auxiliary power socket. Front USB sockets. |
| 27 | 5 | 2020: Parking Aid. |
| 28 | 10 | 2020: Head-Up Display and cooling fan. 2024-2026: Head-Up Display (HUD). Cooling fan. |
| 29 | 5 | Adaptive cruise control. |
| 30 | 20 | Right-side front heated and climate seat. |
| 31 | 5 | 2020: Air Ioniser. Braking system. 2021-2023: Ignition feed. 2024-2026: Hill Descent Control (HDC). Ionizer. |
| 32 | 5 | 2020: Occupant monitoring. Powered tailgate. 2021-2023: USB hub. 2024-2026: Occupancy sensor. Gesture tailgate. |
| 33 | 10 | 2020: Rear portable audio amplifier. 2024: Portable audio interface. 2025-2026: Touchscreen. Climate control switches. |
| 34 | 15 | 2020: Infotainment system. 2021-2026: Rear folding seats. |
| 35 | 15 | Infotainment system. |
| 36 | 10 | Audio video output. |
| 37 | 15 | Seat switches and memory. |
| 38 | 20 | Cubby box auxiliary power socket. |
| 39 | 5 | Electrochromic mirror. |
| 40 | – | – |
| 41 | 10 | Heated steering wheel. |
| 42 | 5 | 2020: Steering wheel. |
| 43 | 20 | 2020-2023: Heating and ventilation system. 2024-2026: Heating and ventilation system. Body control module. |
| 44 | – | – |
| 45 | 40 | Body control module. |
| 46 | 2 | Singapore road pricing electronic toll (RHD vehicles only) |
| 47 | 40 | Body control module. |
| 48 | – | – |
| 49 | 40 | Infotainment system amplifier. |
| 50 | 20 | 2020: Amplifier module. |

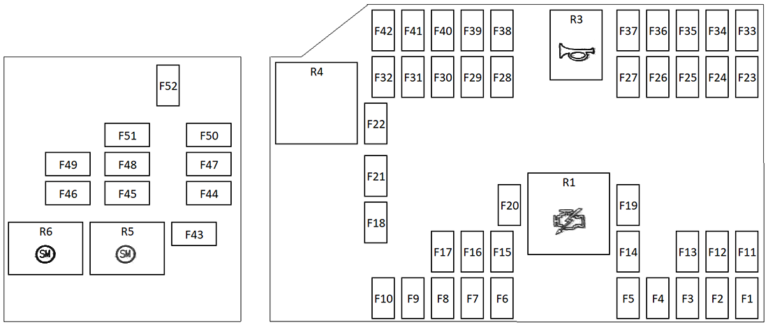

Engine Compartment Fuse Box
| № | Amps | Circuits protected |
|---|---|---|
| 1 | – | – |
| 2 | 15 | 2021-2026: Water charge air cooler. |
| 3 | 10 | Engine management system. |
| 4 | – | – |
| 5 | 15 | Engine management system. |
| 6 | 15 | 2020-2023: Engine management system. 2024-2026: Transmission. |
| 7 | 10 | 2020: Exterior sounder module. |
| 8 | 10 | 2020-2023: Plug-In Hybrid Vehicles Only: PHEV Control/PHEV Heater Pump. |
| 9 | 15 | 2020-2023: Intercooler water pump. |
| 10 | 15 | 2020-2023: Plug-In Hybrid Vehicles Only: Inverter. |
| 11 | 5 | 2020-2021: Steering wheel. 2024-2026: Steering wheel switches. |
| 12 | 5 | Starter switch (Engine START/STOP). |
| 13 | – | – |
| 14 | – | – |
| 15 | 15 | Engine management system. |
| 16 | – | – |
| 17 | 15 | 2020-2023: Fuel system. Engine management system. Exhaust sensors. 2024-2026: Emissions systems. |
| 18 | 30 | 2021-2023: Glow plugs. |
| 19 | 40 | Engine control module. |
| 20 | 40 | Brake control module. Battery. |
| 21 | 30 | 2021-2023: Glow plugs. |
| 22 | 40 | Blower motor. |
| 23 | 10 | Front fog lights. |
| 24 | 10 | Exhaust sensors. |
| 25 | – | – |
| 26 | 10 | 2020: Fuel sensors. 2021-2023: Diesel exhaust fluids. 2024-2026: Emissions systems. |
| 27 | 10 | 2020: Exhaust sensors. 2021-2026: Engine management system. |
| 28 | 25 | Fuel pump. |
| 29 | 25 | 2020-2023: Front screen washer. |
| 30 | – | – |
| 31 | 25 | 2020-2023: Rear screen washer. |
| 32 | – | – |
| 33 | 10 | 2020-2021: Steering wheel rotary coupler. 2024-2026: Steering wheel switches. |
| 34 | 25 | Right-side headlight. |
| 35 | 25 | Left-side headlight. |
| 36 | 10 | 2021-2026: Driver assistance systems. |
| 37 | 15 | Horn. |
| 38 | 10 | 2020-2023: PHEV only: battery/belt integrated starter-generator. |
| 39 | 20 | 4 Wheel Drive (4WD). |
| 40 | 25 | 2020-2023: Power wash pump. |
| 41 | 5 | 2021-2023: Acoustic vehicle alerting system. |
| 42 | 15 | 2020-2023: PHEV only: Hybrid coolant pump. |
| 43 | – | – |
| 44 | 40 | Right-side front heated screen. |
| 45 | 40 | 2020-2023: Plug-In Hybrid Vehicles Only: Transmission Oil Pump. |
| 46 | – | – |
| 47 | 40 | Left-side front heated screen. |
| 48 | 40 | 2020-2023: Starter motor. |
| 49 | 30 | 2020-2023: Electric Parking Brake (EPB). 2024-2026: Trailer socket. |
| 50 | 40 | Spare. |
| 51 | 40 | 2020-2023: Diesel motor. |
| 52 | 30 | Windscreen wiper motor. |

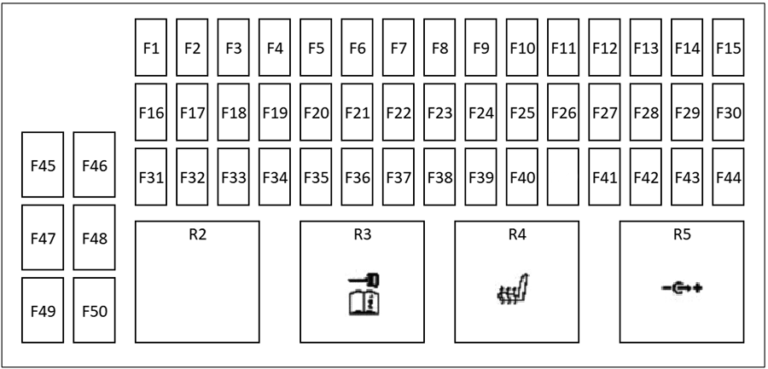

Luggage Compartment Fuse Box
| № | Amps | Circuits protected |
|---|---|---|
| 1 | 15 | Rear wiper. |
| 2 | 20 | Spare. |
| 3 | 5 | Telematics. |
| 4 | 5 | Fuel Burning Heater (FBH). |
| 5 | 25/10 | 2020-2021: Fuel pump. 2022-2023: Driving aids and collision avoidance systems. |
| 6 | 30 | Powered tailgate. |
| 7 | 5 | 2020-2021: Climate Control panel. 2024-2026: Rear climate control. |
| 8 | – | – |
| 9 | 30 | Spare. |
| 10 | 30 | 2024-2026: Left-side rear seat module. |
| 11 | 25 | Right-side rear door module. |
| 12 | 20 | Trailer. |
| 13 | 5 | 2020-2023: 4 Wheel Drive (4WD). |
| 14 | 25 | Left-side rear door module. |
| 15 | 10 | 2022-2023: Near field sense module. 2024-2026: Parking aid sensors. |
| 16 | – | – |
| 17 | – | – |
| 18 | – | – |
| 19 | 30 | Driveline. |
| 20 | – | – |
| 21 | 20 | Loadspace accessory socket. |
| 22 | 5 | 2024-2026: Diagnostics. |
| 23 | 20 | Sunroof motor. |
| 24 | 5 | 2020-2021: Wade sensing. 2022-2023: USB seat. 2024-2026: USB socket. |
| 25 | 5 | 48v battery sensor. |
| 26 | 20 | 2020-2023: Rear heated seat module. 2024-2026: Left-side rear heated seat. |
| 27 | – | – |
| 28 | 5 | 2020-2021: Fuel pump. |
| 15 | 2024-2026: Rear USB. | |
| 29 | 10 | Wireless Charger. |
| 30 | – | – |
| 31 | – | – |
| 32 | – | – |
| 33 | 20 | Trailer socket. |
| 34 | 10 | Chassis control module. |
| 35 | 30 | Driveline. |
| 36 | 20 | 2020-2021: Fuel pump. |
| 37 | 20 | Spare. |
| 38 | 15 | 2024-2026: Floor console rear USB socket. |
| 39 | 20 | 2022-2026: Rear climate and comfort systems. |
| 40 | 10 | 2020-2023: USB charger. 2024-2026: Rear USB socket. |
| 41 | 20 | Right-side heated rear seat. |
| 42 | 20 | Rear console accessory socket. |
| 43 | – | – |
| 44 | 30 | Heated rear screen. |
| 45 | 30 | 2022-2023: Driveline. |
| 46 | – | – |
| 47 | 30 | 2020-2023: Driveline. 2024-2026: Trailer lights. |
| 48 | 30 | Deployable tow bar. |
| 49 | 50 | 2020-2023: PTC Heater. |
| 50 | 25 | 2020-2023: Heater. |
