Mazda BT-50 (2007 – 2011) Fuse Box Location & Diagrams
The Mazda BT-50 (2007 – 2011) features several fuse boxes that protect essential electrical systems throughout the vehicle. This guide provides clear fuse box locations, fuse diagrams, ratings, and component descriptions to help identify and understand the fuses used in the BT-50.
Fuse Box Location

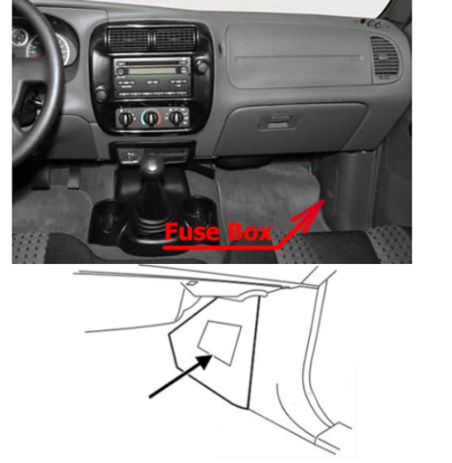

Passenger Compartment Fuse Box
The fuse panel is located under the right-hand side of the instrument panel behind the kick panel.

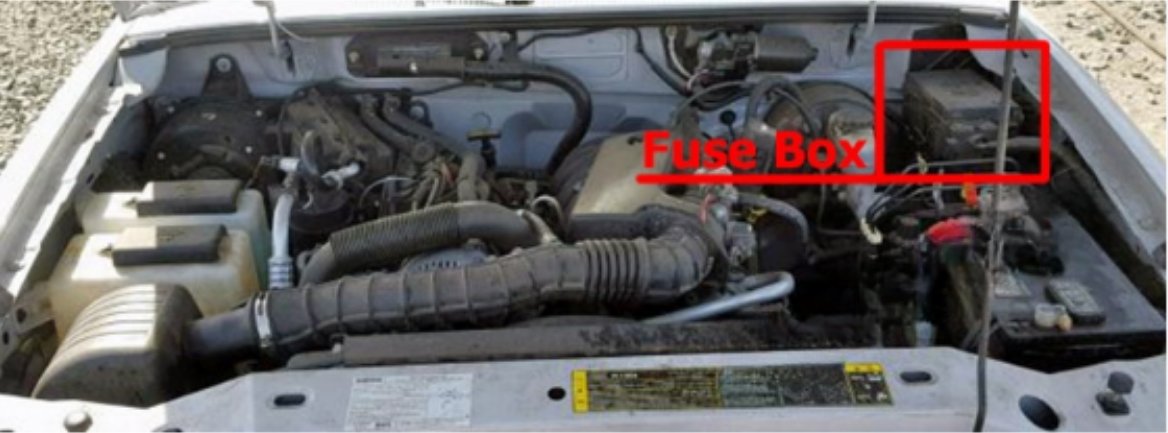

Engine Compartment Fuse Box
The power distribution box is located in the engine compartment.
Fuse Box Diagrams

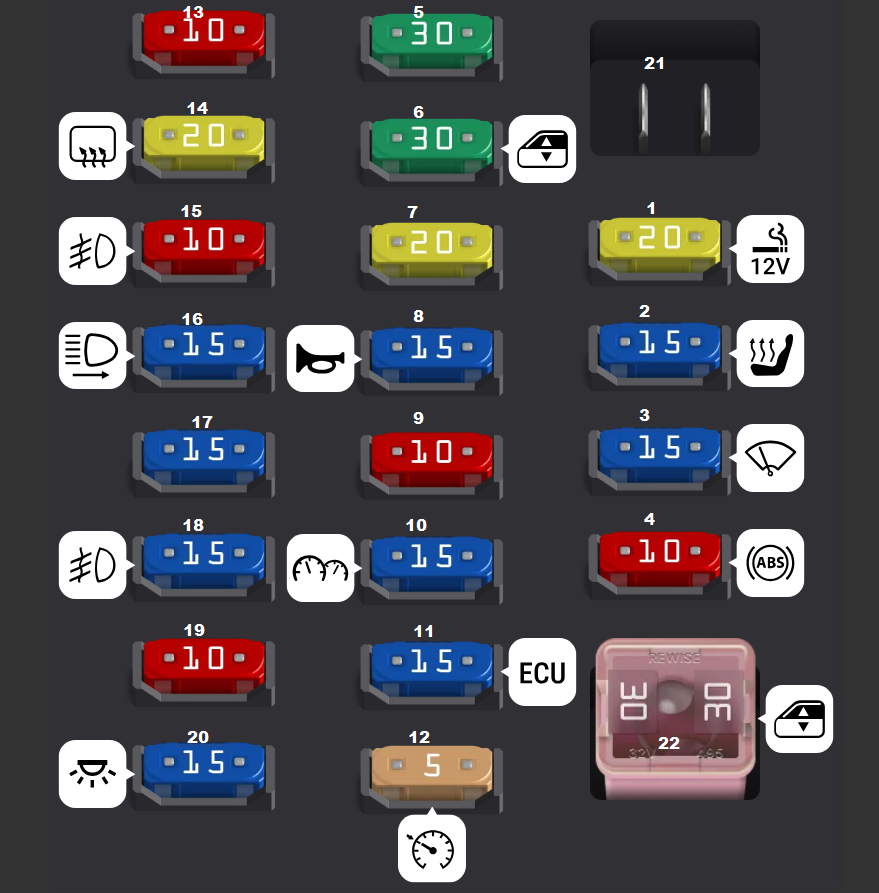

Passenger Compartment Fuse Box
| No. | Fuse Type | Rating | Description |
|---|---|---|---|
| 1 | MINI | 20A | Cigarette lighter, audio system, electric drive of outside mirrors, additional electrical outlet |
| 2 | MINI | 15A | Heated seat |
| 3 | MINI | 15A | Windscreen wipers and washers |
| 4 | MINI | 10A | Relay for air conditioning and ABS |
| 5 | MINI | 30A | Centralized locking system |
| 6 | MINI | 30A | Electric windows |
| 7 | MINI | 20A | ABS solenoid valve |
| 8 | MINI | 15A | Brake lights and horn |
| 9 | MINI | 10A | Hazard warning lights |
| 10 | MINI | 15A | Instrument cluster, reversing lights, direction indicators and automatic front wheel hub lock (RWF) |
| 11 | MINI | 15A | Engine management systems |
| 12 | MINI | 5A | Cruise control |
| 13 | MINI | 10A | Air conditioning electromagnetic clutch |
| 14 | MINI | 20A | Heated rear window |
| 15 | MINI | 10A | Rear fog lamp |
| 16 | MINI | 15A | Right headlight |
| 17 | MINI | 15A | Left headlight |
| 18 | MINI | 15A | Front fog lights |
| 19 | MINI | 10A | Rear parking lights, front parking lights, license plate light |
| 20 | MINI | 15A | Interior lamps and warning lamps |
| 22 | FMX/JCase | 30A | Electric windows |

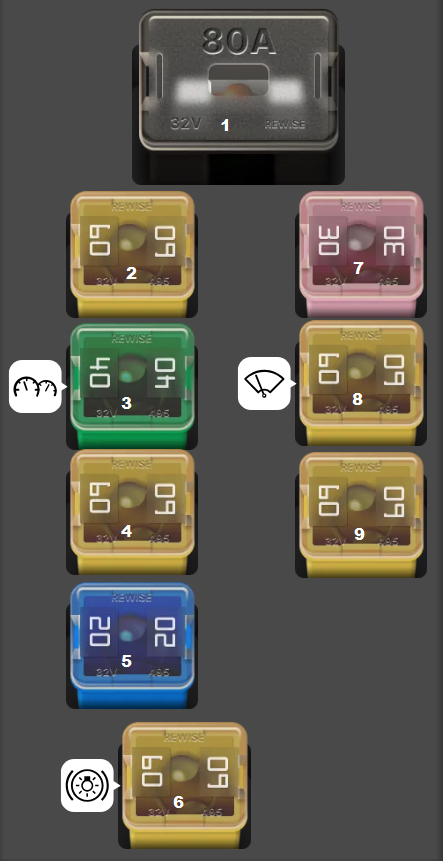

Engine Compartment Fuse Box
| No. | Fuse Type | Fuse Rating | Description / Protected Components |
|---|---|---|---|
| 1 | FLM | 80A | (MAIN) To protect all circuits |
| 2 | FMX/JCase | 60A | (GLOW) Candles |
| 3 | FMX/JCase | 40A | (IG KEY 1) Engine management systems, instrument cluster, cigarette lighter and power windows |
| 4 | FMX/JCase | 60A | (BTN 2) Headlights |
| 5 | FMX/JCase | 20A | (INJ/ALT) Injectors and fuel system |
| 6 | FMX/JCase | 60A | (ABS) ABS electric motor, warning lamps, stop lamps |
| 7 | FMX/JCase | 30A | (PTC/AT) Fuel heater, auxiliary heater |
| 8 | FMX/JCase | 60A | (IG KEY 2) Air conditioning system, windscreen wipers and washers |
| 9 | FMX/JCase | 60A | (BTN 1) Air conditioning system, heated rear window or central locking or ABS solenoid valve 1, or power windows or lamps for rear position or fog lamps |
