Mazda Tribute (2008 – 2011) Fuse Box Location & Diagrams
The Mazda Tribute (2008–2011) fuse box contains the fuses that protect essential electrical systems throughout the vehicle. This blog provides the fuse box locations and diagrams, along with fuse ratings and protected components, helping you identify the correct fuse when troubleshooting electrical issues.
Fuse Box Location

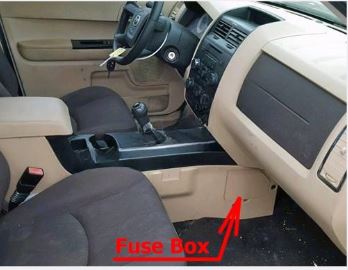

Passenger Compartment Fuse Box
The fuse panel is located on the right-hand side of the centre console, by the instrument panel. Remove the panel cover to access the fuse cover. Press the tabs on the top and bottom of the fuse cover to remove.

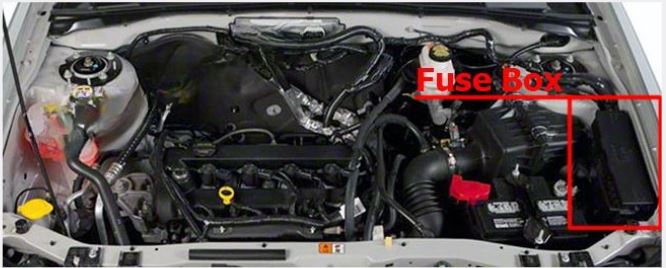

Engine Compartment Fuse Box
The power distribution box is located in the engine compartment.
Fuse Box Diagrams

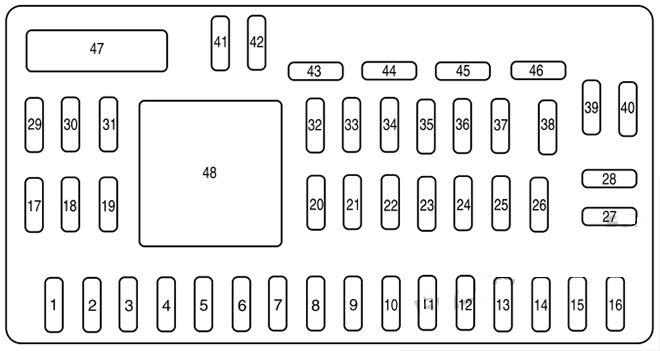

Passenger Compartment Fuse Box
| № | Amp Rating | Protective Circuits |
|---|---|---|
| 1 | 30A | Not used (spare) |
| 2 | 15A | Brake on/off switch |
| 3 | 15A | Not used (spare) |
| 4 | 30A | 2008: Not used (spare) Moon roof |
| 5 | 10A | 2008 & 2009: Brake Shift Interlock (BSI), SPDJB Brake-shift interlock (BSI), Passenger compartment fuse panel |
| 6 | 20A | Turn signals, Stop lamps |
| 7 | 10A | Low beam headlamps (left) |
| 8 | 10A | Low beam headlamps (right) |
| 9 | 15A | Interior lights |
| 10 | 15A | Backlighting |
| 11 | 10A | Four wheel drive |
| 12 | 7.5A | Power mirror switch |
| 13 | 5A 7.5A | Not used (spare) 2008: Canister vent |
| 14 | 10A | FCIM (radio buttons), Front display module |
| 15 | 10A | Climate control |
| 16 | 15A | Not used (spare) |
| 17 | 20A | All lock motor feeds, Liftgate release, Liftglass release |
| 18 | 20A | Heated seat |
| 19 | 25A | Rear wiper |
| 20 | 15A | Datalink |
| 21 | 15A | Fog lamps |
| 22 | 15A | Park lamps |
| 23 | 15A | High beam headlamps |
| 24 | 20A | Horn relay |
| 25 | 10A | Demand lamps |
| 26 | 10A | Instrument panel cluster |
| 27 | 20A | Ignition switch |
| 28 | 5A | Radio |
| 29 | 5A | Instrument panel cluster |
| 30 | 5A | Not used (spare) 2008: Overdrive cancel |
| 31 | 10A | Restraints control module 2008: Not used (spare) |
| 32 | 10A | Rear video camera module 2008: Restraints control module 2009: Not used (spare) |
| 33 | 10A | Not used (spare) 2008: Speed control switch |
| 34 | 5A | Not used (spare) 2008: Speed control deactivate switch, ABS 2009: Anti-lock Brake System (ABS) |
| 35 | 10A | Four wheel drive, Electronic power assist steering (EPAS) |
| 36 | 5A | Passive anti-theft system (PATS) transceiver |
| 37 | 10A | Climate control |
| 38 | 20A | Subwoofer/Amp (premium radio) |
| 39 | 20A | Radio |
| 40 | 20A | Front power point |
| 41 | 15A | Driver/passenger door lock switches, Moon roof, Camera display in mirror |
| 42 | 10A | Not used (spare) |
| 43 | 10A | Rear wiper logic, Heated seats relay, Instrument cluster |
| 44 | 10A | Not used (spare) |
| 45 | 5A | Front wiper logic, blower motor relay |
| 46 | 7.5A | Occupant classification system (OCS), Passenger airbag deactivation indicator (PADI) 2008 & 2009: OCS (restraints), PADI (restraints) |
| 47 | 30A Circuit Breaker | Power windows |
| 48 | — | Delayed accessory relay |

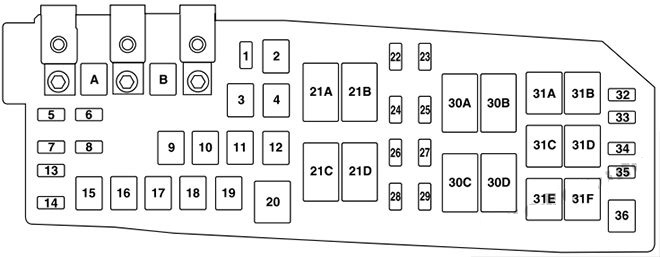

Engine Compartment Fuse Box
| № | Amp Rating | Protected Circuits |
|---|---|---|
| A | 80A Midi | Electronic power steering module (EPAS) |
| B | 125A Midi | Passenger compartment fuse panel 2008 & 2009: SPDJB |
| 1 | 15A* | Heated mirror |
| 2 | 30 A** | Rear defroster |
| 3 | 20A** | Rear power point (centre console) |
| 4 | — 20A | Not used 2008: Fuel pump |
| 5 | 10 A* | Powertrain control module (PCM) – keep-alive power, PCM relay, Canister vent |
| 6 | 15A* | Alternator |
| 7 | 15A* 10A | Liftgate latch 2008: Reverse lamps |
| 8 | 20A* | Trailer tow parking lamps |
| 9 | 50 A** | Anti-lock brake system (ABS) |
| 10 | 30 A** | Front wipers |
| 11 | 30 A** | Starter |
| 12 | 40A** | Blower motor |
| 13 | 10 A* | A/C clutch |
| 14 | 15A* | Trailer tow turn lamps |
| 15 | — | Not used |
| 16 | 40A** | Cooling fan 1 |
| 17 | 40A** | Cooling fan 2 |
| 18 | 20A** | ABS solenoid |
| 19 | 30 A** | Power seats |
| 20 | — | A/C clutch relay |
| 21A | — | Rear defroster relay |
| 21B | — | Fuel relay |
| 21C | — | Blower relay |
| 21D | — | PCM relay |
| 22 | 20A* — | Fuel pump 2008: Not used |
| 23 | 15A* — | Fuel injectors 2008: Not used |
| 24 | — 10A | Not used 2008: PCM transmission |
| 25 | 5A* — | ABS 2008: Not used |
| 26 | 15A* 10A | Ignition coils 2008: PCM mil |
| 27 | 10 A* | PCM – general powertrain components malfunction indicator lamp 2008: PCM non-mil 2009: PCM non-MIL- malfunction indicator lamp |
| 28 | 20A* 15A | PCM – emission-related powertrain components malfunction indicator lamp 2008: PCM |
| 29 | 15A* | PCM 2008: Ignition coils 2009: Powertrain Control Module |
| 30A | — | Cooling fan 1 relay |
| 30B | — | Starter relay |
| 30C | — | Cooling fan main relay |
| 30D | — | Cooling fan 2 relay |
| 31A | — | Reverse lamp relay |
| 31B | — | Not used 2008: Fuel pump relay |
| 31C | — | Trailer tow left turn relay |
| 31D | — | Trailer tow right turn relay |
| 31E | — | Trailer tow park relay |
| 31F | — | Liftgate latch relay 2008: Not used |
| 32 | — | Not used 2008: A/C clutch diode |
| 33 | — | PCM diode |
| 34 | — | Start diode |
| 35 | 10 A* | Run/start, Reverse lamps, Rear defrost relay 2008: Reverse lamp relay, Speed control module, Rear defrost relay |
| 36 | — | Not used |
| 37 | Not used |
