The Mercury Milan (2006–2009) features fuse boxes that protect essential electrical circuits and vehicle systems. This guide covers the fuse box locations and diagrams, including fuse ratings, assignments, and protected components to help identify the correct fuse during electrical troubleshooting and replacement.

Fuse Box Location

Passenger Compartment Fuse Box

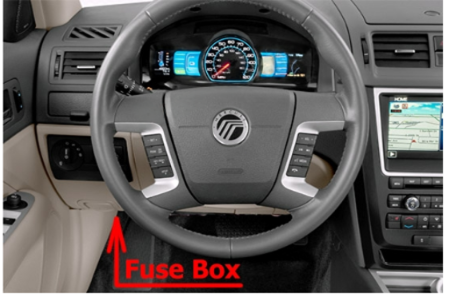

Passenger Compartment Fuse Box Location

Engine Compartment Fuse Box

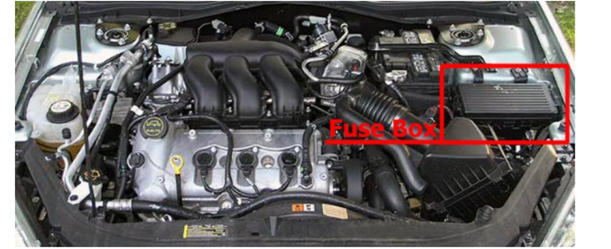

Engine Compartment Fuse Box Location

Fuse Box Diagrams

Passenger Compartment Fuse Box

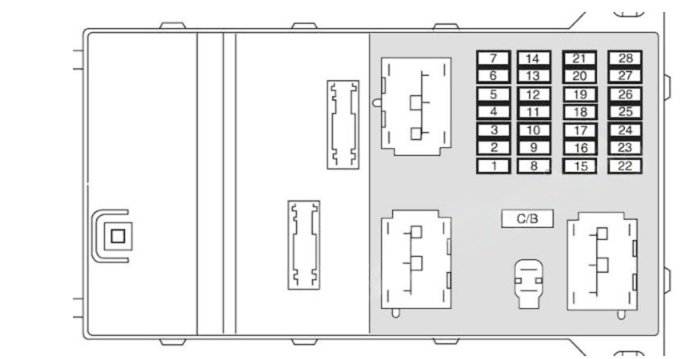

Passenger Compartment Fuse Box Diagram

Fuse/Relay LocationFuse Amp RatingProtected Circuits
110A2006–2007: Backup lamps, Electrochromatic mirror. 2008–2009: Backup lamps (automatic transmission), Electrochromatic mirror
220A2006–2009: Horns
315A2006–2009: Battery saver: Interior lamps, Puddle lamps, Trunk lamp, Power windows
415A2006–2009: Park lamps, Side markers, License plate lamps
5—2006–2009: Not used
6—2006–2009: Not used
7—2006–2009: Not used
830A2006–2009: Rear window defroster
910A2006–2009: Heated mirrors
1030A2006–2009: Starter coil, PCM
1115A2006–2009: High beams
127.5A2006–2007: Delay accessories: Radio head units, Moon roof, Lock switch illumination, Electrochromatic mirrors. 2008–2009: Added Ambient lighting
137.5A2006–2007: Cluster, KAM-PCM, Analog clock, Climate control head units, Canister vent solenoid. 2008–2009: Cluster, Analog clock, Climate control head units
1415A2006–2009: Washer pump
1520A2006–2009: Cigar lighter
1615A2006–2009: Door lock actuator, Decklid lock solenoid
1720A2006–2009: Subwoofer
1820A2006–2009: Radio head units, OBDII connector
197.5A2006–2007: Not used. 2008–2009: Spare fuse
207.5A2006–2007: Power mirrors. 2008–2009: Power mirrors, Satellite radio module, All wheel drive
217.5A2006–2007: Stop lamps. 2008–2009: Stop lamps, CHMSL
227.5A2006–2009: Audio
237.5A2006–2009: Wiper relay coil, Cluster logic
247.5A2006–2009: OCS (Passenger’s seat), PAD indicator
257.5A2006–2009: RCM
267.5A2006–2007: PATS Transceiver, Brake shift interlock solenoid, Brake pedal switch. 2008–2009: Added Automatic transmission relay coil and Reverse switch (backup lamps for manual transmission)
277.5A2006–2009: Cluster, Climate control head units
2810A2006–2007: ABS/Traction Control, Heated seats, Compass. 2008–2009: Added Reverse sensing system
C/B30A Circuit Breaker2006–2007: Power windows, Delayed accessory (SJB fuse 12). 2008–2009: Moon roof power, Delayed accessory (SJB fuse 12, power window)

Engine Compartment Fuse Box

Mercury Milan (2006 & 2007)

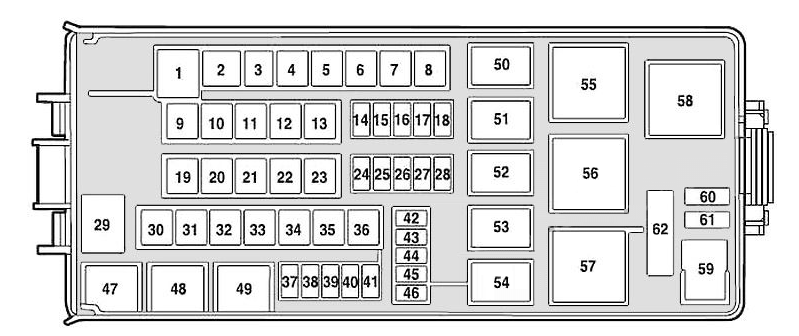

Engine Compartment Fuse Box Diagram (2006-2007)

Fuse/Relay LocationFuse Amp RatingProtected Circuits
160ASJB power feed (fuses 12, 13, 14, 15, 16, 17, 18, C/B)
240APowertrain power
3—Not used
440ABlower motor
5—Not used
640ARear window defroster, Heated mirrors
740APETA Pump (PZEV engine only)
8—Not used
920AWipers
1020AABS Valves
1120AHeated seats
12—Not used
13—Not used
1415AIgnition switch
15—Not used
1615ATransmission
1720AConsole power point
1810AAlternator sense
1940ALogic feed to SJB (solid state devices)
20—Not used
21—Not used
22—Not used
2360ASJB power feed (fuses 1, 2, 4, 10, 11)
2415AFog lamps
2510AA/C Compressor clutch
26—Not used
27—Not used
28—Not used
2960AEngine cooling fan
3030AFuel pump relay feed
31—Not used
3230ADriver power seat
3320AMoonroof
34—Not used
35—Not used
3640AABS Pump
37—Not used
38—Not used
39—Not used
40—Not used
41—Not used
4215APCM non-emission related
4315ACoil on plug
4415APCM emission related
455APETA Pump feedback (PZEV engine only)
4615AInjectors
471/2 ISO RelayFog lamps
48—Not used
49—Not used
501/2 ISO RelayWiper park
511/2 ISO RelayA/C clutch
52—Not used
531/2 ISO RelayWiper RUN
541/2 ISO RelayTransmission (I4 engine only)
55Full ISO RelayFuel pump
56Full ISO RelayBlower motor
57Full ISO RelayPCM
58High Current RelayPETA Pump (PZEV engine only)
59—Not used
60DiodeFuel pump
61DiodeNot used
62Circuit BreakerSpare
Mercury Milan (2008 & 2009)

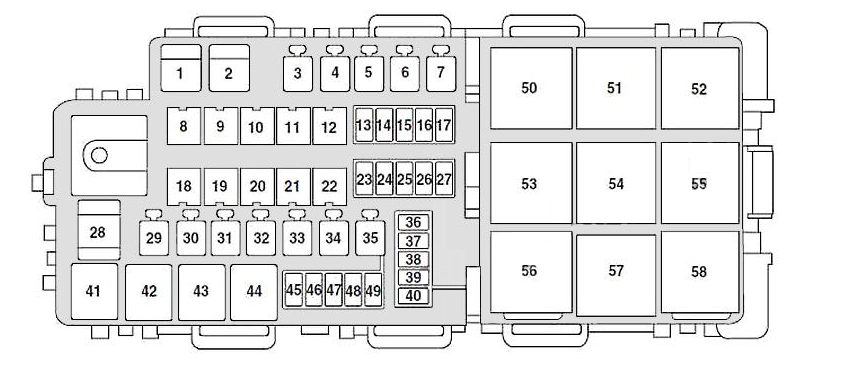

Engine Compartment Fuse Box Diagram (2008-2009)

Fuse/Relay LocationFuse Amp RatingProtected Circuits
160ASJB power feed (fuses 12, 13, 14, 15, 16, 17, 18, C/B)
260ASJB power feed (fuses 1, 2, 4, 10, 11)
340APowertrain power, PCM relay coil
440ABlower motor
5—Not used
640ARear window defroster, Heated mirrors
740APETA Pump (PZEV) power feed
840AABS pump
920AWipers
1030AABS Valves
1120AHeated seats
12—Not used
1310ASYNC
1415AIgnition switch
15—Not used
1615ATransmission
1710AAlternator sense
18—Not used
1940ALogic feed to SJB (solid state devices)
20—Not used
21—Not used
2220AConsole power point
2310APCM KAM, FNR5 and canister vent solenoid
2415AFog lamps
2510AA/C Compressor clutch
26—Not used
27—Not used
2860AEngine cooling fan
29—Not used
3030AFuel pump/injectors relay
31—Not used
3230ADriver power seat
3320AMoon roof
34—Not used
35—Not used
361APCM diode
371AOne Touch Integrated Start (OTIS) diode
38—Not used
39—Not used
40—Not used
41RelayFog lamp relay
42RelayWiper park relay
43RelayA/C clutch relay
44RelayFNR5 transmission relay
455APETA Pump (PZEV) feedback
4615AInjectors
4715APCM class B
4815ACoil on plug
4915APCM class C
50—Not used
51—Not used
52Full ISO RelayBlower relay
53—Not used
54Full ISO RelayFuel pump/injectors relay
55Full ISO RelayWiper RUN relay
56—Not used
57Full ISO RelayPCM relay
58High Current RelayPETA Pump (PZEV)
