Peugeot 5008 (2009 – 2016) Fuse Box Location & Diagrams
The Peugeot 5008 (2009–2016) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Peugeot 5008.
Fuse Box Location

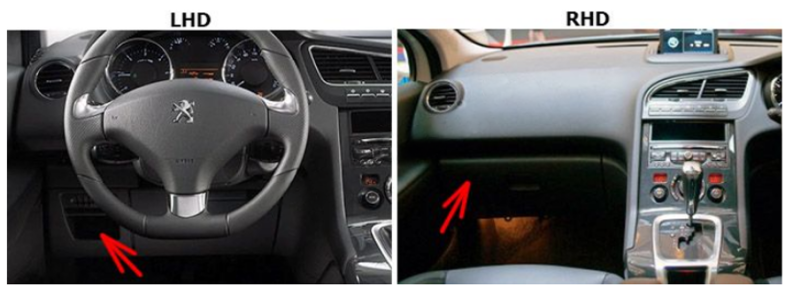

Passenger Compartment Fuse Box

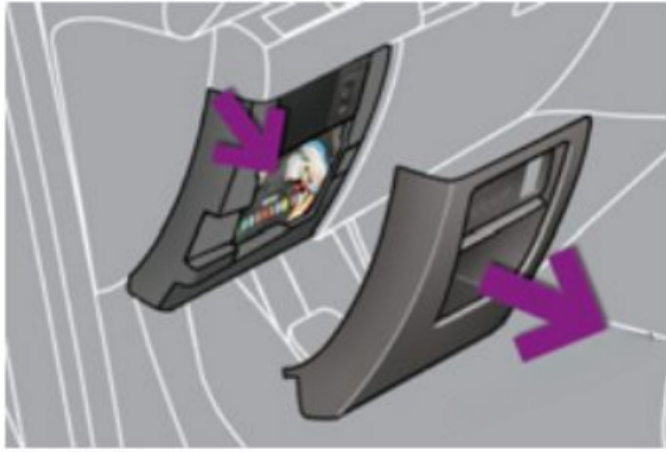

Left-hand drive vehicles: the fusebox is placed in the lower dashboard (left-hand side).

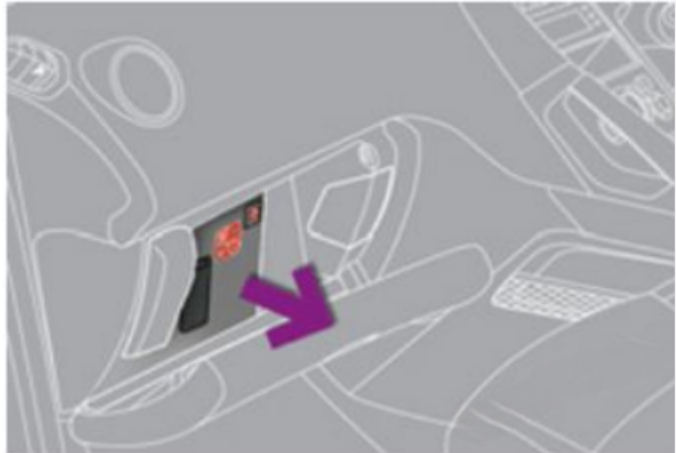

Right-hand drive vehicles: it is placed in the glowbox (left-hand side).

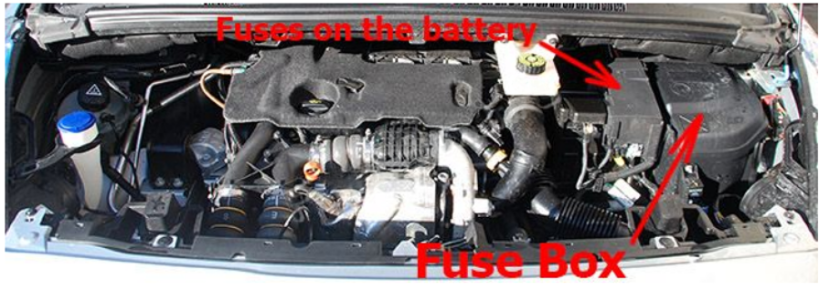

Engine Compartment Fuse Box
Fuse Box Diagrams

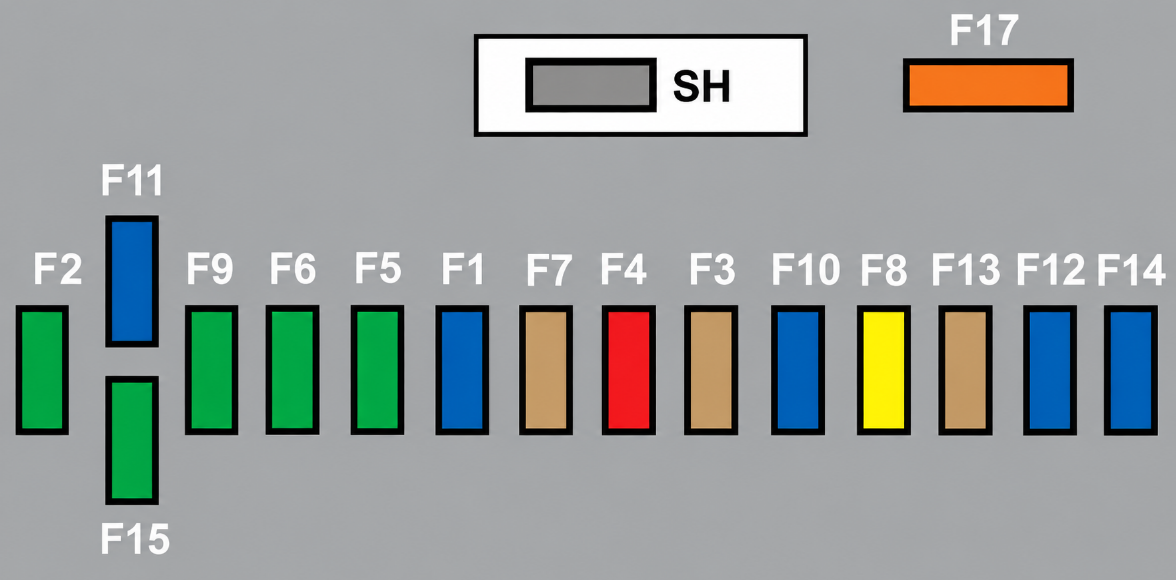

Passenger Compartment Fuse Box
| Fuse No. | Rating | Function |
|---|---|---|
| F1 | 15 A | Rear wiper |
| F2 | – | Not used |
| F3 | 5 A | Airbag control unit |
| F4 | 10 A | Electrochrome rear-view mirror, air conditioning, switching and protection unit, rear multimedia |
| F5 | 30 A | Front one-touch electric windows |
| F6 | 30 A | Rear one-touch electric windows |
| F7 | 5 A | Front and rear courtesy lamps, map reading lamps, rear reading lamps, sun visor lighting, glove box lighting, centre armrest lighting, boot 12 V relay control |
| F8 | 20 A | Audio equipment, audio/telephone, CD changer, multifunction screen, tyre under-inflation detection, alarm siren, alarm control unit, telematic unit. 2009–2010: Also includes service module with Peugeot Connect Media Navigation NG4 3D |
| F9 | 30 A | Front 12 V socket, cigarette lighter, rear 12 V socket |
| F10 | 15 A | Steering-mounted controls |
| F11 | 15 A | Low current ignition switch |
| F12 | 15 A | Trailer presence, rain/sunshine sensor, supply for fuses F32, F34, F35 |
| F13 | 5 A | Engine fuse box, airbag control unit |
| F14 | 15 A | Instrument panel, instrument panel screen, supply for fuse F33 |
| F15 | 30 A | Locking and deadlocking |
| F17 | 40 A | Heated rear screen, supply for fuse F30 |
| SH | – | PARC shunt (Not listed in 2014–2016) |
| F29 | 30 A | Boot 12 V socket (2009–2010) |
| F29 | – | Not used (2011–2013) |
| F30 | 5 A | Heated door mirrors |
| F31 | 15 A | Refrigerator socket (2009–2010) |
| F31 | 30 A | Boot 12 V socket (2011–2016) |
| F32 | 5 A | Electronic gearbox gear lever / electronic gear control gearbox gear lever |
| F33 | 10 A | Head-up display, Bluetooth system, air conditioning |
| F34 | 5 A | Seat belt warning lamp display |
| F35 | 10 A | Parking sensors, Hi-Fi amplifier authorisation |
| F36 | 10 A | Trailer fusebox control unit, driver’s door control pad |
| F37 | 20 A | Hi-Fi amplifier |
| F38 | 30 A | Driver’s electric seat |
| F39 | 20 A | Panoramic sunroof blind |
| F40 | – | Not used |

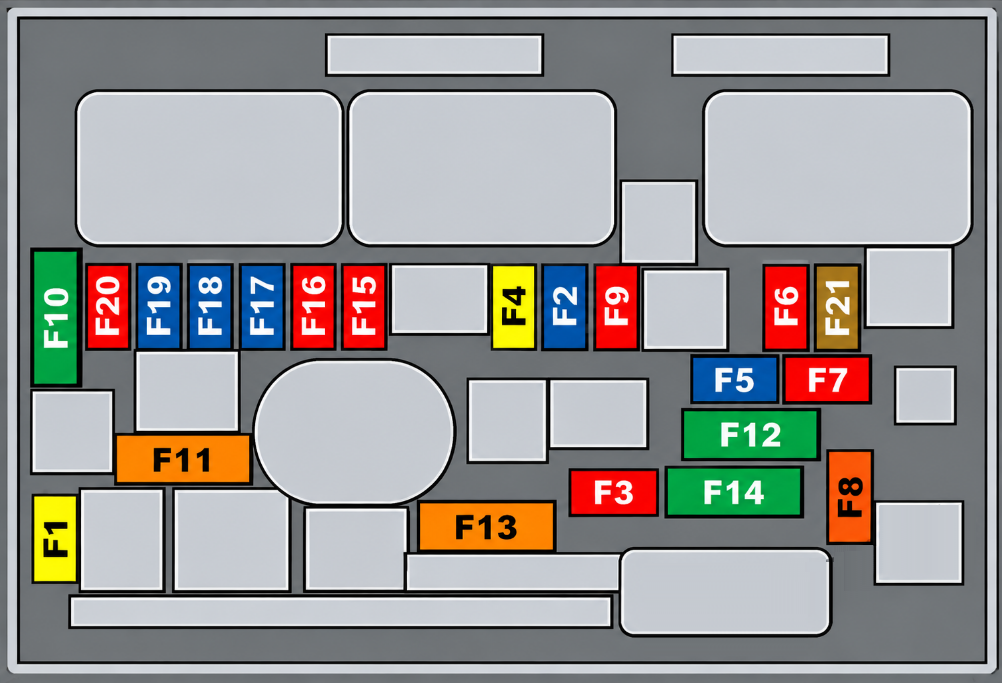

Engine Compartment Fuse Box
| Fuse No. | Rating (A) | Function |
|---|---|---|
| F1 | 20 A | 2009–2013 only: Engine management unit supply, injection pump and EGR electrovalves (2.0L HDI), injectors (2.0L HDI). |
| F2 | 15 A | Horn. |
| F3 | 10 A | Front/rear wash-wipe system. |
| F4 | 10 A | Daytime running lamps. |
| F5 | 15 A | Purge canister, turbine discharge and turbo pressure regulation electrovalves (1.6L THP), oil vapour heater (1.6L THP), diesel heater (1.6L HDI). |
| F6 | 10 A | Diagnostic socket, directional headlamps, particle emission filter pump (Diesel), distance alert system, engine coolant level detector, mirror adjustment control. |
| F7 | 10 A | Power steering control unit, automatic gearbox, directional headlamp height adjustment motor. |
| F8 | 20 A | Starter motor control. |
| F9 | 10 A | Clutch and brake pedal switches. |
| F10 | 30 A | 2009–2013 only: Engine management unit actuators: Petrol – ignition coils, electrovalves, oxygen sensors, injectors, heaters, fuel pump, electronic thermostat. Diesel – electrovalves and heaters. |
| F11 | 40 A | Air conditioning blower/fan. |
| F12 | 30 A | Windscreen wipers slow/fast speed control. |
| F13 | 40 A | 2009–2013 only: Built-in systems interface supply (ignition positive). |
| F14 | 30 A | Air pump. |
| F15 | 10 A | Right-hand main beam headlamp. |
| F16 | 10 A | Left-hand main beam headlamp. |
| F17 | 15 A | Left-hand dipped headlamp. |
| F18 | 15 A | Right-hand dipped headlamp. |
| F19 | 15 A | 2009–2013 only: Oil vapour heater (1.6L VTi), turbo pressure regulation electrovalve (Diesel), engine coolant level detector (Diesel). |
| F20 | 10 A | 2009–2013 only: Electronic thermostat, variable timing electrovalves, turbo pressure regulation electrovalve (Diesel), engine coolant level detector (Diesel). |
| F21 | 5 A | 2009–2013 only: Fan assembly relay supply, Valvetronic relay control (1.6L VTi), turbo cooling (1.6L THP), air flow sensor (1.6L HDI). |

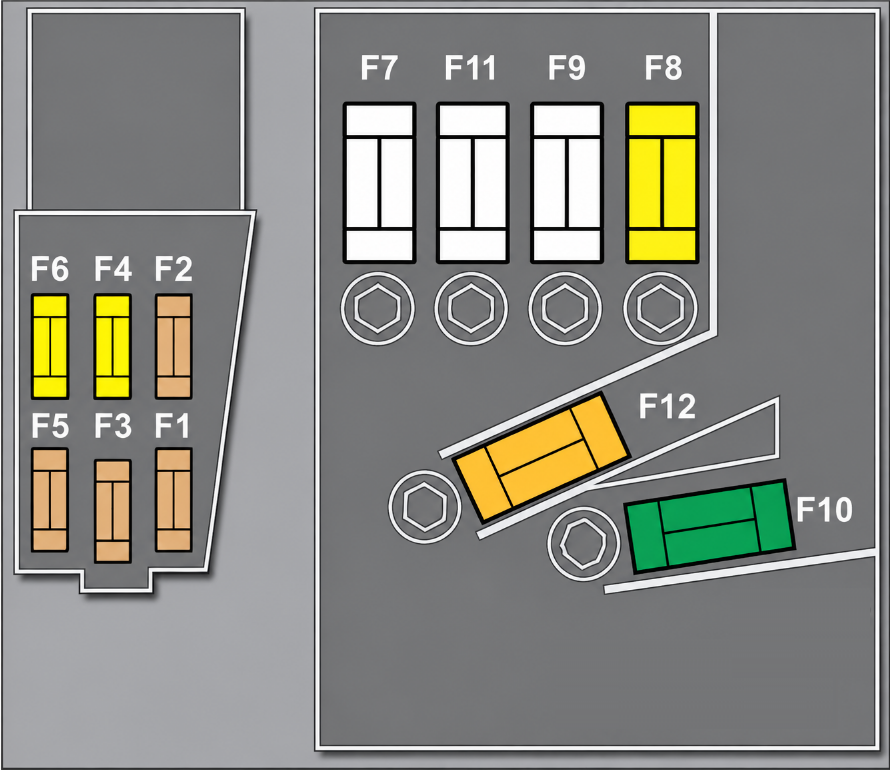

Fuses On The Battery
| Fuse No. | Rating | Function |
|---|---|---|
| F1 | – | Not used (2009–2013). |
| F2 | 5A | Dual function brake switch (2009–2016). |
| F3 | 5A | Battery charge unit (2009–2016). |
| F4 | 25A | ABS/ESP electrovalves (2009–2013); ABS/DSC electrovalves (2014–2016). |
| F5 | 5A | ABS/ESP control unit (2009–2013). |
| F6 | 15A | Automatic gearbox, electronic gear control gearbox (2009–2013); Electronic / automatic gearbox (2014–2016). |
| F7* | 80A | Power steering electropump assembly (2009–2013). |
| F8* | 60A | Fan assembly (2009–2013). |
| F9* | 70/30A | Pre-heat unit (Diesel), Valvetronic electric motor (1.6L THP 16V) (2009–2010). |
| F9* | 80/30A | Pre-heat unit (Diesel), Valvetronic electric motor (1.6L THP) (2011–2013). |
| F10* | 40A | ABS/ESP electropump assembly (2009–2013). |
| F11* | 100A | Switching and protection unit (2009–2013). |
| F12* | 30A | Electronic gear control gearbox electropump assembly (2009–2013). |
| MF1* | – | Not used (2009–2013). |
| MF2* | 30A | Trailer fuse box (2009–2013). |
| MF3* | 50A | Passenger compartment fusebox (2009–2013). |
| MF4* | 80A | Built-in systems interface (2009–2013). |
| MF5* | 80A | Built-in systems interface (2009–2013). |
| MF6* | 30A | Electric parking brake (2009–2016). |
| MF7* | 30A | Heated front seats (2009–2016). |
| MF8* | 20A | Headlamp wash (2009–2016). |
