Peugeot 607 (2003 & 2004) Fuse Box Location & Diagrams
The Peugeot 607 (2003 & 2004) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Peugeot 607.
Fuse Box Location

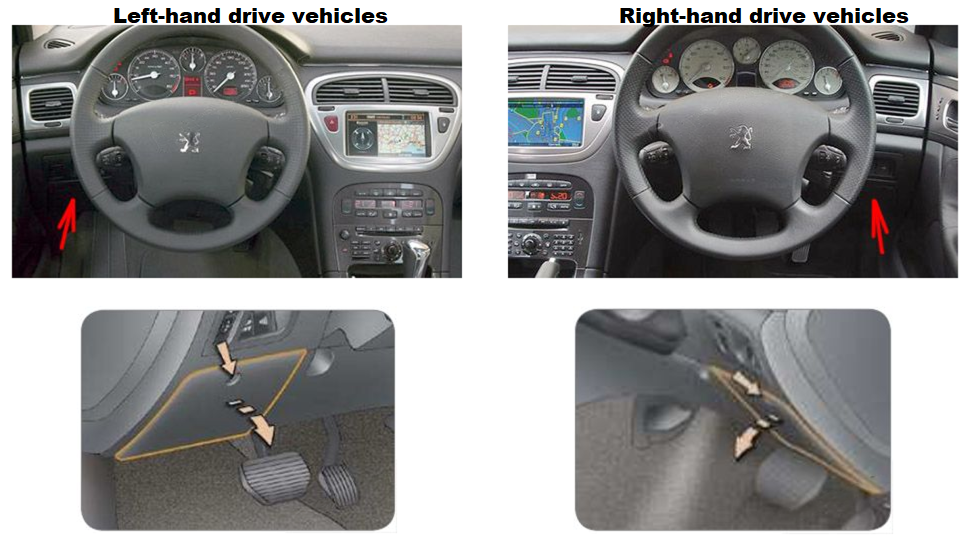

Passenger Compartment Fuse Box
To access, open the cover of the storage compartment on the driver’s side. Tilt the fusebox downwards.

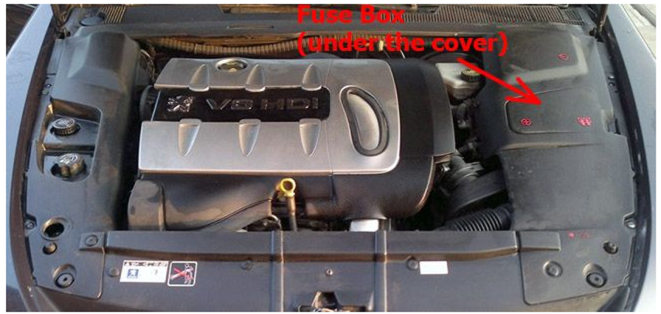

Engine Compartment Fuse Box

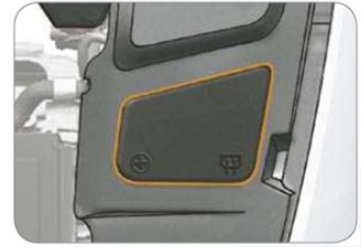

To access the fuses located in the engine compartment, remove the cover and unclip the fuse box lid.
Fuse Box Diagrams

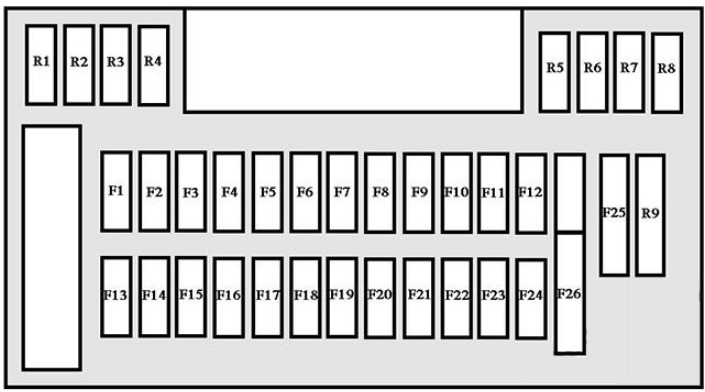

Passenger Compartment Fuse Box
| № | Rating | Functions |
|---|---|---|
| R | Replacement fuses. | |
| 1 | 30A | Locking / deadlocking. |
| 2 | 20A | Radio amplifier. |
| 3 | 30A | Windscreen wash. |
| 4 | 30A | Rear window switches on rear doors. |
| 5 | 15A | Electronic immobiliser, monochrome screen or colour screen control unit, instrument panel, air conditioning control unit, audio system/telephone. |
| 6 | 10A | Rear right brake light. |
| 7 | 10 A | Switches, rear lighter illumination, front courtesy light, rear courtesy light, rear lighter, number plate lighting, headlamp height adjustment. |
| 8 | 10 A | Diagnostic connector, headlamp height adjustment control unit, HF locking receiver, passenger compartment air temperature sensor, HF tyre under-inflation receiver. |
| 9 | 20 A | Headlamp wash. |
| 10 | 20 A | Glove box lighting, front lighter, front and rear courtesy light, electrochrome interior mirror, electric exterior mirrors. |
| 11 | 5 A | Control unit for automatic lighting of headlamps, air bags control unit, safety relay for automatic lighting of headlamps. |
| 12 | 30 A | Rear window switches on driver’s pad, rear windows. |
| 13 | 30 A | Windscreen wiper. |
| 14 | 15 A | Not used. |
| 15 | 15 A | Driver’s door pad, passenger’s door pad. |
| 16 | 15 A | Rear lighter. |
| 17 | 5 A | Heated exterior mirrors. |
| 18 | 15 A | Rear left brake light, additional brake light. |
| 19 | 10 A | Parking assistance control unit, navigation control unit. |
| 20 | 15 A | Alarm siren, monochrome screen or colour screen control unit, HF receiver, audio system/telephone, monochrome or colour navigation control unit, diesel additive control unit. |
| 21 | 15 A | Diagnostic connector, caravan socket, trailer sidelights relay. |
| 22 | 15 A | Diesel additive control unit, driver’s seat memory control unit, driver’s door pad, passenger’s door pad. |
| 23 | 30 A | Driver’s window, passenger’s window, sunroof safety auto-reverse, passenger window switch on driver’s door pad andpassenger’s door pad. |
| 24 | 10 A | Rear fog lamp. |
| 25 | 40 A | PARC shunt. |
| 26 | 40 A | Heated rear screen, radio aerial amplifier. |

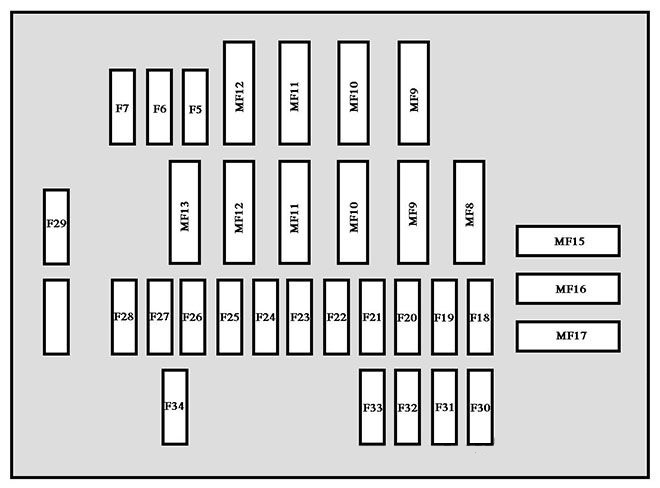

Engine Compartment Fuse Box
| N° | Rating | Functions |
|---|---|---|
| 1* | 70 A | Built-in systems interface ( heated rear screen -heated exterior mirrors – windscreen wiper -screenwash – headlamp wash). |
| 2* | 50 A | Fan. |
| 3* | 50/60 A | ESP pump motor / ABS hydraulic unit. |
| 4* | 40 A | Air conditioning blower. |
| 5 | 20 A | Horn – Horn control relay. |
| 6 | 20 A | Left front and rear heated seats. |
| 7 | 20 A | Right front and rear heated seats. |
| 8* | 70 A | Built-in systems interface. |
| 9* | 30 A | Passenger electric seat. |
| 10* | 20 A | Automatic headlamp lighting control unit. |
| 11* | 70 A | Built-in systems interface. |
| 12* | 70 A | Ignition supply (+ve accessories / ignition controlled +ve). |
| 13* | 20 A | Automatic headlamp lighting control unit. |
| 14 | 15 A | Double injection relay supply. |
| 15* | – | Not used. |
| 16* | – | Not used. |
| 17* | 30 A | ESP hydraulic unit. |
| 18 | 30 A | Ignition supply (+ starter). |
| 19 | 20 A | Variable suspension control unit. |
| 20 | 10 A | Fan unit relay – Cruise control safety switch – Manual gearbox clutch switch -Manual gearbox reversing lights switch or automatic gearbox multi-function switch -Automatic headlamp lighting control unit – Vehicle speed sensor – Coolant level sensor -Water in diesel sensor – Power switch control unit relay. |
| 21 | 5 A | Automatic gearbox control unit – Automatic gearbox multi-function switch. |
| 22 | 25 A | ESP control unit. |
| 23 | 15 A | Diesel heating. |
| 24 | 5 A | Engine management control unit – Dual control control unit. |
| 25 | 10 A | Fuel pump. |
| 26 | 30 A | Driver’s seat memory control unit. |
| 27 | 25 A | Double injection relay supply. |
| 28 | 10 A | Throttle housing de-icing resistor, Intake pilot solenoid valve – Flow meter – Piston de-activator injectionpump – Oil heating. |
| 29 | 30 A | Air pump, diesel additive control unit – Diesel additive injector. |
| 30 | – | Cannot be used. |
| 31 | 5 A | Automatic gearbox shift lock. |
| 32 | 10 A | ESP or ABS control unit. |
| 33 | 15 A | Automatic gearbox control unit – Automatic gearbox multi-function switch (except reversing lights) – Automatic gearbox seguential control. |
| 34 | 5 A | Oxygen sensors – Exhaust gas recirculation solenoid valve. Exhaust gas recirculation throttle solenoid valve -Turbo pressure regulation solenoid valve. |
| *Maxi fuses provide additional protection for electrical systems. All work must be carried out by your PEUGEOT dealer. |
