Peugeot Expert (2001 – 2006) Fuse Box Location & Diagrams
The Peugeot Expert (2001–2006) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Peugeot Expert.
Fuse Box Location

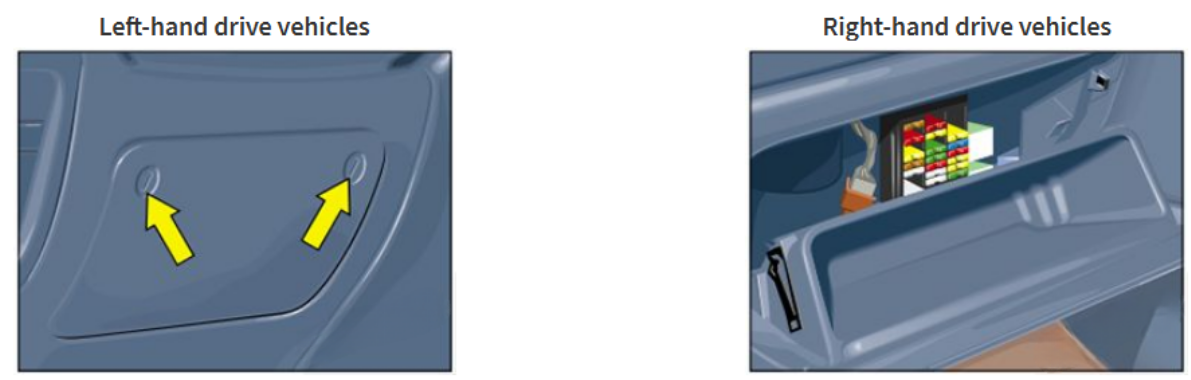

Passenger Compartment Fuse Box

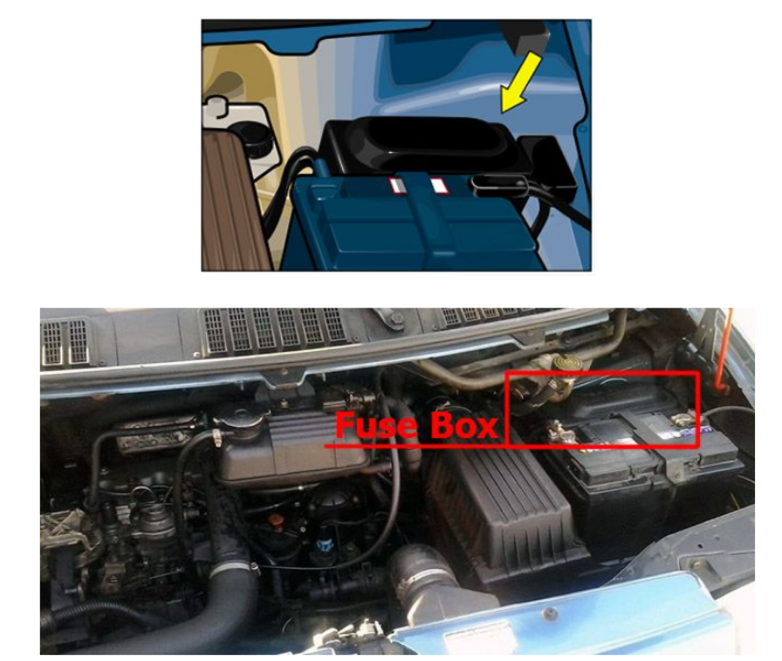

Engine Compartment Fuse Box
Fuse Box Diagrams
Passenger Compartment Fuse Box

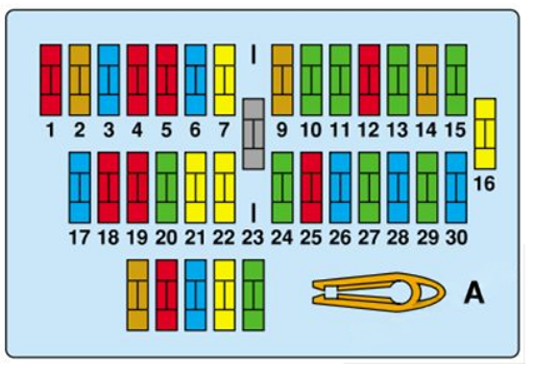

Peugeot Expert (2001-2003)
| № | Rating | Functions |
|---|---|---|
| F1 | 10 A | Audio system (supply) |
| F2 | 5 A | Ignition + position – Speed sensor – PCPU – Instrument panel warning lamps |
| F3 | 15 A | Stop lamp – Cruise control |
| F4 | 10 A | Rear RH tailgate lamp – Front LH sidelamp – Headlamp adjustment |
| F5 | 10 A | Air conditioning – Electric front windows – Air blower – Pressostat |
| F6 | 15 A | Heated rear window & heated seats |
| F7 | 20 A | Horn |
| F8 | SHUNT | — |
| F9 | 5 A | Headlamp washer – Front RH sidelamp – Number plate lighting – Rear LH lamp |
| F10 | 30 A | Unused |
| F11 | 30 A | Unused |
| F12 | 10 A | ABS control unit — Reversing lamps – Diagnostic socket – Auto gearbox |
| F13 | 30 A | Unused |
| F14 | 5 A | PCPU |
| F15 | 30 A | PCPU (central locking – ceiling lights) |
| F16 | 20 A | Cigar lighter – Permanent + position |
| F16A | 20 A | Cigar lighter – Accessories + position |
| F17 | 15 A | Coolant temperature control unit – Cooling fan assembly |
| F18 | 10 A | Foglamp |
| F19 | 10 A | Instrument panel lighting – Audio system – Sidelamps |
| F20 | 30 A | Air conditioning – Air blower |
| F21 | 20 A | Heated seats |
| F22 | 20 A | Accessories + position – Unused |
| F23 | SHUNT | F14 – F15 – F25 – F27 |
| F24 | 30 A | Windscreen washer – Windscreen wiper |
| F25 | 10 A | Air conditioning – Interior lamp – Radio memory – Digital clock |
| F26 | 15 A | Hazard warning lamps |
| F27 | 30 A | Heated rear screen |
| F28 | 15 A | Electric window – Charge warning lamp |
| F29 | 30 A | Electric window |
| F30 | 15 A | Interior lighting – Direction indicators – Clock – Electric rear view mirror |

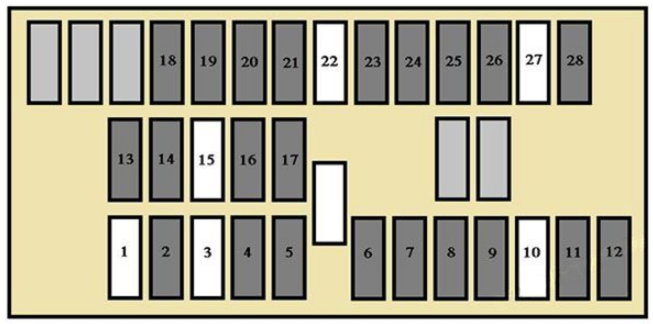

Peugeot Expert (2004 – 2006)
| N° | Rating | Functions |
|---|---|---|
| 1 | – | Not used. |
| 2 | 10 A | Diagnostic socket – ABS control unit – Reversing lights – Heated mirrors. |
| 3 | – | Not used. |
| 4 | 5 A | Instrument panel – Overspeed buzzer – Speed sensor – Water in diesel filter detector. |
| 5 | 15 A | 2004: Cruise control – Brake switch – Clutch switch – Brake lights. /2005-2006: Cruise control, brake switch, clutch switch, automatic gearbox, brake lights |
| 6 | 5 A | Courtesy light – Instrument panel – Audio equipment. |
| 7 | 30 A | Heated rear screen. |
| 8 | 30 A | Passenger compartment protection unit. |
| 9 | 5 A | Passenger compartment protection unit. |
| 10 | – | Not used. |
| 11 | 5 A | Fan assembly relay – Compressor relay. |
| 12 | 10 A | 2004: Electric windows – Air blower relay – Heated rear screen switch – Air conditioning -Pressostat./ 2005-2006: Electric windows, air blower relay, heated seats relay, heated rear screen switch, air conditioning, pressostat |
| 13 | 15 A | Hazard lights. |
| 14 | 30 A | Electric windows. |
| 15 | – | Not used. |
| 16 | 20 A | 2005-2006: Heated seats |
| 17 | 20 A | Horn. |
| 18 | 10 A | Rear fog lamp. |
| 19 | 5 A | 2004: Cruise control – Lights on buzzer – Instrument panel lighting – Audio equipment – Heated rear screen switch – Hazard lights switch – Air conditioning control panel./ 2005-2006: Cruise control, lights-on buzzer, heated seats switch, instrument panel lighting, audio equipment, heated rear screen switch, automatic gearbox lever, hazard lights switch, air conditioning control panel |
| 20 | 5 A | Headlamp height adjustment switch – Front left and front right side lights. |
| 21 | 5 A | 2004: Rear left and rear right side lights – Number plate lights./ 2005-2006: Rear left/right side lights, headlamp wash timer, number plate lights |
| 22 | – | Not used. |
| 23 | 20 A | Lighter. |
| 24 | 10 A | Audio equipment. |
| 25 | 10 A | 2004: Lights on buzzer – Electric mirrors – Direction indicators./2005-2006: Lights-on buzzer, automatic gearbox buzzer, electric mirrors, direction indicators |
| 26 | 30 A | Windscreen wipers timer – Windscreen wipers – Wash-wipe pump. |
| 27 | – | Not used. |
| 28 | 5 A | 2004: Instrument panel – Electric windows relay./ 2005–2006: Instrument panel, electric windows relay |
Engine Compartment Fuse Box

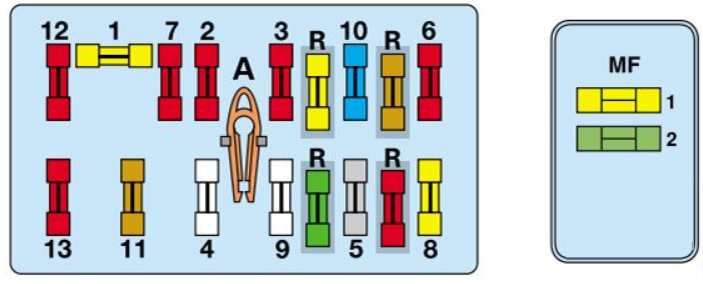

Peugeot Expert (without ABS 2001-2003)
| № | Rating | Functions |
|---|---|---|
| F1 | 20 A | Fuel pump |
| F2 | 10 A | Right dipped beam |
| F3 | 10 A | Left dipped beam |
| F4 | 25 A | Headlamp washer |
| F5 | SHUNT | Unused |
| F6 | 10 A | Immobiliser |
| F7 | 10 A | Catalytic converter sensor |
| F8 | 20 A | Trailer |
| F9 | 25 A | Cooling fan assembly 1 – 120W |
| F9 | 30 A | Cooling fan assembly 1 – 180W |
| F10 | 15 A | Unused |
| F11 | 5 A | Unused |
| F12 | 10 A | Left hand main beam |
| F13 | 10 A | Right hand main beam |

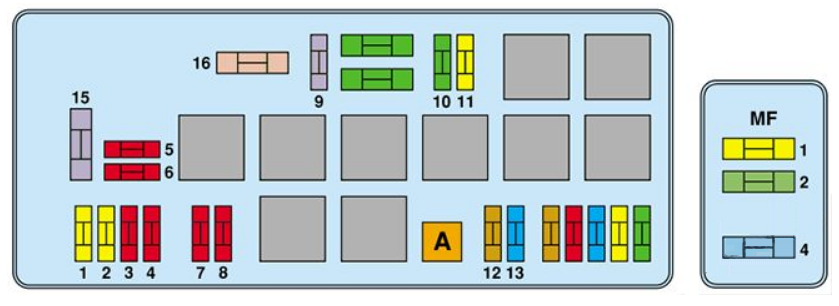

Peugeot Expert (with ABS 2001-2003)
| № | Rating | Functions |
|---|---|---|
| F1 | 20 A | Trailer |
| F2 | 15 — 20 A | Fuel pump |
| F3 | 10 A | Left dipped beam |
| F4 | 10 A | Right dipped beam |
| F5 | 10 A | Diagnostic socket |
| F6 | 10 A | Electronic injection – Immobiliser |
| F7 | 10 A | Left hand main beam |
| F8 | 10 A | Right hand main beam |
| F9 | 25 40 A | Engine cooling |
| F10 | 30 A | Headlamp washers pump |
| F11 | 20 A | Additional heating |
| F12 | 5 A | Headlamp wash timer |
| F13 | 15 A | Catalytic converter sensor – Air blower |
| F15 | 40 A | Air blower – Air conditioning |
| F16 | 30 50 A | Engine cooling |
| MF1 | 20 A | Injection relay |
| MF2 | 30 A | Injection relay |
| MF4 | 60 A | ABS ECU |

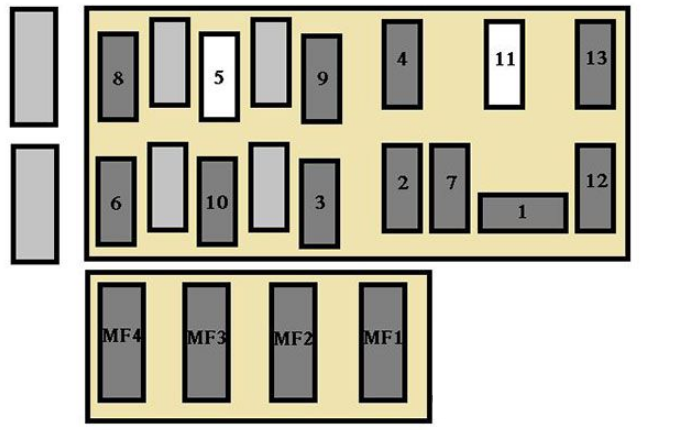

Peugeot Expert (2004-2006)
| N° | Rating | Functions |
|---|---|---|
| 1 | 20 A | Fuel pump. |
| 2 | 10 A | Right dipped headlamp. |
| 3 | 10 A | Left dipped headlamp. |
| 4 | 25 A | Headlamp wash. (2005-2006) |
| 5 | – | Shunt. |
| 6 | 10 A | Engine immobiliser. |
| 7 | 10 A | Catalytic converter sensor. |
| 8 | 20 A | Towbar. |
| 9 | 25 A | 1-120 W fan assembly. |
| 9 | 30 A | 1-180 W fan assembly. |
| 10 | 15 A | Fog lamps. |
| 11 | – | Not used. |
| 12 | 10 A | Left main beam. |
| 13 | 10 A | Right main beam. |
| MF1 | 70 A | Engine running relay. |
| MF2 | 70 A | ABS control unit – Ignition switch. |
| MF3 | 30 A | Air blower – Air conditioning. |
| MF4 | 30 A | Fan assembly. |
