Pontiac G6 (2005 – 2010) Fuse Box Location & Diagrams
The Pontiac G6 (2005–2010) uses multiple fuse boxes to protect its electrical systems and components. Knowing the correct fuse locations and assignments makes electrical troubleshooting easier. This guide covers the fuse box locations, diagrams, fuse ratings, and protected components for the Pontiac G6.
Fuse Box Location
Passenger Compartment Fuse Box

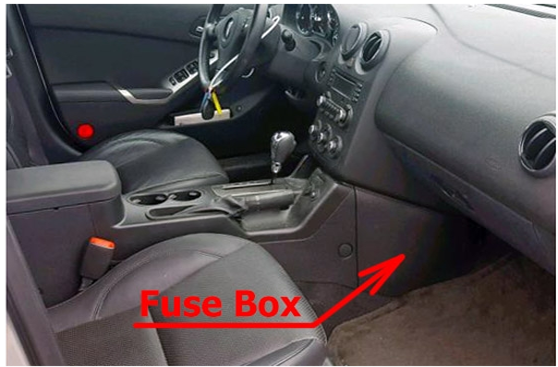

It is located on the passenger side of the central console, behind the panel.

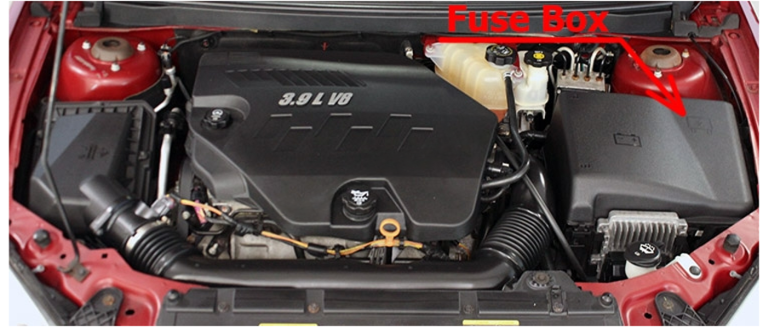

Engine Compartment Fuse Box
Luggage Compartment Fuse Box

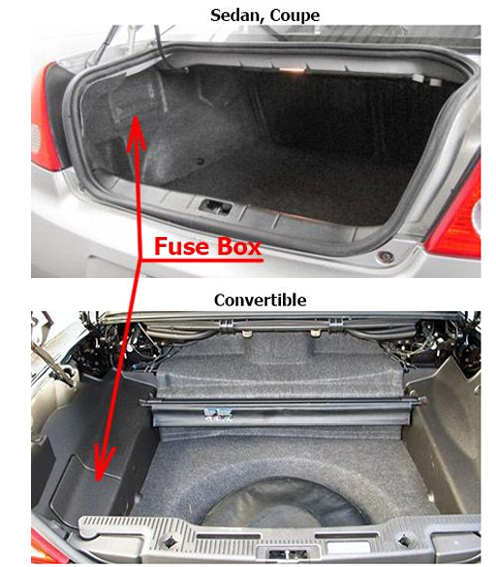

Rear Compartment Fuse Block is located in the trunk (on the left-side), behind the cover.
Fuse Box Diagram

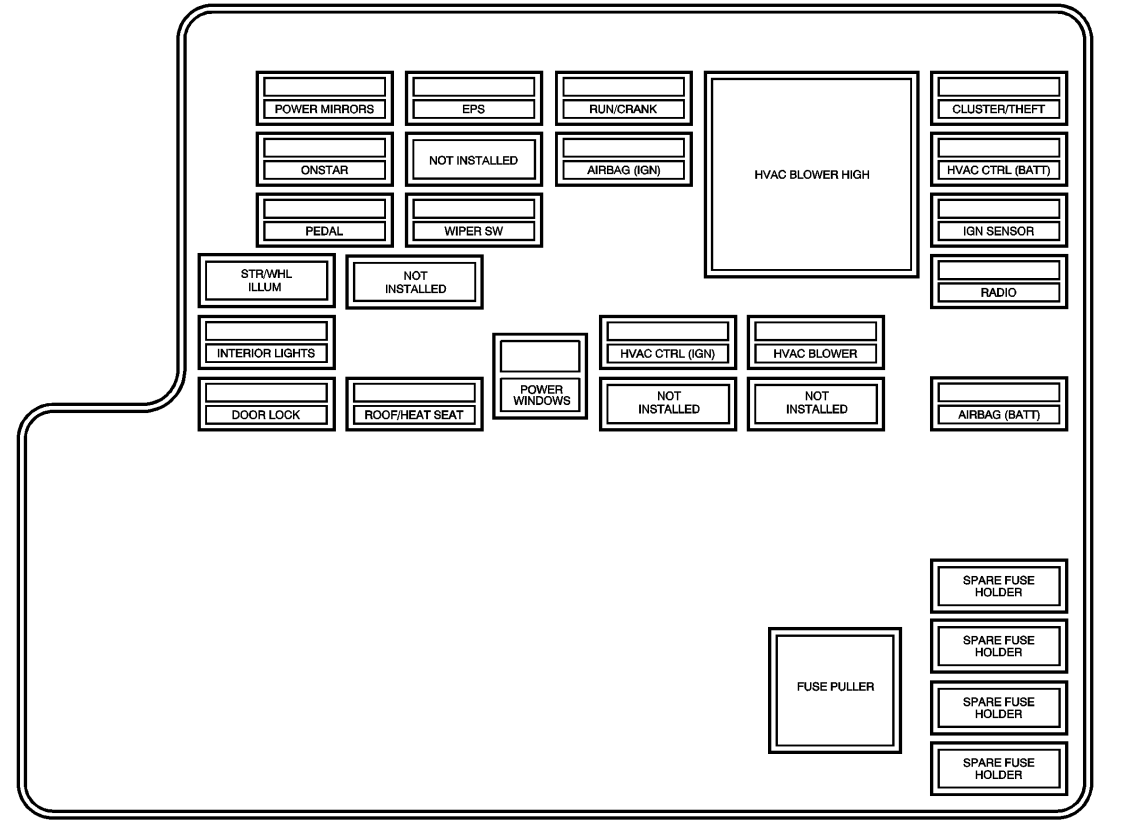

Passenger Compartment Fuse Box
| Name | Usage |
|---|---|
| POWER MIRRORS | Power Mirrors |
| EPS | Electric Power Steering |
| RUN/CRANK | Cruise Control Switch, Passenger Airbag Status Indicator, DSC Switch |
| HVAC BLOWER HIGH | Heating Ventilation Air Conditioning Blower – High Speed Relay |
| CLUSTER/ THEFT | Instrument Panel Cluster, Theft Deterrent System |
| ONSTAR | OnStar |
| NOT INSTALLED | Not Used |
| AIRBAG (IGN) | Airbag (Ignition) |
| HVAC CTRL (BATT) | Heating Ventilation Air Conditioning Control Diagnostic Link Connector (Battery) |
| PEDAL | Adjustable Pedals |
| WIPER SW | Windshield Wiper/Washer Switch |
| IGN SENSOR | Ignition Switch |
| STR/WHL ILLUM | Steering Wheel Controls Backlighting |
| RADIO | Audio System |
| INTERIOR LIGHTS | Interior Lamps |
| REAR WIPER | Not Used |
| POWER WINDOWS | Power Windows (Sedan) |
| HVAC CTRL (IGN) | Heating Ventilation Air Conditioning Control (Ignition) |
| HVAC BLOWER | Heating Ventilation Air Conditioning Blower Switch |
| DOOR LOCK | Door Locks |
| ROOF/HEAT SEAT | Sunroof, Heated Seat, Power Windows (Coupe, Retractable Hardtop), Automatic Dimming Rearview Mirror, Compass |
| AIRBAG (BATT) | Airbag (Battery) |
| SPARE FUSE HOLDER | Spare Fuse Holder |
| FUSE PULLER | Fuse Puller |

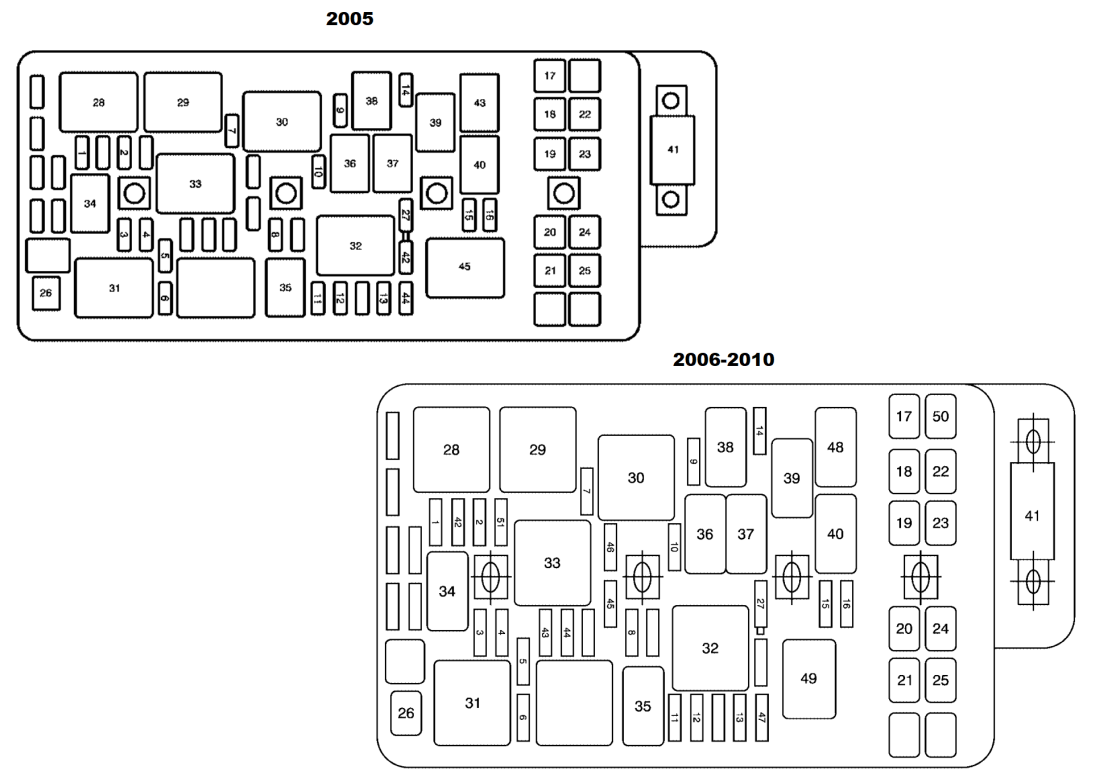

Engine Compartment Fuse Box
| № | Description |
|---|---|
| 1 | Air Conditioner Clutch |
| 2 | Electronic Throttle Control |
| 3 | 2005-2006: Ignition 1 Module, Starter 2007-2009: Engine Control Module (IGN 1) (LZ4, LZE, LZ9) 2010: Not Used |
| 4 | Transmission Control Module Ignition 1 |
| 5 | 2005-2006: Injector 2007-2010: Mass Airflow Sensor (LY7) |
| 6 | Emission |
| 7 | Left Headlamp Low Beam |
| 8 | Horn |
| 9 | Right Headlamp Low Beam |
| 10 | Front Fog Lamps |
| 11 | Left Headlamp High Beam |
| 12 | Right Headlamp High Beam |
| 13 | Engine Control Module (Battery) (LE5, LY7) |
| 14 | Windshield Wiper |
| 15 | Antilock Brake System (IGN 1) |
| 16 | Engine Control Module (IGN 1) (LE5, LY7) |
| 17 | Cooling Fan 1 |
| 18 | Cooling Fan 2 |
| 19 | Run Relay, Heating, Ventilation, Air Conditioning Blower |
| 20 | Body Control Module 1 |
| 21 | Body Control Module Run/Crank |
| 22 | Rear Electrical Center 1 |
| 23 | Rear Electrical Center 2 |
| 24 | Antilock Brake System |
| 25 | Body Control Module 2 |
| 26 | Starter |
| 27 (Diode) | Wiper |
| 41 | Electric Power Steering |
| 42 | Transmission Control Module Battery |
| 43 | Ignition Module (LE5, LE9, LZ4, LZE, LZ9), Odd Cylinder Injectors/Ignition Coils (LY7) |
| 44 | Injectors (LE5, LE9, LZ4, LZE, LZ9), Even Cylinder Injectors/Ignition Coils (LY7) |
| 45 | Rear Oxygen Sensors (LZ4, LZE, LZ9, LY7) |
| 46 | Daytime Running Lamps |
| 47 | Center High-Mounted Stoplamp |
| 50 | Front Power Windows Coupe/ Retractable Hardtop |
| 51 | Engine Control Module (Battery) (LZ4, LZE, LZ9) |
| 52 | 2008-2010: AIR Solenoid |
| 54 | 2008-2010: Regulated Voltage Control |
| 55 | 2008-2010: Antilock Brake System (Battery) |
| Relays | |
| 28 | Cooling Fan 1 |
| 29 | Cooling Fan Series/Parallel |
| 30 | Cooling Fan 2 |
| 31 | Starter |
| 33 | 2005-2009: Powertrain 2010: Run/Crank, Ignition |
| 34 | Air Conditioning Clutch |
| 35 | High Beam |
| 36 | Front Fog Lamps |
| 37 | Horn |
| 38 | Low Beam |
| 39 | Windshield Wiper 1 |
| 40 | Windshield Wiper 2 |
| 48 | Daytime Running Lamps |
| 49 | Center High-Mounted Stoplamp |
| 53 | 2008-2010: AIR Solenoid |

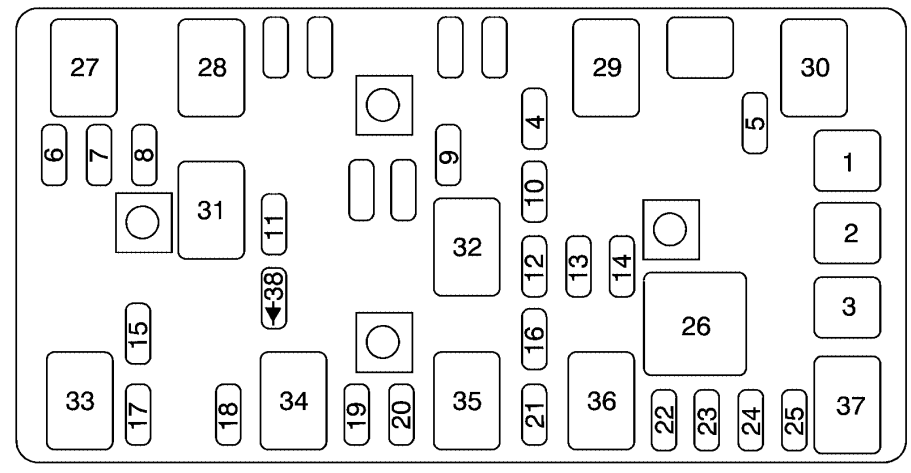

Luggage Compartment Fuse Box
| № | Description |
|---|---|
| 1 | Rear Quarter Windows (Retractable Hardtop Only) |
| 2 | Driver Seat Controls |
| 3 | Retractable Hardtop |
| 4 | Not Used |
| 5 | Emission 2, Canister Vent Solenoid |
| 6 | Park Lamps, Instrument Panel Dimming |
| 7 | Not Used |
| 8 | Not Used |
| 9 | 2005-2007: Sliding Panel Roof 2008-2010: Not Used |
| 10 | Sunroof Controls |
| 11 | Not Used |
| 12 | Retractable Hardtop Controller |
| 13 | Audio Amplifier |
| 14 | Heated Seat Controls |
| 15 | Not Used |
| 16 | Remote Keyless Entry System, XM Satellite Radio |
| 17 | Back-up Lamps |
| 18 | Not Used |
| 19 | Not Used |
| 20 | Cigarette Lighter, Auxiliary Power Outlet |
| 21 | Not Used |
| 22 | Trunk Release |
| 23 | Rear Defog |
| 24 | Not Used |
| 25 | Fuel Pump |
| Relays | |
| 26 | Rear Window Defogger |
| 27 | Park Lamps |
| 28 | Not Used |
| 29 | Not Used |
| 30 | Not Used |
| 31 | Not Used |
| 32 | Not Used |
| 33 | Back-up Lamps |
| 34 | Not Used |
| 35 | Not Used |
| 36 | Trunk Release |
| 37 | Fuel Pump |
| 38 (Diode) | Cargo Lamp |
