SEAT Toledo (2005 – 2008) Fuse Box Location & Diagrams
This blog covers the SEAT Toledo (2005–2008) fuse box location and diagrams, helping you identify the correct fuse for various electrical systems. Find clear information about fuse panel positions, fuse assignments, and circuit protection to make troubleshooting electrical problems easier and more efficient.
Fuse Box Location

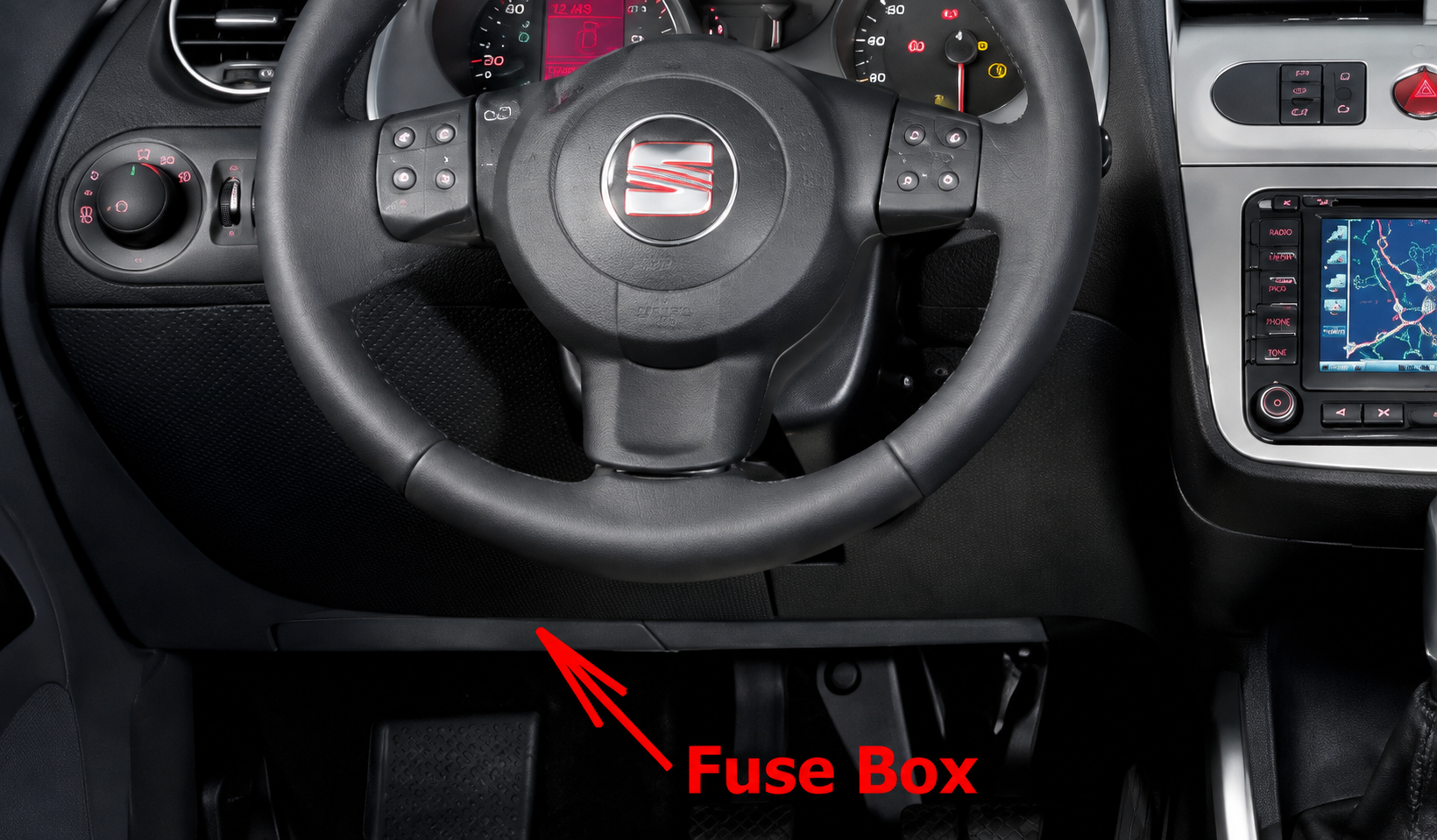

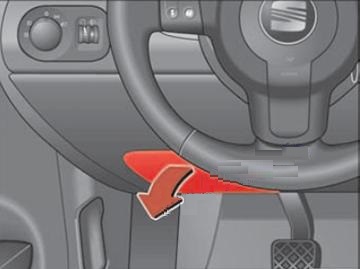

Passenger Compartment Fuse Box
The fuse box is located on the left side of dash panel behind a cover.

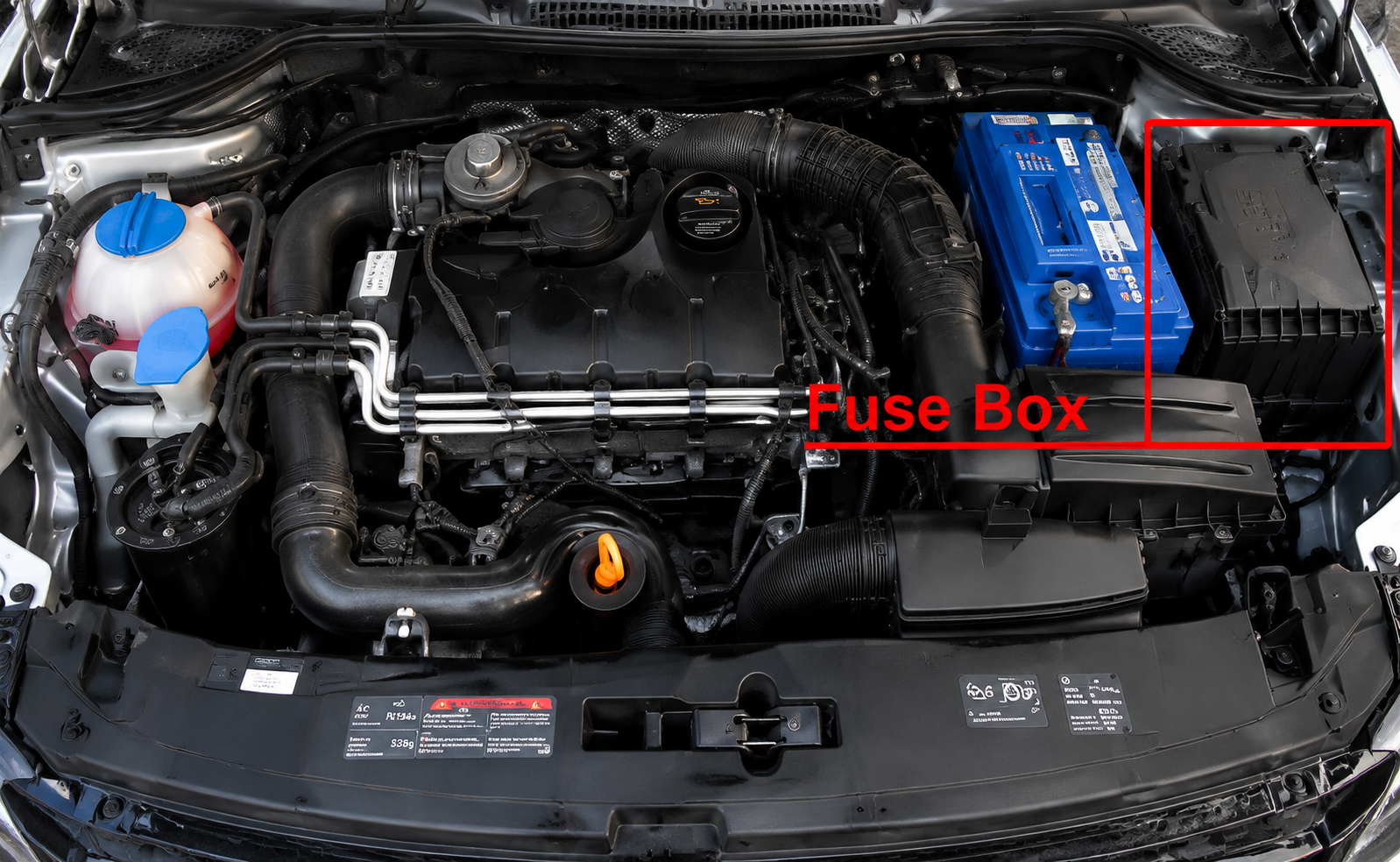

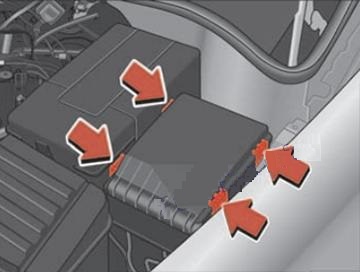

Engine Compartment Fuse Box
Fuse Box Diagrams

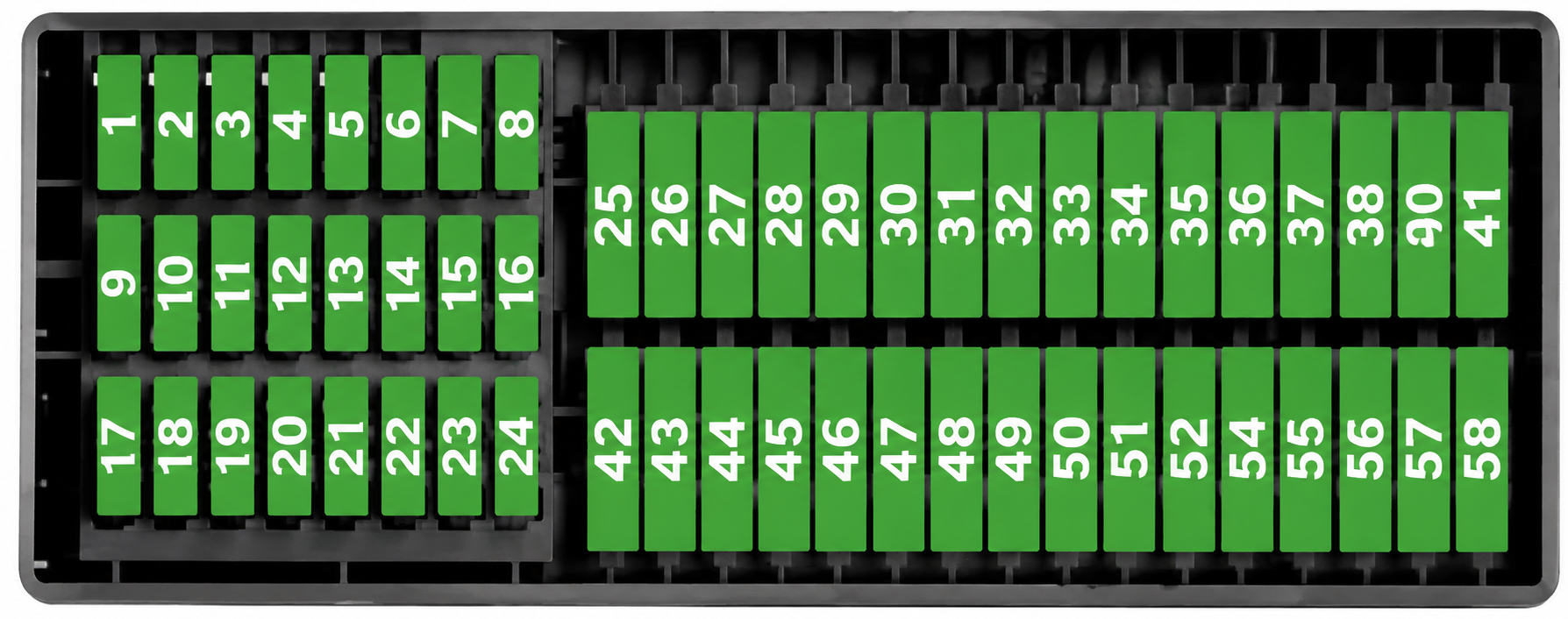

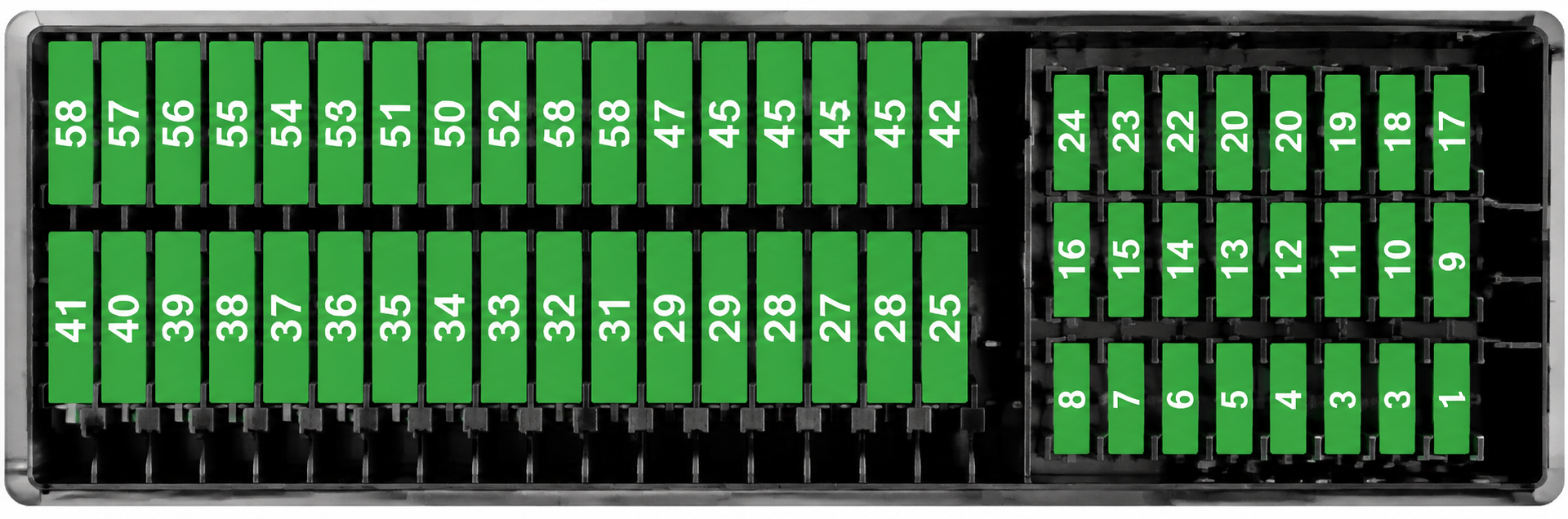

Passenger Compartment Fuse Box
| Number | Electrical equipment | Amperes |
|---|---|---|
| 1 | Electro-chromatic mirror/relay 50 2006-2008: Vacant | 5 |
| 2 | Engine control unit 2006-2008: Vacant | 5 |
| 3 | Lights switch / Headlight control unit / Right-hand side headlight / Telephone 2006-2008: Vacant | 5 |
| 4 | Telephone pre-installation 2006-2008: Vacant | 5 |
| 5 | Flow meter, frequency tube 2006-2008: Vacant | 10 |
| 6 | Airbag 2006-2008: Vacant | 5 |
| 7 | Vacant 2006-2008: Vacant | |
| 8 | Vacant 2006-2008: Vacant | |
| 9 | Power steering 2006-2008: Airbag | 5 |
| 10 | Diagnosis, reverse gear switch 2006: Vacant 2007-2008: RSE input (roof screen) | 5 10 |
| 11 | Heated windscreen 2006-2007: After-sales kit 2006-2008: Vacant | 5 |
| 12 | FSI measure 2006-2008: Left hand side xenon headlight | 10 |
| 13 | Trailer control unit 2006: Heating controls/ESP switch, ASR/Reverse gear/Telephone installation 2007-2008: Heating controls / ESP, ASR switch/ Reverse/ Preinstallation of telephone/Tomtom navigator | 5 |
| 14 | ESP/TCP, ABS/ESP control unit 2006-2008: ABS Control unit/ESP/ Engine/ Headlights/ Trailer control unit/lights switch/ Instrument panel | 5 10 |
| 15 | Automatic gearbox 2006: Headlight adjustment control unit/ Heated windscreens/ Instrument lighting/ Control unit diagnosis 2007-2008: Headlight regulation switchboard / Heated wipers / Instrument lights / Diagnosis Switchboard | 5 10 |
| 16 | Heating controls / Climatronic / Pressure sensor / Heated seats 2006-2008: Right-hand side xenon headlight | 10 |
| 17 | Engine 2006-2007: Engine D2L (2.0 147 kW 4-speed TFSI) 2008: Engine management | 7,5 10 |
| 18 | Vacant | |
| 19 | Vacant | |
| 20 | Engine fuse box supply 2006: Park Pilot (parking aid) / Gear selector lever/ Control unit ESP 2007-2008: Park Pilot (Parking assistant) / Gear lever/ ESP switchboard | 5 10 |
| 21 | Gear lever 2006-2008: Cable control unit | 5 7.5 |
| 22 | Vacant 2006-2008: Volumetric alarm sensor/ Alarm horn | 5 |
| 23 | Brake lights 2006-2008: Diagnosis/ Rain sensor/ Lights switch | 10 |
| 24 | Diagnosis/lights switch 2006,2008: Vacant 2007: Preinstalled towing hook kit (assisted solution) | 10
15 |
| 25 | Vacuum pump 2006: Automatic gearbox control unit interface 2007-2008: Switchboard coupling automatic gearbox | 20 |
| 26 | Engine supply coupling 2006-2008: Vacuum pump | 10 20 |
| 27 | Automatic gearbox 2006: Vacant 2007-2008: RSE input (roof screen) | 20
10 |
| 28 | Light switch 2006: Windscreen washer motor/ Cable control unit 2007-2008: Rear wiper motor / Switchboard wiring | 5 20 |
| 29 | Rear window wiper motor 2006-2008: Vacant | 15 |
| 30 | Heating operation 2006-2008: Cigarette lighter/socket | 5 20 |
| 31 | Cable control unit 2006-2008: Vacant | 15 |
| 32 | Jets 2006-2008: Vacant | 5 |
| 33 | Heater | 40 |
| 34 | Vacant | |
| 35 | Vacant | |
| 36 | Vacant 2006-2007: 2.0 147 kW engine 2008: Engine management | 10 |
| 37 | Vacant 2006-2007: 2.0 147 kW engine 2008: Engine management | 10 |
| 38 | Vacant 2006-2007: 2.0 147 kW engine 2008: Engine management | 10 |
| 39 | Trailer control unit (coupling) | 15 |
| 40 | Trailer control unit (indicators, brakes and left side) | 20 |
| 41 | Trailer control unit (fog light, reversing light and right side) | 20 |
| 42 | Console electrical socket 2006: Towing ring kit (assistance solution) 2007-2008: Vacant | 15 |
| 42 | Electrical socket, rear | 30 |
| 43 | Fuel control unit 2006: Vacant 2007-2008: Trailer pre-installation | 15
40 |
| 44 | Alarm horn and interior monitor sensor 2006-2008: Rear window heater | 5 25 |
| 45 | Vacant 2006-2008: Front electric windows | 30 |
| 46 | Cable control unit 2006-2008: Rear electric windows | 7,5 30 |
| 47 | Cigarette lighter 2006: Engine (gauge, fuel relay) 2007-2008: Engine (Fuel control unit, petrol relay) | 25 15 |
| 48 | Seats 2006-2008: Convenience controls | 30 20 |
| 49 | Door locks 2006-2008: Heating controls | 10 40 |
| 50 | Central locking control unit 2006-2008: Heated seats | 25 30 |
| 51 | Sunroof | 20 |
| 52 | Cable control unit 2006-2008: Headlight washer system | 25 20 |
| 53 | Headlight washer system 2006-2007: Towing ring kit (assistance solution) 2008: Vacant | 20 |
| 54 | Park Pilot 2006-2008: Taxi (metre power supply) | 5 |
| 55 | 2005,2007: Vacant 2006: Towing ring kit (assistance solution) 2007: Towing hook kit (assisted solution) | 20 |
| 56 | Climatronic heater motor 2006: Taxi (radio transmitter power supply) 2007-2008: Taxi (taximeter power supply) | 40 15 |
| 57 | Door control unit 2006-2008: Vacant | 30 |
| 58 | Door control unit 2006-2008: Central locking control unit | 30 |
| – | – | |
| 2005: Location under steering wheel, on relay carrier: | ||
| Air | 2005: Door control units (electric windows/ electric mirrors/ central locking) | 30 |

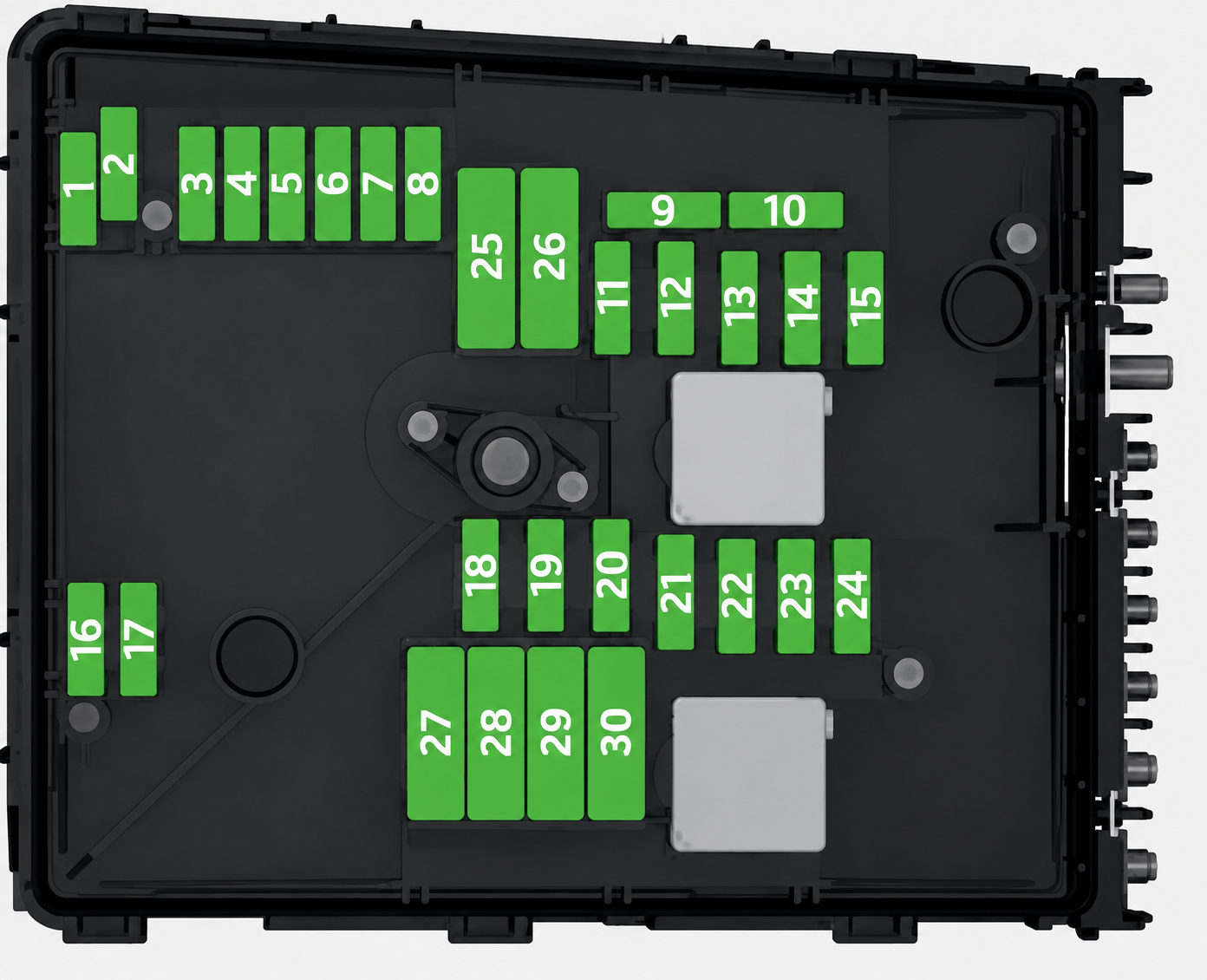

Engine Compartment Fuse Box
| Number | Electrical equipment | Amperes |
|---|---|---|
| 1 | Clean 2006-2008: Windscreen wipers | 30 |
| 2 | Steering column 2008: Vacant | 5 |
| 3 | Cable control unit | 5 |
| 4 | ABS | 30 |
| 5 | AQ gearbox | 15 |
| 6 | Kombi 2006-2007: Instrument panel 2008: Instrument panel/Steering column | 5 |
| 7 | Vacant 2008: Ignition key | 40 |
| 8 | Radio | 15 |
| 9 | Telephone/Tomtom navigator | 5 |
| 10 | Main relay in the FSI / diesel engine compartment/injection module supply 2008: Engine management | 5 |
| 10 | Main relay in the engine compartment D2L (2.0 FSI 147 kW) 2008: Engine management | 10 |
| 11 | Vacant | |
| 12 | Gateway 2008: Electronic control unit | 5 |
| 13 | Petrol injection module supply | 25 |
| 13 | Diesel injection module supply | 30 |
| 14 | Coil | 20 |
| 15 | Engine T71 / 20 FSI 2008: Engine management | 5 |
| 15 | Pump relay | 10 |
| 16 | ABS pump 2008: Right lighting | 30 40 |
| 17 | Horn | 15 |
| 18 | Vacant | |
| 19 | Clean | 30 |
| 20 | Vacant | |
| 21 | Lambda probe | 15 |
| 22 | Brake pedal, speed sensor | 5 |
| 23 | Engine 1.6, main relay (relay n° 100) 2008: Engine management | 5 |
| 23 | T 71 diesel EGR 2008: Engine management | 10 |
| 23 | 2.0 D2L High-pressure fuel pump 2008: Engine management | 15 |
| 24 | ARE, change valve 2007-2008: AKF, gearbox valve | 10 |
| 25 | Right lighting 2008: ABS pump | 40 30 |
| 26 | Left lighting | 40 |
| 26 27 | 1.6 SLP engine 2008: Engine management | 40 |
| 26 27 | 1.9 TDI Glow plug relay 2008: Engine management | 50 |
| 28 | KL15 2008: Vacant | 40 |
| 29 | Electric windows (front and back) | 50 |
| 29 | Electric windows (front) | 30 |
| 30 | KLX 2006-2007: X – relief relay 2008: Ignition key | 40 |
| – | – | |
| Side box: | ||
| B1 | Alternator < 140 W | 150 |
| B1 | Alternator > 140 W | 200 |
| C1 | Power steering | 80 |
| D1 | PTCs (Supplementary electrical heating using air) 2006-2008: Multi-terminal voltage supply “30”. Internal fuse box | 100 |
| E1 | Ventilator > 500 W / Ventilator < 500 W | 80/50 |
| F1 | Multi-terminal voltage supply “30”. Internal fuse box 2006-2008: PTCs (Supplementary electrical heating using air) | 100/80 |
| G1 | Trailer fuse voltage supply in internal fuse box 2006-2008: PTC (Supplementary electrical heating using air) | 50/40 |
| H1 | Vacant 2006-2008: Central locking control unit (4F8 with autolock) |
