Subaru Forester (2009 – 2013) Fuse Box Location & Diagrams
The Subaru Forester (2009–2013) features multiple fuse boxes that protect its electrical circuits and vehicle systems. Knowing their locations and fuse assignments helps identify electrical faults, replace blown fuses, and maintain essential components such as lighting, power windows, climate control, and audio systems.
Fuse Box Location

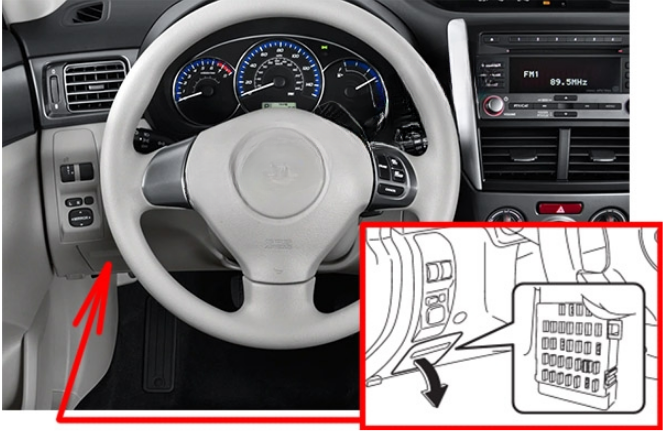

Passenger Compartment Fuse Box
It is located behind the cover to the left of the steering wheel.

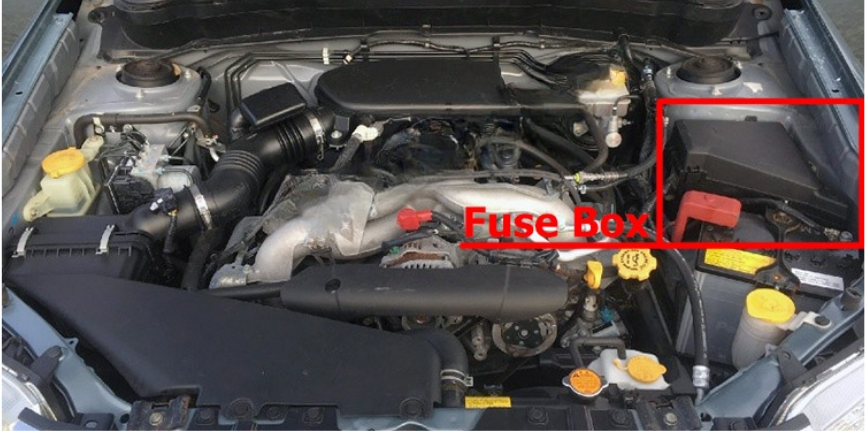

Engine Compartment Fuse Box
Fuse Box Diagram

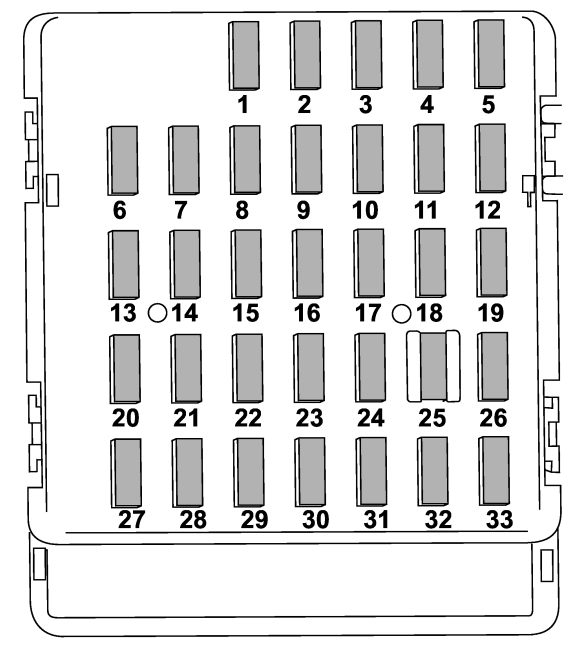

Passenger Compartment Fuse Box
| No. | Amp Rating | Circuit |
|---|---|---|
| 1 | 20A | Trailer |
| 2 | Empty | — |
| 3 | 15A | Door locking |
| 4 | 10A | Front wiper deicer relay |
| 5 | 10A | Combination meter |
| 6 | 7.5A | Remote control rear view mirrors, Seat heater relay |
| 7 | 15A | Combination meter, Integrated unit |
| 8 | 20A | Stop light |
| 9 | 15A | Front wiper deicer |
| 10 | 7.5A | Power supply (battery) |
| 11 | 7.5A | Turn signal unit, Clock |
| 12 | 15A | Automatic transmission unit, Engine control unit, Integrated unit |
| 13 | 20A | Accessory power outlet (center console) |
| 14 | 15A | Parking light, Tail light, Rear combination light |
| 15 | Empty | FWD connector for AWD AT models |
| 16 | 10A | Illumination |
| 17 | 15A | Seat heaters |
| 18 | 10A | Backup light |
| 19 | Empty | — |
| 20 | 10A | Accessory power outlet (instrument panel) |
| 21 | 7.5A | Starter relay |
| 22 | 15A | Air conditioner, Rear window defogger relay coil |
| 23 | 15A | Rear wiper, Rear window washer |
| 24 | 15A | Audio unit, Clock |
| 25 | 15A | SRS airbag system |
| 26 | 7.5A | Power window relay, Radiator main fan relay, Tail and illumination relay |
| 27 | 15A | Blower fan |
| 28 | 15A | Blower fan |
| 29 | 15A | Fog light |
| 30 | 30A | Front wiper |
| 31 | 7.5A | Auto air conditioner unit, Integrated unit |
| 32 | Empty | — |
| 33 | 7.5A | ABS/Vehicle Dynamics Control unit |

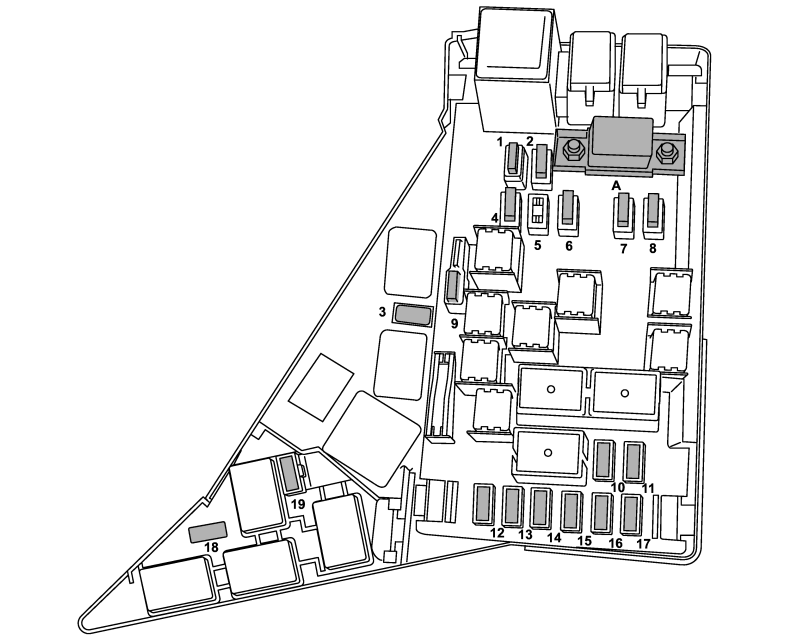

Engine Compartment Fuse Box
| Fuse Panel | Fuse Rating | Circuit |
|---|---|---|
| 1 | 30A | ABS UnitVehicle Dynamics Control Unit |
| 2 | 25A | Main Fan |
| 3 | 10A | Secondary Air Combination Valve (Turbo Models) |
| 4 | 25A | Sub Fan |
| 5 | Empty | — |
| 6 | 10A | Audio System |
| 7 | 30A | Headlight (Low Beam) |
| 8 | 15A | Headlight (High Beam) |
| 9 | 20A | Back-up Light |
| 10 | 15A | Horn |
| 11 | 25A | Rear Window DefoggerMirror Heater |
| 12 | 15A | Fuel Pump |
| 13 | 10A | Automatic Transmission Control Unit |
| 14 | 7.5A | Engine Control Unit |
| 15 | 15A | Turn Signal and Hazard Warning Flasher |
| 16 | 15A | Tail and Illumination Relay |
| 17 | 7.5A | Alternator |
| 18 | 15A | Headlight (Right Hand) |
| 19 | 15A | Headlight (Left Hand) |
