Subaru Forester (2014 – 2018) Fuse Box Location & Diagrams
The Subaru Forester (2014–2018) features multiple fuse boxes that protect its electrical circuits and vehicle systems. Knowing their locations and fuse assignments helps identify electrical faults, replace blown fuses, and maintain essential components such as lighting, power windows, climate control, and audio systems.
Fuse Box Location

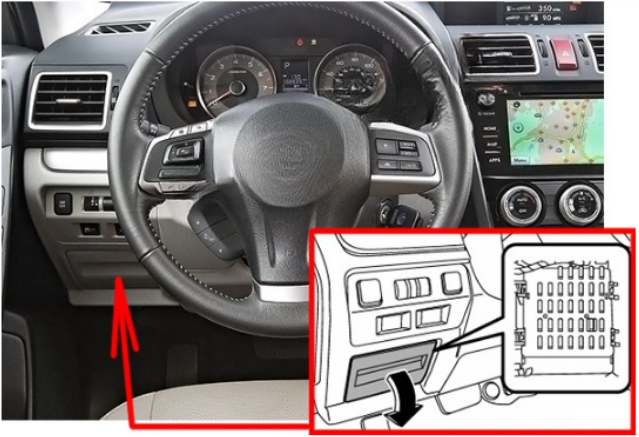

Passenger Compartment Fuse Box
The fuse box is located behind the cover to the left of the steering wheel.

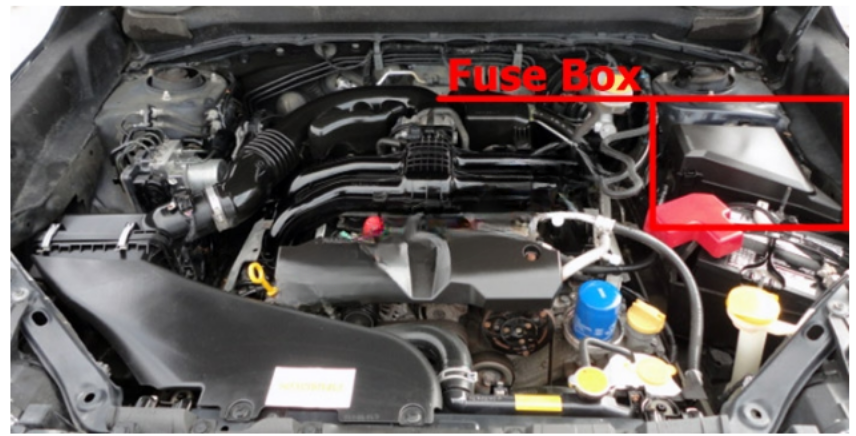

Engine Compartment Fuse Box
Fuse Box Diagram

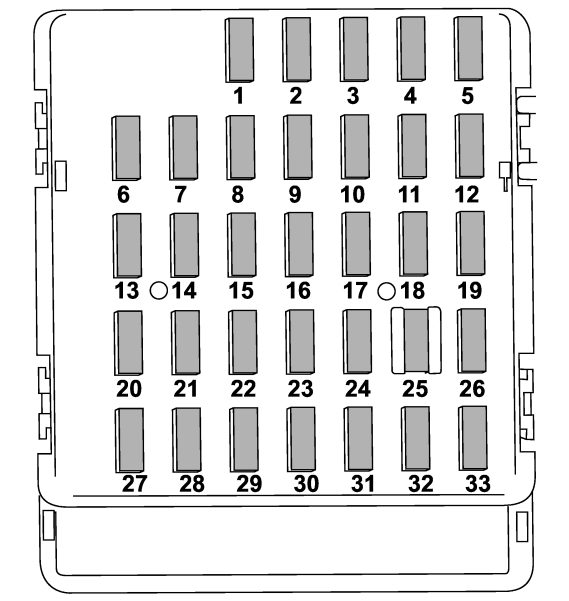

Passenger Compartment Fuse Box
| Fuse Panel | Fuse Rating | Circuit |
|---|---|---|
| 1 | 20A | Trailer hitch connector |
| 2 | 15A (2017 & 2018) | Rear seat heater (2017 & 2018) |
| 3 | 15A | Door locking |
| 4 | 10A | Front wiper deicer relay |
| 5 | 10A | Combination meter |
| 6 | 7.5A | Remote control rear view mirrors; Seat heater relay |
| 7 | 15A | Combination meter; Integrated unit |
| 8 | 15A (2014-2016) /10A(2017 & 2018) | Stop light |
| 9 | 15A | Front wiper deicer |
| 10 | 7.5A | Power supply (Battery) (2014 – 2016) /D-OP +B (2017 & 2018) |
| 11 | 7.5A | Turn signal unit |
| 12 | 15A | Transmission control unit; Engine control unit; Integrated unit |
| 13 | 20A | Accessory power outlet (Center console) |
| 14 | 15A | Parking light; Tail light; Rear combination light |
| 15 | 10A | Luggage light; Keyless unit |
| 16 | 7.5A | Illumination |
| 17 | 15A | Seat heaters |
| 18 | 10A | Backup light |
| 19 | 7.5A | Daytime running lights (2014 – 2016) / Wiper relay (2017 & 2018) |
| 20 | 10A | Accessory power outlet (Instrument panel) |
| 21 | 7.5A(2014 – 2016) /10A (2017 & 2018) | Starter relay |
| 22 | 10A (2014 – 2016) / 7.5A (2017 & 2018) | Air conditioner; Rear window defogger relay coil |
| 23 | Empty | — |
| 24 | 10A | Audio unit; Navigation system (If equipped) |
| 25 | 15A | SRS airbag system |
| 26 | 7.5A | Power window relay; Radiator main fan relay (2014 – 2016) |
| 27 | 15A | Blower fan |
| 28 | 15A | Blower fan |
| 29 | 15A | Fog light |
| 30 | Empty | — |
| 31 | 7.5A | Auto air conditioner unit; Integrated unit |
| 32 | 7.5A | Clutch switch; Steering lock control unit |
| 33 | 7.5A | Vehicle Dynamics Control unit |

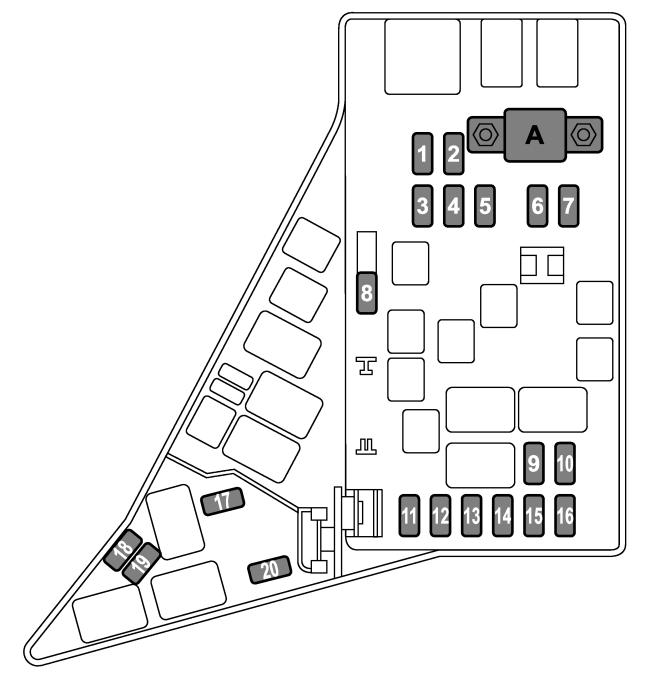

Engine Compartment Fuse Box
A) Main fuse
| Fuse Panel No. | Fuse Rating | Circuit / Component |
|---|---|---|
| 1 | 30A | ABS Unit / Vehicle Dynamics Control Unit |
| 2 | 25A | Main Fan (Cooling Fan) |
| 3 | 25A | Sub Fan (Cooling Fan) |
| 4 | Empty | — |
| 5 | 25A | Audio System |
| 6 | 30A | Headlight (Low Beam) |
| 7 | 15A | Headlight (High Beam) |
| 8 | 20A | Back-Up Circuit |
| 9 | 15A | Horn |
| 10 | 25A | Rear Window Defogger / Mirror Heater |
| 11 | 20A | Fuel Pump |
| 12 | 20A | Continuously Variable Transmission (CVT) Control Unit |
| 13 | 7.5A | Engine Control Unit |
| 14 | 15A | Turn Signal and Hazard Warning Flasher |
| 15 | 15A | Tail and Illumination Relay |
| 16 | 7.5A | Alternator |
| 17 | Empty | — |
| 18 | Empty | — |
| 19 | 15A | Headlight (Low Beam – Right Hand) |
| 20 | 15A | Headlight (Low Beam – Left Hand) |
