Subaru Baja (2003 – 2006) Fuse Box Location & Diagrams
The Subaru Baja (2003–2006) features multiple fuse boxes that protect its electrical circuits and vehicle systems. Knowing their locations and fuse assignments helps identify electrical faults, replace blown fuses, and maintain essential components such as lighting, power windows, climate control, and audio systems.
Fuse Box Location

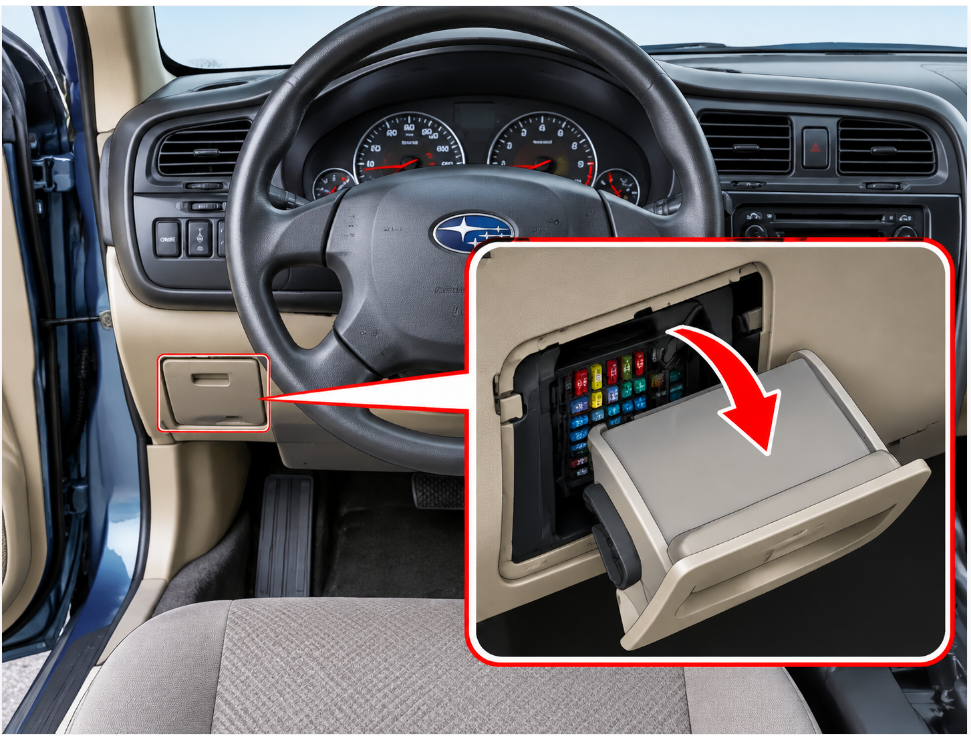

Passenger Compartment Fuse Box

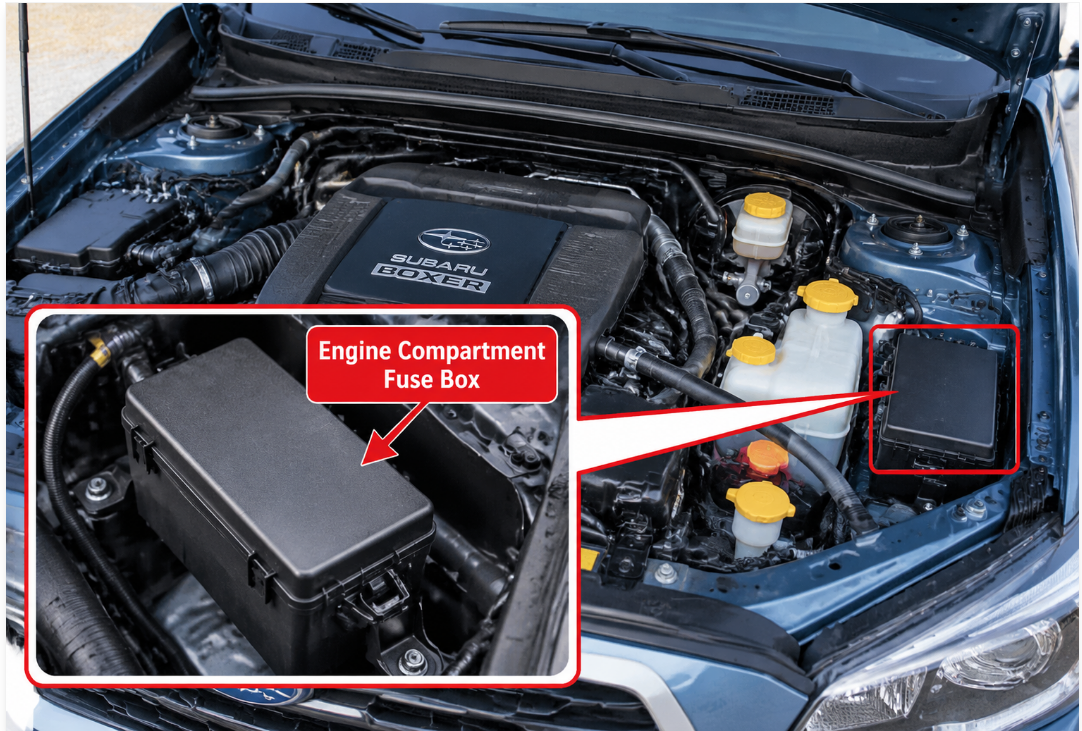

Engine Compartment Fuse Box
Fuse Box Diagram

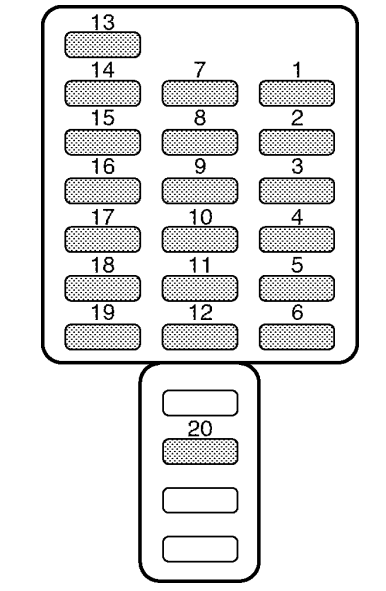

Passenger Compartment Fuse Box
| Fuse No. | Amp Rating | Circuit |
|---|---|---|
| 1 | 15A | Heater fan |
| 2 | 15A | Heater fan |
| 3 | 15A | Power door lock / Keyless entry |
| 4 | 20A | Mirror heater / Cigarette lighter / Remote controlled rear view mirrors |
| 5 | 10A | Tail light / Parking light |
| 6 | 15A | SRS airbag |
| 7 | 15A | Front fog light |
| 8 | 30A | ABS solenoid |
| 9 | 15A | Radio / Clock |
| 10 | 15A | Trailer |
| 11 | 15A | Engine ignition system / SRS airbag |
| 12 | 10A | Illumination brightness control |
| 13 | 15A | Fuel pump |
| 14 | 10A | Rear window wiper and washer |
| 15 | 30A | Windshield wiper and washer |
| 16 | 20A | Brake light |
| 17 | 15A | Air conditioner |
| 18 | 15A | Backup light / Cruise control / ABS control |
| 19 | 20A | 2003 & 2004: Wiper deicer / Sports activity light 2005 & 2006: Wiper deicer / Sports activity light / Cargo lamp |
| 20 | 20A | 2003 & 2004: Accessory power outlet / Cargo lamp 2005 & 2006: Accessory power outlet / Seat heater |

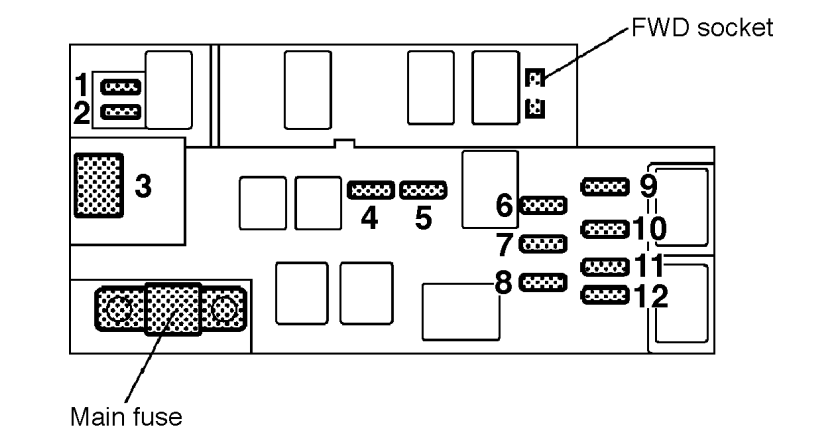

Engine Compartment Fuse Box
| Fuse No. | Amp Rating | Circuit |
|---|---|---|
| 1 | 20A | Radiator cooling fan (Main) (2003–2006) |
| 1 | 30A | Radiator cooling fan (Main) (Turbo) (2006) |
| 2 | 20A | Radiator cooling fan (Sub) (2003–2006) |
| 2 | 30A | Radiator cooling fan (Sub) (Turbo) (2006) |
| 3 | 30A | ABS motor |
| 4 | 20A | Rear window defogger |
| 5 | 15A | Hazard warning flasher |
| 5 | 15A | Horn |
| 6 | 15A | Meter |
| 6 | 15A | SRS airbag system warning light |
| 7 | 10A | Automatic transmission control unit |
| 7 | 10A | ABS UNIT |
| 8 | 10A | Alternator |
| 9 | 15A | Headlight (right side) |
| 10 | 15A | Headlight (left side) |
| 11 | 20A | Lighting switch |
| 12 | 15A | Clock |
| 12 | 15A | Interior light |
