Subaru Outback (2010 – 2014) Fuse Box Location & Diagrams
The Subaru Outback (2010–2014) fuse box protects and controls various electrical systems throughout the vehicle. This blog provides clear fuse box locations and diagrams, helping you identify fuse positions, ratings, and related components for easier electrical troubleshooting and replacement when needed.
Fuse Box Location
Passenger Compartment Fuse Box

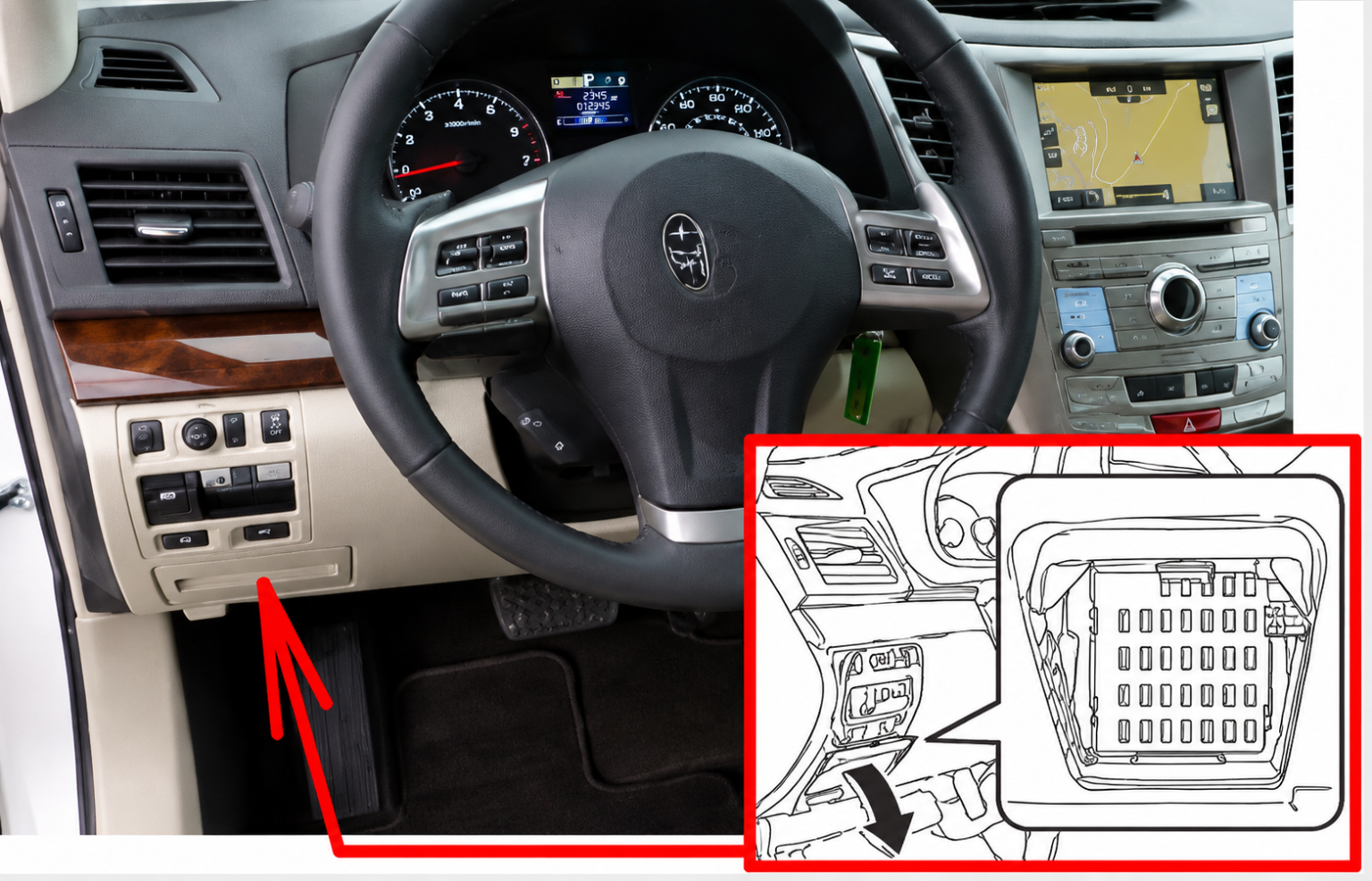

The fuse box is located behind the cover to the left of the steering wheel.

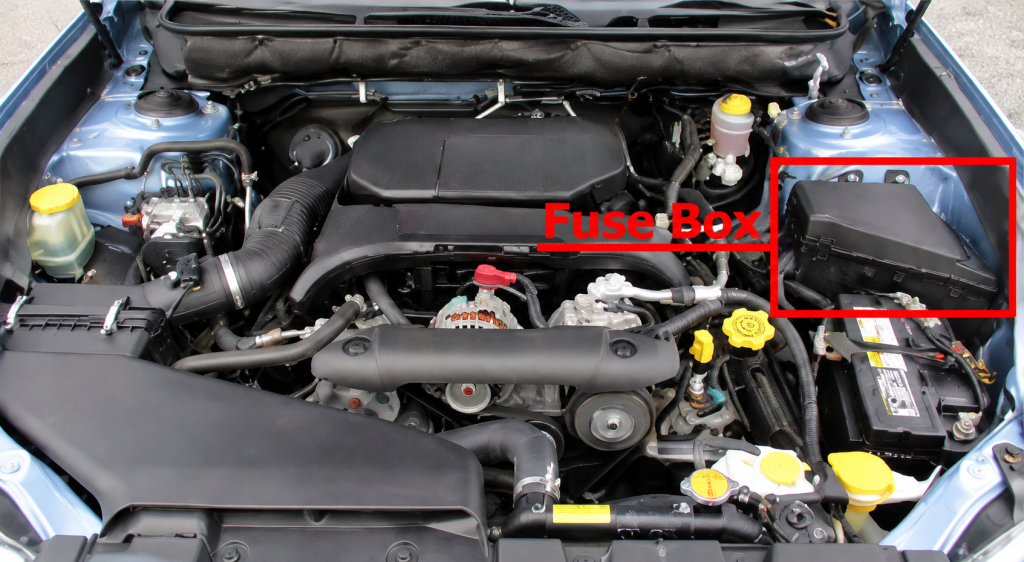

Engine Compartment Fuse Box
Fuse Box Diagrams

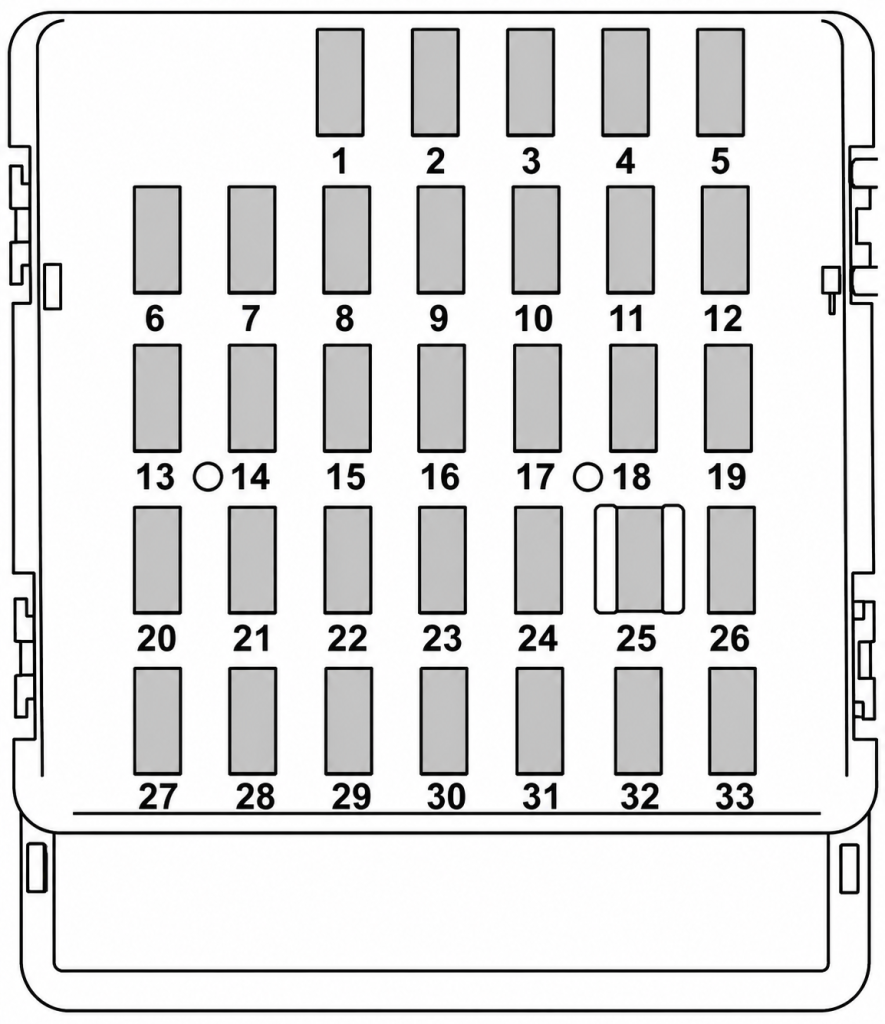

Passenger Compartment Fuse Box
| № | Amp rating | Circuit |
|---|---|---|
| 1 | 15A | Trailer hitch connector |
| 2 | 20A | Rear power window (left side) |
| 3 | 20A | Power window (driver’s side) |
| 4 | 7.5A | Navigation system, Front wiper deicer, Moonroof |
| 5 | 7.5A | Combination meter |
| 6 | 7.5A | Remote control rear-view mirrors |
| 7 | 7.5A | Integrated unit |
| 8 | 15A | Stop light |
| 9 | 15A | Seat heater relay |
| 10 | 7.5A | Power supply (battery) |
| 11 | 7.5A | Turn signal unit |
| 12 | 15A | Integrated unit, Automatic transmission unit |
| 13 | 20A | Socket |
| 14 | 10A Empty | Integrated unit 2010-2012: Empty |
| 15 | 20A | Rear power window (right side) |
| 16 | Empty | |
| 17 | 15A | Front wiper deicer |
| 18 | 7.5A | Backup light |
| 19 | 7.5A | Electronic parking brake unit, Hill Holder system unit |
| 20 | 10A | Accessory power outlet |
| 21 | 7.5A | Starter relay |
| 22 | 15A | Air conditioner |
| 23 | Empty | |
| 24 | 15A | Audio, Navigation system |
| 25 | 15A | SRS airbag system |
| 26 | 7.5A | Main fan |
| 27 | Empty 30A | 2013: Power window relay |
| 28 | Empty | |
| 29 | 20A | Power window (passenger’s side) |
| 30 | Empty | |
| 31 | 7.5A | Automatic air conditioner unit |
| 32 | 7.5A Empty | Steering lock 2010-2012: Empty |
| 33 | 7.5A | ABS / Vehicle dynamics control unit, Power steering |

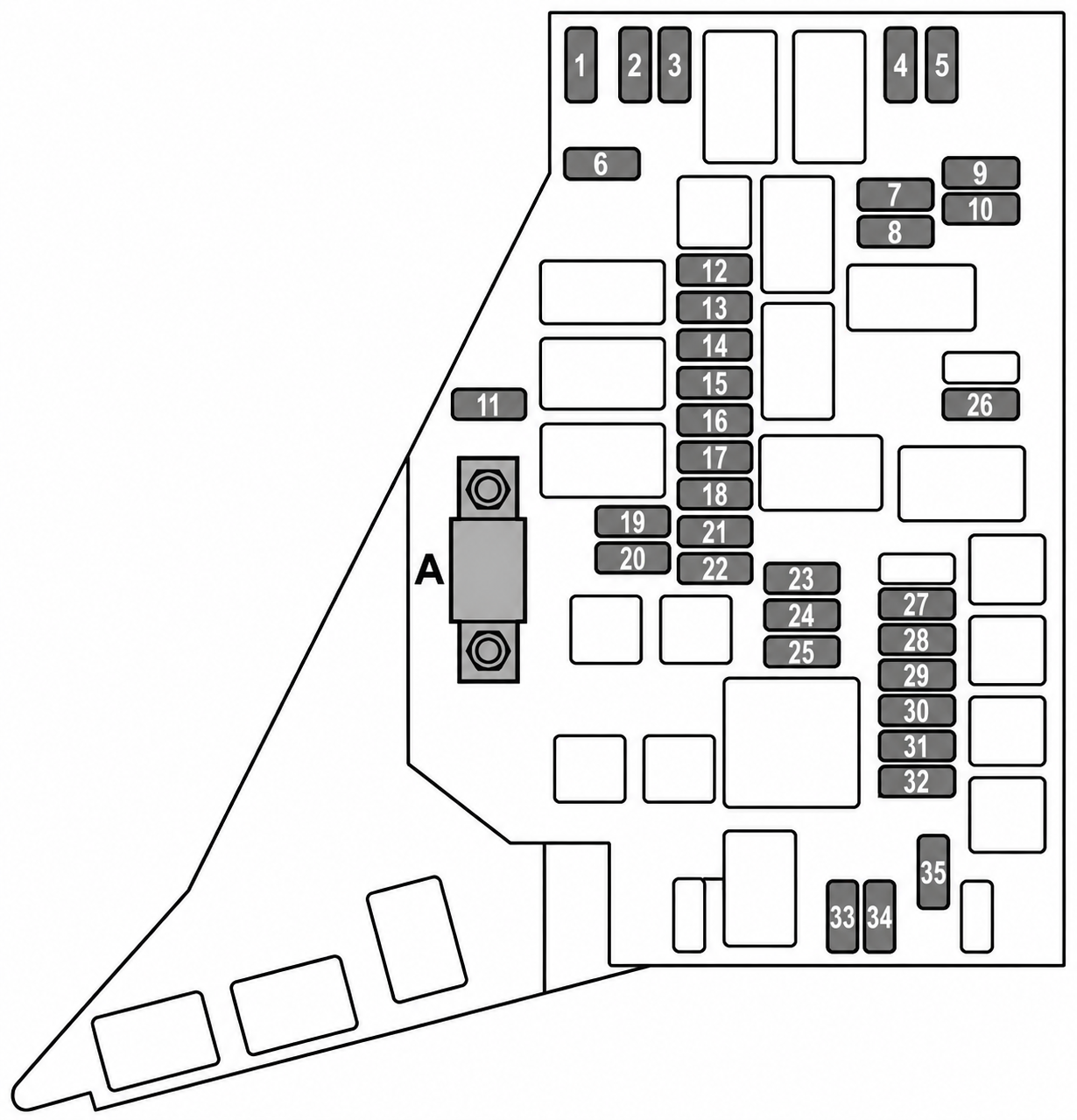

Engine Compartment Fuse Box
| № | Amp rating | Circuit |
|---|---|---|
| A | Main fuse | |
| 1 | 7.5A | CVT control unit |
| 2 | 7.5A | Horn (right side) 2010-2012: Horn LO |
| 3 | 7.5A | Horn (centre) 2010-2012: Horn HI |
| 4 | 15A | Low beam headlight (right side) |
| 5 | 15A | Low beam headlight (left side) |
| 6 | 20A | Fuel pump |
| 7 | 10A | High beam headlight (left side) |
| 8 | 10A | High beam headlight (right side) |
| 9 | 20A | Continuously variable transmission control unit |
| 10 | 7.5A | Alternator |
| 11 | 10A/20A | EyeSight system 2010-2012: Moonroof |
| 12 | 20A | 2013-2014: Moonroof |
| 13 | 7.5A | Engine control unit |
| 14 | 15A | Engine control unit |
| 15 | 15A | Ignition coil |
| 16 | 15A | Engine control unit |
| 17 | 15A | Engine control unit 2010-2012: Automatic transmission control unit |
| 18 | 10A | 2013-2014: Automatic transmission control unit |
| 19 | 10A | Illumination |
| 20 | 10A | Rear combination light |
| 21 | 15A | Turn and hazard warning flasher (body control unit) |
| 22 | 20A | Door lock (body control unit) |
| 23 | 15A | Rear wiper, Rear washer |
| 24 | 10A | Front washer |
| 25 | 30A | Front wiper |
| 26 | 25A | Rear window defogger, Mirror heater, Front wiper deicer |
| 27 | 15A | Blower fan |
| 28 | 15A | Blower fan |
| 29 | 25A | Audio unit |
| 30 | 25A | Sub fan |
| 31 | 25A | Main fan |
| 32 | 30A | ABS / Vehicle dynamics control unit |
| 33 | 10A | Fog light (right side) |
| 34 | 10A | Fog light (left side) |
| 35 | 20A | Backup (body control unit) |
