Volvo V70 / XC70 (2008 – 2016) Fuse Box Location & Diagrams

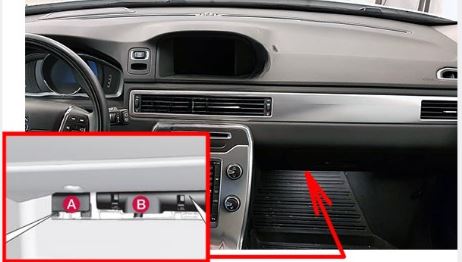

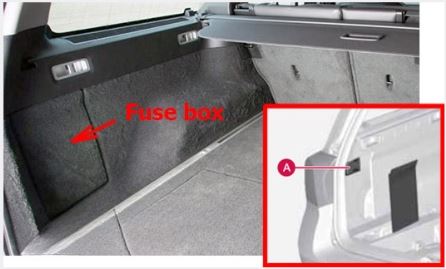

2011-2012: Primary fuse, control module, audio; Bass speaker

2011-2013: –

2015: Controls in driver’s door

2015: Controls in front passenger’s door

2015: Controls in right rear passenger’s door

2015: Controls in left rear passenger’s door

2015: Keyless drive (option)

2013: –

2011: –

2015: Infotainment system control module

2011: Radio, Display, RTI (option)

2015: Infotainment system: amplifier, SiriusXM satellite radio (option)

2011,2015: Infotainment system

2012-2014: Audio

2015: Bluetooth hands-free system

2014: Multimedia system for rear seat (RSE) (option)

2015: Rear Seat Entertainment system (RSE) (option)

2015: Power moonroof (option), Courtesy lighting, climate system sensor

2011: Cigarette lighter Rear Seat; Entertainment (RSE) (option)

2015: 12-volt sockets in tunnel console

2011: Seat heating (passenger side)

2015: Heated rear seat (passenger’s side) (option)

2011: Seat heating (driver’s side)

2015: Heated rear seat (driver’s side) (option)

2011: Seat heating, rear passenger side right (option)

2014: Seat heating (passenger side)

2015: Heated front passenger’s seat (option)

2011: Seat heating, rear passenger side left (option)

2014: Seat heating (driver’s side)

2015: Heated driver’s seat (option)

2011: Parking assistance (option), Parking camera (option), RTI (option)

2012-2014: Parking assistance (option), Parking camera (option), Towbar control (option)

2015: Park assist (option), trailer hitch control module (option), park assist camera (option)

2015: All Wheel Drive control module (option)

2015: Active chassis system (option)

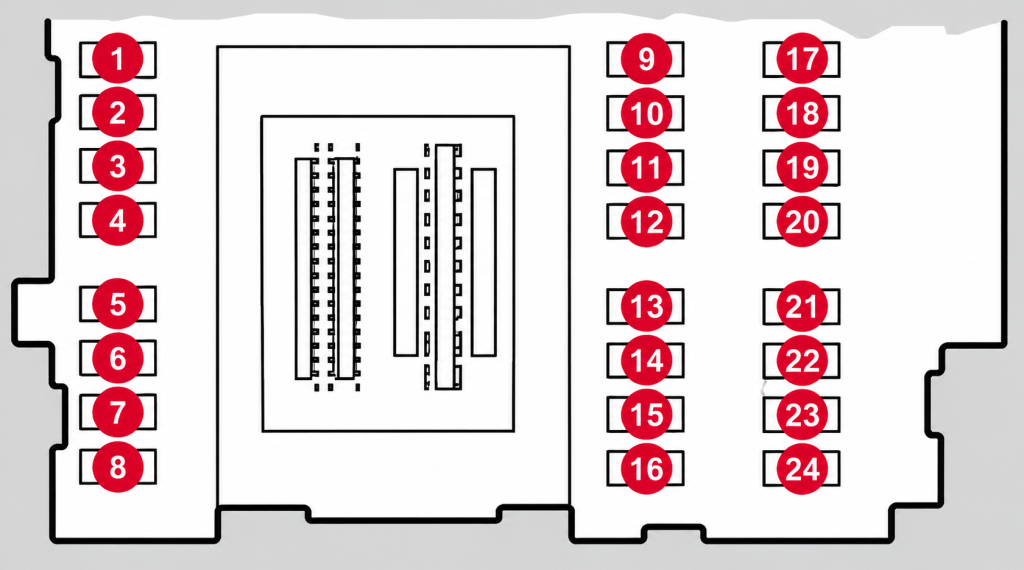

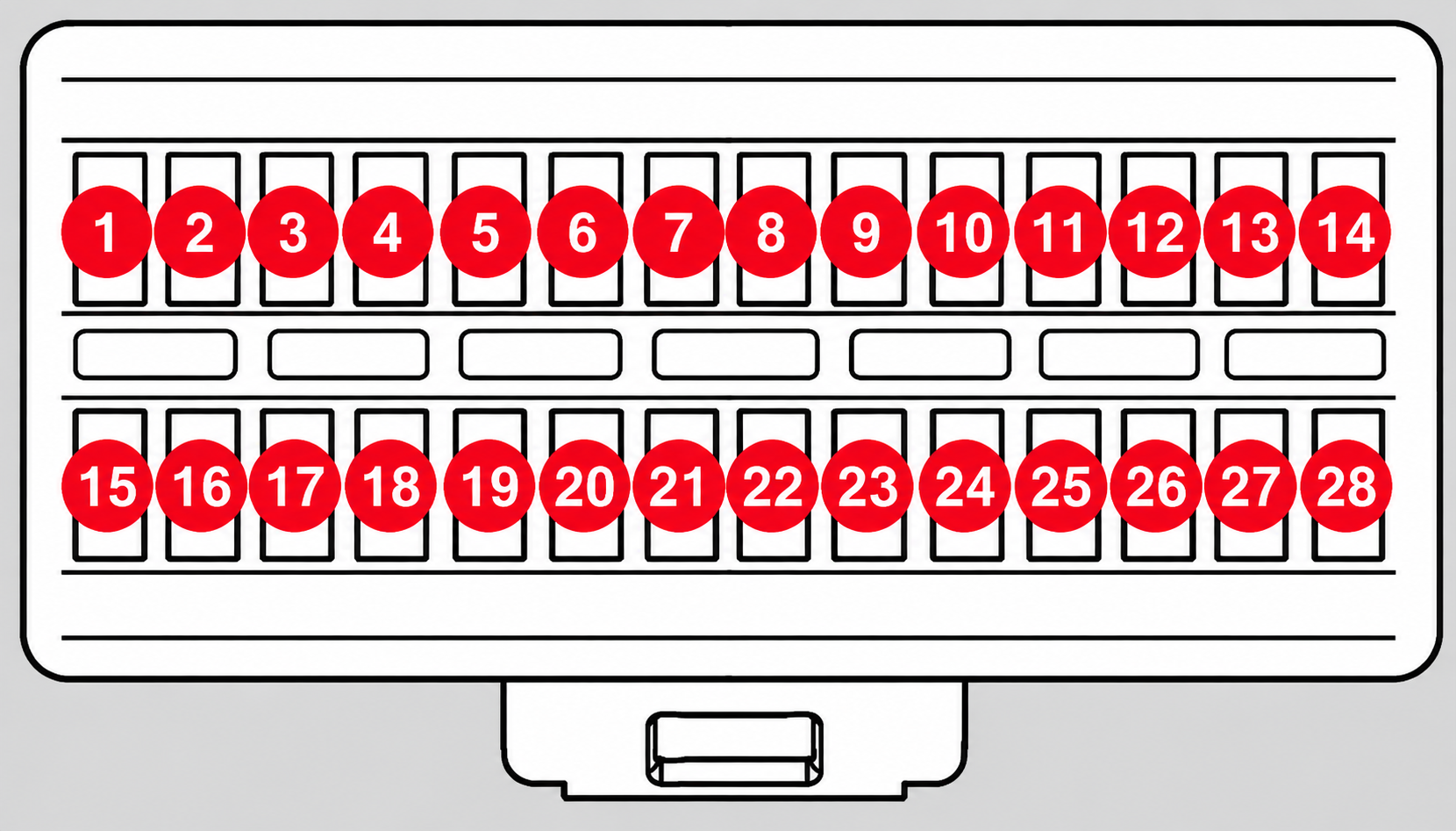

2011: Rear wiper

2011: Interior lighting, Power driver’s seat (option)

2010: Accelerator pedal, heated seats (option)

2011: Information display (DIM)

2011: Adaptive cruise control, ACC (option), collision warning system (option)

2010: ICM display, CD & Radio

2011: Interior lighting, Rain sensor

2011: Central locking system rear, fuel filler flap

2010: High beam

2011: Washers

2010: Moonroof (option)

2011: Windscreen washers

2010: Backup lights

2011: Opening tailgate

2011: Lock tailgate

2011: Fuel pump

2011: Remote control key receiver, Alarm (option), Climate

2011: Steering lock

2011: Alarm/OBDII

2010: Overhead courtesy lighting, Control panel driver’s door/ Power passenger seat (option)

2011: –

2011: Airbag

2011: Collision warning system, radar front

2010: Tailgate wiper

2011: Accelerator pedal, electric engine block heater (diesel), power door mirrors (option), seat heating, rear (option)

2011: Infotainment (ICM), CD & Radio (Not Premium or High Performance)

2011: Brake light

2011: Sun roof (option)

2011: Immobiliser

2010: START/STOP ENGINE button

2015: Tailgate wiper

2012-2013: Interior lighting, Driver’s door control panel, power windows, Power seats, front (option), remote-controlled garage door opener (option)

2015: Front courtesy lighting, driver’s door power window controls, power seat(s) (option), HomeLInk® Wireless Control System (option)

2012-2013: Information display (DIM)

2015: Instrument panel

2015: Adaptive cruise control/colli-sion warning (option)

2015: Courtesy lighting, rain sensor (option)

2015: Cental locking: fuel filler door

2015: Tailgate window washer

2015: Windshield washers

2015: Tailgate unlock

2012: –

2015: Electrical folding rear seat outboard head restraints (option)

2012: Climate panel

2015: Climate system control panel

2015: –

2015: Alarm, On-board diagnostic system

2015: Airbag system, occupant weight sensor

2015: Collision warning system (option)

2012-2013: Accelerator pedal, electric engine block heater (diesel), power door mirrors (option), seat heating, rear (option)

2015: Accelerator pedal sensor, auto-dim mirror function, heated rear seats (option)

2012-2013: Infotainment (ICM), CD & Radio (Not Premium or High Performance)

2015: –

2015: Power moonroof (option)

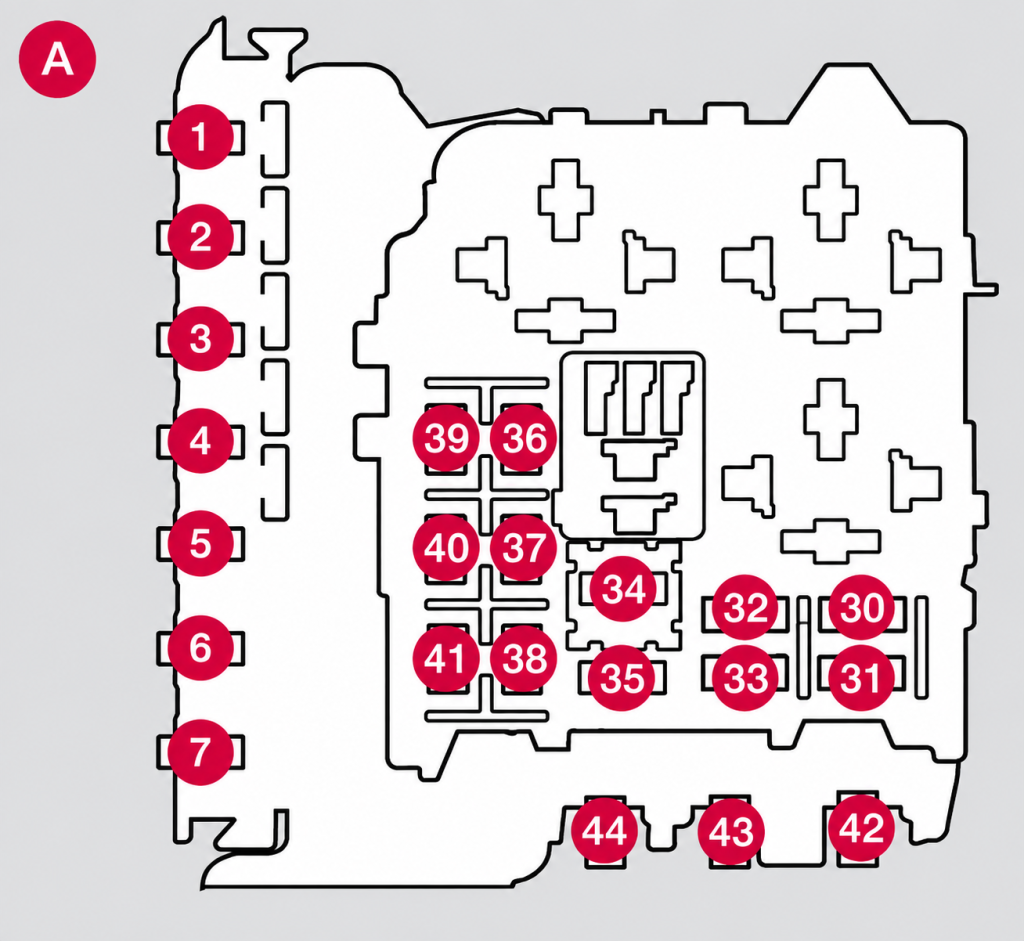

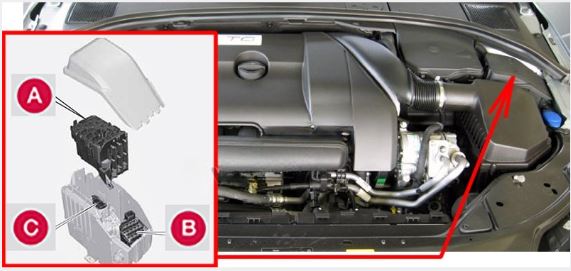

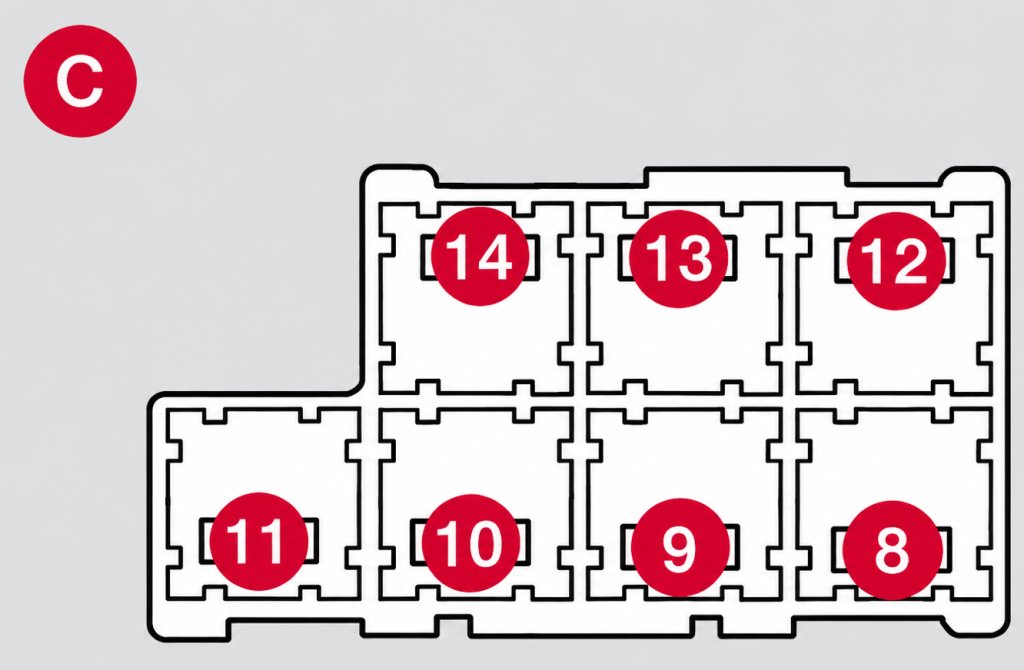

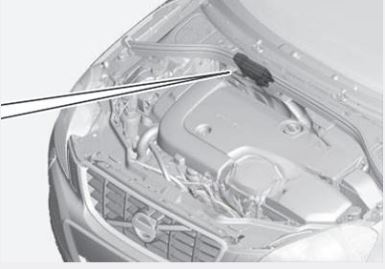

2008-2009,2011: Primary fuse CEM KL30A

2010: Circuit breaker

2012-2013: Primary fuse for the central electronic module (CEM) with fuse box B under the glovebox (For cars with the Start/Stop function this fuse location is empty)

2015: Circuit breaker: central electrical module under the glove compartment (not used on vehicles with the optional Start/Stop function)

2008-2009,2011: Primary fuse CEM KL30B

2010: Circuit breaker

2012-2013: Primary fuse for the central electronic module (CEM) with fuse box B under the glovebox

2015: Circuit breaker: central electrical module under the glove compartment

2008-2009: Primary fuse RJBA KL30

2010: Circuit breaker

2015: Circuit breaker: central electrical module in the cargo compartment (not used on vehicles with the optional Start/Stop function)

2008-2009: Primary fuse RJBB KL30

2010: Circuit breaker

2011: Primary fuse CJB KL30

2012-2013: Primary fuse for central electrical unit in passenger compartment with fuse box A under the glovebox (For cars with the Start/Stop function this fuse location is empty)

2014: Primary fuse for relay/fuse box under the glovebox (For cars with the Start/Stop function this fuse location is empty)

2015: Circuit breaker: central electrical module under the glove compartment (not used on vehicles with the optional Start/Stop function)

2008-2009: Primary fuse RJBD KL30

2010: Circuit breaker

2011: Primary fuse CJB 15E KL30

2012-2013: Primary fuse for central electrical unit in passenger compartment with fuse box A under the glovebox (For cars with the Start/Stop function this fuse location is empty)

2015: Circuit breaker: central electrical module under the glove compartment (not used on vehicles with the optional Start/Stop function)

2008-2009,2011: PTC Air preheater (option)

2010,2015: –

2012-2013: PTC element, air preheater (option) (For cars with the Start/Stop function this fuse location is empty)

2008-2010: Reserve

2011-2013: Headlamp washers (option)

2014: Heated windscreen (option), left-hand side

2015: Headed windshield, driver’s side (option)

2015: Windshield wipers

2010,2015: –

2010: Climate system blower

2015: Climate system blowe (not used on vehicles with the optional Start/Stop function)

2008-2013: Reserve

2014: Heated windscreen (option), right-hand side

2015: Headed windshield, passenger’s side (option)

2008-2013: Reserve

2015: Headlight washers

2008-2009: Headlamp levelling (option) (Active Bi-Xenon, Bi-Xenon)

2010,2015: Active Bending Lights. Headlight leveling (option)

2008-2009,2011: Primary fuse CEM

2010: Central electrical module

2012-2013: Primary fuse for the central electronic module (CEM) with fuse box B under the glovebox

2015: Central electrical module (under the glove compartment)

2008-2010: Radar, ACC control module (option)

2008-2013: Speed-related power steering

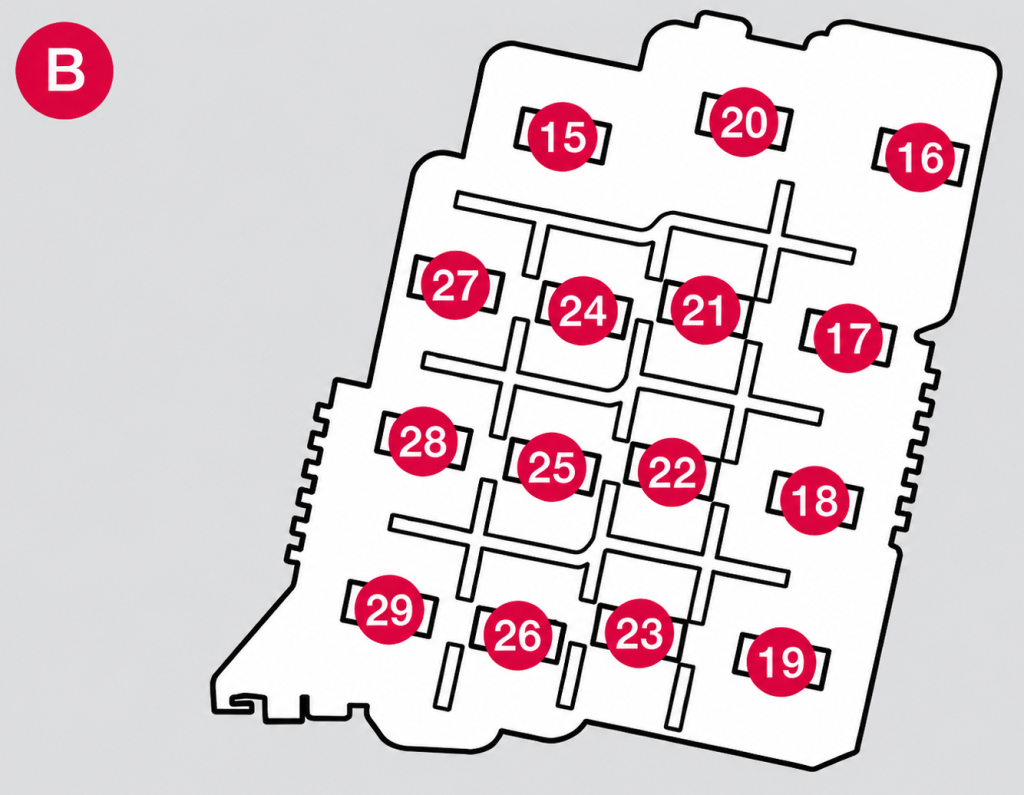

2008-2010,2011: Engine Control Module (ECM), transm. SRS

2012-2013: Engine control module, Transmission control module, Airbags

2015: Engine Control Module (ECM), transmission, SRS

2008-2010: Vacuum pump I5T

2011: Vacuum pump 5-cyl Petrol Turbo and GTDI Electro-hydraulic power steering 1.6 DRIVe

2012: Relay coil, relay, vacuum pump (5-cyl. petrol)

2013: Relay coil, relay, vacuum pump (5-cyl. petrol)

20/5

2008-2010,2011,2015: Lighting panel

2014: Light switches

2011-2012,2015: –

2010: 12-volt socket, front and rear seat; Rear Seat Entertainment (RSE) (option)

2011-2012,2015: –

2010: Moonroof (option), ceiling console/ ECC (option)

2011-2012,2015: –

2008-2009,2011: Relay, engine compartment box

2010: engine compartment box

2012: Internal relay coils

2015: Auxiliary lights (option)

2008-2010,2011: Engine Control Module (ECM)

2012: Relay coil, main relay, engine management system, Engine control module (5, 6-cyl. petrol)

2014: Relay coil in main relay for engine management system; Engine control module (4-cyl. 2.0 l (Does not apply to the B4204T7 engine), 5, 6-cyl.)

2015: Relay coils, Engine Control Module (ECM)

2008-2011: Control module, automatic gearbox (option)

2015: Control module – automatic transmission

2008-2011: Compressor A/C

2012: Compressor A/C (not 5-cyl. diesel), Coolant pump (5-cyl. diesel Start/Stop)

2014: Solenoid clutch A/C (not 4-cyl. 2.0 l (However, does apply to the B4204T7 engine), not 5-cyl. diesel); Supporting coolant pump (4-cyl. 2.0 1 diesel)

2015: A/C compressor (not 4-cyl. engines)

2008-2009,2011: Relay coils

2010: Coils

2012: Relay coil, relay, compressor A/ C (not 5-cyl. diesel), Relay coil, relay, coolant pump (5-cyl. diesel Start/Stop); Relay coils in central electrical unit in engine compartment cold zone Start/Stop

2013: Relay coil in relay for solenoid clutch A/C (not 5-cyl. diesel); Relay coil in relay for coolant pump (5-cyl. diesel Start/Stop); Relay coils in central electrical unit in engine compartment cold zone (Start/Stop)

2014: Relay coil in relay for solenoid clutch A/C (not 5-cyl. diesel); Relay coil in relay for coolant pump (1.6 I petrol Start/Stop); Relay coils in central electrical unit in engine compartment cold zone (Start/Stop)

2015: Relay-coils A/C, relay coils in engine compartment cold zone for Start/Stop

2008-2011: Starter motor relay

2012: Actuator solenoid, starter motor (For cars with the Start/Stop function this fuse location is empty)

2013-2014: Start relay (For cars with the Start/Stop function this fuse location is empty)

2015: Starter motor relay (not used on vehicles with the optional Start/Stop function)

2009: Glow system (5-cyl.die-sel)

2011: Ignition coils 4-cyl. petrol, Glow control module

2012: Ignition coils (4-cyl. petrol), Glow control module (5-cyl. diesel)

2014: Ignition coils (1.6 l petrol, engine B4204T7); Glow control module (5-cyl. diesel)

2008: Ignition coils/Glow system diesel

2009-2010: Ignition coils

2009: EGR, VTC, Bypass engine cooling system (4-cyl. die-sel)

2011: Ignition coils 5, 6-cyl. petrol

2011: EGR, TCV (2.0D); HP Fuel pump (1.6D)

2012: Ignition coils (5, 6-cyl. petrol), Capacitor (6-cyl.)

2014: Engine control module (4-cyl. 2.0 l (Does not apply to the B4204T7 engine)); Ignition coils (5, 6-cyl. petrol); Capacitor (6-cyl.)

2015: Engine control module (4-cyl. engines); Ignition coils (5-/6-cyl. engines), condenser (6-cyl. engines)

2009-2011: Engine Control Module (ECM) throttle petrol

2014: Engine control module (petrol except 4-cyl. 2.0 l (However, does apply to the B4204T7 engine))

2008: Engine Control Module (ECM) petrol/diesel

2009,2011: Engine Control Module (ECM) trottle diesel

2014: Engine control module (1.6 l diesel, 5-cyl. diesel)

2015: Engine Control Module (5-cyl. & 6-cyl. engines)

2014: Engine control module (4-cyl. 2.0 l (Does not apply to the B4204T7 engine))

2015: Engine Control Module (4-cyl. engines)

2009: Mass air flow sensor (4-cyl.diesel)

2012: Valves (1.6 l petrol), Mass air flow sensor (1.6 l petrol) Mass air flow sensor (D4162T), Control valve, fuel flow (D4162T)

2014: Valves (1.6 l petrol); mass air flow sensor (1.6 l, 4-cyl. 2.0 l (Does not apply to the B4204T7 engine)); Thermostat (4-cyl. 2.0 l petrol (Does not apply to the B4204T7 engine)); EVAP valve (4-cyl. 2.0 l petrol (Does not apply to the B4204T7 engine)); Cooling valve for climate control system (4-cyl. 2.0 l diesel); Cooling pump for EGR (4-cyl. 2.0 l diesel) Mass air flow sensor (engine D4162T); Control valve, fuel flow (engine D4162T)

2015: 4-cyl. engines: mass air meter, thermostat, EVAP valve

2014: Mass air flow sensor (5-cyl. diesel, 6-cyl.); Control valves (5-cyl. diesel); Injectors (5, 6- cyl. petrol); Engine control module (5-cyl. petrol, 6-cyl.)

2008: Injection system

2008: Injection system, Mass air flow sensor

2010: Injection system

2011: Injection system (4, 5, 6- cyl. petrol), Mass air flow sensor (5, 6-cyl. petrol), ECM (6-cyl.); Mass air flow sensor, valves (5-cyl diesel); Mass air flow sensor, engine control module, throttle (1.6D)

2011: Mass air flow sensor (2.0D)

2012: Mass air flow sensor (5, 6-cyl.), Control valves (5-cyl. diesel), Injectors (5, 6-cyl. petrol), Engine control module (6-cyl.)

2015: 5-/6-cyl. engines: Injection system, mass air meter (6-cyl. engines only), engine control module

2008-2011: Engine valves

2012: Compressor A/C (5, 6-cyl.), Engine valves, Engine control module (6-cyl.) Solenoids (6-cyl. without turbo), Actuator motors, intake manifold (6-cyl. without turbo), Mass air flow sensor (4- cyl. 2.0 l petrol), Oil level sensor (5-cyl. diesel) Coolant pump (D4162T)

2013: Solenoid clutch A/C (5, 6-cyl.); Valves, Engine control module (6-cyl.) Solenoids (6-cyl. without turbo); Actuator motors, intake manifold (6-cyl. without turbo); Mass air flow sensor (4-cyl. 2.0 l petrol, 5-cyl. petrol); Oil level sensor (5-cyl. diesel) Coolant pump (D4162T)

2014: Solenoid clutch A/C (5, 6-cyl.); Valves (1.6 I, engine B4204T7; 5-cyl., 6-cyl.); Engine control module (6-cyl.); Solenoids (6-cyl. without turbo); Actuator motors, intake manifold (6-cyl. without turbo); Mass air flow sensor (engine B4204T7; 5-cyl. petrol); Oil level sensor (5-cyl. diesel)

2015: A/C compressor (5-/6-cyl. engines), engine valves, engine control module (6-cyl. engines), solenoids (6-cyl. non-turbo only), mass air meter (6-cyl. only)

2014: Valves (4-cyl. 2.0 l (Does not apply to the B4204T7 engine)); Oil pump (4-cyl. 2.0 I petrol (Does not apply to the B4204T7 engine)); Lambda-sond, centre (4-cyl. 2.0 I petrol (Does not apply to the B4204T7 engine)); Lambda-sond, rear (4-cyl. 2.0 I diesel)

2015: Engine valves/oil pump/center heated oxygen sensor (4-cyl. engines)

2008-2009: EVAR Lambda-sond, Injection (petrol/diesel)

2009: Lambda-sond (4-cyl.petrol, 5-cyl.diesel)

2010: EVAP/heated oxygen sensor/ Injection

2011: EVAP, Lambda-sond, Injection (petrol)

2011: Lambda-sond (4-cyl. petrol, 5-cyl. diesel)

2012: Lambda-sonds (4-cyl. petrol), Lambda-sond (diesel), Control module, radiator roller cover (manual 5-cyl. 2.0 l diesel)

2013: Lambda-sonds (4-cyl. petrol), Lambda-sond (diesel), Control module, radiator roller cover (manual 5-cyl. 2.0 l diesel)

2012: EVAP valve (5, 6-cyl. petrol), Lambda-sonds (5, 6-cyl. petrol)

2013: EVAP valve (5, 6-cyl. petrol), Lambda-sonds (5, 6-cyl. petrol)

2014: Lambda-sonds (1.6 l petrol, engine B4204T7); Lambdasond (5-cyl. diesel); Control module, radiator roller cover (1.6 l diesel, 5-cyl. diesel)

2014: Lambda-sond, front (4-cyl. 2.0 l (Does not apply to the B4204T7 engine)); Lambda-sond, rear (4- cyl. 2.0 l petrol (Does not apply to the B4204T7 engine)); EVAP valve (5, 6-cyl. petrol); Lambdasonds (5, 6-cyl. petrol)

2015: Front/rear heated oxygen sensors (4-cyl. engines), EVAP valve (5-/6-cyl. engines), heated oxygen sensors (5-/6-cyl. engines)

2009: Crankcase ventilation heater (5-cyl petrol)

2010: Crankcase ventilation heater

2011: –

2012: Coolant pump (1.61 petrol Start/ Stop)

2013: Coolant pump (1.6 l petrol Start/ Stop, 5-cyl. petrol Start/Stop); Crankcase ventilation heater (5- cyl. Petrol); Oil pump automatic gearbox (5-cyl. petrol Start/ Stop)

2014: Coolant pump (1.6 I petrol Start/Stop); Crankcase ventilation heater (5-cyl. petrol); Oil pump automatic gearbox(5-cyl. petrol Start/Stop)

2015: Oil pump (automatic transmission)/crank-case ventilation heater (5-cyl. engines)

2009: Diesel filter heater, crankcase ventilation heater (4-cyl diesel)

2013: Diesel filter heater

2014: Ignition coils (4-cyl. 2.0 I petrol (Does not apply to the B4204T7 engine))

2008: Crankcase ventilation heater (5-cyl petrol)/ Diesel filter heater, crankcase ventilation heater (5-cyl diesel)

2009: Diesel filter heater, crankcase ventilation heater (5-cyl diesel)

2011: Vacuum pump, crankcase valve (5-cyl. turbo, 2.0 GTDI); Diesel filter heater

2012: Vacuum pump (5-cyl. petrol), Crankcase ventilation heater (5-cyl. petrol), Diesel filter heater

2008: Leakage diagnosis (option)

2009: Not Used

2010: Fuel leakage detection

2011: Crankcase ventilation heater (5-cyl. diesel)

2015: Fuel leakage detection (5-/6-cyl. engines), control module for radiator shutter (5-cyl. engines)

2012: Crankcase ventilation heater (5-cyl. diesel)

2014: Solenoid clutch A/C (4-cyl. 2.0 l (Does not apply to the B4204T7 engine)); Glow control module (4-cyl. 2.0 1 diesel); Oil pump (4-cyl. 2.0 1 diesel)

2015: Fuel leakage detection, A/C relay (4-cyl. engines)

2014: Coolant pump (4-cyl. 2.0 1 petrol (Does not apply to the B4204T7 engine))

2015: Coolant pump (4-cyl. engines)

2009,2011: Glow plugs (4-cyl diesel)

2010: Reserve

2011: Glow plugs (5-cyl diesel)

2009-2010: Reserve

2014: Cooling fan (1.6 I, 4-cyl. 2.0 I petrol, 5-cyl. petrol)

2014: Cooling fan (6-cyl., 4-cyl. 2.0 I diesel, 5-cyl. diesel)

2011: Electro-hydraulic power steering (1.6D)

2011-2013: Electro-hydraulic power steering (other)

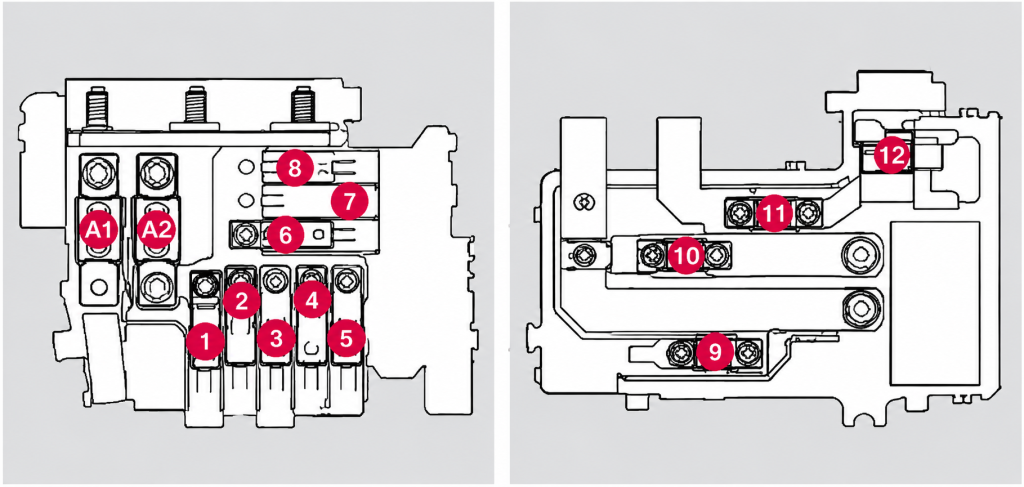

2015: Circuit breaker: central electrical module in the engine compartment

2015: Circuit breaker: fuseboxes under the glove compartment, central electrical module in the cargo area

2012-2013: PTC element, air preheater (option)

2015: –

2015: Circuit breaker: fusebox B under the glove compartment

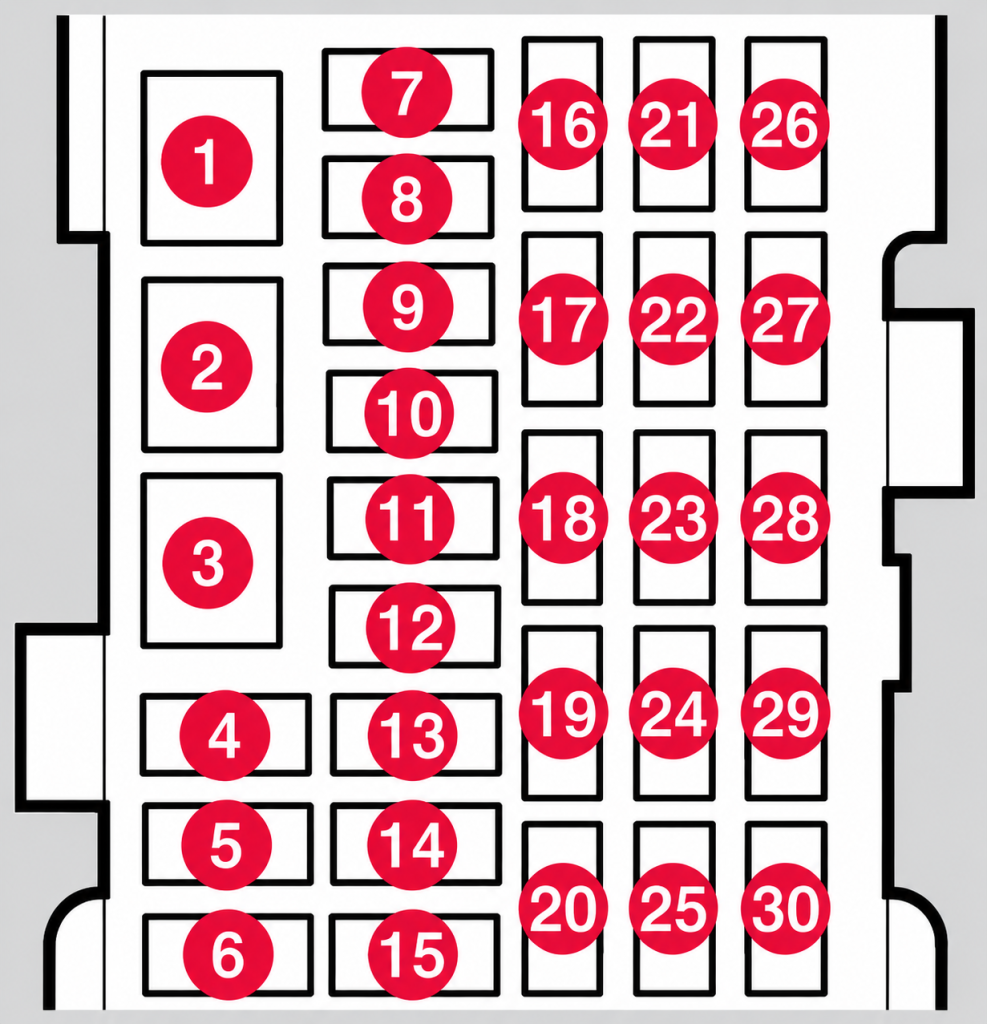

2012-2013: Primary fuse for central electrical unit in passenger compartment with fuse box A under the glovebox

2015: Circuit breaker: fusebox A under the glove compartment

2012-2013: Primary fuse for central electrical unit in passenger compartment with fuse box A under the glovebox

2014: Primary fuse for relay/fuse box under the glovebox

2015: Circuit breaker: fusebox A under the glove compartment

2015: Circuit breaker: central electrical module in the cargo area

2015: Climate system blower

2012: Actuator solenoid, starter motor

2015: Starter motor relay

2015: Auxiliary battery

2013-2014: Central electronic module (CEM) – reference voltage support battery; Charging point support battery

2015: Central electrical module: auxiliary battery reference voltage, auxiliary battery charging point

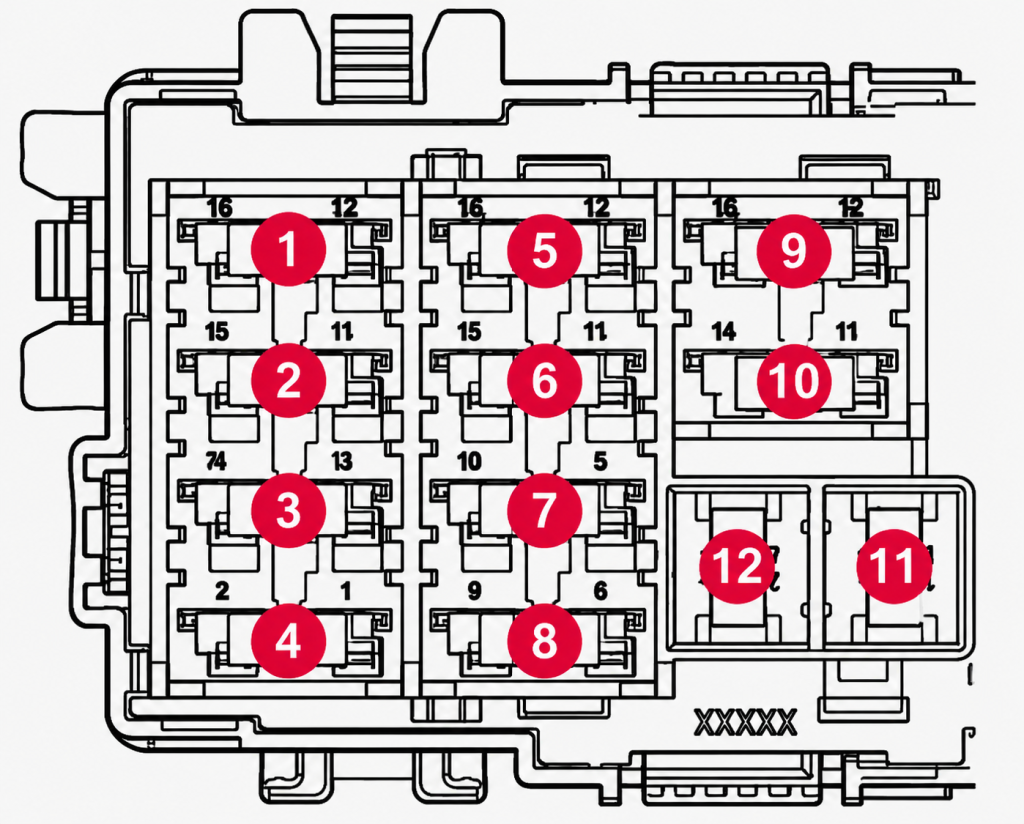

2010: Switches in driver’s door

2010: Switches in passenger’s door

2010: Switches in rear door, driver’s side

2010: Switches in rear door, passenger’s side

2010: 12-V socket in cargo area, cooler (option)

2010: Power tailgate (option)

2010: Active Chassis System (option) control module

–

2010: Heated driver’s seat (option)

–

2010: Heated passenger’s seat (option)

–

2010: Rear seat heater, passenger’s side (option)

–

2010: Rear seat heater, driver’s side (option)

–

2010: Power passenger’s seat (option)

2010: Electric parking brake – driver’s side (option)

2010: Electric parking brake – passenger’s side

2010: Navigation system display (option)

2010: Subwoofer (option)

2010: SIRIUS satellite radio (option)

2010: –
