Volvo XC60 (2018 – 2027) Fuse Box Location & Diagrams
The Volvo XC60 (2018–2027) features multiple fuse boxes that protect its electrical circuits and vehicle systems. Knowing their locations and fuse assignments helps identify electrical faults, replace blown fuses, and maintain essential components such as lighting, power windows, climate control, and infotainment systems.
Fuse Box Location

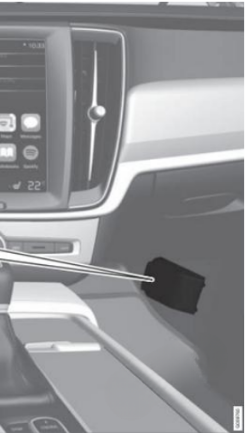

Passenger Compartment Fuse Box
The fuse box is located behind the floor mat/side panel.

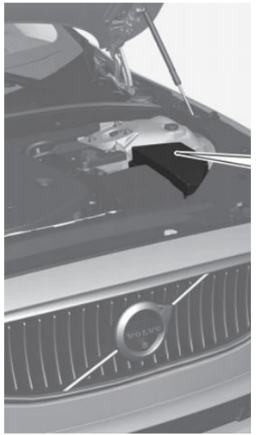

Engine Compartment Fuse Box

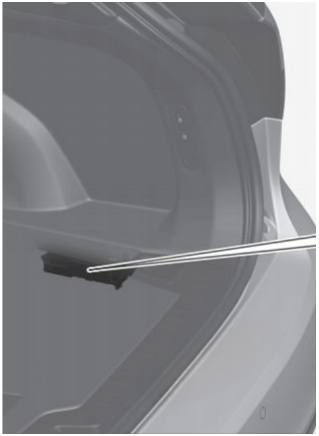

Luggage Compartment Fuse Box
2018-2020

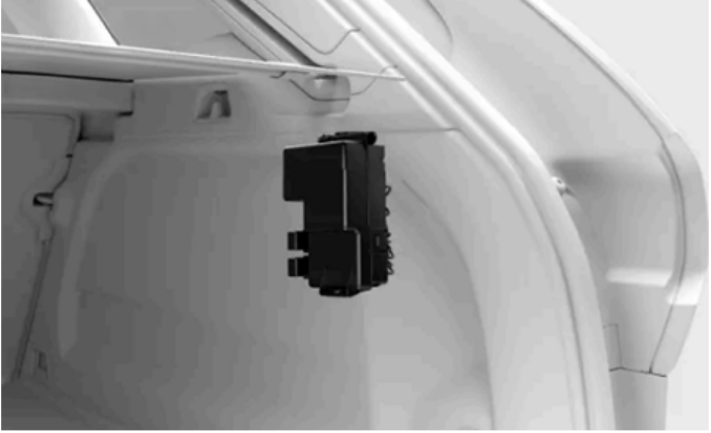

Since 2021
The central electrical unit is located behind the panel on the right-hand side.
Fuse Box Diagram

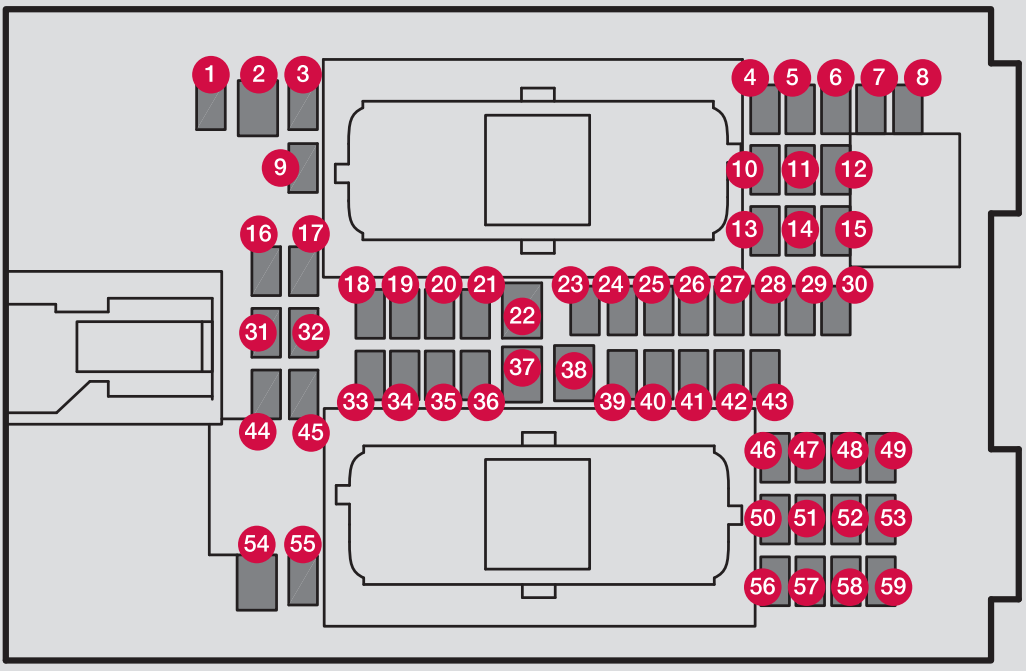

Passenger Compartment Fuse Box
| Fuse No. | Function | Amp (A) |
|---|---|---|
| 1 | 48 V battery (2026–2027 models); Intermediate voltage module (2020 models); Medium voltage module / 48 V battery control module (2021–2025 models) | 10 |
| 2 | 230 V socket in tunnel console, by legroom for rear seat (2018–2019 models); Electrical outlet in tunnel console between rear seats (2019 models) | 30 (2018–2019) |
| 3 | Not used (2018–2027 models) | — |
| 4 | Movement detector / Interior motion sensor (2018–2027 models) | 5 |
| 5 | Not used (2018–2027 models) | — |
| 6 | Driver display / Instrument panel (2018–2027 models) | 5 |
| 7 | Keypad in centre console / Center console keypad (2018–2027 models) | 5 |
| 8 | Sun sensor; Toll collection transponder (2026–2027 models); Sun sensor (2018–2025 models) | 5 |
| 9 | Sensus control module (2019 models); Not used (2020–2027 models) | 20 (2019) |
| 10 | Infotainment system (2022–2027 models); Not used (2018–2021 models) | 15 (2022–2027) |
| 11 | Steering wheel module / Steering wheel (2018–2027 models) | 5 |
| 12 | Module for start knob and parking brake control / Start knob and parking brake (2018–2027 models) | 5 |
| 13 | Steering wheel module for heated steering wheel / Heated steering wheel module (2018–2027 models) | 15 |
| 14 | Not used (2018–2027 models) | — |
| 15 | Not used (2018–2027 models) | — |
| 16 | Not used (2018–2027 models) | — |
| 17 | Not used (2018–2027 models) | — |
| 18 | Control module for climate control system / Climate system control module (2018–2027 models) | 10 |
| 19 | Steering lock (2018–2020 models); Not used (2021–2027 models) | 7.5 (2018–2020) |
| 20 | Diagnostic socket OBDII / Data link connector OBD-II / On-board diagnostic port OBDII (2018–2027 models) | 10 |
| 21 | Centre display / Center display (2018–2027 models) | 5 |
| 22 | Fan module for climate control system, front / Climate system blower module (front) / Front fan for climate control (2018–2027 models) | 40 |
| 23 | USB HUB / USB hub (2018–2027 models) | 5 |
| 24 | Controls lighting; Interior lighting; Dimming of interior rearview mirror; Rain and light sensor; Keypad in tunnel console, by legroom for rear seat; Power front seats; Control panels in rear doors; Fan module for climate control left/right (2018–2027 models) | 7.5 |
| 25 | Control module for driver support functions (2018–2020 models); Camera, front (2021–2022 models); Forward looking camera (2023–2027 models) | 5 |
| 26 | Panorama roof with sun blind (2018–2020 models); Panoramic roof with sun curtain (2021–2027 models); Roof console (2026–2027 models) | 20 |
| 27 | Head-up display (2018–2025 models); Not used (2026–2027 models) | 5 (2018–2025) |
| 28 | Passenger compartment lighting (2018–2027 models) | 5 |
| 29 | Wireless charging pad / Wireless charging plate (2021–2027 models); Not used (2018–2020 models) | 5 (2021–2027) |
| 30 | Display in roof console (seatbelt reminder/front passenger airbag indicator) (2018–2021 models); Display roof console (2022–2023 models); Display roof console; Control module, camera wide-angle (2024–2025 models); Display roof console, Camera wide-angle (2026–2027 models) | 5 |
| 31 | Not used (2018–2027 models) | — |
| 32 | Humidity sensor (2018–2020 models); Not used (2021–2027 models) | 5 (2018–2020) |
| 33 | Door module in right-hand rear door (2018–2020 models); Not used (2021–2027 models) | 20 (2018–2020) |
| 34 | Fuses in cargo area / Fuse box, cargo area / Fuse box in boot (2018–2027 models) | 10 |
| 35 | Control module for online connected car; Control module for Volvo On Call / Connected services (2018–2027 models) | 5 |
| 36 | Door module in left-hand rear door (2018–2020 models); Not used (2021–2027 models) | 20 (2018–2020) |
| 37 | Audio control module (amplifier) / Audio control device (amplifier) / Infotainment control module amplifier (2018–2027 models) | 40 |
| 38 | Not used (2018–2027 models) | — |
| 39 | Module for multi-band antenna / Multi-band antenna module / TCAM antenna (2018–2027 models) | 5 |
| 40 | Modules for seat comfort (massage) front / Front seat massage function / Front seat comfort control (2018–2027 models) | 5 |
| 41 | Alcohol lock (2020–2027 models); Not used (2018–2019 models) | 5 (2020–2027) |
| 42 | Rear window wiper / Rear windscreen wiper (2018–2027 models) | 15 |
| 43 | Control module for fuel pump / Fuel pump control module / Fuel pump (2018–2027 models) | 15 |
| 44 | Twin Engine: Relay coils in fuse box in engine compartment; Relay coil for transmission oil pump; Medium voltage converter; Integrated dynamo (2020 models); Converter 48V; Engine start module (2021–2027 models) | 5 |
| 45 | Opening boot lid/tailgate with foot motion (2020–2027 models); Control module for driver support functions (active safety) (2022–2027 models) | 5 |
| 46 | Seat heating, driver’s side front / Heated driver’s seat (2018–2027 models) | 15 |
| 47 | Seat heating, passenger side front / Heated passenger seat (2018–2027 models) | 15 |
| 48 | Coolant pump (2018–2027 models) | 10 (2018–2019); 7.5 (2020–2027) |
| 49 | Air cleaner (2023–2027 models); Not used (2018–2022 models) | 5 (2023–2027) |
| 50 | Door module in left-hand front door (2018–2020 models); Power driver’s seat (2023–2027 models) | 20 |
| 51 | Control module for suspension (active chassis) / Active chassis control module / Active damping (2018–2027 models) | 20 |
| 52 | Not used (2018–2021 models); Opening boot lid/tailgate with foot movement (2022–2027 models) | 5 (2022–2027) |
| 53 | Sensus control module (2018–2021 models); Infotainment system (2022–2025 models); Not used (2026–2027 models) | 10 (2018–2021); 10 (2022–2025) |
| 54 | Not used (2018–2027 models) | — |
| 55 | Not used (2018–2027 models) | — |
| 56 | Door module in right-hand front door (2018–2020 models); Electrically operated front passenger seat / Passenger seat (2021–2027 models) | 20 |
| 57 | Not used (2018–2027 models) | — |
| 58 | TV (certain markets) (2018–2022 models); Not used (2023–2027 models) | 5 (2018–2022) |
| 59 | Primary fuse for fuses 53 and 58 (2018–2019 models); Primary fuse for fuses 9, 53 and 58 (2019 models); Primary fuse for fuses 52, 53, 57 and 58 (2020–2025 models); Foot movement opening tailgate (2026–2027 models) | 15 (2018–2025); 15 (2026–2027) |

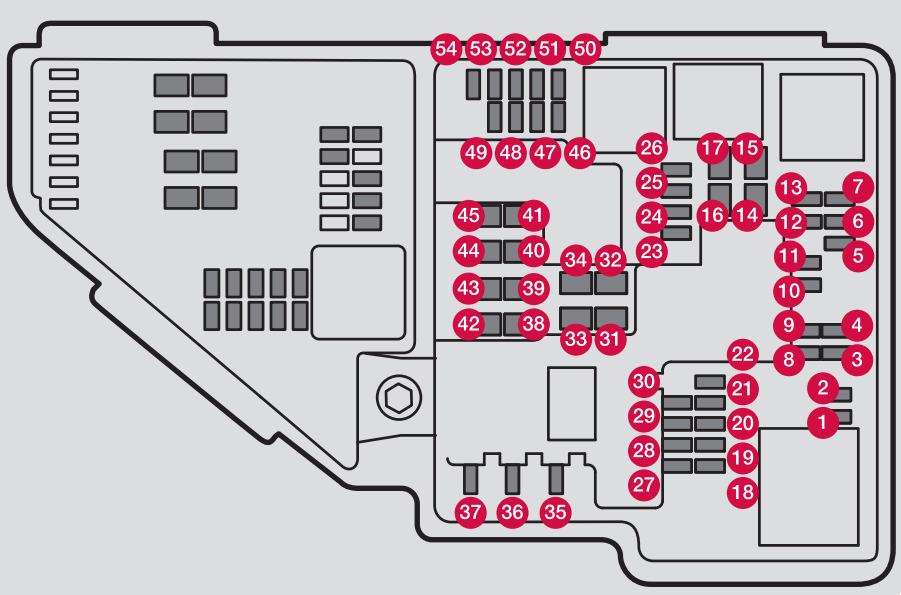

Engine Compartment Fuse Box
| Fuse No. | Function | Amp (A) |
|---|---|---|
| 1 | Not used (2018–2027) | — |
| 2 | Not used (2018–2027) | — |
| 3 | Charge pressure (turbo), Lambda sensor (2018–2027); Lambda sensors; Electric charge pressure module (2021) | 15 |
| 4 | Ignition coils (petrol); Spark plugs (petrol) (2018); Ignition coils (gasoline); Spark plugs (gasoline); Exhaust sensor; Diesel particle sensor (2020); Spark plugs (2021–2027) | 15 |
| 5 | Solenoid for engine oil pump; Solenoid clutch A/C; Lambda sond, centre (petrol); Lambda sond, rear (diesel) (2018); Oil pump solenoid; A/C magnetic coupling; Heated oxygen sensor, center (gasoline); Heated oxygen sensor, rear (diesel); Heated oxygen sensor, front (gasoline/diesel) (2019–2021); Solenoid engine oil pump, Lambda sensor, Solenoid air conditioning compressor (2022–2027) | 15 |
| 6 | Vacuum regulators; Valve; Valve for output pulse (diesel); Oil level/temperature sensor (diesel); Glow plugs (GCU) (diesel) (2018–2021); Oil level and temperature sensors; Engine component group 1; Glow plug (2022–2027) | 7.5 |
| 7 | Engine control module; Actuator; Throttle unit; EGR valve (diesel); Position sensor for turbo (diesel); Valve for turbocharger (petrol) (2018–2021); Engine Control Module (ECM); Throttle; Engine component group 2 (2022–2027) | 20 |
| 8 | Engine Control Module (ECM) | 5 |
| 9 | Not used (2018–2020); Fuel evaporation pump (EVAP) (2021–2027) | — (2018–2020); 10 (2021–2027) |
| 10 | Solenoids (petrol); Valve; Thermostat for engine cooling system (petrol); EGR cooling pump (diesel); Glow control module (diesel) (2018); Solenoids (gasoline); Fuel leakage control valve; Engine cooling system thermostat (gasoline); EGR vacuum valve (diesel); Glow control module (diesel); Supercharger clutch (gasoline); Crankshaft ventilation heater (diesel); Transmission oil cooler valve (diesel) (2021); Engine component group 3; Glow plug (2022–2027) | 10 |
| 11 | Control module for spoiler roller cover; Control module for radiator roller cover; Relay coils for output pulse (diesel) (2018–2020); Spoiler damper control module; Radiator damper control module; Coolant switching valve (2022–2027) | 5 |
| 12 | Lambda-sond, front; Lambda-sond, rear (petrol) (2018); Coolant pump (2020–2027) | 15 |
| 13 | Engine Control Module (ECM) | 20 |
| 14 | Starter motor (2018–2021 diesel) | 40 (2018–2021); Not used (2022–2027) |
| 15 | Starter motor | Shunt (2018–2021); Not used (2022–2027) |
| 16 | Fuel filter heater (diesel) (2018–2022); Oil pump, Transmission, Turbo configuration medium performance (2026–2027) | 30 |
| 17 | Not used (2018–2021); Connection actuator 1 (2022–2023) | — (2018–2021); 25 (2022–2023) |
| 18 | Calculation unit / Calculation module | 5 |
| 19 | Not used (2018–2027) | — |
| 20 | Not used (2018–2027) | — |
| 21 | Not used (2018–2020); ECM camera (2021); Not used (2022–2027) | — (2018–2020); 15 (2021); — (2022–2027) |
| 22 | Not used (2018–2021); Transmission control module (2022–2023) | — (2018–2021); 20 (2022–2023) |
| 23 | Not used (2018–2020); USB port in the rear of tunnel console (2021–2027) | — (2018–2020); 7.5 (2021–2027) |
| 24 | 12 V socket in tunnel console, front | 15 |
| 25 | 12 V socket in tunnel console, by legroom for second seat row; 230 V socket in tunnel console, by legroom for second seat row (2019–2020); Not used (2021–2027) | 15 |
| 26 | 12 V socket in cargo area / boot / trunk | 15 |
| 27 | Not used (2018–2027) | — |
| 28 | Left-hand headlamp, certain variants of LED (2018–2020); Left headlight / Driver-side headlight, LED (2021–2027) | 15 |
| 29 | Right-hand headlamp, certain variants of LED (2018–2020); Right headlight / Passenger-side headlight, LED (2021–2027) | 15 |
| 30 | Not used (2018–2021); Transmission control module (2022–2023) | — (2018–2021); 20 (2022–2023) |
| 31 | Heated windscreen, left-hand side | Shunt |
| 32 | Heated windscreen, left-hand side | 40 |
| 33 | Headlamp washers | 25 |
| 34 | Windscreen washers / Washer fluid pump, front | 25 |
| 35 | Transmission control module; Electric gear selector (2018–2025); Electric gear selector (2026–2027) | 15 |
| 36 | Horn | 20 |
| 37 | Siren / Alarm siren | 5 |
| 38 | Control module for brake system (valves, parking brake) (2018–2025); Brake control with 48V battery (2020–2025); Brake system (2026–2027) | 40 (2018–2020); 30 (2020–2027) |
| 39 | Windscreen wipers / Wipers | 30 |
| 40 | Rear window washer / Washer fluid pump, rear | 25 (2018–2021); Not used (2022–2027) |
| 41 | Heated windscreen, right-hand side | 40 |
| 42 | Parking heater | 20 (2018–2022); Not used (2023–2027) |
| 43 | Not used (2018–2022); Central Electronic Module (CEM) (2024–2027) | — (2018–2022); 30 (2024–2027) |
| 44 | Not used (2018–2021); Connection actuator 2 (2022–2023); Not used (2024–2027) | — (2018–2021); 25 (2022–2023); — (2024–2027) |
| 45 | Heated windscreen, right-hand side | Shunt |
| 46 | Supplied when ignition is switched on: Engine control module; Transmission components; Electric steering servo; Central electronic module; Control module for brake system | 5 |
| 47 | Not used (2018–2020); Front radar (2021–2027) | — (2018–2020); 5 (2021–2027) |
| 48 | Right-hand headlamp / Right headlight | 7.5 (2018); 15 (2020–2027) |
| 49 | Not used (2018–2020); Alcohol lock (2021–2023) | — (2018–2020); 5 (2021–2023) |
| 50 | Not used (2018–2020); Transmission control module / Transmission (2021–2027) | — (2018–2020); 10 (2021–2027) |
| 51 | Module for controlling battery engagement / Battery connection control module | 5 (2018–2024); Not used (2025–2027) |
| 52 | Airbags; Passenger weight sensor; Collision module (SRS) | 5 |
| 53 | Left-hand headlamp / Left headlight | 7.5 (2018); 15 (2018–2027 LED models) |
| 54 | Accelerator pedal sensor | 5 |

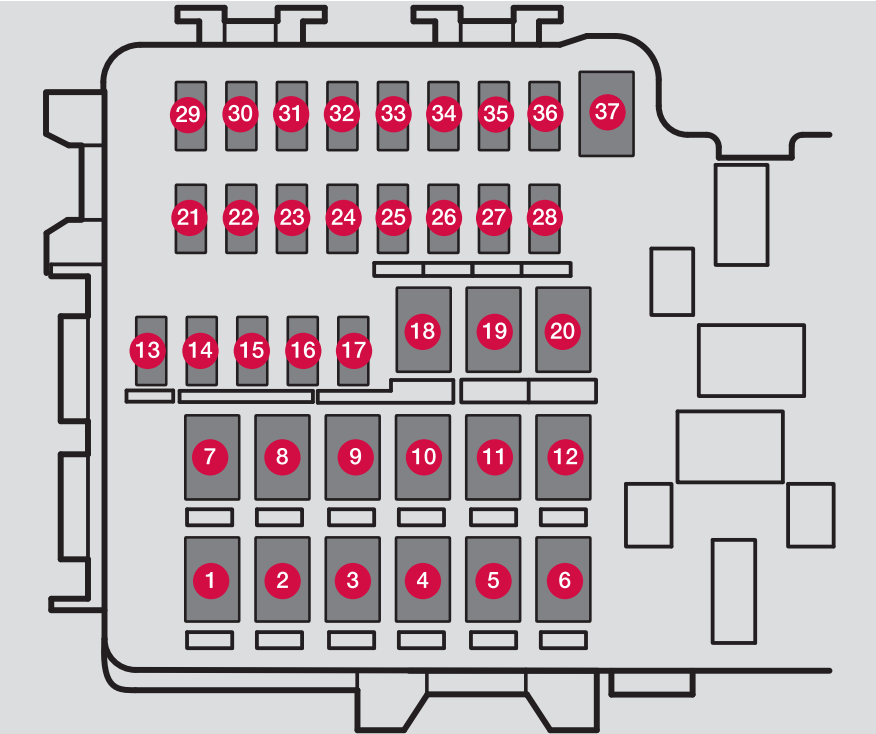

Luggage Compartment Fuse Box
| Fuse No. | Function | Amp (A) |
|---|---|---|
| 1 | Rear window defroster / Rear windscreen defroster (2026–2027) | 30A (2018–2026) |
| 2 | Twin-engine: Central electrical module (2019–2021) / Recharge PHEV: Central electrical module (2021) / Central Electronic Module (CEM) (2026–2027) | 40A (2018–2021), 30A (2026–2027) |
| 3 | Compressor for air suspension / Pneumatic suspension compressor / Air suspension compressor | 40A (2018–2027) |
| 4 | Lock motor for backrest on rear right-hand side (2018–2020) / Not used (2021–2027) | 15A (2018–2020) |
| 5 | Not used | — |
| 6 | Lock motor for backrest on rear left-hand side (2018–2020) / Not used (2021–2027) | 15A (2018–2020) |
| 7 | Twin-engine: Door module right side, rear (2019) / Electrically operated front passenger seat; Door module right-hand side rear (2020) / Door module right side, rear (2021–2027) | 20A (2019–2027) |
| 8 | Control module for reduction of nitrous oxides (diesel) (2018–2020, 2022–2023) / Not used (2021, 2024–2027) | 30A (2018–2020, 2022–2023) |
| 9 | Power operated tailgate / Power-operated boot hatch | 25A (2018–2027) |
| 10 | Electrically operated front passenger seat (2018–2020) / Power front passenger seat; Door module right side, front (2021) / Door module, right front (2022–2027) | 20A (2018–2027) |
| 11 | Towbar control module / Towbar | 40A (2018–2027) |
| 12 | Seatbelt pretensioner module, right-hand side / Seat belt tensioner module, right side / Right seatbelt pretensioner | 40A (2018–2027) |
| 13 | Internal relay coils / Internal relay windings | 5A (2018–2027) |
| 14 | Control module for reduction of nitrous oxides (diesel) (2018–2020, 2022–2023) / Twin-engine: Door module left side, rear (2019) / Not used (2021, 2024–2027) | 15A (2018–2023) |
| 15 | Module for detecting foot movement (option) (for opening the power operated tailgate) (2018) / Door module left side, rear (2020–2027) | 5A (2018), 20A (2020–2027) |
| 16 | Alcohol lock (2018–2020, 2022–2023) / USB hub/accessory port (2019–2021, 2024–2027) | 5A (2018–2023) |
| 17 | Enhanced accessory module (2020) / Not used (2021–2027) | 5A (2020) |
| 18 | Towbar control module (2018–2027) / Accessory module (2019–2027) | 25A (2018–2027), 40A (2019–2027) |
| 19 | Power driver seat (2018–2020) / Power driver seat; Door module left side, front (2021) / Door module, left front (2022–2027) | 20A (2018–2027) |
| 20 | Seatbelt pretensioner module, left-hand side / Seat belt tensioner module, left side / Left seatbelt pretensioner | 40A (2018–2027) |
| 21 | Parking camera / Park Assist Camera (2018–2023) / Not used (2024–2027) | 5A (2018–2023) |
| 22 | Not used | — |
| 23 | Not used | — |
| 24 | Not used (2018–2021, 2023–2027) / Position prepared for special vehicle (2022) | 5A (2022) |
| 25 | Twin-engine: Feed when ignition is on (2019–2021) / Ignition extended busbar 1 (2022–2027) | 10A (2019–2027) |
| 26 | Control module for airbags and seat belt tensioners (2018–2020) / Not used (2021–2027) | 5A (2018–2020) |
| 27 | Not used | — |
| 28 | Seat heating left-hand side rear / Heated rear seat left side / Left rear seat heating and ventilation | 15A (2018–2027) |
| 29 | Not used (2018–2021) / Heated rear seat left side? (2022–2023 not used) / Actuator, exhaust system (2024–2027) | 5A (2024–2027) |
| 30 | Blind Spot Information (BLIS) (option): control module, exterior reversing sound / Blind Spot Information (BLIS); Exterior reverse signal control module / Blind spot information | 5A (2018–2027) |
| 31 | Not used | — |
| 32 | Seatbelt pretensioner modules / Seat belt tensioner module, right (2022–2023) / Not used (2024–2027) | 5A (2018–2023) |
| 33 | Actuator for exhaust gases (petrol, certain engine variants) / Emissions system actuator (gasoline, certain engine variants) / Exhaust system actuator | 5A (2018–2027) |
| 34 | Not used | — |
| 35 | All Wheel Drive (AWD) control module / Control module for four-wheel drive | 15A (2018–2027) |
| 36 | Seat heating right-hand side rear / Heated rear seat right side / Right rear seat heating and ventilation | 15A (2018–2027) |
| 37 | Not used | — |
