Fuse Box Location

Passenger Compartment Fuse Box

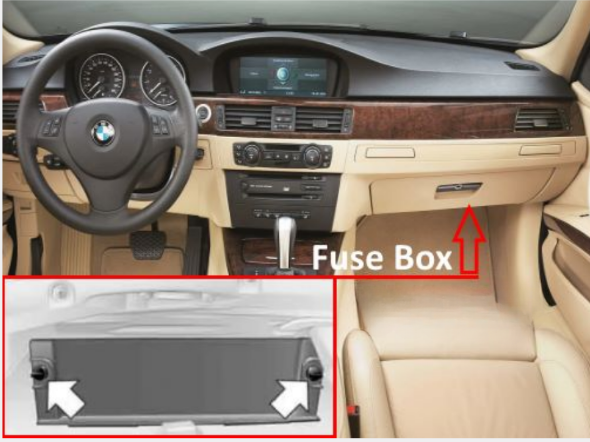

BMW 3-Series E90 to E93 (2005 - 2011) fuse box location 2005 to 2011

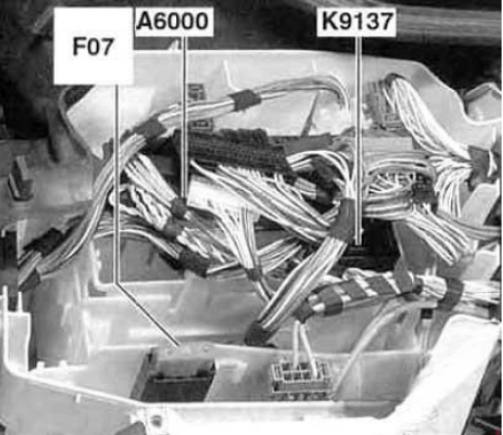

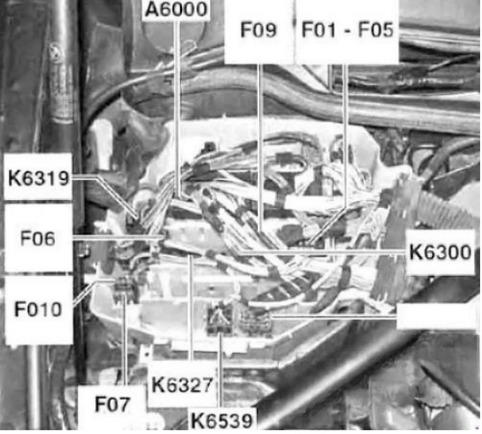

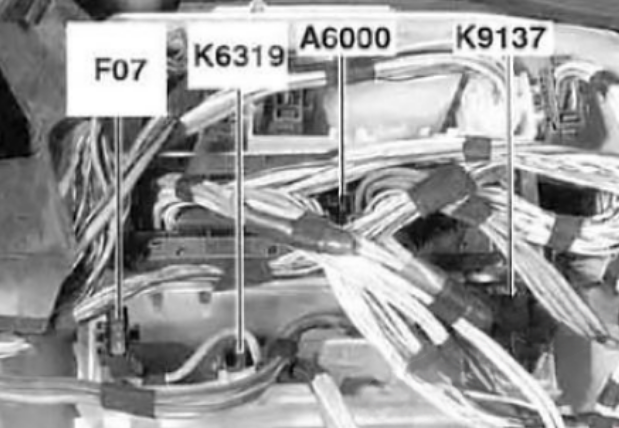

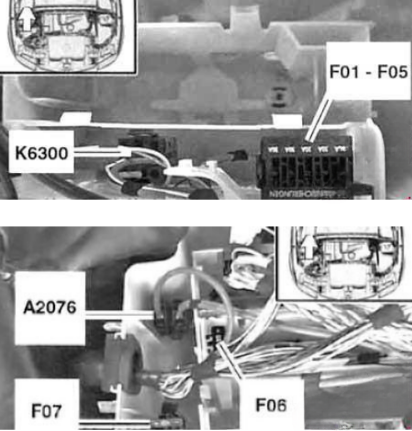

Engine and Luggage Compartment Fuse Box

BMW 3-Series E90 to E93 (2005 - 2011) LOCATIONS

Fuse Box Diagrams

Passenger Compartment Fuse Box

Glove Compartment (2005 and 2006)

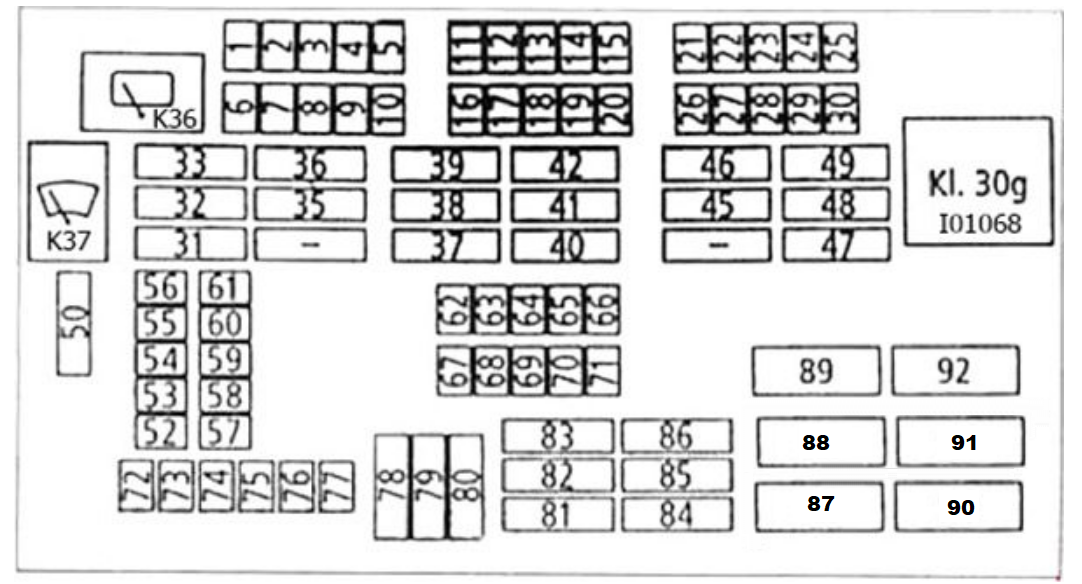

BMW 3-Series E90 to E93 (2005 - 2011) passenger compartment fuse box diagram 2005 and 2006

No. / RelayTypeDescription
1MINI 10ATransmission control module (TCM)
2MINI 5AAerial selection control module
3MINI 20APassenger seat heating
4MINI 5AIgnition switch control module
5MINI 7.5ASunroof control
6MINI 15ATransmission control module (TCM)
7MINI 20AAuxiliary heater control module
8MINI 5ACD changer
9MINI 10ACruise control distance range control module
10MINI 15ATow bar retract control module
11MINI 10AAudio unit
12MINI 15A/20ASunroof control or sequential gearbox
13MINI 5AController area network (CAN), iDrive controller
15MINI 5AAUC Sensor
16MINI 15AHorns
17MINI 5ATelephone transceiver
18MINI 5ACD changer
19MINI 7.5ASiren, Alarm, Comfort access, Door control units
20MINI 5ADSC or Transfer box control unit
21MINI 7.5AMirror, passenger’s side, Instrument cluster
22MINI 10ACruise control distance range control module
23MINI 10AVideo system, Satellite digital audio receiver
24MINI 5ATyre pressure monitor control module
25MINI 10AFront seat belts positioner control units
26MINI 10AShift selector lighting, Telephone components
27MINI 5ADriver door switch cluster, Telephone, Instrument cluster
28MINI 5AParking distance control, Sunroof control
29MINI 5AFront heated seats, AUC sensor, A/C control
30MINI 20ACigarette lighter, 12V sockets
31ATO 20A/30AABS/DSC or Radio and navigation unit
32ATO 30AFront left seat, Heated driver’s seat
33ATO 30AElectric front seats
34ATO 30AAudio unit output amplifier
35ATO 20A/30AEngine management
36ATO 20A/30AFuel pump or DSC
37ATO 30AElectric front seats
38ATO 30ATransfer box control unit or unused
39ATO 30AWindscreen wipers
40ATO 20ARadio/Navigation or Fuel pump
41ATO 30AFootwell control unit
42ATO 30ADriver’s seat adjustment
43ATO 30AHead lamp washers
44ATO 30ATrailer control module
45ATO 30ATrailer connector socket, Active steering
46ATO 30AHeated rear window
47ATO 20A/30ATrailer connector socket or unused
48ATO 20ARear wiper and washer control
49ATO 30AHeated front seats
50MAXI 40AActive steering
51MAXI 30A/50AIgnition switch/Car access system
52MAXI 40AFootwell control unit
53MAXI 40AFootwell control unit
54MAXI 60AEngine management
56MINI 15ACentral locking system
57MINI 15ACentral locking system
58MINI 5ADiagnostic connector, Instrument cluster
59MINI 5ASteering column function control module
60MINI 7.5AA/C control module
61MINI 10ALuggage/Glovebox lights, Info display
62ATO 30ARear electric windows
63ATO 30AWindows control
64ATO 30ARear electric windows
65MAXI 40AABS system
66MAXI 40A/50AFuel heater (Diesel)
67MAXI 30AA/C/heater blower control module
68MAXI 40AVacuum pump relay (Diesel)
69MAXI 60AEngine coolant blower motor
70MAXI 40ASecondary air injection pump
71-78–Spare
R1RelayWindscreen wiper motor relay
R2RelayHeated rear window relay
R3RelayRear screen wiper relay
R4RelayTerminal 30 relay
R5RelayHeadlamp washer pump relay
R6RelaySecondary air injection (AIR) pump relay
R7RelayHorn relay
R8RelayFuel pump relay
R9RelayTerminal 15 relay
Glove Compartment (before 03.2007 )

BMW 3-Series E90 to E93 (2005 - 2011) passenger compartment fuse box diagram before 03.2007

№AProtected circuits
F1—Not used
F25Diversity antenna
F320Passenger seat heating
F45Car access system
F57.5Roof function control center
F615Transmission control module
F720Auxiliary heater control module
F85CD changer
Diversity antenna
F910Active cruise control


F10

—Not used
F1110Radio
F1220Convertible top or sunroof control
Roof function center (FZD)
F135iDrive controller
F14—Not used
F155AUC sensor
F1615Horns
F175Telephone eject box
Telephone transceiver
F185CD changer
F197.5Comfort access control module
Front door outer handles control modules
Siren and tilt alarm sensor
F205DSC
Transfer case control module
F217.5Driver door switch cluster
Outside rear view mirrors
F2210Longitudinal dynamics management
Towing hitch release speaker
F2310Digital tuner
Satellite radio
F245Tire pressure control (RDC)
F2510Front seat belts positioner control modules
F2610Shift selector lighting
Telephone eject box
Telephone transceiver
F275Driver door switch cluster
Telephone transceiver
F285Roof function control center
Park distance control (PDC)
F295AUC sensor
Front seat heating modules
F302012-volt utility sockets
Front cigar lighter
F3120CCC/M-ASK
Radio
F3230Driver seat heating module
Driver seat module
F3330Front seat control
F3430Sound system amplifier
F3530DSC
F3630Footwell module
F3730Driver seat control
F3830Transfer case control module
F3930Wipers
F4020Fuel pump (EKPS)
F4130Footwell module
F4230Trailer module
F4330Headlight washer pump
F4430Trailer module
F4540Active steering
F4630Rear window defroster
F4720Trailer socket
F4820Rear wiper and washer control
F4930Passenger seat heating
F5040Active steering
F5150Car access system
F5250Footwell module
F5350Footwell module
F5460B+ potential distributor
F55—Not used
F5615Central locking
F5715Central locking
F585Instrument cluster
OBD II socket
F595Steering column switch cluster
F607.5A/C and heating system
F6110Cargo compartment lights
Central information display
Glove compartment light
Trunk light
F6230Window control
F6330Window control
F6430Window control
F6540DSC
F6650Fuel heater (Diesel)
F6750Blower output stage
F6850Vacuum pump relay
F6950Engine cooling fan
F7050Secondary air injection pump
F7120Trailer socket
F72—Not used
F73—Not used
F74—Not used
F75—Not used
F76—Not used
F7730Fuel injectors
Ignition coils
Interference suppression capacitor
F78—Not used
F79—Not used
F80—Not used
F81—Not used
F82—Not used
F83—Not used
F84—Not used
F85—Not used
F86—Not used
F87—Not used
F88—Not used
I01068Relay, terminal 30g
I01069Relay, terminal 15 (on PC board)
K2Horn relay (on PC board)
K6Headlight washer relay
K13Rear window defroster relay
K36Wiper relay 1
K37Wiper relay 2
K91Rear wiper relay (Sports Wagon)
K6304Secondary air injection pump relay

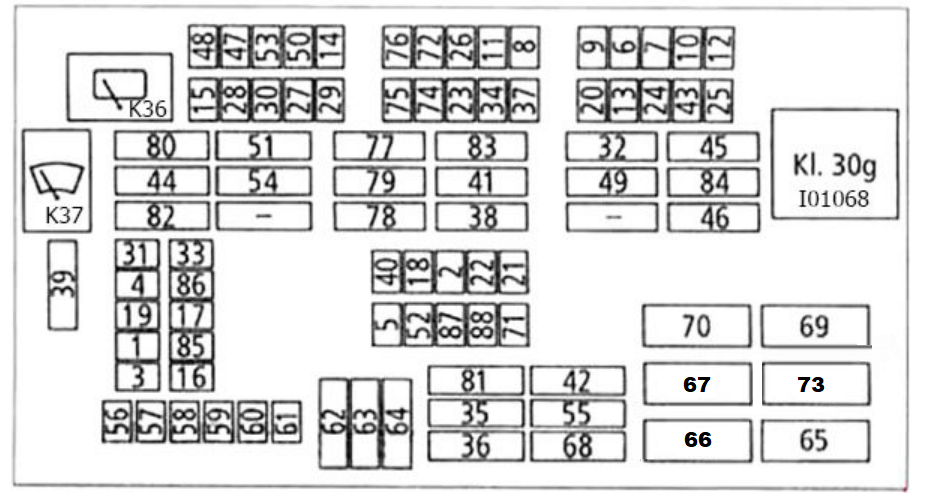

Glove Compartment (From 03.2007 to 09.2007)

BMW 3-Series E90 to E93 (2005 - 2011) passenger compartment fuse box diagram 03.2007-09.2007

№AProtected circuits
F110Rollover protection control module
F25Instrument cluster
OBD II plug
F320Passenger seat heating
F45Car access system
F5—Not used
F615Transmission control module
F720Auxiliary heater control module
F820Sound system amplifier
F910Active cruise control
F1015Trailer module
F1110Radio
F1220Convertible top or sunroof control
Roof function center (FZD)
F135iDrive controller
Tire pressure control (RDC)
F14—Not used
F155AUC sensor
F1615Horns
F175Telephone eject box
Telephone transceiver
F185Convertible:
Diversity antenna
Gearshift bezel lighting
Non-convertible:
Electrochromic rear view mirror
Gearshift bezel lighting
F197.5Siren and tilt alarm sensor
F205DSC
Transfer case control module
F217.5Driver door switch cluster
Outside rear view mirrors
F2210Longitudinal dynamics management
F2310Digital tuner
Satellite radio
F245DC converter
Fan cutout relay
F2510Front seat belts positioner control modules
F2610Telephone eject box
Telephone transceiver
F275Driver door switch cluster
Telephone transceiver
F285Roof function control center
Park distance control (PDC)
F296Front seat heating modules
F302012-volt utility sockets
Front cigar lighter
F3120CCC/M-ASK
F3230Driver seat module
F335Comfort access control module
Front door outer handles control modules
F345CD changer
Diversity antenna
F3530DSC
F3630Footwell module
F3710Front seat control
F3830Transfer case control module
F3930Wipers
F407.5Roof function control center
F4130Footwell module
F4240Footwell module
F43—Not used
F4430Trailer module
F4540Active steering
F4630Rear window defroster
F4720Trailer socket
F4820Rear wiper and washer control
F4930Passenger seat module
F5010Engine control module (ECM)
F5140Car access system
F5220Driver seat heating
F5320Passenger seat heating
F5430Trailer module
F55—Not used
F5615Central locking
F5715Central locking
F585Instrument cluster
OBD II socket
F595Steering column switch cluster
F605Central information display
F6110Cargo compartment lights
Central information display
Glove compartment light
Trunk light
F6230Window control
F6330Window control
F6430Window control
F6510Selector lever illumination
Longitudinal dynamics management
F6650Fuel heater (Diesel)
F6740Blower output stage
F6840Footwell module
F6950400 watt engine cooling fan
F6960600 watt engine cooling fan
F7040Secondary air injection pump
F7120Trailer socket
F72—Not used
F73—Not used
F7410Engine control module (ECM)
Exhaust flap
Fuel tank leakage diagnostic module
Nitrogen oxide sensor
F7510EAC sensor
E-box fan
ECM
Secondary air pump relay
F7630Crankshaft sensor
Fuel tank vent valve
Mass air flow sensor
Oil condition sensor
Variable intake manifold controllers
Volume control valve
F7730Fuel injectors
Ignition coils
Ignition coil interference suppression capacitor
F7830Camshaft sensors
Coolant thermostat
Electric coolant pump
Engine control module (ECM)
VANOS valves
Waste gate valves
F7930Crankcase breather heating
Oxygen sensor heating
F8040Non-turbo: Electric coolant pump
F8130Trailer module
F82—Not used
F8340Footwell module
F8430Headlight washer pump
F85—Not used
F86—Not used
F87—Not used
F8820Fuel pump (EKPS)
I01068Relay, terminal 30g
K36Wiper relay 1
K37Wiper relay 2
Glove Compartment  (2008 to 2011)

BMW 3-Series E90 to E93 (2005 - 2011) passenger compartment fuse box diagram 2008 TO 2011-image

№AProtected circuits
F110Rear wiper and washer
F25Instrument cluster
OBD II plug
F320Passenger seat heating
F410Engine control module (ECM)‘
F5—Not used
F65AUC sensor
DC converter
F720Roof function center (FZD)
Park distance control (PDC)
F820Cigar lighters
Utility 12 volt outlets
F95Driver door switch cluster
Telephone
F105Front seat heating
F1120Crankshaft sensor
Engine control module (ECM)
Fuel tank vent valve
Fuel volume control valve
Mass air flow sensor
Oil condition sensor
Variable intake manifold controllers
F1215Vacuum pump relay
F135Telephone
USB hub
F1410Radio
F1520Amplifier
F1610EAC sensor
E-box fan
Engine control module (ECM)
Radiator shutter control
Secondary air pump relay
F1710Engine control module (ECM)
Exhaust flap
Fuel tank leakage diagnostic module
F1810Digital tuner
Satellite radio
F195CD changer
Convertible: Diversity antenna
F2010Seat control
F2110Active cruise control
F2215Automatic transmission control module
F2320Auxiliary heater control
F2415Towing module
F2520Convertible top module
Roof control center (FZD)
F265Dynamic stability control (DSC)
Transfer case control module
F275iDrive controller
Tire pressure control (RDC)
F285Cooling fan cut-out relay
DC converter
F295Sunroof
F3010Seat belt positioner controllers
F3130Trailer module
F3230Trailer module
F3340Electric coolant pump
F345CD changer
Diversity antenna
F3530DSC
F3640Car access system (CAS)
F3730Camshaft sensors
Coolant thermostat
ECM
Electric coolant pump
VANOS valves
Waste gate valves
F3830Crankcase breather heating
Engine control module (ECM)
Oxygen sensor heating
F3930Fuel injectors
Ignition coils
Ignition coil interference suppression capacitor
F4030Transfer case control
F4130Footwell module (FRM)
F4240Footwell module
F4330Headlight washer pump
F4430Trailer module
F4530Passenger seat module
F4630Driver seat module
F4730Rear window defogger
F4830Headlight washer
Rear wiper and washer control
F4940Passenger seat module
F5030Wiper control
F5140Car access system
F52—Not used
F5310Rollover protection
F547.5Anti-theft alarm siren, tilt sensor
Convertible:Door microwave sensors
F555Car access system (CAS)
F5620CCC/M-ASK
F5715Horns
F585Instrument cluster
OBD II socket
F595Telephone
F605Central information display
F615Comfort access control module
Dual remote control receiver
Front door handle control module
F627.5Roof function control center (FZD)
F635Diversity antenna
Electrochromic rear-view mirror
Selector lever illumination
F645OBD II plug
F6510Selector lever illumination
Longitudinal dynamics management
F667.5Driver door switch cluster
Passenger outside mirror
F6720DSC
F6820Driver seat heating module
F69—Not used
F7020Fuel pump (EKPS)
F7120Trailer module
F7215Central locking
F7315Central locking
F745Instrument cluster
F755Passenger seat module
F765Radio
F7710Glove compartment light
Heating and air-conditioning
Trunk or cargo compartment light
F7830Window control
F7930Wiper control
F8030Window control
F8130Footwell module
F8230DSC control module
F8340Footwell module
F8440Footwell module
F8530Car access system (CAS)
F8640Footwell module
F87—Not used
F8840Blower
F8940Secondary air pump relay
F9040DSC control module
F91—Not used
F9250400 watt engine cooling fan
F9260600 watt engine cooling fan
I01068Relay, terminal 30g
K36Wiper relay 1
K37Wiper relay 2

Engine Compartment Fuse Box

Turbo versions (before 03.2007 )

BMW 3-Series E90 to E93 (2005 - 2011) E-box engine electronics module

№AProtected circuits
F0130Ignition coils
Interference suppression capacitor
F0230Coolant thermostat
Electric coolant pump
Exhaust camshaft sensor
Exhaust VANOS solenoid
Intake camshaft sensor
Intake VANOS solenoid
F0320Crankshaft sensor
Engine control module (ECM)
Fuel tank vent valve
Mass air flow sensor
Oil condition sensor
Variable intake manifold controllers
F0430Crankcase breather heater
Oxygen sensor heaters
F0530Fuel injector relay
F0610EAC sensor
E-box fan
Exhaust flap
Fuel tank leakage diagnostic module
Junction box
Secondary air injection mass airflow sensor
F0740Valvetronic (WT) relay
F0930Electric coolant pump
F0105Crankcase breather heating relay
A6000Engine control module (ECM)
K6300DME main relay
K6319Valvetronic (WT) relay
K6327Fuel injector relay
K6539Crankcase breather heating relay
Turbo versions (since 03.2007 )

BMW 3-Series E90 to E93 (2005 - 2011) E-box engine electronics module 03.2007

№AProtected circuits
F0130Ignition coils
Interference suppression capacitor
F0230Coolant thermostat
Electric coolant pump
Engine control module (ECM)
Exhaust camshaft sensor
Exhaust VANOS solenoid
Intake camshaft sensor
Intake VANOS sensor
Wastegate valves
F0320Crankshaft sensor
Fuel tank vent valve
Oil condition sensor
Volume control valve
F0430Crankcase breather heaters
Oxygen sensor heaters
F05—Not used
F0610E-box fan
Exhaust flap
Fuel tank leakage diagnostic module
F0740Electric coolant pump
K6300DME main relay
A2076B+ power
Non-turbo versions, before 03.2007

BMW 3-Series E90 to E93 (2005 - 2011) E-box engine electronics module BEFORE 03.2007

№AProtected circuits
F0740Valvetronic (WT) relay
A6000Engine control module (ECM)
K6319Valvetronic relay
K9137Electric cooling fan cutoff relay
Non-turbo versions, since 03.2007

BMW 3-Series E90 to E93 (2005 - 2011) E-box engine electronics SINCE 03.2007

№AProtected circuits
F0750Electric coolant pump
A6000Engine control module (ECM)
K9137Electric cooling fan cutoff relay

Luggage Compartment Fuse Box

Rear power distribution panel (before 03.2007)

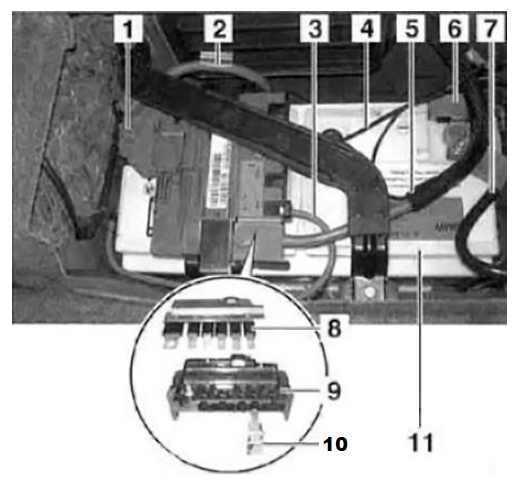

BMW 3-Series E90 to E93 (2005 - 2011) Rear power distribution panel 2005 to 2011

Diagram No.Component / Cable NameCircuit ProtectedFuse
(Before 03/2007)		Fuse
(Since 03/2007)		Amperage
(A)
1Battery safety terminal (BST)Emergency airbag disconnect system——Mechanical/Pyro
2Line to B+ junction, starter & alternatorEngine compartment main powerF203 / —F102100A
3Line to engine electronicsMain engine power feedDirect LinkDirect Link—
4Line to IBS electronicsIntelligent Battery Sensor powerF104F105Low current
5Line to junction boxMain interior fuse box panelF108F101250A
6Battery sensor (IBS)Battery health & charge trackingUses F104Uses F105—
7Battery ground cableMain chassis ground connection———
8 & 9High amperage fuses & HousingPhysical box containing all fuses below———
—Internal Feed (Inside Housing)Electronic power steeringF105F103100A
—Internal Feed (Inside Housing)Auxiliary heaterF106F104100A
—Internal Feed (Inside Housing)Electric auxiliary heaterF106F106100A
10High current connectorHeavy-duty physical plug block———
11BatteryPhysical 12V automotive battery unit———



Related Posts

Leave a Comment

Your email address will not be published. Required fields are marked *

Scroll to Top
