Volkswagen Jetta MK7 (2018 – 2024) Fuse Box Location & Diagrams
Finding the correct fuse box and understanding fuse layouts is essential for diagnosing electrical issues in your Volkswagen Jetta MK7. This article provides fuse box locations and detailed diagrams for 2018–2024 models, helping owners quickly identify fuse assignments, troubleshoot problems, and maintain vehicle electrical systems effectively.
Fuse Box Location

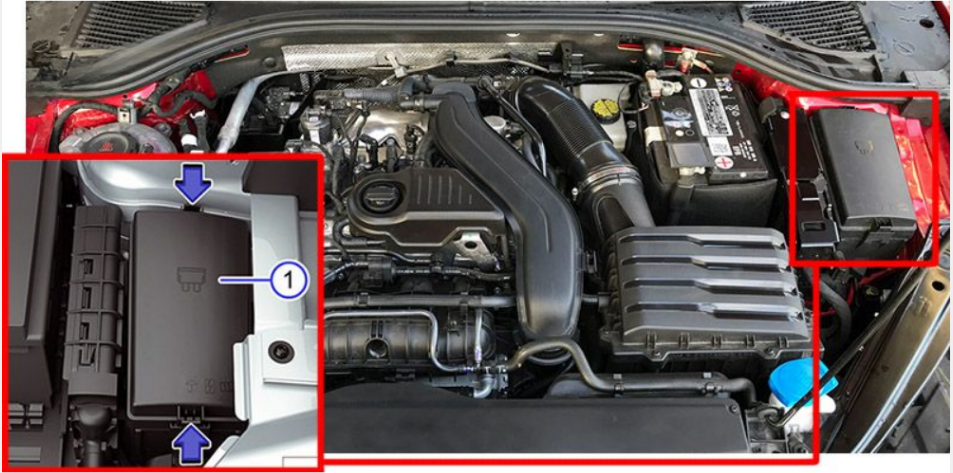

Engine Compartment Fuse Box
Press the catches in the direction of the arrow to unlock the fuse box cover (1). Remove the cover upward.

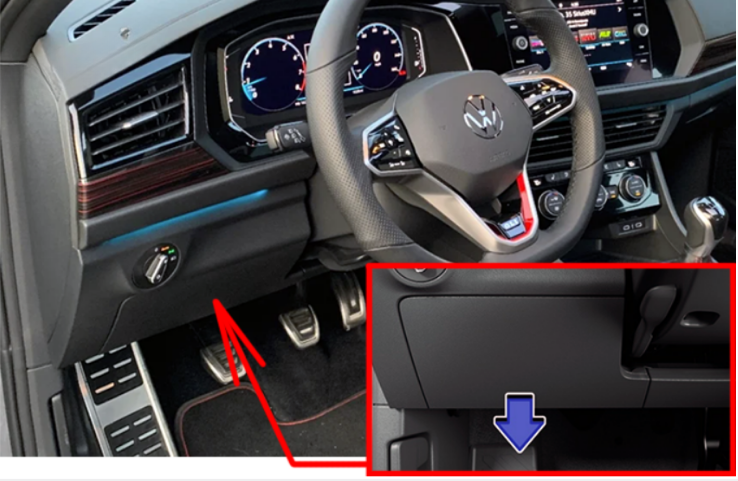

Passenger Compartment Fuse Box
Pull the cover down in the direction of the arrow and remove it.
Fuse Box Diagrams
Engine Compartment Fuse Box
Volkswagen Jetta MK7 (2018)
Up to August 2018
| Type | No. | Description |
|---|---|---|
| Fuse FMX/JCase25A | F1 | ABS control unit |
| Fuse FMX/JCase40A | F2 | ABS control unit |
| Fuse ATO15A | F3 | Engine control unit |
| Fuse ATO10A | F4 | Ethyl alcohol concentration sensor, Secondary air pump relay, Radiator fan control unit, Boost pressure regulator, Oil level/temperature sensor, multiple valves and pumps (intake/exhaust/turbo/cooling systems) |
| Fuse ATO7.5A | F4 | Same as above (1.6L petrol engine variant) |
| Fuse ATO10A | F5 | Engine electronics power supply relay, ECU, injectors (cyl 1–4), cam adjusters, crankcase ventilation heater |
| Fuse ATO7.5A | F5 | Same as above (1.6L petrol engine variant) |
| Fuse ATO5A | F6 | Brake light switch |
| Fuse ATO7.5A | F7 | (2.0L petrol) radiator shutter motor, cooling pumps, valves, fuel tank leak system, turbo bypass, oil pressure valve, etc. |
| Fuse ATO10A | F7 | (1.4L petrol) same system group as above |
| Fuse ATO10A | F8 | (1.4L petrol) lambda probes (O2 sensors) before/after catalyst |
| Fuse ATO15A | F8 | (2.0L petrol) lambda probes (O2 sensors) before/after catalyst |
| Fuse ATO10A | F9 | (2.0L petrol) ignition coils 1–4 |
| Fuse ATO20A | F9 | (1.4L petrol) ignition coils 1–4 |
| Fuse ATO15A | F10 | Fuel pump control unit |
| Fuse FMX/JCase40A | F11 | Secondary air pump motor (1.4L petrol) |
| Fuse FMX/JCase50A | F11 | Secondary air pump motor (1.4L petrol variant) |
| Fuse ATO15A | F13 | Automatic transmission control unit |
| Fuse ATO30A | F13 | Automatic transmission control unit (variant) |
| Fuse ATO15A | F15 | Horn relay |
| Fuse ATO20A | F16 | Engine electronics power supply relay |
| Fuse ATO7.5A | F17 | ABS ECU, engine ECU, main relay, terminal 30 supply (heated windshield models) |
| Fuse ATO5A | F18 | Battery monitoring unit, diagnostic interface |
| Fuse ATO30A | F19 | Windshield wiper motor relays 1 & 2 |
| Fuse ATO10A | F20 | Garage door opener control unit |
| Fuse ATO10A | F21 | Heated windshield wiper blade heating element |
| Fuse ATO15A | F21 | DSG mechatronic unit (2.0L petrol) |
| Fuse ATO30A | F21 | DSG mechatronic unit (variant) |
| Fuse ATO5A | F22 | Engine control unit |
| Fuse ATO30A | F23 | Starter |
| Fuse ATO15A | F31 | Brake vacuum pump, relay |
| Fuse ATO15A | F34 | Interwheel differential lock control unit |
| Relay | R1 | Starter relay 1 |
| Relay | R2 | Starter relay 2 |
| Relay | R3 | Horn relay |
| Relay | R4 | Secondary air pump relay |
| Relay | R5 | Main relay / power supply relay (petrol/diesel variant) |
| Relay | R8 | Engine electronics power supply relay |
| Relay | R9 | Windshield wiper relay 1 |
| Relay | R10 | Windshield wiper relay 2 |
| Battery terminal | T1 | Main fuse supply distribution (multiple interior/exterior fuse feeds) |
| Battery terminal | T2 | Generator with voltage regulator |
| Battery terminal | T3 | Battery connector |
| Battery terminal | T4 | Power steering control unit |
| Battery terminal | T5 | Secondary fuse power supply distribution block |
| Battery terminal | T6 | Radiator fan power supply |
Volkswagen Jetta MK7 (2018)

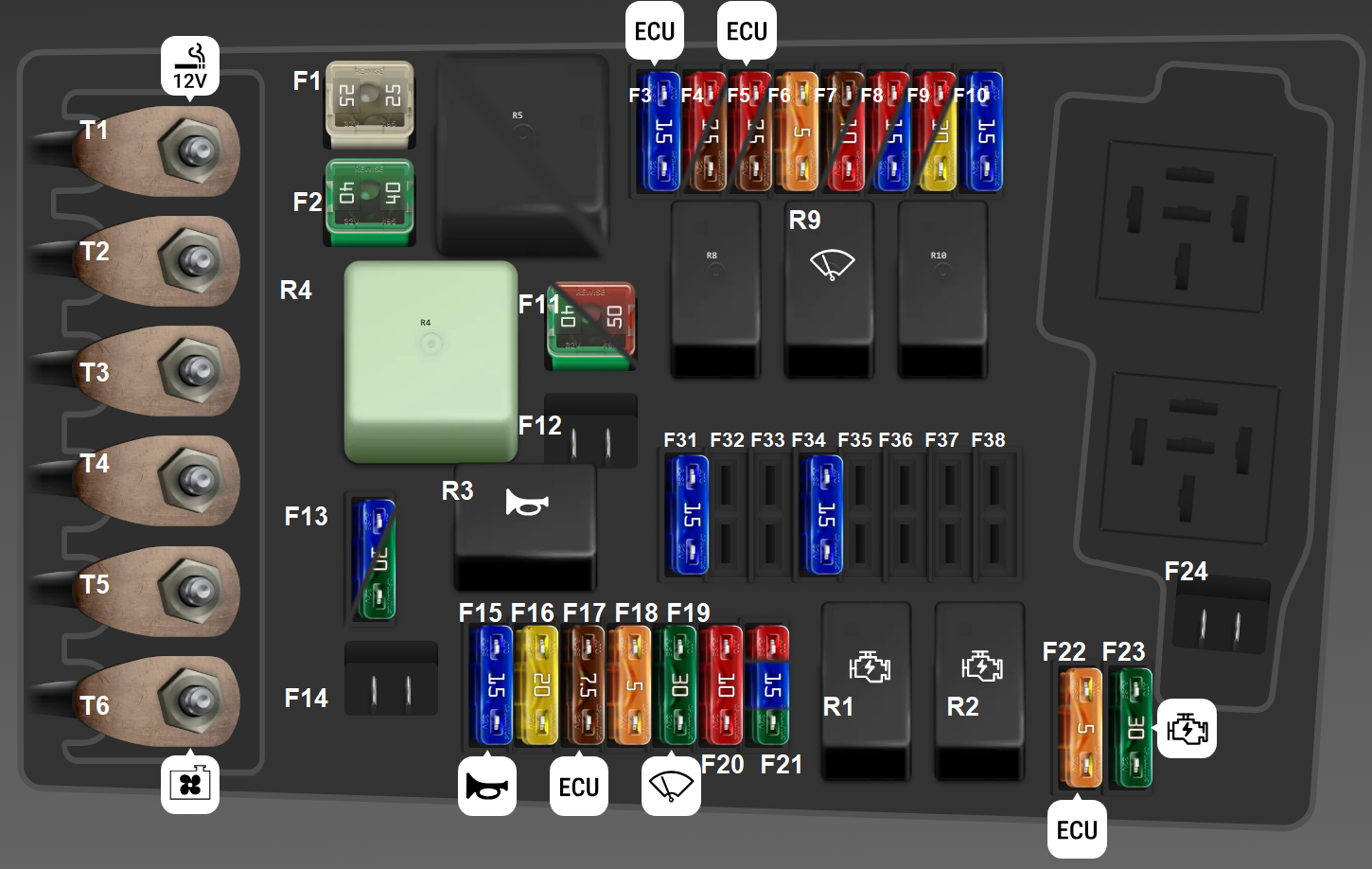

Engine fuse panel (From September 2018)
| Type | No. | Description |
|---|---|---|
| Fuse FMX/JCase25A | F1 | ABS control unit |
| Fuse FMX/JCase40A | F2 | ABS control unit |
| Fuse ATO15A | F3 | Engine control unit |
| Fuse ATO10A | F4 | Ethyl alcohol concentration sensor, Secondary air pump relay, Radiator fan control unit, Boost pressure regulator, Oil level/temperature sensor, intake/exhaust valve systems, cooling pumps, turbo bypass, vacuum pump relay, etc. |
| Fuse ATO7.5A | F4 | Same systems as above (1.6L petrol engine variant) |
| Fuse ATO10A | F5 | Engine electronics relay, ECU, injectors (cyl 1–4), cam adjusters, crankcase ventilation heater |
| Fuse ATO7.5A | F5 | Same as above (1.6L petrol engine variant) |
| Fuse ATO7.5A | F6 | Brake light switch |
| Fuse ATO7.5A | F7 | (2.0L petrol) cooling system, radiator shutter, gearbox cooling, turbo system, valves, pumps |
| Fuse ATO10A | F7 | (1.4L petrol) same system group as above |
| Fuse ATO10A | F8 | (1.4L petrol) oxygen sensors (lambda probes) |
| Fuse ATO15A | F8 | (2.0L petrol) oxygen sensors (lambda probes) |
| Fuse ATO10A | F9 | (2.0L petrol) ignition coils, valve control, vacuum systems |
| Fuse ATO20A | F9 | (1.4L petrol) ignition coils, valve control systems |
| Fuse ATO15A | F10 | Fuel pump control unit + engine electronics relay |
| Fuse FMX/JCase40A | F11 | Secondary air pump motor (1.4L petrol) |
| Fuse FMX/JCase50A | F11 | Secondary air pump motor (variant) |
| Fuse ATO30A | F13 | Automatic transmission control unit + hydraulic pump |
| Fuse ATO30A | F13 | Automatic transmission control unit (variant) |
| Fuse ATO15A | F15 | Horn relay |
| Fuse ATO20A | F16 | Engine electronics power relay |
| Fuse ATO7.5A | F17 | ABS, ECU, main relay, terminal 30 supply (heated windshield models) |
| Fuse ATO7.5A | F18 | Battery monitoring control unit, diagnostic interface |
| Fuse ATO30A | F19 | Windshield wiper motor relays |
| Fuse ATO15A | F21 | DSG mechatronic unit (2.0L petrol) |
| Fuse ATO30A | F21 | DSG / automatic transmission unit (variant) |
| Fuse ATO7.5A | F22 | Engine control unit |
| Fuse ATO30A | F23 | Starter motor |
| Fuse ATO15A | F31 | Brake system vacuum pump |
| Fuse ATO15A | F32 | Inter-wheel differential lock control unit |
| Relay | R1 | Starter relay 1 |
| Relay | R2 | Starter relay 2 |
| Relay | R3 | Horn relay |
| Relay | R4 | Secondary air pump relay |
| Relay | R5 | Main relay / terminal 30 power relay (petrol/diesel variant) |
| Relay | R8 | Engine electronics power supply relay |
| Relay | R9 | Windshield wiper motor relay 1 |
| Relay | R10 | Windshield wiper motor relay 2 |
| Battery terminal | T1 | Main fuse power distribution (multiple circuits, relays, rear defrost, etc.) |
| Battery terminal | T2 | Generator with voltage regulator |
| Battery terminal | T3 | Battery connector |
| Battery terminal | T4 | Power steering control unit |
| Battery terminal | T5 | Secondary fuse distribution block |
| Battery terminal | T6 | Radiator fan power supply |
Volkswagen Jetta MK7 (2019-2024)
| Type | No. | Description |
| Fuse FMX/JCase 25A | F1 | ABS control unit |
| Fuse FMX/JCase 40A | F2 | ABS control unit |
| Fuse FMX/JCase 60A | F2 | (2022) ABS control unit [Depending on the configuration] |
| Fuse ATO 15A | F3 | Engine control unit |
| Fuse ATO 10A | F4 | [Only for vehicles with a 2.0 l petrol engine]: Secondary air pump relay, Radiator Fan: Radiator fan control unit, Radiator fan; Boost pressure regulator, Oil level and temperature sensor, Secondary air supply control valve, Heater circulation pump, Coolant shut-off valve, Valve 1 of the intake valve timing control, Coolant circulation circuit valve, Intake manifold flap valve, Valve 1 for exhaust valve timing control, Solenoid valve 1 adsorber, Charge air cooling pump, Piston cooling nozzle control valve, Oil pressure regulating valve, Intake manifold flap valve, Turbocharger bypass valve, Inlet cam adjuster cylinder 2 & 3, Exhaust cam adjuster cylinder 2 & 3, Vacuum pump relay |
| Fuse ATO 7.5A | F4 | [Only for cars with a 1.4 l petrol engine], [Only for cars with 1.6 l petrol engine] [Only for cars with 1.5 l petrol engine]: Secondary air pump relay, Radiator Fan: Radiator fan control unit, Radiator fan; Boost pressure regulator, Oil level and temperature sensor, Secondary air supply control valve, Heater circulation pump, Coolant shut-off valve, Valve 1 of the intake valve timing control, Coolant circulation circuit valve, Intake manifold flap valve, Valve 1 for exhaust valve timing control, Solenoid valve 1 adsorber, Charge air cooling pump, Piston cooling nozzle control valve, Oil pressure regulating valve, Intake manifold flap valve, Turbocharger bypass valve, Engine electronics power supply relay [1.6 l petrol engine], Inlet cam adjuster cylinder 2 & 3, Exhaust cam adjuster cylinder 2 & 3, Vacuum pump relay |
| Fuse ATO 10A | F5 | [Only for vehicles with a 2.0 l petrol engine]: Engine electronics power supply relay, Engine control unit, Injector cylinder 1, 2, 3 & 4, Exhaust cam adjuster A cylinder 1, 2, 3 & 4, Exhaust cam adjuster B cylinder 1, 2, 3 & 4, Heating resistor for engine crankcase ventilation system |
| Fuse ATO 7.5A | F5 | [Only for cars with a 1.4 l petrol engine], [Only for cars with 1.6 l petrol engine], [Only for cars with 1.5 l petrol engine]: Engine electronics power supply relay, Engine control unit, Injector cylinder 1, 2, 3 & 4, Exhaust cam adjuster A cylinder 1, 2, 3 & 4, Exhaust cam adjuster B cylinder 1, 2, 3 & 4, Heating resistor for engine crankcase ventilation system |
| Fuse ATO 7.5A | F6 | Brake light switch (2022) Selector lever, Ignition key removal interlock solenoid [For vehicles without an access and engine start authorization |
| Fuse ATO 7.5A | F7 | [Only for vehicles with a 2.0 l petrol engine]: Radiator shutter actuator motor, Charge air cooling pump, Gearbox oil cooling pump, Coolant circuit valve for cylinder block, Heating resistor for engine crankcase ventilation system, Fuel tank leak diagnostic system control unit, Turbocharger bypass valve, Intake manifold flap valve, Piston cooling nozzle control valve, Coolant shut-off valve, Solenoid valve for coolant circulation circuit, Oil pressure regulating valve, Coolant circulation pump, Gearbox coolant circuit valve |
| Fuse ATO 10A | F7 | [Only for cars with a 1.4 l petrol engine], [Only for cars with 1.5 l petrol engine]: Radiator shutter actuator motor, Charge air cooling pump, Gearbox oil cooling pump, Coolant circuit valve for cylinder block, Heating resistor for engine crankcase ventilation system, Fuel tank leak diagnostic system control unit, Turbocharger bypass valve, Intake manifold flap valve, Piston cooling nozzle control valve, Coolant shut-off valve, Solenoid valve for coolant circulation circuit, Oil pressure regulating valve, Coolant circulation pump, Gearbox coolant circuit valve |
| Fuse ATO 10A | F8 | [Only for cars with a 1.4 l petrol engine], [Only for cars with 1.6 l petrol engine], [Only for cars with 1.5 l petrol engine]: Lambda probe 1 after neutralizer: Lambda probe heating element 1 after catalytic converter, Lambda probe after neutralizer; Lambda probe 1 before neutralizer: Lambda probe heating element, Lambda probe |
| Fuse ATO 15A | F8 | [Only for vehicles with a 2.0 l petrol engine]: Lambda probe 1 after neutralizer: Lambda probe heating element 1 after catalytic converter, Lambda probe after neutralizer; Lambda probe 1 before neutralizer: Lambda probe heating element, Lambda probe |
| Fuse ATO 10A | F9 | [Only for vehicles with a 2.0 l petrol engine]: Ignition coil 1, 2, 3 & 4 with output stage, Secondary air supply control valve, Valve 1 for exhaust valve timing control, Valve 1 of the intake valve timing control, Solenoid valve 1 adsorber, Heater circulation pump |
| Fuse ATO 20A | F9 | [Only for cars with a 1.4 l petrol engine], [Only for cars with 1.6 l petrol engine], [Only for cars with 1.5 l petrol engine]: Ignition coil 1, 2, 3 & 4 with output stage, Secondary air supply control valve, Valve 1 for exhaust valve timing control, Valve 1 of the intake valve timing control, Solenoid valve 1 adsorber, Heater circulation pump |
| Fuse ATO 15A | F10 | Fuel pump control unit, Engine electronics power supply relay [Depending on the configuration] |
| Fuse FMX/JCase 40A | F11 | [Only for cars with a 1.4 l petrol engine], [Only for cars with 1.5 l petrol engine]: Secondary air pump motor, Secondary air pump relay |
| Fuse FMX/JCase 50A | F11 | [Only for vehicles with a 2.0 l petrol engine], [Only for cars with 1.6 l petrol engine]: Secondary air pump motor, Secondary air pump relay |
| Fuse ATO 30A | F13 | Automatic transmission control unit, Additional hydraulic pump 1 for gearbox oil |
| Fuse ATO 15A | F15 | Horn relay |
| Fuse ATO 20A 7.5A 10A | F16 | Engine electronics power supply relay (2021,2022) Storage compartment with mobile phone interface [For cars with a phone charger], USB connector 1 |
| Fuse ATO 7.5A | F17 | ABS control unit, Engine control unit, Main relay |
| Fuse ATO 7.5A | F18 | Control unit for battery monitoring, Data bus diagnostic interface |
| Fuse ATO 30A | F19 | Windscreen wiper motor relay 1, Relay 2 for windscreen wiper motor |
| Fuse ATO 15A | F21 | [Only for vehicles with a 2.0 l petrol engine] Mechatronic unit DSG gearbox |
| Fuse ATO 30A | F21 | [Depending on the configuration]: Mechatronic unit DSG gearbox, Automatic transmission control unit |
| Fuse ATO 7.5A | F22 | Engine control unit |
| Fuse ATO 30A | F23 | Starter |
| Fuse ATO 15A (2022,2021) 7.5A (2021) 10A | F32 | Control unit for inter-wheel differential lock (2022) [ Only for vehicles with blind spot monitoring]: Blind spot monitoring control unit, Blind spot monitoring control unit 2; (2021) [Depending on the configuration): Blind spot monitoring control unit, Blind spot monitoring control unit 2, Parking |
| Relay | R1 | Starter relay 1 |
| Relay | R2 | Starter relay 2 |
| Relay | R3 | Horn relay |
| Relay | R4 | Secondary air pump relay |
| Relay | R5 | Main relay |
| Relay | R8 | Engine electronics power supply relay [Depending on the configuration] |
| Relay | R9 | Windscreen wiper motor relay 1 |
| Relay | R10 | Relay 2 for windscreen wiper motor |
| Battery terminal | T1 | Power supply for fuses: Fuse 4 to 12 in fuse box C, Fuse 14 in fuse box C, Fuse 52 in fuse box C, Fuse 39 in fuse box C, Fuse 53 in fuse box C, Fuse 42 in fuse box C, Rear window heating relay, Socket relay, Fuse 40 in fuse box C, Power supply relay terminal 15, Fuse 32 to 35 in fuse box C, Fuse 49 in fuse box C |
| Battery terminal | T2 | Generator with voltage regulator |
| Battery terminal | T3 | Battery connector |
| Battery terminal | T4 | Power steering control unit |
| Battery terminal | T5 | Power supply for fuses: Fuse 15 to 19 in fuse box C, Fuse 21 in fuse box C, Fuse 23 to 27 in fuse box C, Fuse 43 to 45 in fuse box C, Fuse 30 in fuse box C, Fuse 51 in fuse box C, Fuse 2 in fuse box C |
| Battery terminal | T6 | Radiator Fan |
Passenger Compartment Fuse Box
Volkswagen Jetta MK7 (2018)

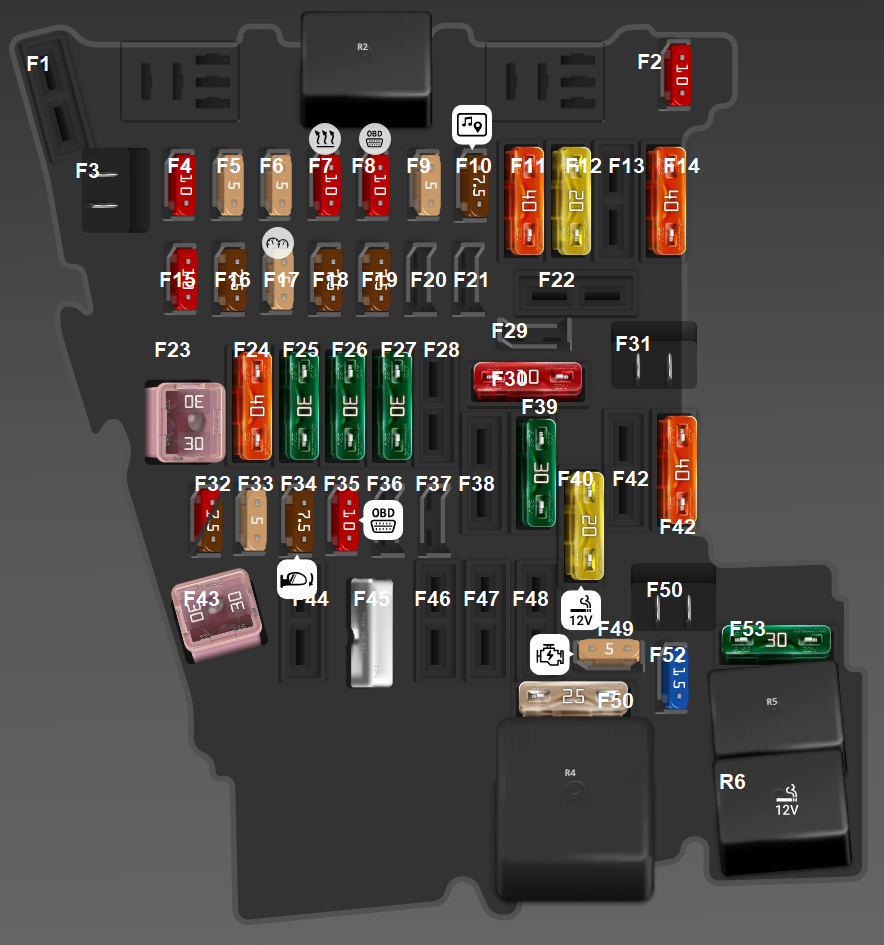

Interior fuse panel (Up to August 2018)
| Type | No. | Description |
|---|---|---|
| Fuse MINI10A | F2 | Steering column electronics control unit |
| Fuse MINI10A | F4 | On-board power supply control unit |
| Fuse MINI5A | F5 | Data bus diagnostic interface, remote start system relay (variant) |
| Fuse MINI5A | F6 | Selector, ignition key removal interlock solenoid |
| Fuse MINI10A | F7 | Heating / air conditioning control panel |
| Fuse MINI10A | F8 | Diagnostic connector, parking brake system, sensors (rain/light/humidity), interior lighting, alarm, etc. |
| Fuse MINI5A | F9 | Steering column electronics control unit |
| Fuse MINI7.5A | F10 | Front display and information unit |
| Fuse ATO40A | F11 | On-board power supply control unit |
| Fuse ATO20A | F12 | Electronic information system control unit |
| Fuse ATO40A | F14 | Supply air fan control unit |
| Fuse MINI10A | F15 | Electronic steering column lock control unit |
| Fuse MINI7.5A | F16 | USB charging socket, phone interface |
| Fuse MINI5A | F17 | Instrument cluster, emergency call module |
| Fuse MINI7.5A | F18 | Rear view camera |
| Fuse MINI7.5A | F19 | Access and start authorization system |
| Fuse FMX/JCase30A | F23 | Sliding sunroof control unit |
| Fuse ATO40A | F24 | On-board power supply control unit |
| Fuse ATO30A | F25 | Driver door control unit, rear left window motor |
| Fuse ATO30A | F26 | On-board power supply control unit |
| Fuse ATO30A | F27 | On-board power supply control unit |
| Fuse ATO10A | F30 | Remote start system relay (variant) |
| Fuse MINI10A | F32 | Blind spot monitoring / driver assistance systems (variant) |
| Fuse MINI7.5A | F32 | Parking assistance, front camera, adaptive cruise control |
| Fuse MINI5A | F33 | Airbag control unit, occupant detection system |
| Fuse MINI7.5A | F34 | Sensors, interior systems, seat heating, socket relay, air quality sensor |
| Fuse MINI10A | F35 | Diagnostic connector |
| Fuse ATO30A | F39 | Front passenger door control unit, rear right window motor |
| Fuse ATO20A | F40 | 12V socket, USB charging socket, socket relay |
| Fuse ATO40A | F42 | On-board power supply control unit |
| Fuse FMX/JCase30A | F43 | Digital sound system control unit |
| Circuit breaker ATO | F45 | Driver seat adjustment system, lumbar support, seat fans |
| Fuse MINI5A | F49 | Starter relays, clutch sensor, remote start relay (variant) |
| Fuse ATO25A | F51 | Rear seat heating control unit |
| Fuse MINI15A | F52 | Electronic damping control unit |
| Fuse ATO30A | F53 | Rear window heating relay |
| Relay | R2 | Electromagnetic clutch relay |
| Relay | R4 | Terminal 15 power supply relay |
| Relay | R5 | Rear window heating relay |
| Relay | R6 | Socket relay |
Volkswagen Jetta MK7 (2018)

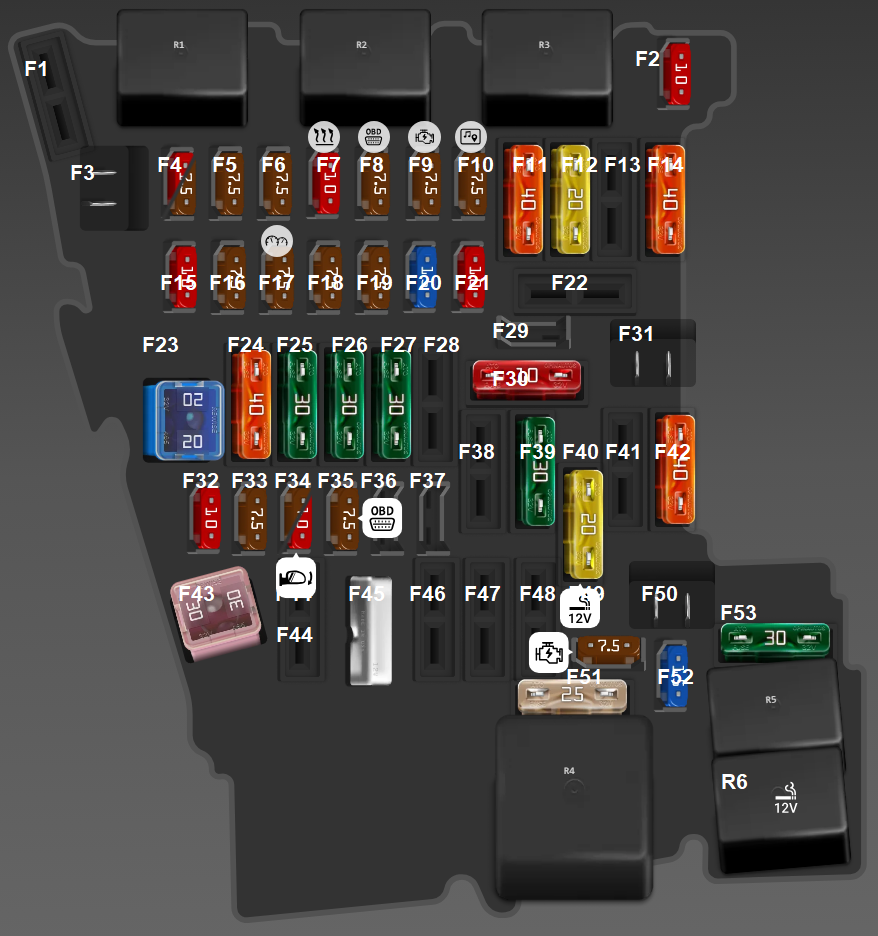

Interior fuse panel (From September 2018)
| Type | No. | Description |
|---|---|---|
| Fuse MINI10A | F2 | Steering column electronics control unit |
| Fuse MINI10A | F4 | On-board power supply control unit |
| Fuse MINI7.5A | F4 | Alarm siren |
| Fuse MINI7.5A | F5 | Data bus diagnostic interface, remote start relay (variant) |
| Fuse MINI7.5A | F6 | Selector, ignition key removal interlock solenoid |
| Fuse MINI10A | F7 | Heating / air conditioning control panel, rear window heating relay, electromagnetic clutch relay |
| Fuse MINI7.5A | F8 | Diagnostic connector, parking brake system, sensors (rain/light/humidity), interior lighting, alarm system, etc. |
| Fuse MINI7.5A | F9 | Steering column electronics control unit, ignition and starter switch |
| Fuse MINI7.5A | F10 | Front display and information unit |
| Fuse ATO40A | F11 | On-board power supply control unit |
| Fuse ATO20A | F12 | Electronic information system control unit |
| Fuse ATO40A | F14 | Supply air fan control unit |
| Fuse MINI10A | F15 | Steering column lock control unit |
| Fuse MINI7.5A | F16 | USB charging socket, phone interface |
| Fuse MINI7.5A | F17 | Instrument cluster, emergency call module |
| Fuse MINI7.5A | F18 | Rear view camera |
| Fuse MINI7.5A | F19 | Access and start authorization system |
| Fuse MINI15A | F20 | Vacuum pump relay |
| Fuse MINI10A | F21 | Heated windscreen relay |
| Fuse FMX/JCase20A | F23 | Sliding sunroof control unit |
| Fuse ATO40A | F24 | On-board power supply control unit |
| Fuse ATO30A | F25 | Driver door control unit, rear left window motor |
| Fuse ATO30A | F26 | On-board power supply control unit |
| Fuse ATO30A | F27 | On-board power supply control unit |
| Fuse ATO10A | F30 | Remote start system relay (variant) |
| Fuse MINI10A | F32 | Blind spot monitoring / driver assistance systems (variant) |
| Fuse MINI7.5A | F33 | Airbag control unit, occupant detection system |
| Fuse MINI7.5A | F34 | Sensors, interior systems, seat heating, air quality sensor, socket relay |
| Fuse MINI10A | F34 | Center console switches, sensors, parking brake button, rear seat heating control |
| Fuse MINI7.5A | F35 | Diagnostic connector |
| Fuse ATO30A | F39 | Front passenger door control unit, rear right window motor |
| Fuse ATO20A | F40 | 12V socket, USB charging socket, socket relay, remote start fuse |
| Fuse ATO40A | F42 | On-board power supply control unit |
| Fuse FMX/JCase30A | F43 | Digital sound system control unit |
| Circuit breaker ATO | F45 | Driver seat adjustment system, lumbar support, seat fans |
| Fuse MINI7.5A | F49 | Starter relays, clutch sensor, remote start relay, USB fuse |
| Fuse ATO25A | F51 | Rear seat heating control unit, seat adjustment thermal fuse |
| Fuse MINI15A | F52 | Electronic damping control unit |
| Fuse ATO30A | F53 | Rear window heating relay |
| Relay | R1 | Vacuum pump relay |
| Relay | R2 | Electromagnetic clutch relay |
| Relay | R3 | Heated windscreen relay |
| Relay | R4 | Terminal 15 power supply relay |
| Relay | R5 | Rear window heating relay |
| Relay | R6 | Socket relay |
Volkswagen Jetta MK7 (2019-2024)
| Type | No. | Description |
| Fuse ATO (2019) – 10A | F1 – | Heated windscreen relay [For vehicles with heated windshield] – |
| Fuse MINI 10A | F2 | Steering column electronics control unit |
| Fuse MINI 10A | F4 | On-board power supply control unit [For American markets] |
| Fuse MINI 7.5A | F4 | Alarm siren [For vehicles with security alarms] |
| Fuse MINI 7.5A | F5 | Data bus diagnostic interface, Remote start system relay [Only for vehicles with remote engine start] [Only for vehicles with preparation for retrofitting with remote engine start] |
| Fuse MINI 7.5A | F6 | Selector lever, Ignition key removal interlock solenoid [For vehicles without an access and engine start authorization system] |
| Fuse MINI 10A | F7 | Heating/Air Conditioning Control Panel, Rear window heating relay, Electromagnetic clutch relay |
| Fuse MINI 7.5A | F8 | Diagnostic connector, Electromechanical parking brake button, Rain and light sensor [For vehicles with rain and light sensor], Rotary light switch, Parking brake button, Alarm sensor [For vehicles with security alarms], [For vehicles with aesthetic lighting]: Ceiling lamp 1, 2 & 3 contour illumination of the front panel, Aesthetic lighting lamp for front passenger door, Driver’s door aesthetic lighting lamp, Glove compartment light |
| Fuse MINI 7.5A | F9 | Steering column electronics control unit, Ignition and starter switch |
| Fuse MINI 7.5A | F10 | Display for front control, display and information unit |
| Fuse ATO 40A | F11 | board power supply control unit |
| Fuse ATO 20A | F12 | Electronic information system control unit 1 |
| Fuse ATO 40A | F14 | Supply air fan control unit |
| Fuse MINI 10A | F15 | Electronic steering column lock control unit [For vehicles with access and engine start authorization system] |
| Fuse MINI 7.5A | F16 | Storage compartment with mobile phone interface [For cars with a phone charger], USB connector 1 |
| Fuse MINI 10A | F16 | From July 2022: Storage compartment with mobile phone interface [For cars with a phone charger], USB charging socket 1 [For vehicles with USB charging socket], USB connector 1 |
| Fuse MINI 7.5A | F17 | Instrument cluster, Control unit for emergency call module and communication unit [For vehicles with an emergency call module] |
| Fuse MINI 7.5A | F18 | Rear view camera [For vehicles with rear view camera] |
| Fuse MINI 7.5A | F19 | Access and start authorization system interface [For vehicles with access and engine start authorization system] |
| Fuse MINI 15A (2019) Fuse MINI 10A | F20 F21 | Vacuum pump relay [For cars with a 1.4 l petrol engine] Heated windscreen relay |
| Fuse FMX/JCase 20A | F23 | Sliding sunroof control unit [For vehicles with a sliding sunroof] |
| Fuse ATO 40A | F24 | On-board power supply control unit |
| Fuse ATO 30A | F25 | Driver’s door control unit, Rear left window lift motor |
| Fuse ATO 30A | F26 | On-board power supply control unit |
| Fuse ATO 30A | F27 | On-board power supply control unit |
| Fuse MINI 5A | F29 | Refrigerant circuit pressure sensor |
| Fuse ATO 10A | F30 | Remote start system relay [Only for vehicles with remote engine start] [Only for vehicles with preparation for retrofitting with remote engine start] |
| Fuse MINI 7.5A | F32 | [Only for vehicles with blind spot monitoring]: Blind spot monitoring control unit, Blind spot monitoring control unit 2; Parking assistance system control unit [For vehicles with parking assistance system], Front camera for driver assistance systems [For vehicles with a front camera of driver assistance systems], Adaptive cruise control control unit [For vehicles with adaptive cruise control unit] |
| Fuse MINI 7.5A | F33 | Airbag control unit, Front passenger airbag deactivation indicator lamp, Seat occupied recognition control unit [For American markets] |
| Fuse MINI 7.5A (2019) Fuse MINI 10A | F34 | Refrigerant circuit pressure sensor [Only for vehicles without remote engine start], Switch module 1 center console, Interior rear view mirror, Rotary light switch, Reversing light switch, Symposer control unit, Air quality sensor, Control unit for rear seat heating [For vehicles with heated rear seats], Switch module 2 center console, Socket relay, Refrigerant circuit pressure sensor. Parking brake button [Only for vehicles with blind spot monitoring): Switch module 1 center console, Interior rear view mirror, Rotary light |
| Fuse MINI 7.5A | F35 | Diagnostic connector |
| Fuse ATO 30A | F39 | Front passenger door control unit, Rear right window lift motor |
| Fuse ATO 20A | F40 | [Normally – with power supply from terminal 15], [Power supply via terminal 30 is possible]: Socket 12V, Socket relay |
| Fuse ATO 40A | F42 | On-board power supply control unit |
| Fuse FMX/JCase 30A | F43 | Digital audio package control unit [For cars with an acoustic system] |
| Circuit breaker ATO | F45 | [For vehicles with electric driver’s seat adjustment]: Front left seat adjustment control panel, Driver’s seat lumbar support adjustment switch; [For cars with seat ventilation]: Fan 1 front left seat cushion, Fan 1 front left seat backrest; Driver’s seat adjustment control unit [For cars with seat adjustment and memory function] |
| Fuse ATO 7.5A | F46 | USB charging socket 1 [For vehicles with USB charging socket] |
| Fuse ATO – | F46 | Not used (From July 2022) |
| (2022,2023,2024) Fuse MINI 7.5A (2019,2020,2021) Fuse MINI 5A | F49 | Starter relay 1, Starter relay 2, Clutch pedal position sensor [For vehicles with manual transmission], Remote start system relay [Only for vehicles with preparation for retrofitting with remote engine start][Depending on the configuration]: Starter relay 1, Starter relay 2, Clutch pedal position sensor, Remote start system relay (Only for vehicles with preparation for retrofitting with remote engine start], USB charging socket fuseAdded From August 2019 (Depending on the configuration): Starter relay 1, Starter relay 2, Clutch pedal position sensor, Remote start system relay [Only for vehicles with preparation for retrofitting with remote engine start), USB charging socket fuse |
| Fuse ATO 25A | F51 | Control unit for rear seat heating [For vehicles with heated rear seats], Thermal fuse 1 for front passenger seat adjustment [For vehicles with electric driver’s seat adjustment] |
| Fuse MINI 15A | F52 | Electronic damping control unit [For vehicles with adaptive chassis control system] |
| Fuse ATO 30A | F53 | Rear window heating relay |
| Relay | R1 | Vacuum pump relay |
| Relay | R2 | Electromagnetic clutch relay |
| Relay | R3 | Heated windscreen relay [For cars with heated windshield] |
| Relay | R4 | Power supply relay terminal 15 |
| Relay | R5 | Rear window heating relay |
| Relay | R6 | Socket relay |
