This blog provides detailed fuse box locations and accurate fuse diagrams for the BMW X2 U10 (2024–2026). Find engine compartment and interior fuse box layouts, fuse assignments, and essential information to help diagnose electrical issues, replace blown fuses, and maintain your vehicle with confidence.

Fuse Box Location

Passenger Compartment Fuse Box

Two fuse panels are located under the dashboard – the first on the passenger side, the second on the driver side (you may need to remove the protective trim). There are also several fuses on the Body Domain Controller, which is located in the passenger-side pillar, behind the trim.

BMW X2 U10 (2024 - 2026) Passenger Compartment Fuse Box Location

Fuse Box Diagrams

Passenger Compartment Fuse Box

BMW X2 U10 (2024 - 2026) Passenger Compartment Fuse Box Diagram Passenger Side

Passenger’s side fuse box
№AmpsDescription
2030AFuel pump
2115Ainstrument cluster, Head-Up Display (HUD), Infotainment
2330AReplacement top module; Alternating relay
2440ATrunk lid (tailgate) lock; Automatic tailgate closing
2530AElectric mirrors
2630ACombustion engine: Fuel Injection & similar electronics
2740ARear window defroster (defogger), Steering column function control module
2830ARear window defroster (defogger), Steering column function control module
2940AHorn, On-Board Diagnostics (OBD), Infotainment, BCP, Main headlights / Rain sensor / Light sensor / Electronic ride height control
325AAlarm
337.5ADoor module / Automatic soft-close, Sound system
367.5AInstrument cluster, Parking sensors / Home link (garage door opener), Head-Up Display (HUD), Infotainment
377.5AHybrid system
385AReplacement top module; Alternating relay
3950ATrailer module
4060AHorn, On-Board Diagnostics (OBD), Infotainment, BCP, Main headlights / Rain sensor / Light sensor / Electronic ride height control
4140ACombustion engine: Sound system
4620AFront & rear cigarette lighter, 12V socket / Glove box charging socket (12V)
4730ASeat adjustment
4820ATrailer module
4930ACombustion engine: Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD, Fuel Injection & similar electronics
20AHybrid system: Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD, Fuel Injection & similar electronics
5030ATrailer module
5115ACombustion engine: Fuel Injection & similar electronics
5210ACombustion engine: Fuel Injection & similar electronics
5330AHeated seats
5420ATrailer module
5610ACombustion engine: Fuel Injection & similar electronics
5740ACombustion engine: Replacement top module; Alternating relay
605ARear window defroster (defogger), Steering column function control module
6110ASteering column function control module
6210ADriving assistance
635AElectric fan
645AInterior lights
657.5AParking sensors / Home link (garage door opener), Head-Up Display (HUD)
665ASeat adjustment
6710ADriving assistance
685AParking sensors / Home link (garage door opener)
695ADriving assistance
705ATrunk lid (tailgate) lock; Automatic tailgate closing, interior lights
7110ASeatbelts
737.5AReplacement top module; Alternating relay, Electrochromic rear view mirror
747.5AFuel Injection & similar electronics, Hybrid system
76Parking sensors / Home link (garage door opener), Infotainment
Driver’s side fuse box
№AmpsDescription
2440ASound system
2530AElectric windows, Electric mirrors
305AInfotainment, START-STOP system
367.5ADoor module; Automatic soft closing
377.5AElectric, Plugin-Hybrid
385A48V
387.5AElectric, Plugin-Hybrid: 48V
3940AAir Conditioning System, Heating / Independent aux. heater
4040ACombustion engine: Electric mirrors
4150AABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Parking brake, START-STOP system
4730ASeat adjustment
4920AElectric, Plugin-Hybrid: DME – Digital Motor Electronics / Integrated Voltage Module – IVM
5130ASound system, Infotainment
527.5ADME – Digital Motor Electronics / Integrated Voltage Module – IVM
5330AHeated seats
557.5AElectric, Plugin-Hybrid: DME – Digital Motor Electronics / Integrated Voltage Module – IVM
5610ADME – Digital Motor Electronics / Integrated Voltage Module – IVM
5615AElectric, Plugin-Hybrid: DME – Digital Motor Electronics / Integrated Voltage Module – IVM
5740ACombustion engine: Replacement top module; Alternating relay
605ARear window defroster (defogger), Steering column function control module
6210ADriving assistance
635ASound system
645AInterior lights
665ASeat adjustment
6715AElectric, Plugin-Hybrid: Hybrid system
685AElectric fan, Parking sensors / Home link (garage door opener), Driving assistance, Hybrid system
697.5ANFC
705ADME – Digital Motor Electronics / Integrated Voltage Module – IVM, Hybrid system
7110AGear Indicator / DSC – Dynamic Stability Control / SMG – Sequential Manual Gearbox
725ADriving assistance
745A48V, Hybrid system
Body Domain Controller

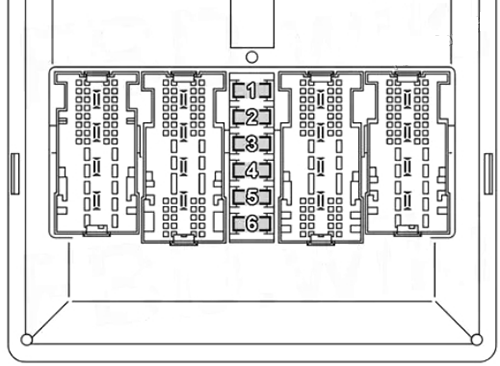

BMW X2 U10 (2024 - 2026) Passenger Compartment Fuse Box Diagram BDC

№AmpsDescription
F15ASteering column function control module, Driving assistance, Main headlights / Rain sensor / Light sensor / Electronic ride height control, Interior lights
F27.5AOn-board diagnostics (OBD), Hybrid system
F37.5AAir conditioning system, Tailgate,
F45AFront & rear cigarette lighter, 12V socket / Glove box charging socket (12V), Infotainment, Tailgate, Door module / Automatic soft-close, STAR-STOP system
F520ADoor module / Automatic soft-close
F620ADoor module / Automatic soft-close
