The BYD Tang (2022 & 2023) fuse box location and diagrams provide essential information for identifying fuse panels, checking fuse assignments, and understanding electrical protection systems. This article explains the fuse box positions, diagram details, and related information to help owners perform basic electrical inspections and maintenance.

Fuse Box Location

Passenger Compartment Fuse Box

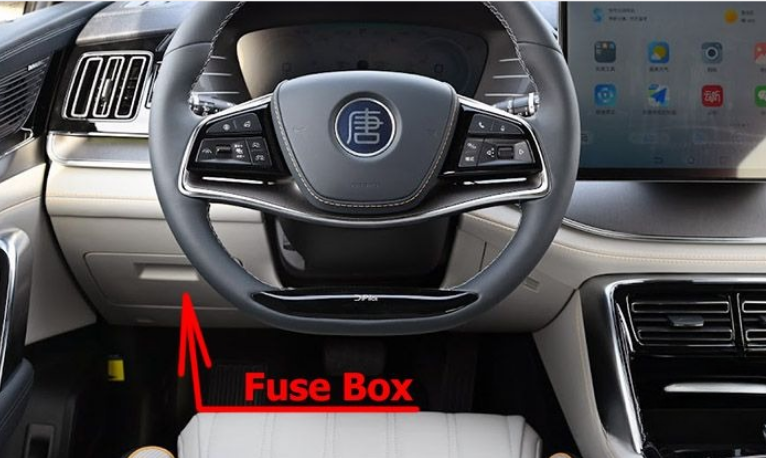

The dashboard fuse box is located in the guard plate under the dashboard.

BYD Tang (2022 & 2023) passenger compartment location

Engine Compartment Fuse Box

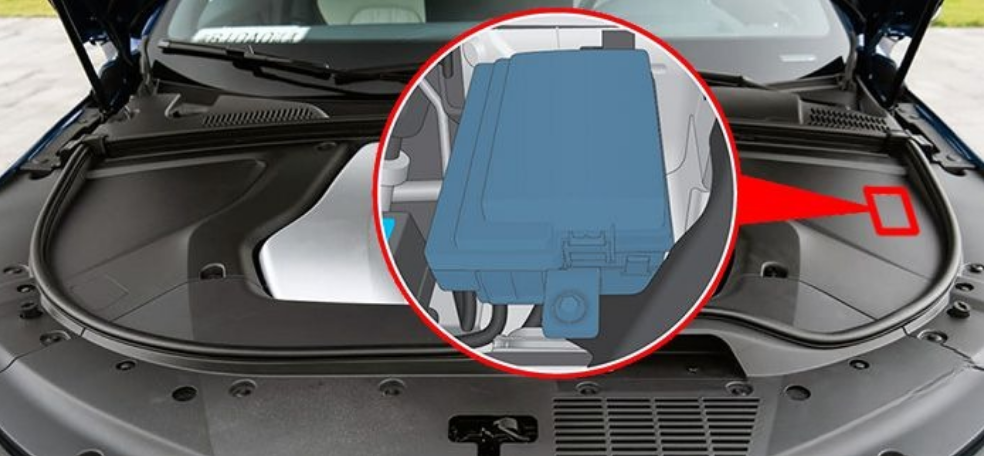

The front compartment fuse box is located on the left side of the front compartment.

BYD Tang (2022 & 2023) engine compartment location

Luggage Compartment Fuse Box

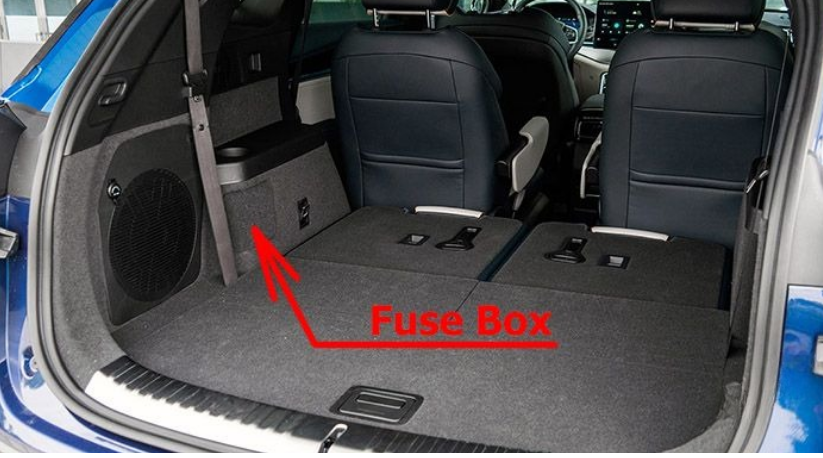

The rear compartment fuse box is located in the boot left facing assembly.

BYD Tang (2022 & 2023) luggag compartment location

Fuse Box Diagrams

Passenger Compartment Fuse Box

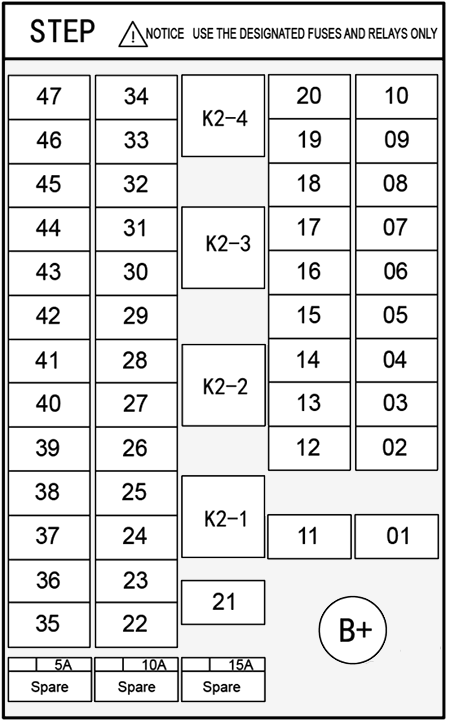

BYD Tang (2022 & 2023) passenger compartment diagram

№AmpsFunction
1––
230ABCM (Body Control Module)
310AA/C
420ADoor Lock
55AStop (Brake Light Switch)
67.5ASwitch BAT
710ADoor ECU
85AMeter (Cluster)
920AS/ROOF (Sun Roof Motor)
105ANFC
11––
1210ADLC (Data Link Connector)
1320AMultimedia
14––
15––
1615ASTR Column (Steering Column)
177.5ADOME (Interior Lamp)
1830AP/SEAT FR (Passenger Seat Front Right)
1930AP/SEAT FL (Passenger Seat Front Left)
2020AFL Door (Front Left Door Window Motor)
2140APWR Window (Power Window)
22––
23––
245AABS / ESP / IPB
255AEPS (Electronic Power Steering)
2610ASRS (Supplemental Restraint System)
2715ASW Heater (Steering Wheel Heater)
285AMeter IG1 (Cluster IG1)
295AADAS
3015AP/SEAT ECU (Driver Seat ECU)
317.5AShift
3220AFR Door (Front Right Door Window Motor)
3320ARL Door (Rear Left Door Window Motor)
3420ARR Door (Rear Right Door Window Motor)
35––
36––
377.5ASwitch IG1
385AEPB ECU
397.5APM 2.5
40––
41––
42––
43––
44––
457.5AUSB
4615ABackup PWR
47––
K2-1IG1 Relay
K2-2ACC Relay
K2-3–
K2-4–

Engine Compartment Fuse Box

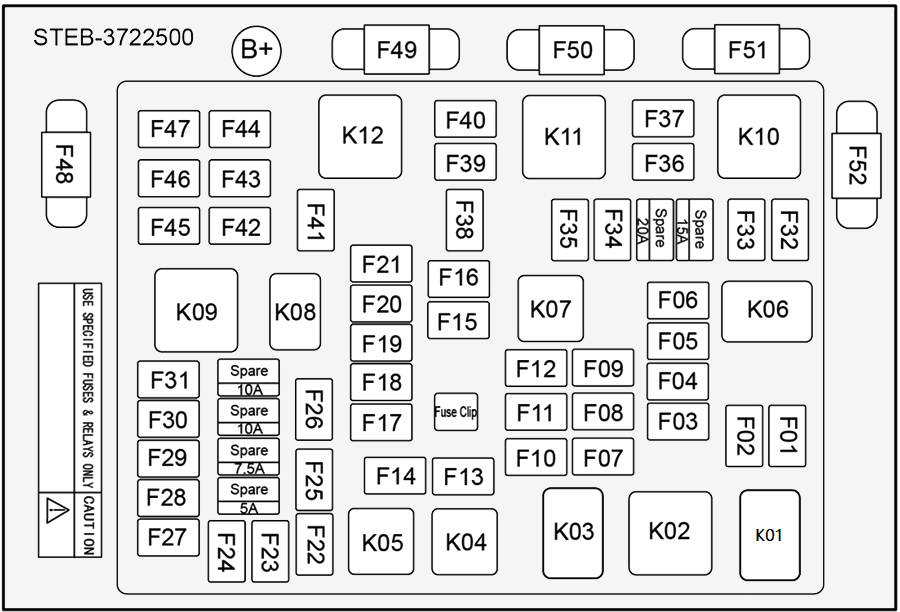

BYD Tang (2022 & 2023) engine compartment diagram

№AmpsFunction
F01––
F02––
F03––
F04––
F05––
F06––
F0710AABTMP (Adaptive Battery Thermal Management Pump)
F0810AA/C Module
F097.5ABMC (Battery Management Controller)
F105ABattery Fleater
F1110ADMC (Drive Motor Controller)
F1210ADMC Pump
F1360AIPB (Integrated Power Brake)
F1440ABlower
F15––
F16––
F1715AHorn
F18––
F19––
F205ACDU (Bi-Directional On-Board Charger and DC-DC and Power Distribution Unit Assembly)
F2110AFL_R (Front Lamp_Right)
F22––
F23––
F24––
F2515AWSFI (Windscreen Wash Motor)
F26––
F27––
F28––
F29––
F30––
F31––
F32––
F33––
F34––
F355ABoost DC
F36––
F37––
F3810AFL_L (Front Lamp_Left)
F3960AIPB (Integrated Power Brake)
F40––
F4120AVTOV (Vehicle to Vehicle)
F42––
F4325AFR WIP (Front Wiper)
F44––
F45––
F46––
F47––
F48200ABattery
F4960AFAN
F50100AR-EPS (Rack-Electronic Power Steering)
F5180AIEC (Dashboard area fuse and relay box)
F5280ATEC (Trunk fuse and relay box)
K01–
K02–
K03IG4 relay
K04–
K05–
K06–
K07IG3 relay
K08VTOV relay (Vehicle to Vehicle)
K09–
K10–
K11–
K12–

Luggage Compartment Fuse Box

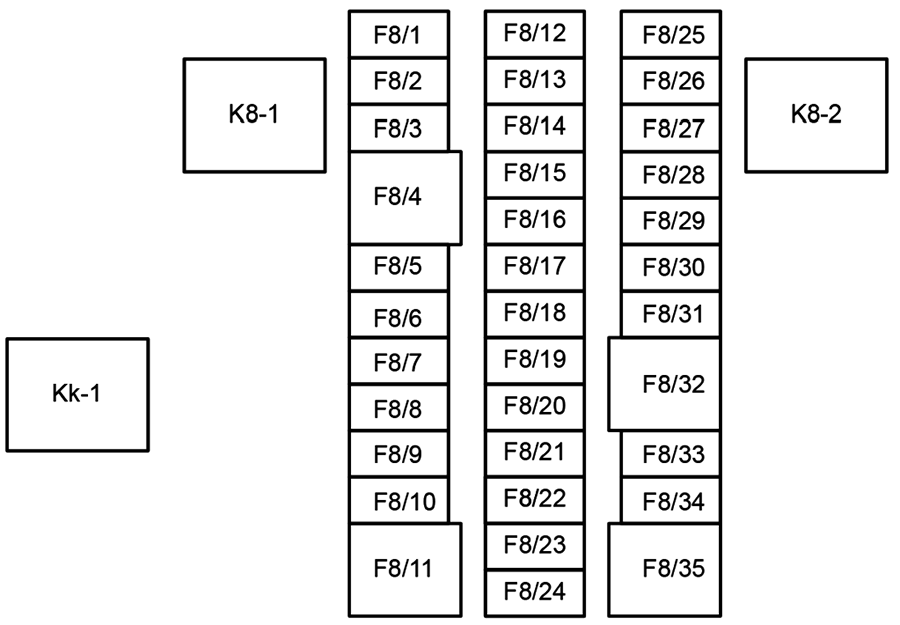

BYD Tang (2022 & 2023) luggage compartment diagram
№AmpsFunction
F8/1––
F8/2––
F8/37.5AMIR FHTR (Exterior RearView Mirror Fleater)
F8/440ADEF (Defroster)
F8/530AEPB (Electronic Parking Brake)
F8/630AEPB (Electronic Parking Brake)
F8/720AExternal amplifier
F8/8––
F8/9––
F8/10––
F8/1120ABD-ECU (Rear Flatch Controller)
F8/1210AECU BAT (+30 for controller)
F8/135AI-KEY (Intelligent key)
F8/1410ACharging Cap Lock
F8/155ACharging Lamp
F8/1610AR-Tail (Rear Clearance Lamp / Charging State Indicator)
F8/177.5ARR FOG/B-Lamp (Rear Right Fog lamp / Reversing Lamp)
F8/187.5ADC Charging Lamp
F8/1910AR-HAZ (Rear Hazard Warning Lamp)
F8/2020AACC
F8/2115AToddler Lock
F8/2215ABackup PWR (Backup Power)
F8/23––
F8/24––
F8/25––
F8/26––
F8/27––
F8/28––
F8/29––
F8/30––
F8/31––
F8/32––
F8/33––
F8/3415ARR WIP (Rear Wiper)
F8/3530AR-Blower (Rear Blower)
Kk-1RR WIP Relay (Rear Wiper Relay)
K8-1DEF Relay (Defroster Relay)
K8-2Reserve Relay
