Fiat Doblo (2010 – 2022) Fuse Box Location & Diagrams
The Fiat Doblo (2010 – 2022) fuse box location and diagrams offer detailed information about fuse panel positions, fuse functions, and electrical layouts. This resource helps vehicle owners and technicians identify the correct fuses, diagnose electrical problems, and perform maintenance or repairs with accurate fuse box details.
Fuse Box Location

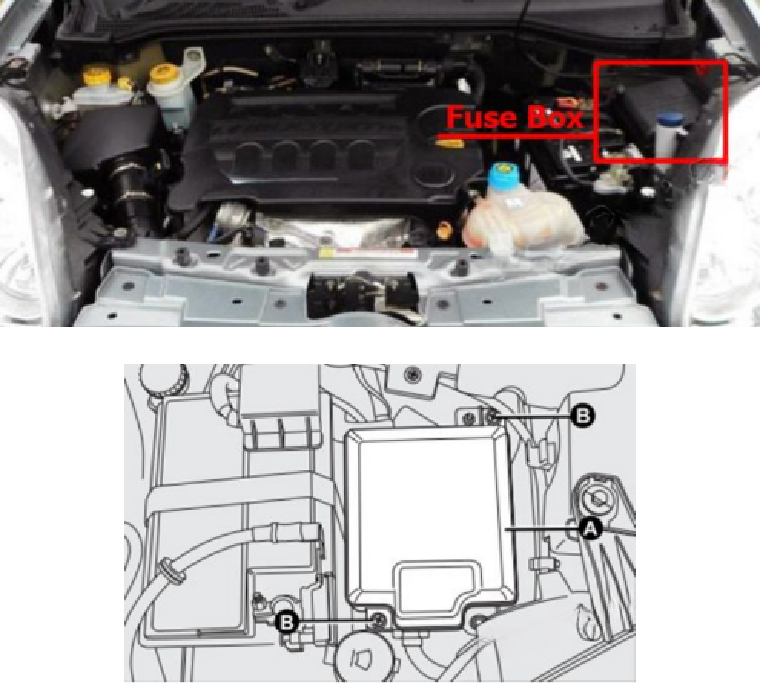

Engine Compartment Fuse Box
The fuses in the Fiat Doblo are grouped in two fuseboxes, one located in the dashboard and the other in the engine compartment.

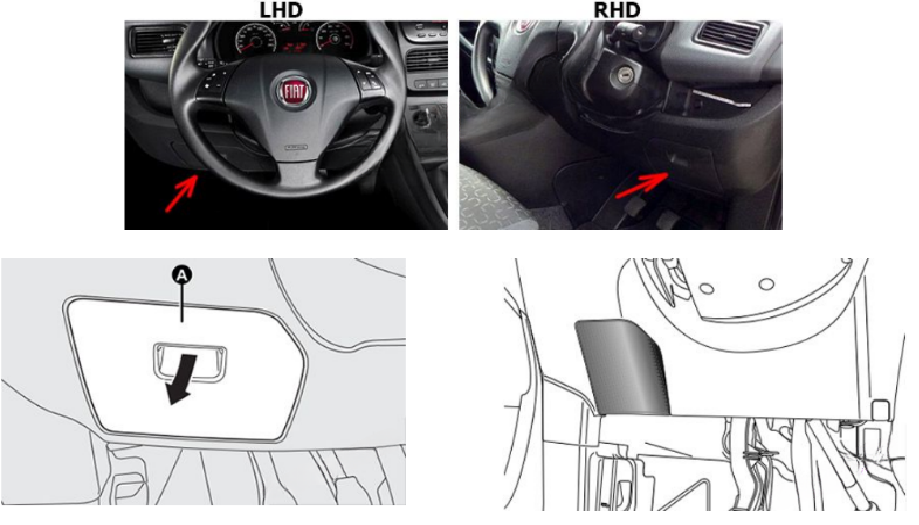

Passenger Compartment Fuse Box
Fuse Box Diagrams

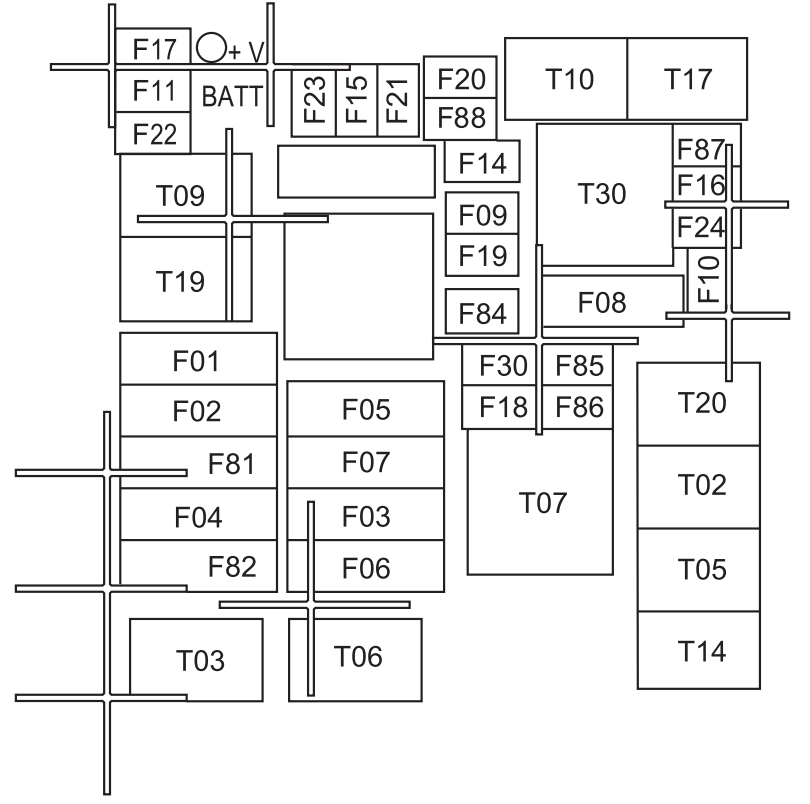

Engine Compartment Fuse Box
| № | Ampere rating [A] | Protected device |
|---|---|---|
| F01 | 60 | BCM – Body Computer Control Unit |
| F02 | 20 | Rear window winder driver’s side manual gearbox (Doblo/Doblo Combi versions |
| F03 | 20 | Ignition switch |
| F04 | 40 | BSM Braking system control unit {electropump) |
| F05 | 50 | Additional heater PTC2 (diesel engines) |
| F06 | 30 | Radiator fan (low speed) |
| F07 | 40 | Radiator fan (high speed, 187/300/350W) |
| F07 | 60 | Radiator fan {high speed, 500W) |
| F08 | 40 | Passenger compartment fan |
| F09 | 10 | Remote control switch for opening swing door (Cargo version) |
| F10 | 10 | Single tone hoкт |
| F11 | 10 | Engine control system secondary loads |
| F14 | 15 | Main beams |
| F15 | 30 | Additional heater PTC1 (diesel engines) |
| F16 | 7,5 | ECM Engine management control unit, ignition management relay 1 with Start&Stop system |
| F17 | 10 | ECM Engine control unit (power supply) (1.3 Multijet Euro 4,1.4 BZ, 1.6 Multijet -2.0 JTD) |
| F18 | 7,5 | ECM Engine control unit engine control system management main relay |
| F19 | 7,5 | Climate control compressor |
| F20 | 30 | Heated rear window |
| F21 | 15 | Fuel pump on tank |
| F22 | 15 20 | Engine management system primary loads (1.3 Multijet Euro 4,1.4) 2010-2014: Engine management system primary loads [1.3 Multijet Euro / Euro 5,1.6 Multijet -2.0 JTD |
| F22 | 20 | Engine management system primary loads (1.3 Multijet Euro / Euro 5,1.6 Multijet -2.0 JTD) |
| F23 | 20 | BSM Braking system ECU (control unit and solenoid unit) |
| F24 | 5 | BSM Braking system control unit (supply and key), steering angle sensor |
| F30 | 15 | Fog lights |
| F81 | 60 | Glow plug pre-heating control unit (1.3 Multijet Euro 4,1.3 Multijet Euro 5,1.6 Multijet – 2.0 JTD Euro 4 – Euro 5) |
| F82 | 20 | Rear window winder passenger’s side (Doblo/Doblo Combi versions with manual gearbox) |
| F83 | 20 | Headlight washer pump |
| F85 | 30 | Passenger compartment socket, rear socket |
| F86 | 30 | Cigarette lighter, heated seats |
| F87 | 5 | IBS Battery charge status sensor for Start&Stop system |
| F88 | 7,5 | Wing mirror defrostersZ |
Passenger Compartment Fuse Box

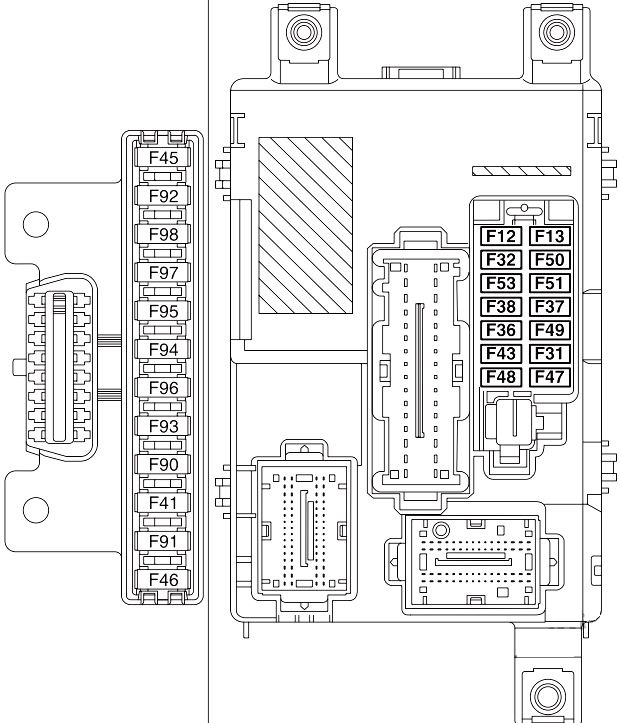

Fiat Doblo (2010 – 2014)
| № | Ampere rating [A] | Protected device |
|---|---|---|
| F12 | 7,5 | Right low beam |
| F13 | 7,5 | Low left light, headlight lever |
| F31 | 5 | Int. power for engine fusebox relay coils and body computer relay coils |
| F32 | 7,5 | Front courtesy light, rear courtesy light, lights on sun visors, door clearance lights, boot light |
| F36 | 10 | Power + battery for EOBD diagnostic socket, automatic climate control unit, alarm siren, sound system, convergence control unit Blue&Me™, tyre pressure detector control unit |
| F37 | 5 | Int. power for instrument panel, brake pedal switch, third brake light |
| F38 | 20 | Door lock/unlock motors, dead lock actuator motors, tailgate lock motor |
| F43 | 15 | Windscreen/rear window washer pump |
| F47 | 20 | Window winder motor for front door driver’s side |
| F48 | 20 | Left low beam, headlight corrector |
| F49 | 5 | Int. power for control panel lights, parking control unit, tyre pressure detector control unit, electric door mirror motor, rain sensor, electric top control unit, My-port infotainment socket |
| F50 | 7,5 | air bag |
| F51 | 7,5 | Int. power for brake pedal switch, clutch pedal switch, interior heater, convergence control unit Blue&Me™, sound system set-up |
| F53 | 5 | Instrument panel |
| F94 | 15 | Rear socket |
| F95 | 15 | Cigarette lighter/Passenger compartment socket |
| F96 | 15 | Cigarette lighter/Passenger compartment socket |
| F97 | 10 | Heated driver seat |
| F98 | 10 | Heated passenger seat |

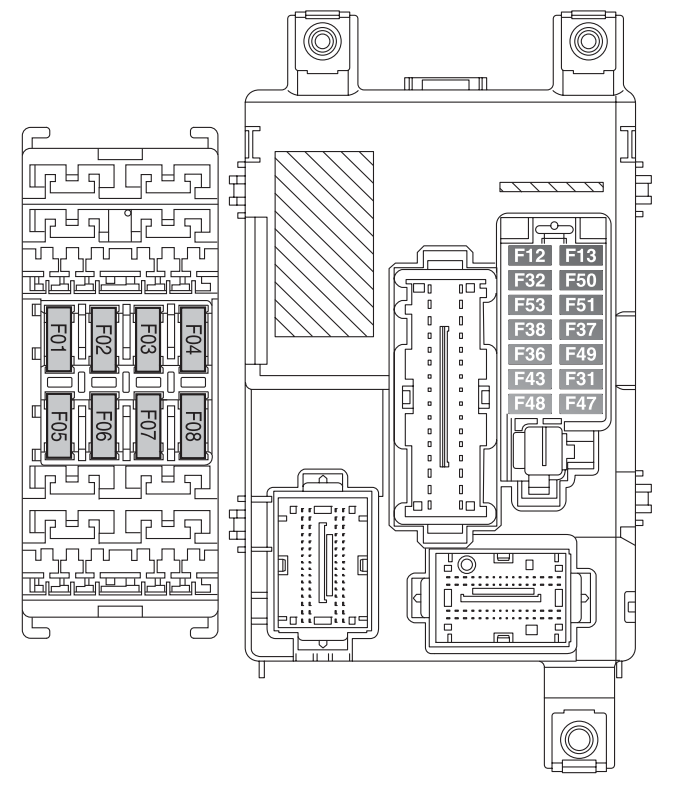

Fiat Doblo (2015 – 2022)
| № | Ampere rating [A] | Protected device |
|---|---|---|
| F1 | 10 | Heated driver seat |
| F2 | 10 | Heated passenger seat |
| F3 | 15 | Cigar lighter |
| F4 | 20 | Third power socket on dashboard |
| F5 | 20 | Driver’s side rear electric window |
| F6 | 20 | Passenger’s side rear electric window |
| F12 | 7,5 | Right low beam |
| F13 | 7,5 | Left low beam, headlight corrector |
| F31 | 5 | Int. power for engine fusebox relay coils and body computer relay coils |
| F32 | 7,5 | Front courtesy light rear courtesy light lights on sun visors, door clearance lights, boot light |
| F36 | 10 | Supply + battery for EOBD diagnosis socket, radio, tyre pressure monitoring control unit |
| F37 | 5 | Int. power for instrument panel, brake pedal switch, third brake light |
| F38 | 20 | Door locking/unlocking motors, dead lock actuator motors, tailgate unlocking motor |
| F43 | 15 | Windscreen/rear window washer pump |
| F47 | 20 | Electric window motor on driver-side front door |
| F48 | 20 | Electric window motor on passenger-side front door |
| F49 | 5 | Int. power for control panel lights, parking control unit, tyre pressure detector control unit, electric door mirror motor, rain sensor, electric top control unit, My-port infotainment socket |
| F50 | 7,5 | air bag |
| F51 | 7,5 | Int. power for brake pedal switch, clutch pedal switch, interior heater, convergence control unit Blue&Me™, sound system set-up |
| F53 | 5 | Instrument panel |
| F94 | 15 | Rear socket |
| F95 | 15 | Cigarette lighter/Passenger compartment socket |
| F96 | 15 | Cigarette lighter/Passenger compartment socket |
| F97 | 10 | Heated driver seat |
| F98 | 10 | Heated passenger seat |
