Fiat Ducato (2014 – 2020) Fuse Box Location & Diagrams
The Fiat Ducato (2014 – 2020) fuse box location and diagrams provide detailed information about fuse panel placement, fuse assignments, and electrical system layouts. This resource helps owners and technicians identify specific fuses, troubleshoot electrical faults, and complete maintenance or repairs with accurate fuse box information.
Fuse Box Location

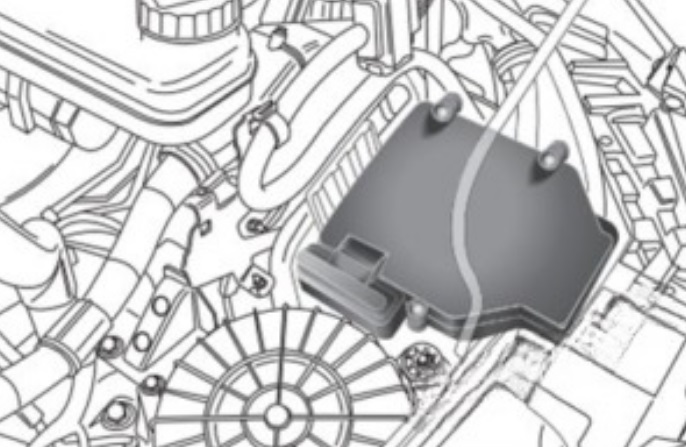

Engine Compartment Fuse Box
Fuses are grouped into three fuse boxes to be found respectively on the dashboard, on the passenger compartment right pillar and in the engine compartment.

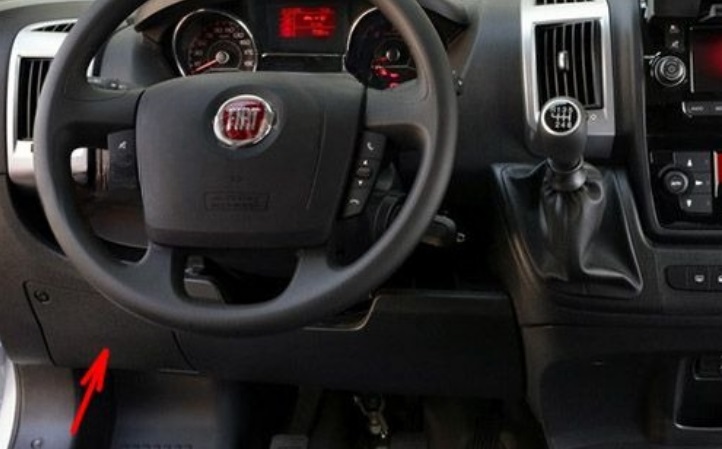

Passenger Compartment Fuse Box
To gain access to the fuses in the fuse box on the dashboard, loosen the fastening screws A and remove the cover.Optional fuse box on the right central post (where provided)To gain access, remove the protection cover.
Fuse Box Diagrams

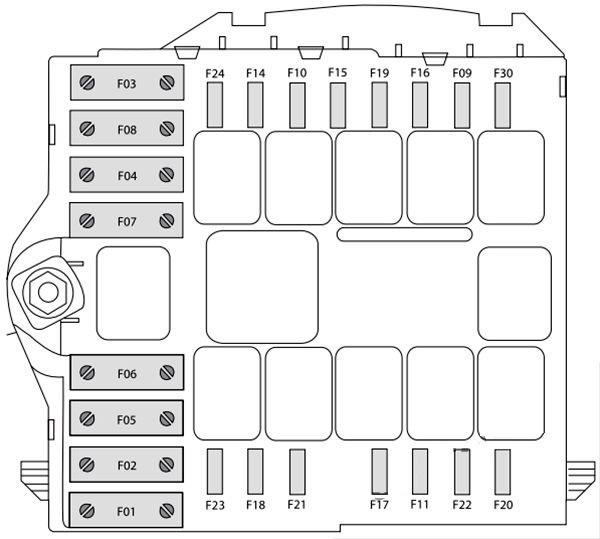

Engine Compartment Fuse Box
| № | Ampere rating [A] | Device protected |
| F03 | 30 | Ignition switch (+battery) |
| F04 | 40 | Heated filter |
| F05 | 20/50 | Vaporiser for Puma engine/Passenger compartment ventilation with Webasto, robotised gearbox pump (+battery) |
| F06 | 40/60 | Engine cooling high speed fan (+battery) |
| F07 | 40/50/60 | Engine cooling low speed fan (+battery) |
| F08 | 40 | Passenger compartment fan (+key |
| F09 | 15 | Rear power socket (+battery) |
| F10 | 15 | Horn |
| F14 | 15 | Power socket (+battery) |
| F15 | 15 | Cigar lighter (+battery) |
| F18 | 7,5 | Powertrain Control Module, robotised gearbox control unit (+battery) |
| F19 | 7,5 | Air conditioning compressor |
| F20 | 30 | Windscreen wiper |
| F24 | 7,5 | Auxiliary control panel for mirror movement and folding (+key) |
| F30 | 15 | Mirrors demisting |

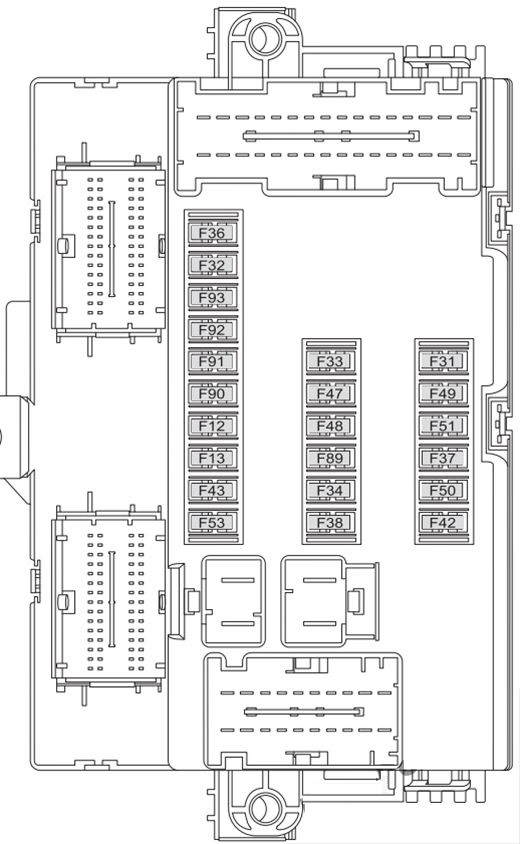

Passenger Compartment Fuse Box
| № | Ampere rating [A] | Device protected |
| F12 | 7,5 | Right dipped beam headlight |
| F13 | 7,5 | Left dipped headlight |
| F31 | 5 | Engine compartment control unit relay, dashboard control unit relay (+key) |
| F32 | 7,5 | Lighting of roof lights in the passenger compartment (+battery) |
| F33 | 7,5 | Battery monitoring sensor for Start&Stop versions (+battery) |
| F34 | 7,5 | Minibus interior lights (emergency) |
| F35 | 7,5 | Reversing lights, sevotronic control unit, Water in diesel fuel filter sensor, (+key) |
| F36 | 10 | Radio, climate control, alarm, tachograph, battery disconnecting control unit, Webasto timer (+battery |
| F37 | 7,5 | Brake light control (main), third brake light instrument panel (+key |
| F38 | 20 | Door lock (+battery |
| F43 | 20 | Windscreen wiper (+key) |
| F47 | 20 | Driver’s side electric window |
| F48 | 20 | Passenger side electric window |
| F49 | 5 | Parking sensor control unit, radio, steering wheel controls, central control panel, left control panel, auxiliary panel, battery disconnecting control unit (+key |
| F50 | 7.5 | INT (ORC) |
| F51 | 5 | Climate control, power steering control unit, reverse lights, diesel filter water sensor, flow meter, tachograph (+key) |
| F53 | 7,5 | Instrument panel (+battery) |
| F90 | 7.5 | Left main beam headlight |
| F89 | — | — |
| F90 | 7,5 | Left main beam headlight |
| F91 | 7,5 | Right main beam headlight |
| F92 | 7,5 | Left fog light |
| F93 | 7,5 | Right fog light |

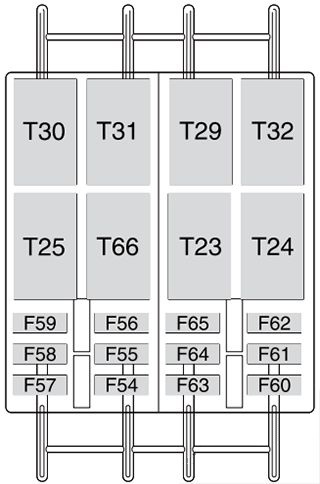

Optional fuse box
| № | Ampere rating [A] | Device protected |
| F54 | — | — |
| F55 | 15 | Heated seats |
| F56 | 15 | Rear passenger power socket |
| F57 | 10 | Additional heater under the seat |
| F58 | 10 | Left heated rear window |
| F59 | 7,5 | Right heated rear window |
| F60 | — | — |
| F61 | — | — |
| F62 | — | — |
| F63 | 10 | Additional passenger heater control |
| F64 | — | — |
| F65 | 30 | Additional passenger heater fan |
