Fiat Ducato (2006 – 2014) Fuse Box Location & Diagrams
The Fiat Ducato (2006–2014) fuse box protects important electrical systems, including lighting, engine controls, and interior features. Knowing the fuse box locations and diagrams helps vehicle owners identify fuse positions, understand their functions, and quickly troubleshoot electrical faults for reliable vehicle operation.
Fuse Box Location

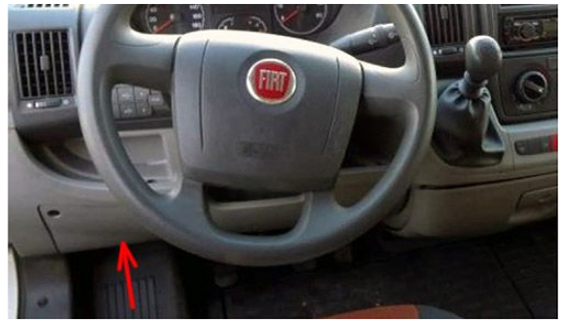

Passenger Compartment Fuse Box

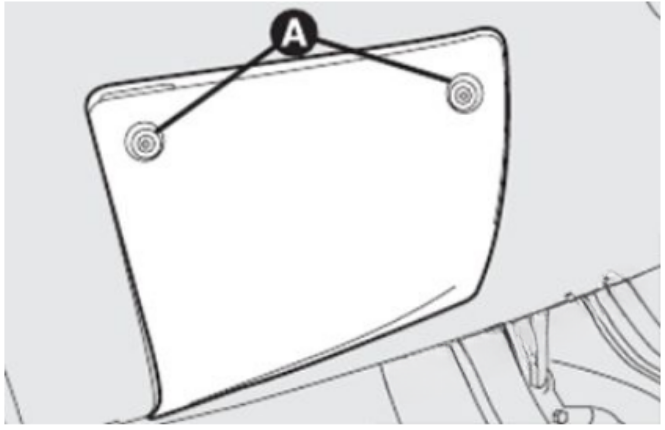

To gain access, loosen the fastening screws A and remove the cover.
Optional fuse box

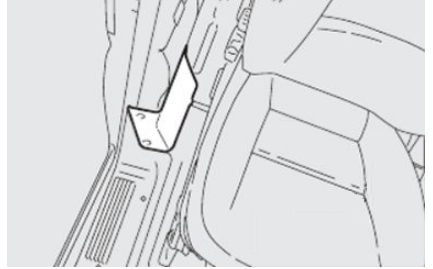

Optional fuse box on the right central post (where provided)
To gain access to the fuse box, remove the protection cover.

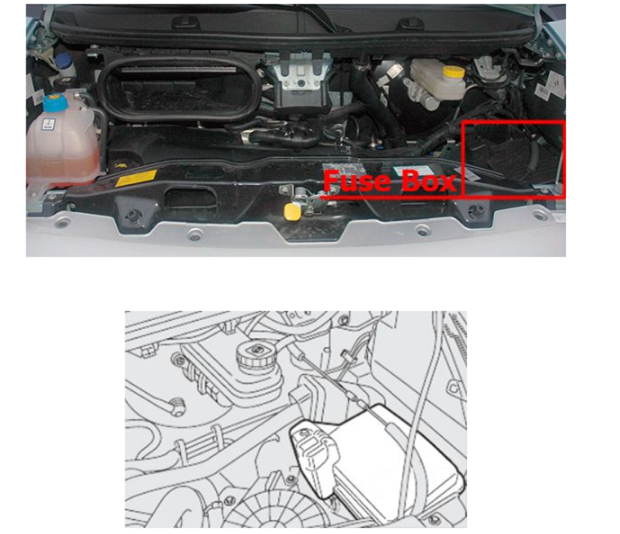

Engine Compartment Fuse Box
Fuse Box Diagrams

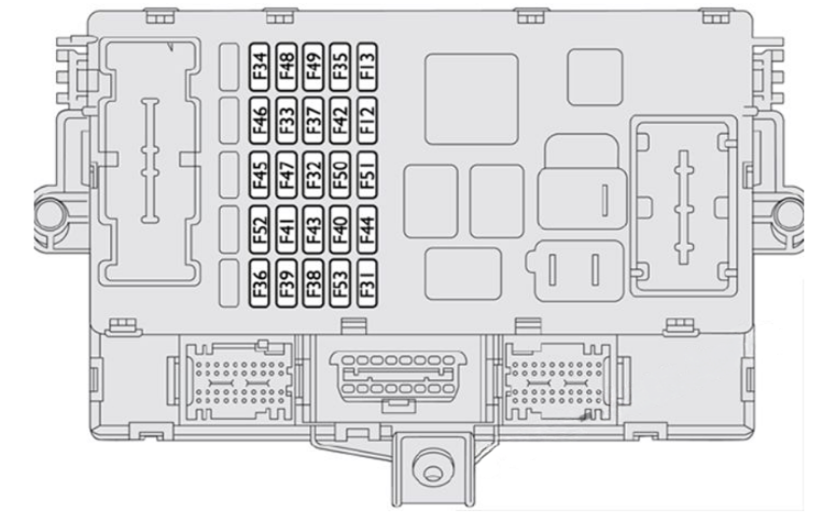

Passenger Compartment Fuse Box
| № | AMPERE | Protected component |
|---|---|---|
| F12 | 7.5 | Right dipped beam headlight |
| F13 | 7.5 | Left dipped beam headlight, Headlight aiming device |
| F31 | 7.5 | Engine compartment fuse box relay, dashboard fuse box relay (+key) |
| F32 | 10 | Minibus internal lights (emergency) |
| F33 | 15 | Rear current outlet |
| F34 | — | — |
| F35 | 7.5 | Reversing lights, sevotronic control unit, Water in diesel fuel filter sensor, (+key) |
| F36 | 15 | Central door locking (+ battery) |
| F37 | 7.5 | Brake lights (main), Third brake light, Instrument panel (+key) |
| F38 | 10 | Dashboard control unit relay (+ battery) |
| F39 | 10 | EOBD socket, Sound System, A/C control, Alarm, Chronotachograph, Webasto timer (+battery) |
| F40 | 15 | Left-hand heated window, Driver’s mirror defroster |
| F41 | 15 | Right-hand heated window, Passenger’s mirror defroster |
| F42 | 7.5 | ABS, ASR, ESP, Brake light control (secondary) (+key) |
| F43 | 30 | Windscreen wiper (+key) |
| F44 | 20 | Cigar lighter, Front current outlet |
| F45 | 7.5 | Control on driver’s door, Controls on passenger’s door |
| F46 | — | — |
| F47 | 20 | Driver’s power window |
| F48 | 20 | Passenger’s power window |
| F49 | 7.5 | Sound System, Driver’s power window, Dashboard controls, Alarm control unit, Rain sensor (+key) |
| F50 | 7.5 | Airbag (+key) |
| F51 | 7.5 | A/C control, Cruise control, Chronotachograph (+key) |
| F52 | 7.5 | Optional fuse box relay |
| F53 | 7.5 | Instrument panel, Rear fog lights (+battery) |

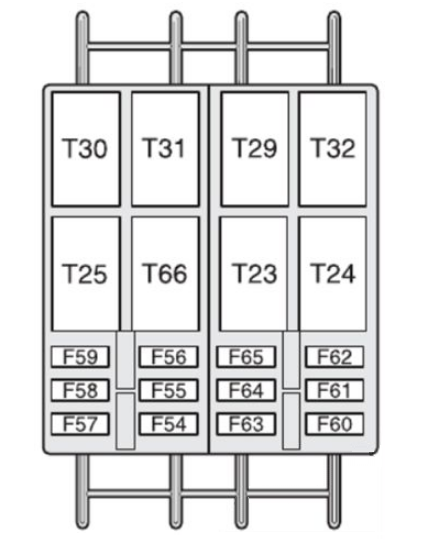

Optional fuse box
| № | AMPERE | Protected component |
|---|---|---|
| F54 | — | — |
| F55 | 15 | Heated seats |
| F56 | 15 | Rear passenger’s current outlet |
| F57 | 10 | Additional heater under seat |
| F58 | 10 | Sidelights |
| F59 | 7.5 | Self-levelling suspensions (+battery) |
| F60 | — | — |
| F61 | — | — |
| F62 | — | — |
| F63 | 10 | Passenger’s additional heater control |
| F64 | — | — |
| F65 | 30 | Passenger’s additional heater fan |

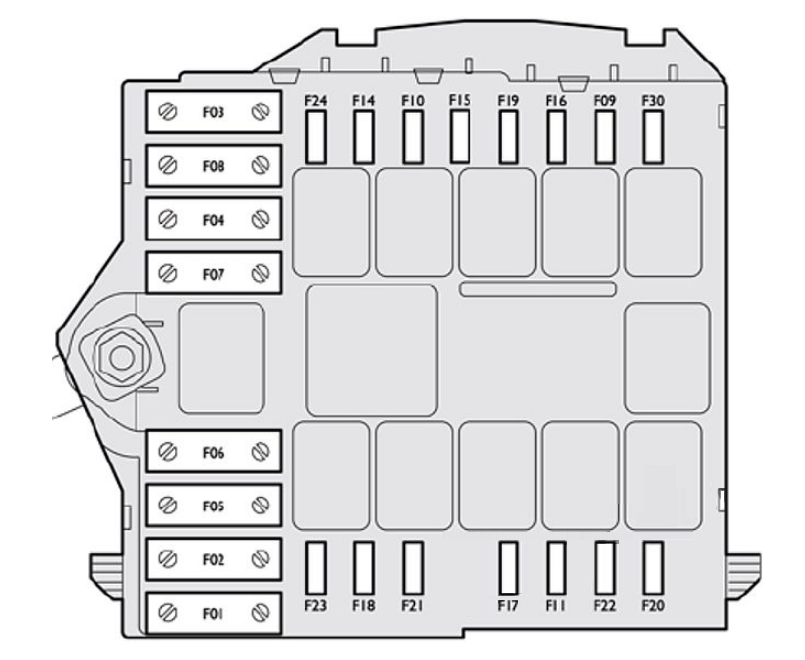

Engine Compartment Fuse Box
| № | AMPERE | Protected component |
|---|---|---|
| F01 | 40 | ABS pump (+battery) |
| F02 | 50 | Glow plug heating (+battery) |
| F03 | 30 | Ignition switch (+battery) |
| F04 | 20 | Webasto control unit (+batfcery) |
| F05 | 20 | Passenger’s compartment ventilation with Webasto (+battery) |
| F06 | 40/60 | Engine cooling fan high speed (+battery) |
| F07 | 40/50 | Engine cooling fan low speed (+battery) |
| F08 | 40 | Passenger’s compartment fan (+key) |
| F09 | 20 | Headlight washer pump |
| F10 | 15 | Horn |
| F11 | 15 | E.i. system (secondary services) |
| F14 | 7.5 | Right main beam headlight |
| F15 | 7.5 | Left main beam headlight |
| F16 | 7.5 | E.i. system (+key) |
| F17 | 10 | E.i. system (primary services) |
| F18 | 7.5 | Engine control unit (+battery) |
| F19 | 7.5 | Conditioner compressor |
| F20 | 30 | Headlight washer pump |
| F21 | 15 | Fuel pump |
| F22 | 20 | E.i. system (primary services) |
| F23 | 30 | ABS solenoid valves |
| F24 | 15 | Automatic transmission 8 (+key) |
| F30 | 15 | Front fog lights |
