Fiat Punto (2000 – 2011) Fuse Box Location & Diagrams
The Fiat Punto (2000–2011) fuse box guide provides detailed fuse box locations, fuse assignments, and clear diagrams for every major electrical system. Whether you’re troubleshooting a blown fuse or identifying a specific circuit, this reference helps you maintain and repair your Punto quickly and safely.
Fuse Box Location

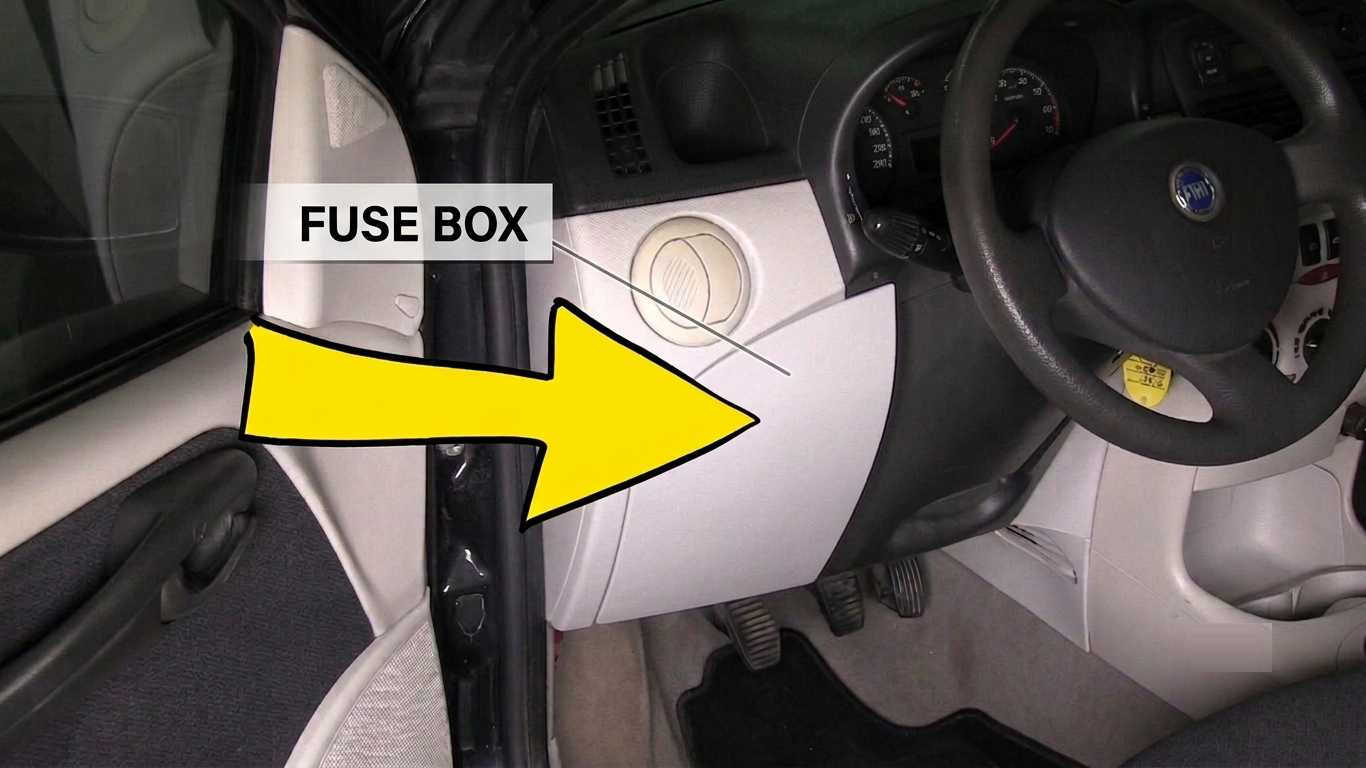

Passenger Compartment Fuse Box
Located under the driver’s side dashboard near the steering wheel column, behind the lower facia panel.

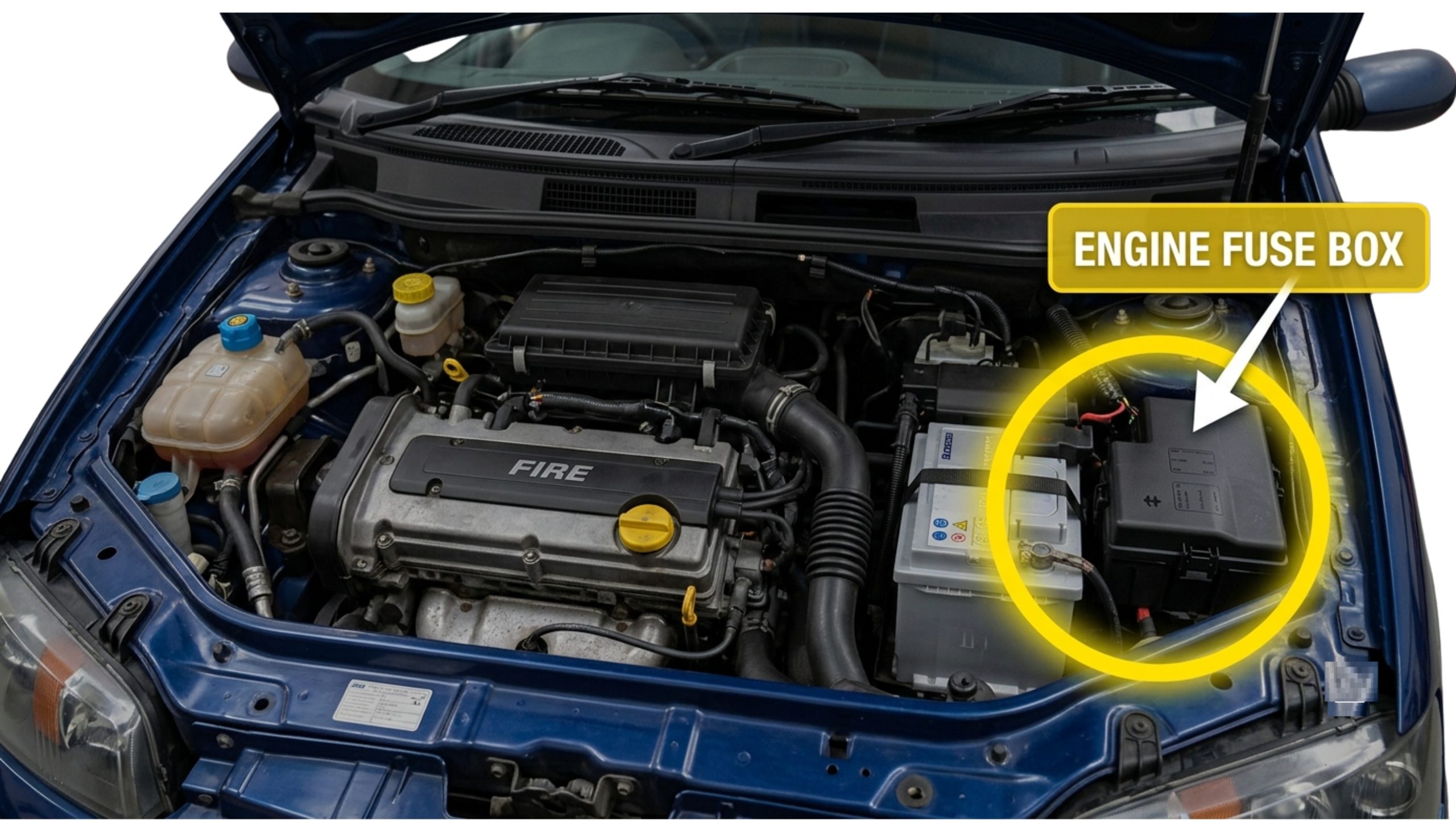

Engine Compartment Fuse Box
Located on the left-hand side of the engine bay (near the battery/fluid reservoirs).
Fuse Box Diagrams
Passenger Compartment Fuse Box

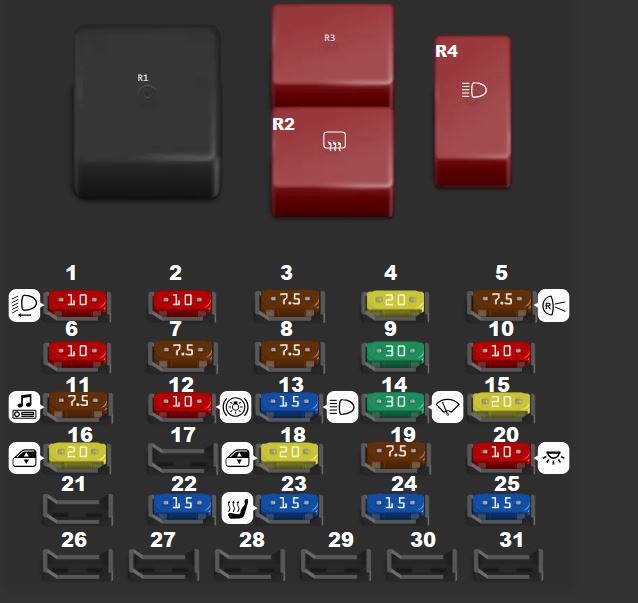

Fiat Punto (2000 – 2003)
| Type | No. | Description |
| Fuse MINI 10A | F1 | Left dipped beam headlamp and headlamp tilt adjuster |
| Fuse MINI 10A | F2 | Right dipped beam headlight |
| Fuse MINI 7.5A | F3 | License plate lighting, instrument panel lighting |
| Fuse MINI 20A | F4 | Cigarette lighter fuse Fiat Punto 2 |
| Fuse MINI 7.5A | F5 | Reverse lights, idle speed regulator stepper motor, air conditioner, heater relay |
| Fuse MINI 10A | F6 | Power Steering Motor |
| Fuse MINI 7.5A | F7 | ABS control unit |
| Fuse MINI 7.5A | F8 | Safety Airbags |
| Fuse MINI 30A | F9 | Rear window heater |
| Fuse MINI 10A | F10 | Turn indicators, hazard warning lights, instrument panel lighting |
| Fuse MINI 7.5A | F11 | Radio, telephone, lights, rear view mirror switch tow hitch socket |
| Fuse MINI 10A | F12 | Stop lamps, instrument panel lighting/ signal lamps |
| Fuse MINI 15A | F13 | Lighting |
| Fuse MINI 30A | F14 | Windscreen wiper, washer pump |
| Fuse MINI 20A | F15 | central locking system |
| Fuse MINI 20A | F16 | Front right door power window |
| Fuse MINI 20A | F18 | Front left door power window |
| Fuse MINI 7.5A | F19 | Exterior mirror heater |
| Fuse MINI 10A | F20 | Interior lighting, trunk light, radio, telephone, security alarm horn (siren), interior sensors, diagnostic connector |
| Fuse MINI 15A | F22 | Electric sunroof |
| Fuse MINI 15A | F23 | Seat heater |
| Fuse MINI 15A | F24 | Rear window cleaner |
| Fuse MINI 15A | F25 | Speaker (subwoofer) |
| Relay | R1 | Battery power circuit (special) |
| Relay | R2 | Heated rear window relay |
| Relay | R3 | Battery power circuit (main) |
| Relay | R4 | High Beam Relay |

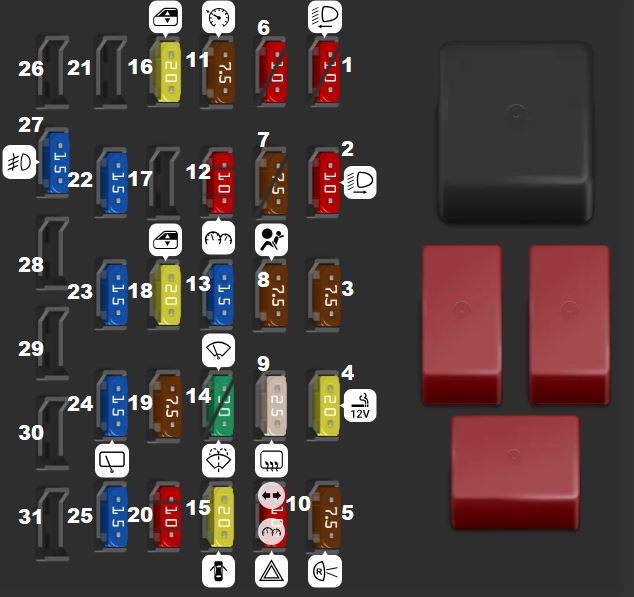

Fiat Punto Classic (2004 – 2011)
| Type | No. | Description |
| Fuse MINI 10A | F1 | Left low beam, headlight leveling system |
| Fuse MINI 10A | F1 | Headlight orientation adjustment |
| Fuse MINI 10A | F2 | Right low beam |
| Fuse MINI 7.5A | F3 | License plate lighting, instrument panel lighting |
| Fuse MINI 20A | F4 | Cigarette lighter |
| Fuse MINI 7.5A | F5 | Reverse lights |
| Fuse MINI 7.5A | F5 | Manual climate control switch power supply |
| Fuse MINI 7.5A | F5 | Engine compartment control unit relay coils |
| Fuse MINI 7.5A | F5 | Parking assist control unit |
| Fuse MINI 10A | F6 | Water-in-fuel sensor [diesel versions] |
| Fuse MINI 10A | F6 | Electric power steering |
| Fuse MINI 7.5A | F7 | ABS control unit (switched power) |
| Fuse MINI 7.5A | F7 | Brake pedal switch |
| Fuse MINI 7.5A | F8 | Airbag |
| Fuse MINI 25A | F9 | Heated rear window |
| Fuse MINI 10A | F10 | Hazard lights |
| Fuse MINI 10A | F10 | Turn signals |
| Fuse MINI 10A | F10 | Instrument cluster and warning lights (battery power) |
| Fuse MINI 7.5A | F11 | Service +15 (car radio, automatic climate control switch, Cruise Control, ASR system exclusion control, mobile phone pre-installation, dashboard control lighting, heated seat switch, ESP system sensors, rain sensors, seat belt warning lights) |
| Fuse MINI 10A | F12 | Instrument cluster and warning lights (switched power) |
| Fuse MINI 10A | F12 | Brake lights (stop lights) |
| Fuse MINI 10A | F12 | Third brake light (additional stop light) |
| Fuse MINI 15A | F13 | Lighting system |
| Fuse MINI 30A | F14 | Windshield washer pump, rear window washer |
| Fuse MINI 30A | F14 | Windshield wipers |
| Fuse MINI 20A | F15 | Door locking |
| Fuse MINI 20A | F16 | Front right power window |
| Fuse MINI | F17 | Available |
| Fuse MINI 20A | F18 | Front left power window |
| Fuse MINI 7.5A | F19 | Heated electric mirrors |
| Fuse MINI 10A | F20 | Trunk |
| Fuse MINI 10A | F20 | Ceiling light |
| Fuse MINI 10A | F20 | Services +30 (car radio, automatic climate control unit, mobile phone pre-installation, EOBD system diagnostic socket) |
| Fuse MINI | F21 | Available |
| Fuse MINI 15A | F22 | Sunroof |
| Fuse MINI 15A | F23 | Heated front seats |
| Fuse MINI 15A | F24 | Rear window wiper |
| Fuse MINI 15A | F25 | Subwoofer installation |
| Fuse MINI 15A | F27 | Fog lights |
Engine Compartment Fuse Box

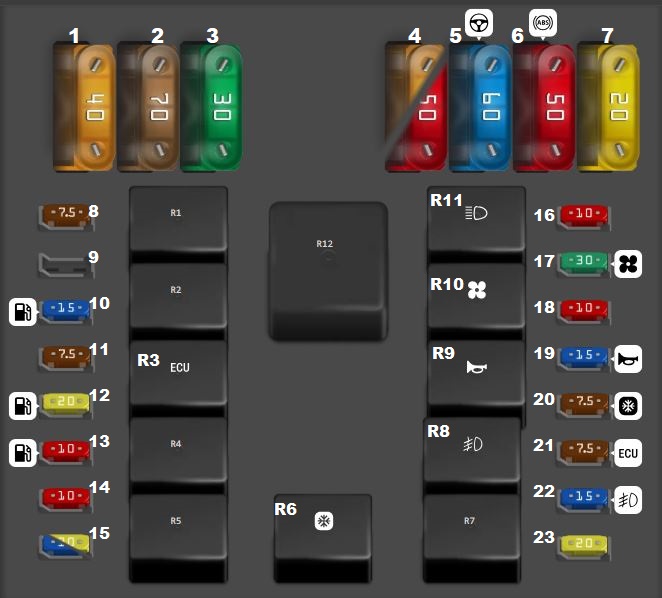

Fiat Punto (2000 – 2003)
| Type | No. | Description |
| Fuse MAXI 40A | F1 | Battery circuit (special) |
| Fuse MAXI 70A | F2 | Battery Power Circuit (Basic) |
| Fuse MAXI 30A | F3 | Radiator fan (1st speed) |
| Fuse MAXI 40A | F4 | Radiator fan (2nd speed) |
| Fuse MAXI 50A | F4 | Radiator fan (2nd speed) |
| Fuse MAXI 60A | F5 | power steering |
| Fuse MAXI 50A | F6 | ABS system |
| Fuse MAXI 20A | F7 | Ignition lock |
| Fuse MINI 7.5A | F8 | The engine control unit |
| Fuse MINI 15A | F10 | Fuel pump, fuel cut-off valve (diesel engine vehicles) |
| Fuse MINI 7.5A | F11 | Power supply of the engine control unit |
| Fuse MINI 20A | F12 | Ignition Coils, Fuel Injectors, Fuel Pump Fuse (Vehicles with 1.2L 8-Valve Engine) |
| Fuse MINI 10A | F13 | Lambda probe, tachometer, fuel pump, preheating control unit (diesel engine vehicles) |
| Fuse MINI 10A | F14 | Automatic transmission control unit |
| Fuse MINI 15A | F15 | Camshaft position controller (cars with 1.8L engine), diesel engine fuel filter heater |
| Fuse MINI 20A | F15 | Camshaft position controller (cars with 1.8L engine), diesel engine fuel filter heater |
| Fuse MINI 10A | F16 | Right high beam headlight |
| Fuse MINI 30A | F17 | heater fan |
| Fuse MINI 10A | F18 | Left high beam headlight |
| Fuse MINI 15A | F19 | Horn (beep) |
| Fuse MINI 7.5A | F20 | Air conditioning compressor |
| Fuse MINI 7.5A | F21 | Engine control unit, radiator fan relay |
| Fuse MINI 15A | F22 | Fog lights |
| Fuse MINI 20A | F23 | headlight washer |
| Relay | R1 | Radiator fan (1st speed) |
| Relay | R2 | Fuel module (fuel pump relay Fiat Punto 2) |
| Relay | R3 | Engine control module |
| Relay | R4 | Automatic transmission control unit |
| Relay | R5 | Fuel Filter Heater (Diesel Vehicles) |
| Relay | R6 | Air conditioning compressor |
| Relay | R7 | headlight washer |
| Relay | R8 | Fog lights |
| Relay | R9 | Horn (beep) relay |
| Relay | R10 | heater fan |
| Relay | R11 | high beam |
| Relay | R12 | Radiator fan (2nd speed) |

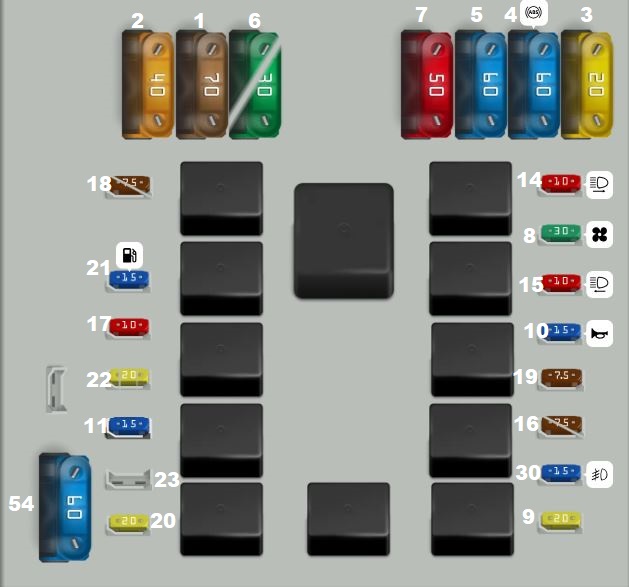

Fiat Punto Classic (2004 – 2011)
| Type | No. | Description |
| Fuse MINI 10A | F14 | Right high beam |
| Fuse MINI 10A | F15 | Left high beam |
| Fuse MINI 15A | F30 | Fog lights |
| Fuse MAXI 40A | F02 | Dashboard control unit power supply, optional functions |
| Fuse MAXI 70A | F01 | Dashboard control unit power supply, standard functions |
| Fuse MAXI 60A | F04 | ABS/ESP system power supply |
| Fuse MINI 20A | F22 | Ignition coils |
| Fuse MINI 20A | F22 | Injectors |
| Fuse MINI 20A | F22 | Fuel pump [1.2 8V versions] |
| Fuse MINI 15A | F11 | Engine control system secondary loads |
| Fuse MINI 15A | F11 | Glow plug preheating control unit |
| Fuse MINI 15A | F11 | Fuel vapor recirculation solenoid valve |
| Fuse MINI 15A | F11 | Speedometer generator |
| Fuse MINI 15A | F11 | Lambda sensor |
| Fuse MINI 7.5A | F18 | Engine control unit (+ battery) |
| Fuse MINI 7.5A | F18 | Engine cooling system switch |
| Fuse MINI 10A | F17 | Engine control unit (power supply) |
| Fuse MINI 7.5A | F16 | Engine control unit (ignition-switched) |
| Fuse MINI 7.5A | F16 | Engine control system relay |
| Fuse MINI 7.5A | F19 | Manual climate control compressor |
| Fuse MAXI 20A | F03 | Ignition switch |
| Fuse MINI 20A | F20 | Heated diesel filter |
| Fuse MAXI 60A | F54 | Glow plug preheating system |
| Fuse MINI 20A | F09 | Headlight washers |
| Fuse MAXI 30A | F06 | Single speed radiator fan [1.2 8V versions with heater] |
| Fuse MAXI 30A | F06 | First speed radiator fan [1.2 8V versions with manual climate control] |
| Fuse MINI 15A | F21 | Fuel pump |
| Fuse MAXI 50A | F07 | Second speed radiator fan [1.2 8V versions with manual climate control] |
| Fuse MAXI 60A | F05 | Electric power steering |
| Fuse MINI 30A | F08 | Passenger compartment fan |
| Fuse MINI 15A | F10 | Horn |
