Fiat Punto (1993 – 1999) Fuse Box Location & Diagrams
The Fiat Punto (1993 – 1999) Fuse Box Location & Diagrams guide helps you quickly find fuse box locations, identify fuse assignments, and understand circuit protection. Use the detailed diagrams to diagnose electrical issues, replace blown fuses safely, and keep your Fiat Punto’s electrical system operating reliably.
Fuse Box Location

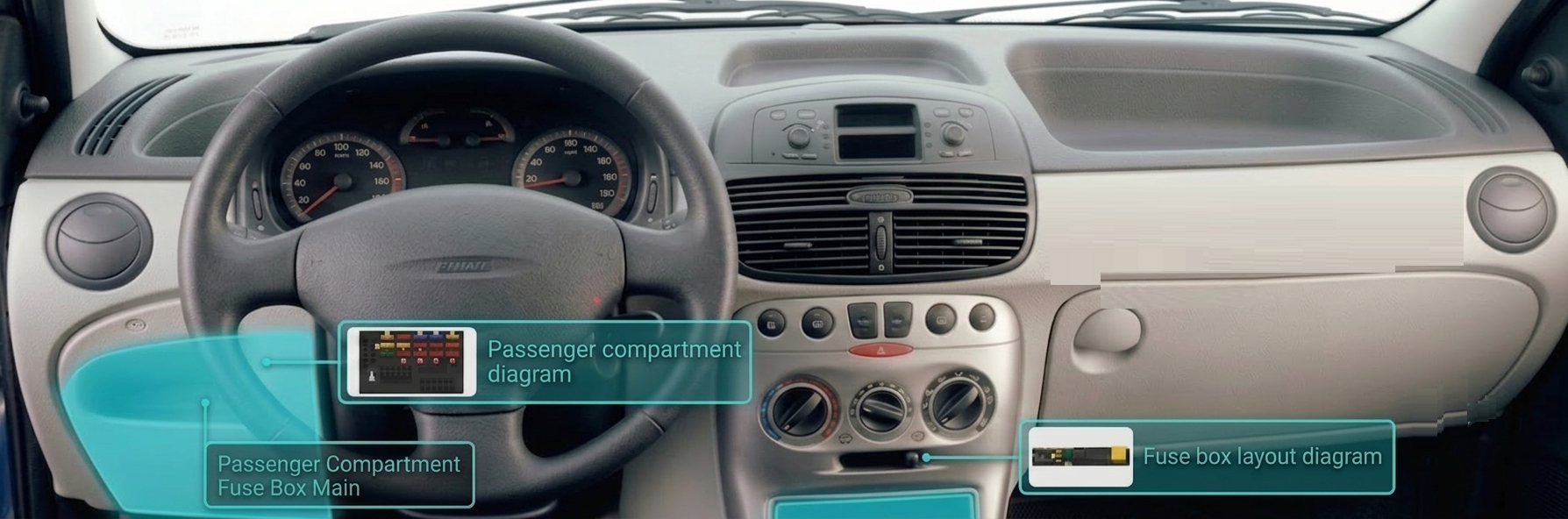

Passenger Compartment Fuse Box

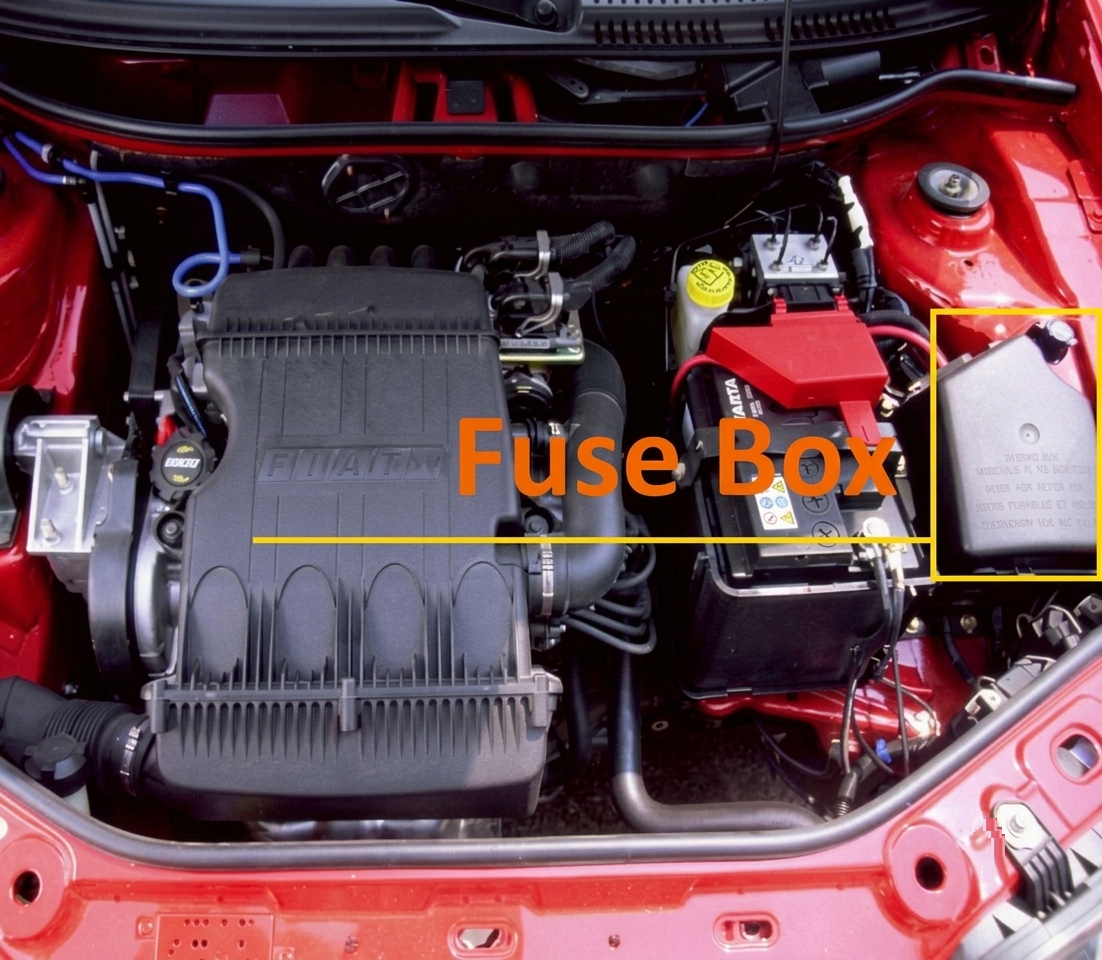

Engine Compartment Fuse Box
Fuse Box Diagrams

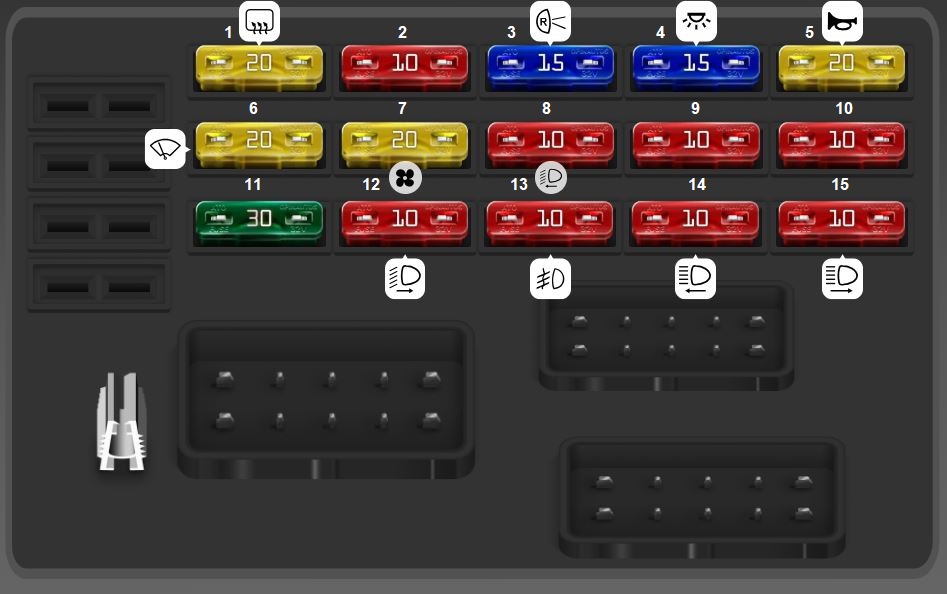

Passenger Compartment Fuse Box
Main Fuse Box
| Type | Description |
| Fuse ATO 20A | 1 Heated rear window, heated mirrors |
| Fuse ATO 10A | 2 Hazard warning lamps |
| Fuse ATO 15A | 3 Reversing lamps, stop lamps, digital clock, indicator lamps, instrument panel, mirror adjustment |
| Fuse ATO 15A | 4 Interior lamps, tailgate lamp, clock, audio unit, cigarette lighter, alarm system lamp |
| Fuse ATO 20A | 5 Horn |
| Fuse ATO 20A | 6 Windscreen wipers, rear screen wipers, windscreen washers |
| Fuse ATO 20A | 7 Heater blower |
| Fuse ATO 10A | 8 Headlamp low beam-left, headlamp adjustment |
| Fuse ATO 10A | 9 Side lamp – left, heater control, heater control lamps, licence plate lamp |
| Fuse ATO 10A | 10 Side lamp – right, tail lamp-left, licence plate lamp, audio unit illumination, instrument panel lamps, cigarette lighter lamp, switch illumination lamps |
| Fuse ATO 30A | 11 Engine coolant blower motor |
| Fuse ATO 10A | 12 Headlamp low beam-right |
| Fuse ATO 10A | 13 Rear fog lamps |
| Fuse ATO 10A | 14 Headlamp high beam-left, headlamp high beam warning lamp |
| Fuse ATO 10A | 15 Headlamp high beam-right |
| Fuse puller | Fusepuller1 Extraction tool for fuse replacement. |

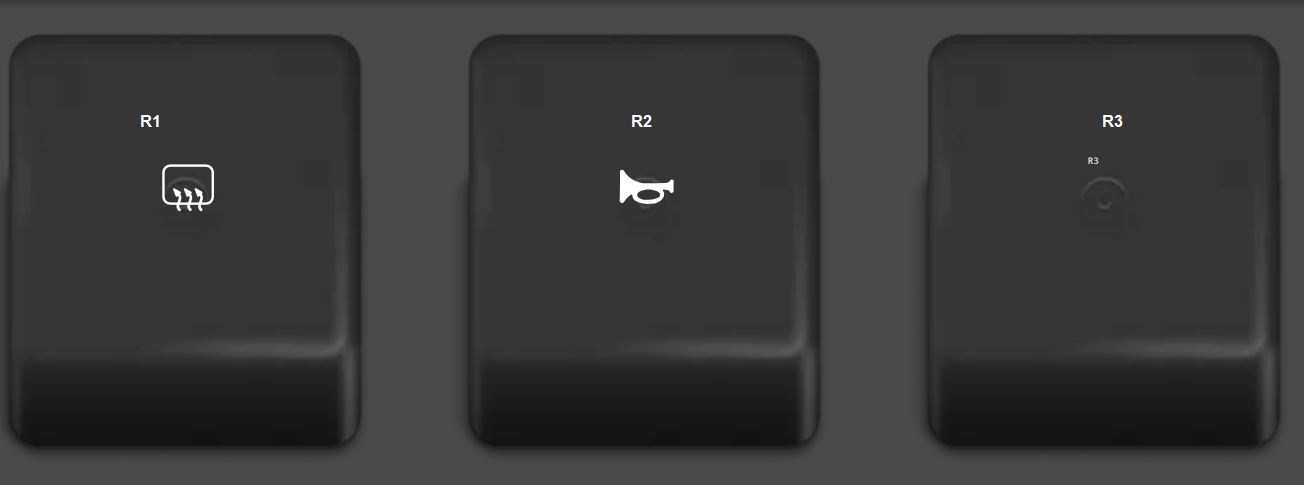

Relays Box
| Type | No. | Description |
| Relay | R1 | Heated rear window relay |
| Relay | R2 | Horn relay |
| Relay | R3 | Ignition main circuits relay |

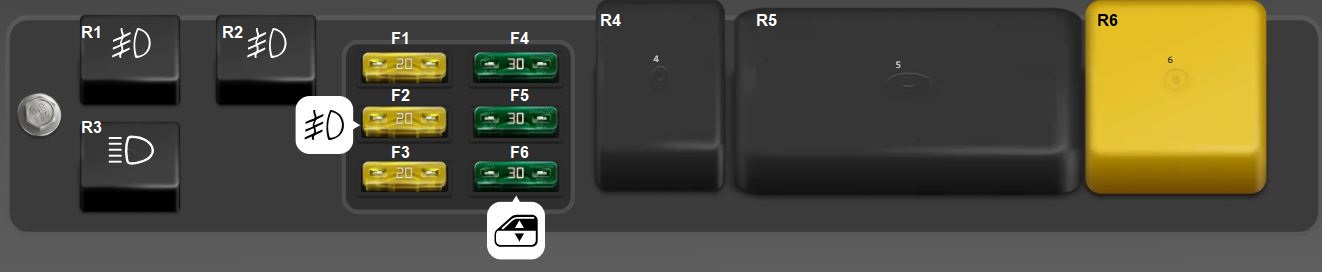

Fuse Box Layout
| Type | No. | Description |
| Relay | 1 | Fog lamps relay |
| Relay | 2 | Rear fog lamp relay |
| Relay | 3 | Headlamp relay |
| Relay | 4 | Sunroof motor relay |
| Relay | 5 | Electric window circuit relay |
| Relay | 6 | Central locking relay |
| Fuse ATO 20A | F1 | Sunroof |
| Fuse ATO 20A | F2 | Fog lamps |
| Fuse ATO 20A | F3 | Central locking |
| Fuse ATO 30A | F4 | – |
| Fuse ATO 30A | F5 | – |
| Fuse ATO 30A | F6 | Electric windows |

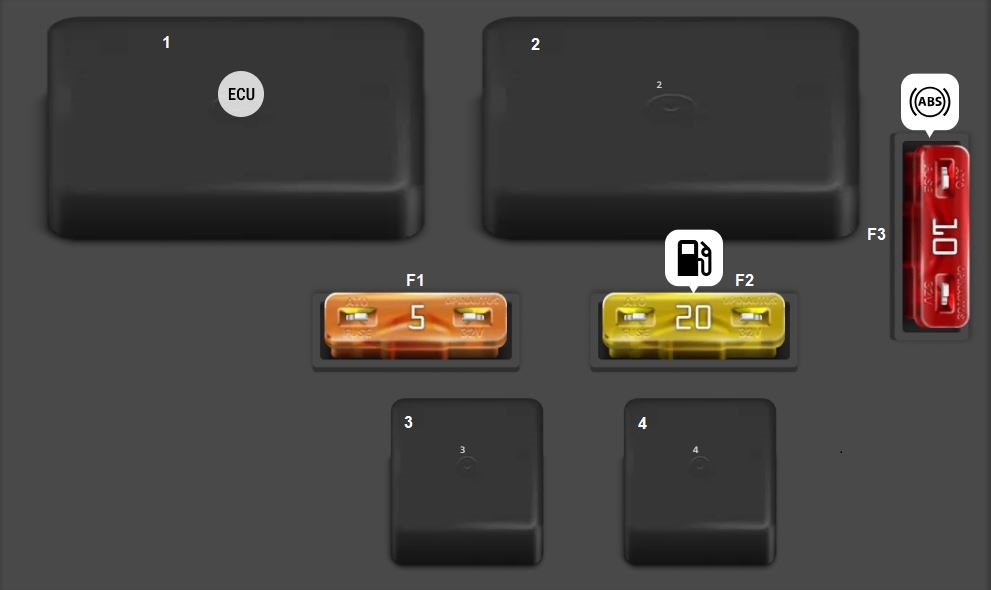

Engine Compartment Fuse Box
| Type | No. | Description |
| Relay | 1 | Engine control module relay |
| Relay | 2 | Manifold absolute pressure sensor |
| Relay | 3 | Turbocharger waste gate pressure sensor |
| Relay | 4 | Oxygen sensor connector |
| Fuse ATO 5A | F1 | Fuel injection system |
| Fuse ATO 20A | F2 | Fuel pump |
| Fuse ATO 10A | F3 | ABS |
