Fiat Panda (2011 – 2022) Fuse Box Location & Diagrams
The Fiat Panda (2011–2022) Fuse Box Location & Diagrams blog helps you quickly find every fuse box and understand each fuse and relay assignment. Whether you’re troubleshooting an electrical issue, replacing a blown fuse, or identifying a specific circuit, this guide provides clear fuse diagrams and detailed descriptions for every model year.
Fuse Box Location

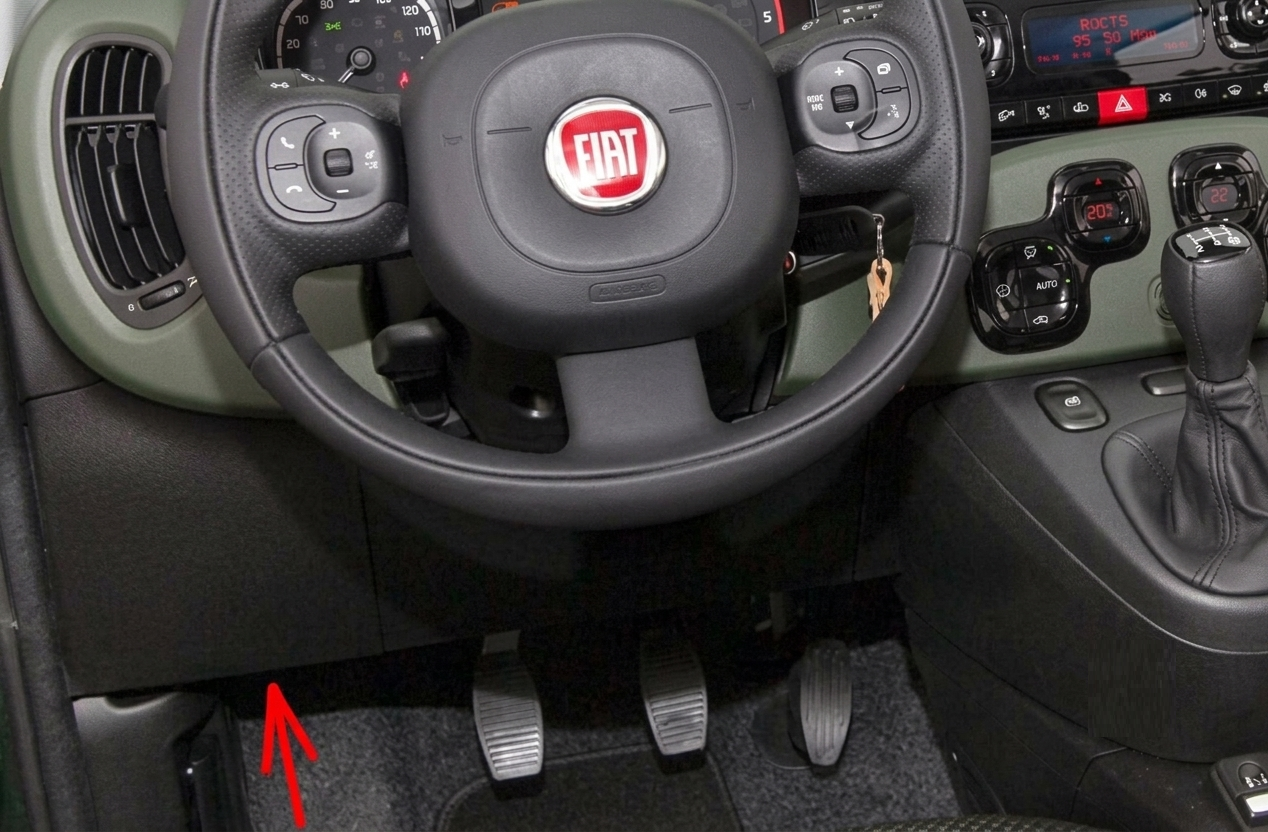

Passenger Compartment Fuse Box
The control unit is located near the left side of the steering column and the fuses can be accessed easily from the lower part of the dashboard.

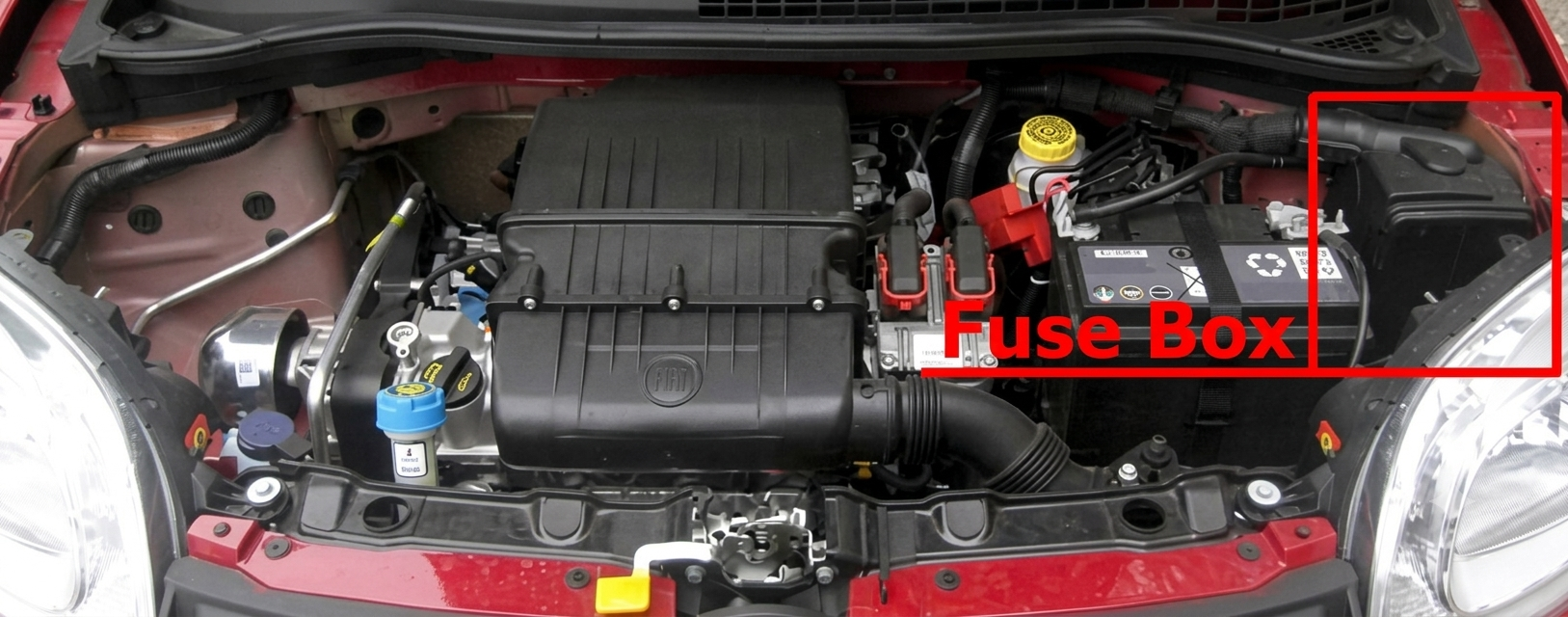

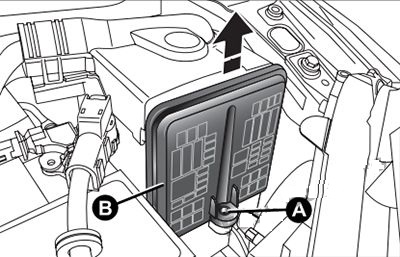

Engine Compartment Fuse Box
It is located in the engine compartment near the battery.
Fuse Box Diagrams

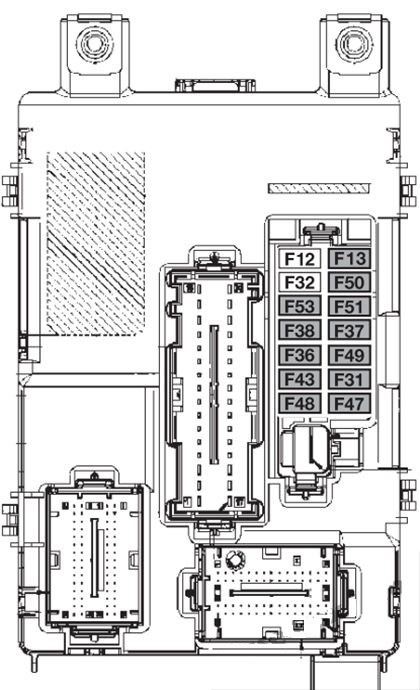

Passenger Compartment Fuse Box
| № | AMPERE | FUNCTION |
|---|---|---|
| F13 | 5 | +15 (*) headlamp alignment corrector |
| F31 | 5 | +15 (*) Ignition-operated control with inhibition during engine starting |
| F36 | 10 | +30 (**) |
| F37 | 7.5 | +15 (*) brake pedal switch (NO) |
| F38 | 20 | Door central locking |
| F43 | 20 | Two-way windscreen washer pump |
| F47 | 20 | Front electric window (driver side) |
| F48 | 20 | Front electric window (passenger side) |
| F49 | 7.5 | +15 (*) |
| F50 | 7.5 | +15 (*) |
| F51 | 5 | +15 (*) |
| F53 | 7.5 | +30 (**) |

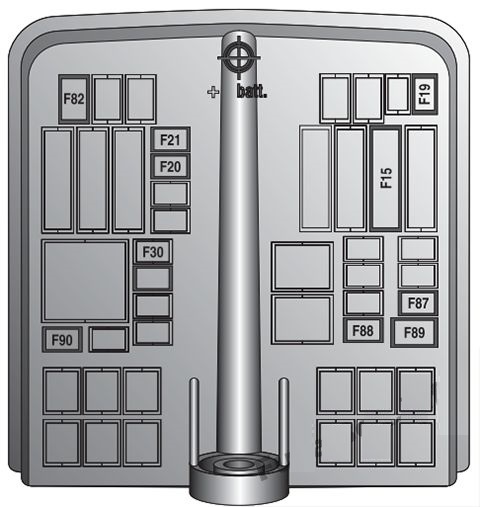

Engine Compartment Fuse Box
| № | AMPERE | FUNCTION |
|---|---|---|
| F01 | 60 | 2011-2020: Body Computer node |
| F08 | 40 | Passenger compartment fan |
| F09 | 15 | Fog lights |
| F10 | 15 | Acoustic warnings |
| F14 | 15 | Main beam headlights |
| F15 | 70 | Heated windscreen |
| F19 | 7.5 | 2011-2020: Air conditioning compressor |
| F20 | 15 | Front power socket (with or without cigar lighter) |
| F21 | 15 | 2011-2020: Fuel pump |
| F30 | 5 | 2011-2020: Blow-by |
| F82 | 20 | 2011-2020: Electric roof motor |
| F87 | 5 | 2011-2020: +15 reversing lights (+15 = ignition-operated positive pole) |
| F88 | 7.5 | 2011-2020: Mirror demisting |
| F89 | 30 | Heated rear window |
| F90 | 5 | 2011-2020: Battery charge status sensor |
