Fiat Idea (2003 – 2012) Fuse Box Location & Diagrams
Find the Fiat Idea (2003–2012) fuse box locations and diagrams, including fuse layouts and relay details for quick electrical troubleshooting.
Fuse Box Location

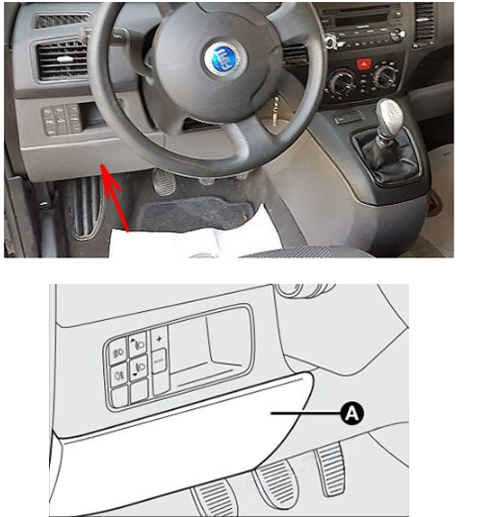

Passenger Compartment Fuse Box
It is located on the left side of the dashboard.

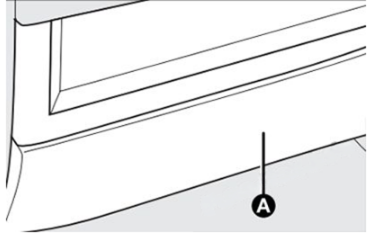

Right-hand drive versions

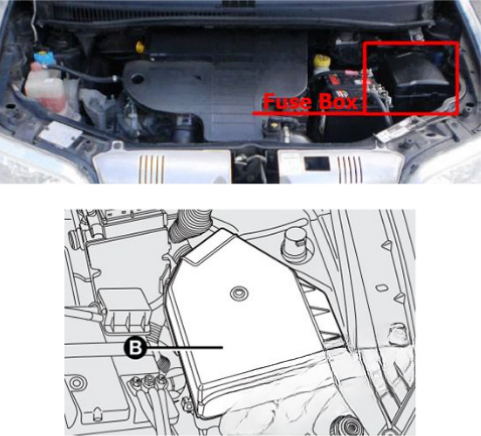

Engine Compartment Fuse Box
Underhood Fuse box is located in the engine compartment near the battery.
Fuse Box Diagrams

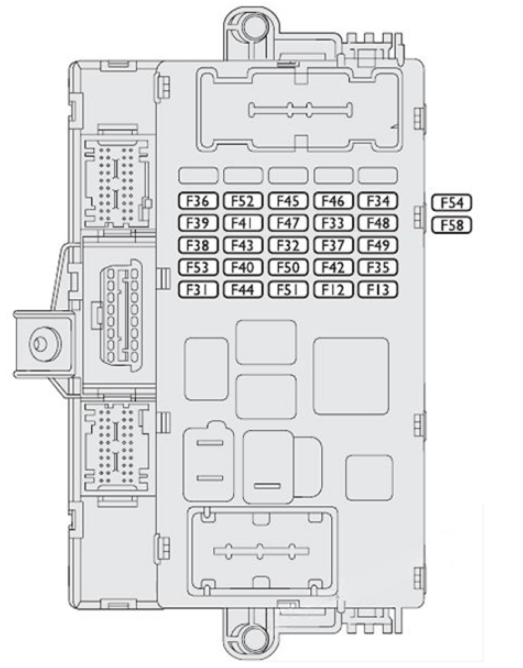

Passenger Compartment Fuse Box
| № | AMPERE | USER |
|---|---|---|
| F12 | 7.5 | Right-hand dipped beam headlight |
| F13 | 7.5 | Left-hand dipped beam headlight / headlight aiming device |
| F31 | 7.5 | Reversing lights / engine compartment control box relay coils / body computer |
| F32 | – | Available |
| F33 | 20 | Left rear power window |
| F34 | 20 | Right rear power window |
| F35 | 7.5 | +15 Cruise control, signal from switch on brake pedal for control units (*) |
| F36 | 10 | +30 Presetting for trailer control unit, rear locks front locks with single door control unit (*) |
| F37 | 7.5 | + 15 Third brake light, instrument panel, brake lights (*) |
| F38 | 20 | Boot unlocking |
| F39 | 10 | +30 EOBD diagnostic socket, sound system, navigator, tyre pressure control unit (*) |
| F40 | 30 | Rear heated screen |
| F41 | 7.5 | Heated door electric mirrors |
| F42 | 7.5 | +15 ABS / ESP control unit (*) |
| F43 | 30 | Windscreen wiper/washer |
| F44 | 15 | Cigar lighter / current socket on tunnel |
| F45 | 15 | Heated seats |
| F46 | 15 | Boot current socket |
| F47 | 20 | Driver’s door control unit power supply (power window, lock) |
| F48 | 20 | Passenger’s door control unit power supply (power window, lock) |
| F49 | 7.5 | +15 utilities (left and central dashboard control lights, electric mirrors, heated seat control lighting, presetting for radiotelephone, navigator, rain / daylight sensors, parking sensor control unit, sunroof control lighting) (*) |
| F50 | 7.5 | Airbag control unit |
| F51 | 7.5 | + 15 Tyre pressure control unit, ECO / Sport control (*) |
| F52 | 15 | Rear screen wiper/washer |
| F53 | 7.5 | +30 Direction indicators, hazard lights, instrument panel (*) |
| F54 | 15 | +30 Outside radio amplifier (*) |
| F58 | 20 | +30 Sunroof (*) |
- (*) +30 = battery directive positive terminal (not under key)
- +15 = positive terminal under key

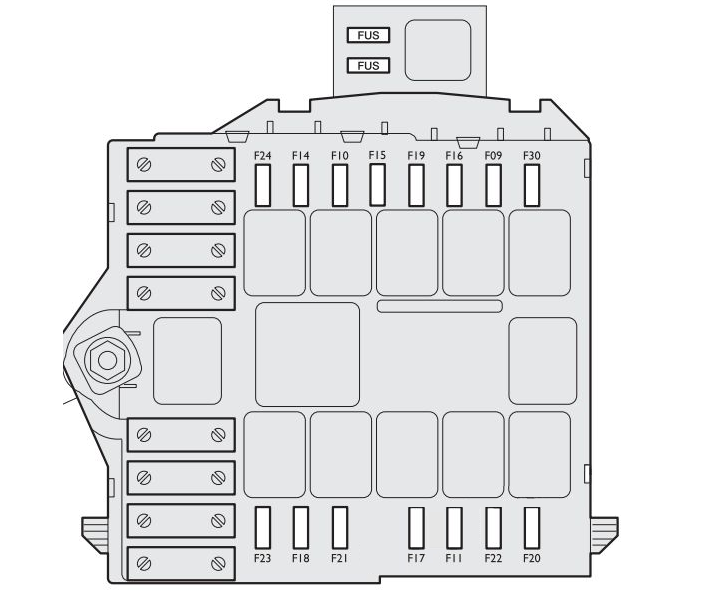

Engine Compartment Fuse Box
| № | AMPERE | USER |
|---|---|---|
| F9 | 20 | Headlight washer fluid |
| F10 | 15 | Horn |
| F11 | 15 | Electronic injection secondary services |
| F4 | 7.5 | Right main beam headlight |
| F15 | 7.5 | Left main beam headlight |
| F17 | 10 | Electronic injection primary services |
| F18 | 10 | +30 Engine control unit / Radiator electric fan remote control switch (1.9 Multijet) (*) |
| F19 | 7.5 | Compressor |
| F20 | – | Free |
| F21 | 15 | Fuel pump |
| F22 | 15 | Electronic injection primary services (1.2 16V, 1.4 16V) |
| F22 | 20 | Electronic injection primary services (Multijet engine) |
| F22 | 15 | Electronic injection primary services (petrol engine) |
| F23 | 30 | +30 Dualogic gearbox (*) |
| F24 | 7.5 | +15 Electric power steering (*) |
| F30 | 15 | Front fog lights |
- (*) +30 = battery directive positive terminal (not under key)
- +15 = positive terminal under key
