Fiat Linea (2007 – 2016) Fuse Box Location & Diagrams
Find the Fiat Linea (2007–2016) fuse box locations and diagrams, including fuse layouts and relay details for quick electrical troubleshooting.
Fuse Box Location

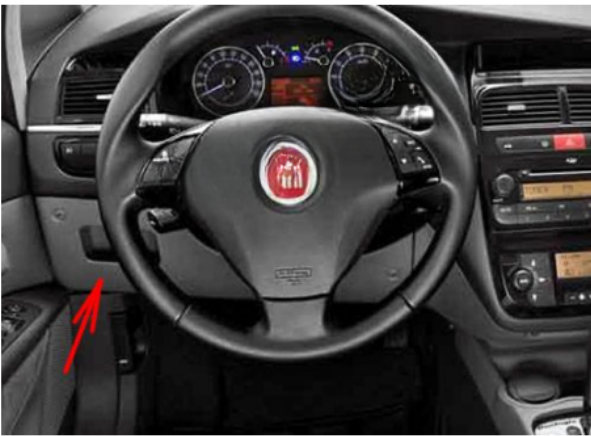

Passenger Compartment Fuse Box

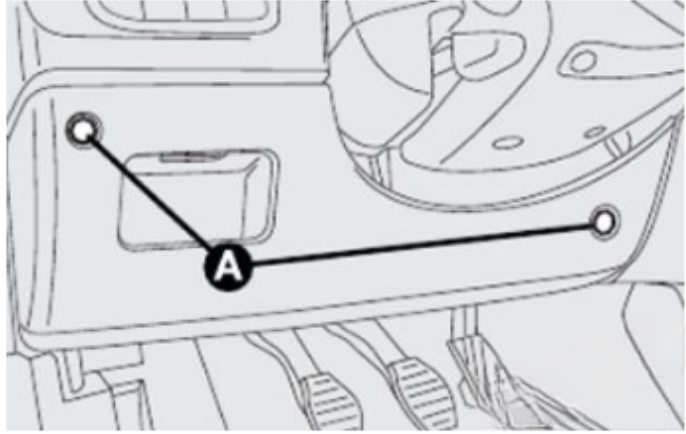

To gain access to the fuses in the fuse box on the dashboard, loosen the fastening screws A and remove the cover.

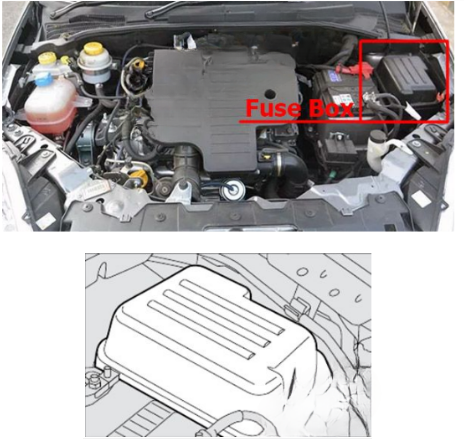

Engine Compartment Fuse Box
To gain access to the fuses in the fuse box next to the battery, remove the protection cover.
Fuse Box Diagrams

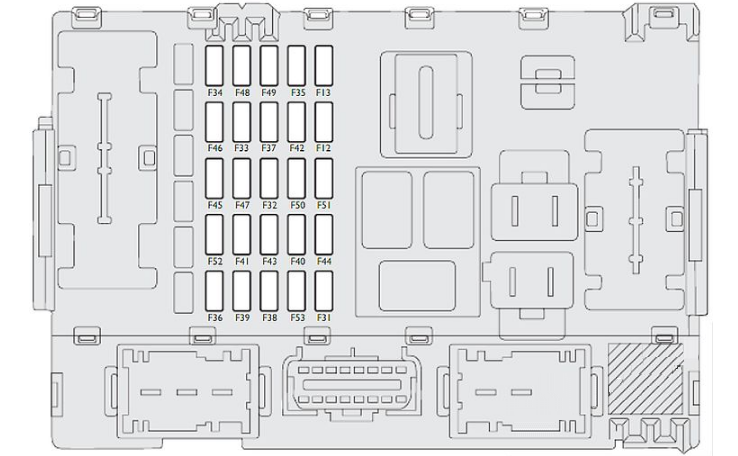

Passenger Compartment Fuse Box
Fiat Linea (2007-2012)
| № | Ampre rating [A] | Protected component |
|---|---|---|
| F12 | 7,5 | Right dipped beam headlight |
| F13 | 7,5 | Left dipped beam headlight headlight corrector |
| F31 | 7,5 | INT/A for relay coils (T08, T17) in engine compartment fuse box and body computer node |
| F32 | 15 | Heated Seats |
| F33 | 20 | Power windows control unit (left rear window motor |
| F34 | 20 | Power windows control unit (right rear window motor) |
| F35 | 7,5 | +15 reversing lights, brake lights control NC, air mass meter, glow plug pre-heating unit water in diesel fuel sensor, tachometer generator, level sensor 2 |
| F36 | 7,5 | Power window unit (+30 for electronics) |
| F37 | 7,5 | +15 instrument panel, NA brake lights control |
| F38 | 20 | Body computer node |
| F39 | 10 | Radio node, climate control node, node Blue&Me |
| F40 | 30 | Heated rear window |
| F41 | 7,5 | Mirror defrosters |
| F42 | 7,5 | +15 brake system |
| F43 | 20 | Windscreen wiper control (two-way pump) |
| F44 | 15 | Cigar lighter or socket |
| F45 | 10 | Boot lock actuator |
| F47 | 20 | Power window unit (driver’s side front window motor) |
| F48 | 20 | Power window unit (passenger’s side front window motor) |
| F49 | 7,5 | +15 control lighting: radio on steering wheel, control panel, power mirrors, power window unit, electrochromic mirror and rain sensor |
| F50 | 7,5 | +15 airbag node |
| F51 | 7,5 | +15 cruise control, radio setup, Blu&Me setup, parking sensors, climate control node |
| F52 | 15 | Power window unit, driver’s seat adjustment motor |
| F53 | 7,5 | Body computer and instrument panel node |
Fiat Linea (2013-2016)
| № | Ampre rating [A] | Protected component |
|---|---|---|
| F12 | 7,5 | Right dipped beam headlight |
| F13 | 7,5 | Left dipped beam headlight headlight corrector |
| F31 | 7,5 | INT/A for relay coils (T08, T17) in engine compartment fuse box and body computer node |
| F32 | 15 | Heated Seats |
| F33 | 20 | Power windows control unit (left rear window motor) |
| F34 | 20 | Power windows control unit (right rear window motor) |
| F35 | 7,5 | +15 reversing lights, NC brake lights control, flow meter, glow plug preheating unit, water in diesel fuel sensor,speedometer generator |
| F36 | 7,5 | Electric window control unit (+30 for electronics) |
| F37 | 7,5 | +15 control panel, NC brake lights control |
| F38 | 20 | Body computer node |
| F39 | 10 | Radio node, climate control node, node Blue&Me |
| F40 | 30 | Heated rear window |
| F41 | 7,5 | Mirror defrosters |
| F43 | 20 | Windscreen wiper control (two-way pump) |
| F44 | 15 | Cigar lighter or power socket |
| F45 | 10 | Boot lock actuator |
| F47 | 20 | Electric window unit (driver’s side front window motor) |
| F48 | 20 | Electric window unit (passenger’s side front window motor) |
| F49 | 7,5 | +15 control lighting: radio on steering wheel, control panels, electric mirrors, window control unit, chromic mirror and rain sensor |
| F51 | 7,5 | +15 cruise control, provision for radio, provision for Blue&Me, parting sensors, climate control system node |
| F52 | 15 | Electric window unit driver’s seat adjustment motor |
| F53 | 7,5 | Body computer and instrument panel node |

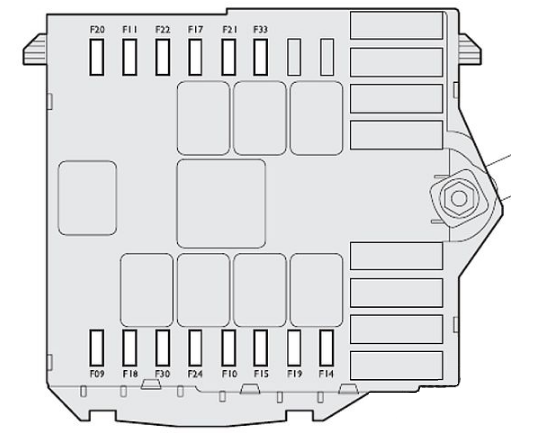

Engine Compartment Fuse Box
Fiat Linea (2007-2012)
| № | Ampere rating [A] | Protected component |
|---|---|---|
| F10 | 15 | Horn |
| F11 | 10 | Engine control system secondary loads |
| F14 | 7,5 | Right main beam headlight |
| F15 | 7,5 | Left beam headlight |
| F17 | 10 | Engine control system primary loads |
| F18 | 10 | Engine control unit |
| F19 | 7,5 | Conditioner compressor |
| F21 | 15 | Fuel pump |
| F22 | 15 | Engine control system primary loads (injectors, ignition coils) |
| F23 | 20 | Windscreen wiper motor |
| F24 | — | Spare |
| F30 | 15 | Fog lights |
Fiat Linea (2013-2016)
| № | Ampere rating [A] | Protected component |
|---|---|---|
| F10 | 10 | Horn |
| F14 | 7,5 | Right main beam headlight |
| F15 | 7,5 | Left beam headlight |
| F19 | 7,5 | Air conditioning compressor |
| F21 | 15 | Fuel pump |
| F23 | 20 | Windscreen wiper motor |
| F24 | — | Free |
| F30 | 15 | Fog lights |
