Fiat Panda (1993 – 2003) Fuse Box Location & Diagrams
In this blog, we will understand about the Fiat Panda (1993–2003) fuse box location and diagram. This article provides detailed information about fuse box positions, fuse assignments, and electrical protection systems. It helps owners identify blown fuses, understand their functions, and safely check or replace fuses for different vehicle components.
Fuse Box Location

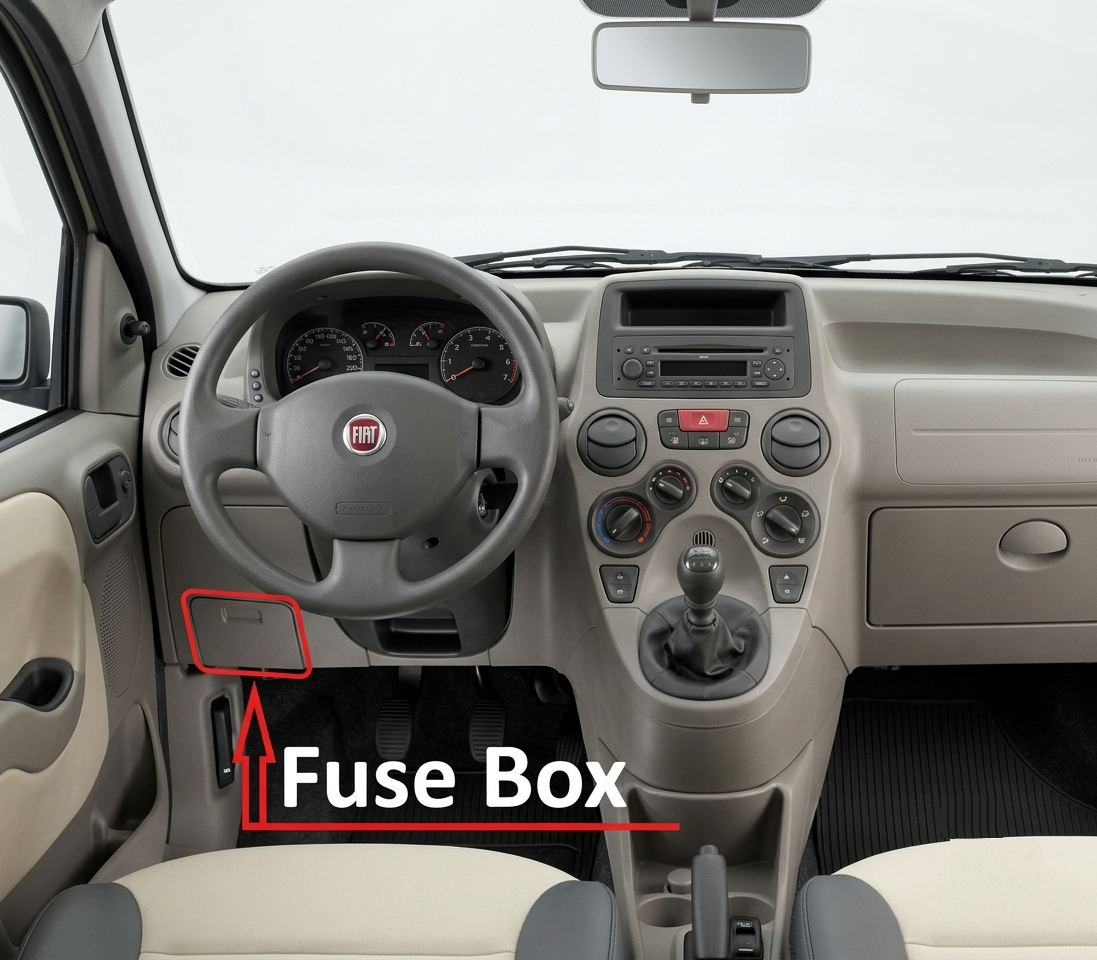

Passenger Compartment Fuse Box
Located under the driver’s side dashboard.
Fuse Box Diagrams

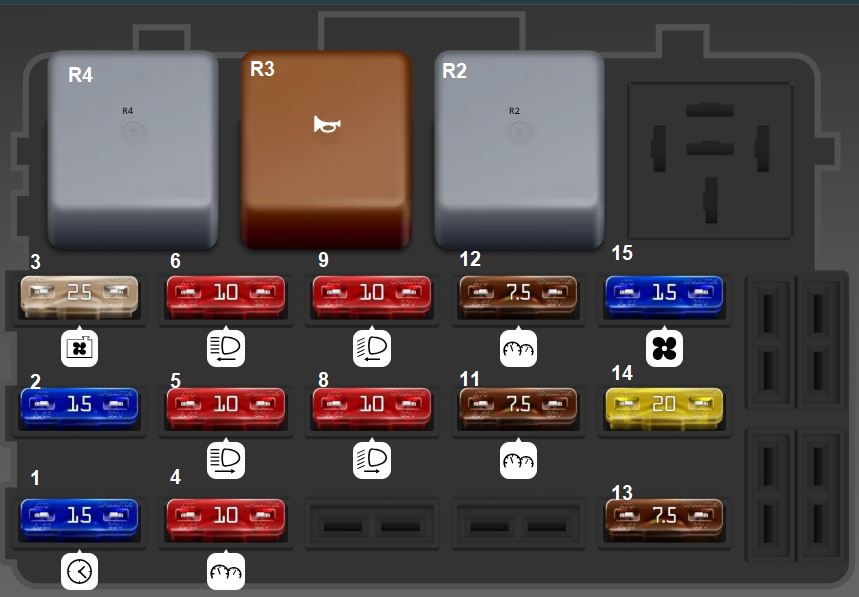

Passenger Compartment Fuse Box
| Type | No. | Description |
| Fuse ATO 15A | F1 | Hazard warning lights, Clock, Interior light(s), Cigarette lighter, Radio |
| Fuse ATO 15A | F2 | Heated rear windscreen |
| Fuse ATO 25A | F3 | Cooling fan, Horn, Interior lights |
| Fuse ATO 10A | F4 | Instrument panel, Direction indicators, Brake lights |
| Fuse ATO 10A | F5 | Right main beam |
| Fuse ATO 10A | F6 | Left main beam |
| Fuse ATO 10A | F8 | Right dipped beam |
| Fuse ATO 10A | F9 | Left dipped beam |
| Fuse ATO 7.5A | F11 | Instrument panel, Clock, Right tail light, Left number plate light, Front left sidelight |
| Fuse ATO 7.5A | F12 | Instrument panel, Front right sidelight, Left tail light, Right number plate light |
| Fuse ATO 20A | F14 | Wash/wipe system |
| Fuse ATO 15A | F15 | Blower |
| Relay | R2 | Heated rear windscreen |
| Relay | R3 | Horn |
| Relay | R4 | Flasher unit |
