Ford F-150 Lightning 2025 Review, Specs, Price and Mileage (Brochure)
The 2025 Ford F-150 Lightning continues Ford’s push into the electric truck segment, combining the toughness of the classic F-Series with zero-emission performance. With improved range, cutting-edge technology, and impressive towing capability, the Lightning is designed for both work and everyday driving—without compromising power or comfort.
Pricing
The price of the 2025 Ford F-150 Lightning starts at $52,375 and goes up to $87,590 depending on the trim and options.
| Trim Level | Price |
| Pro | $52,375 |
| XLT | $65,940 |
| Flash | $72,590 |
| Lariat | $79,590 |
| Platinum | $87,590 |
What’s New for Ford F-150 Lightning 2025
There are no big changes to Ford’s electric pickup for 2025.
Colour Availability of Ford F-150 Lightning 2025
The Ford F-150 Lightning 2025 is available in 8 different colours, offering a variety of choices to suit your style.

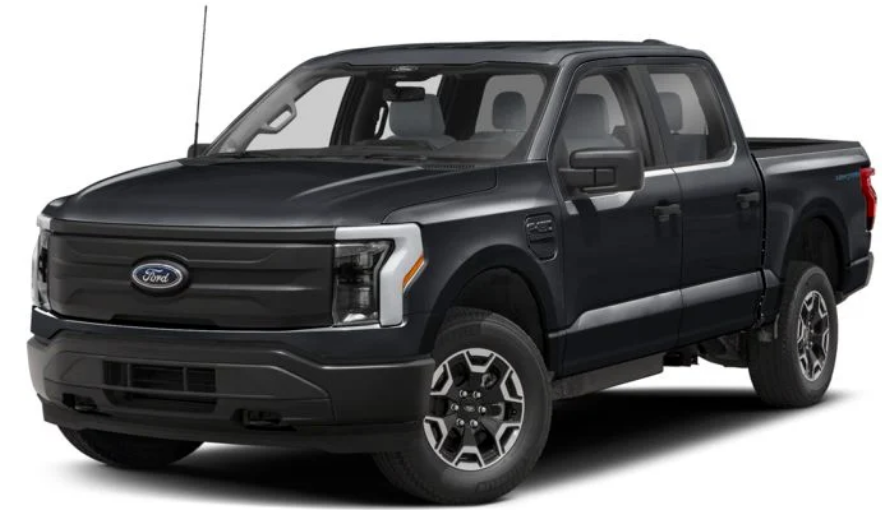

- Agate Black Metallic

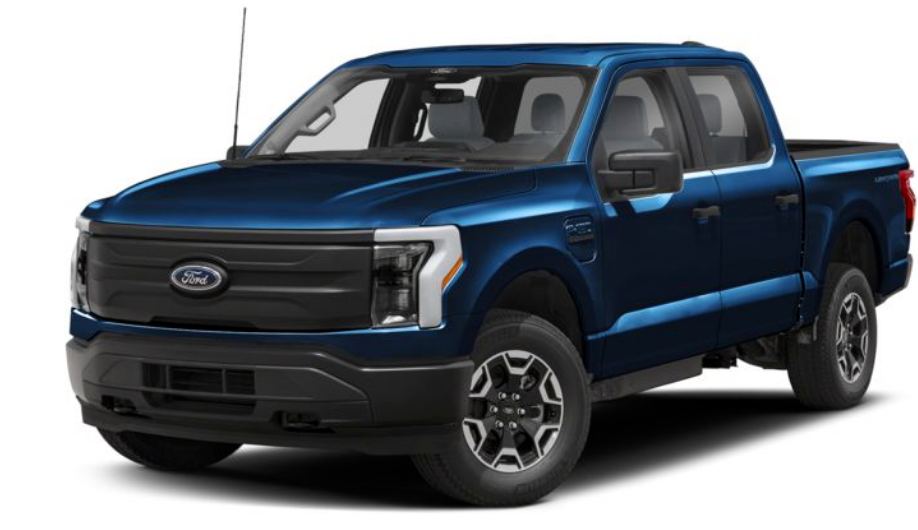

- Antimatter Blue Metallic
- Carbonized Gray Metallic

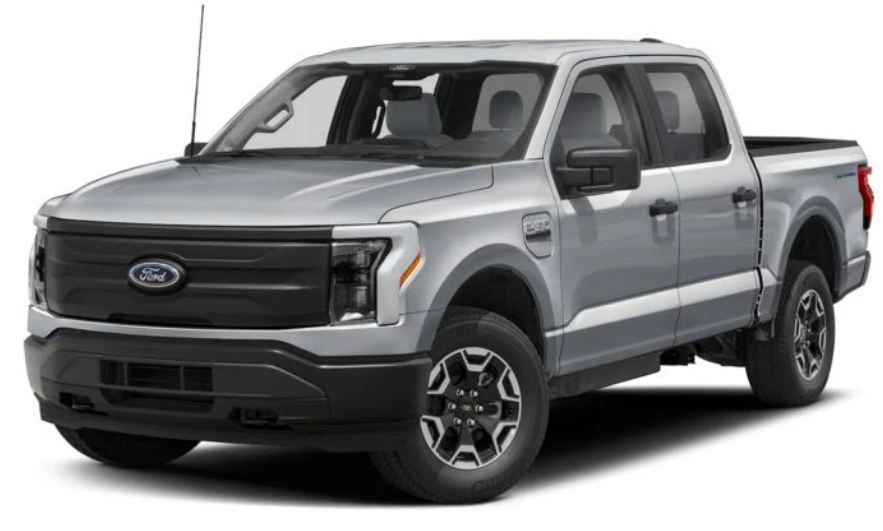

- Iconic Silver Metallic

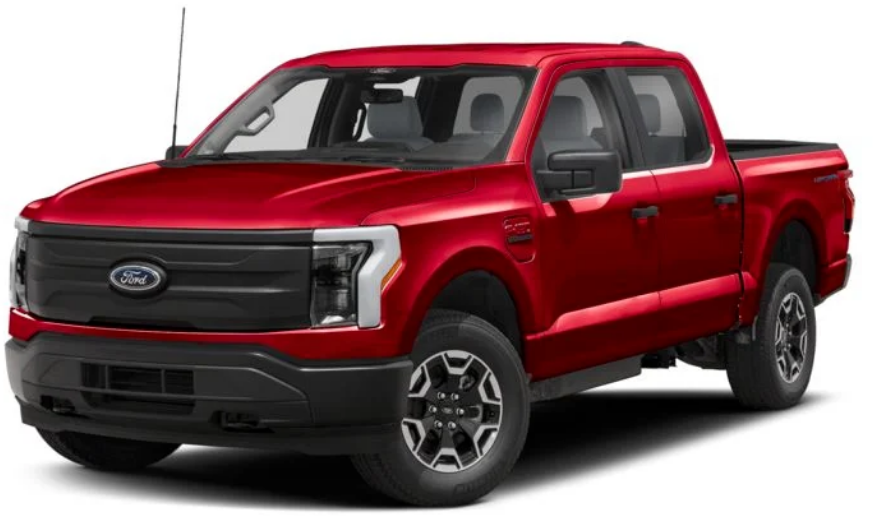

- Rapid Red Metallic Tinted Clearcoat

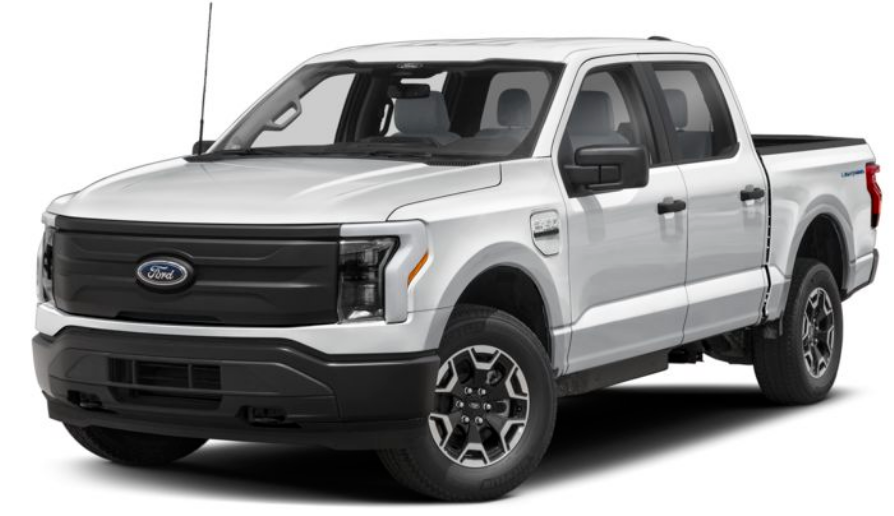

- Space White Metallic

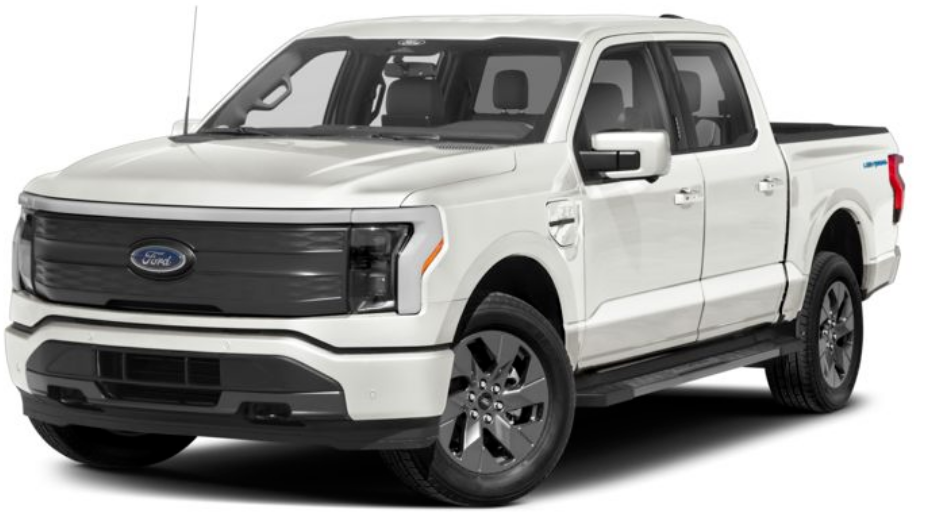

- Star White Metallic Tri-Coat

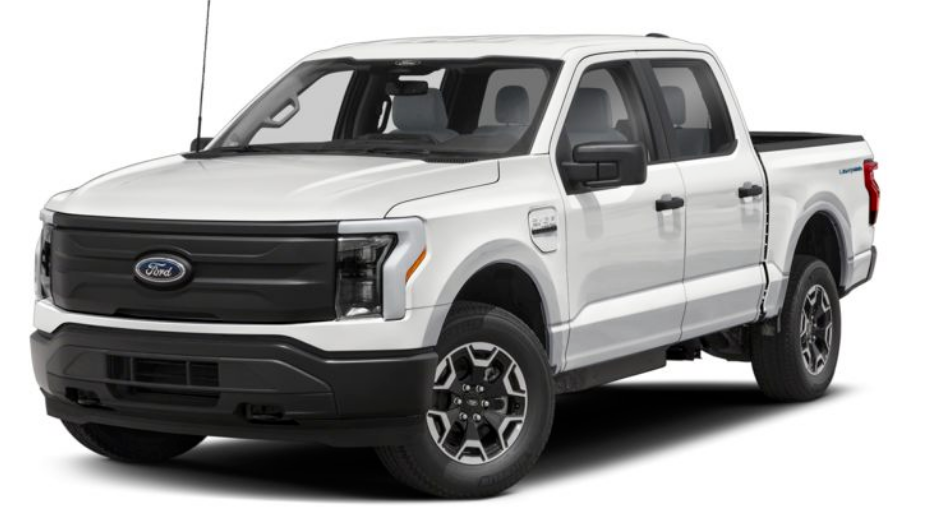

- Oxford White
Specifications

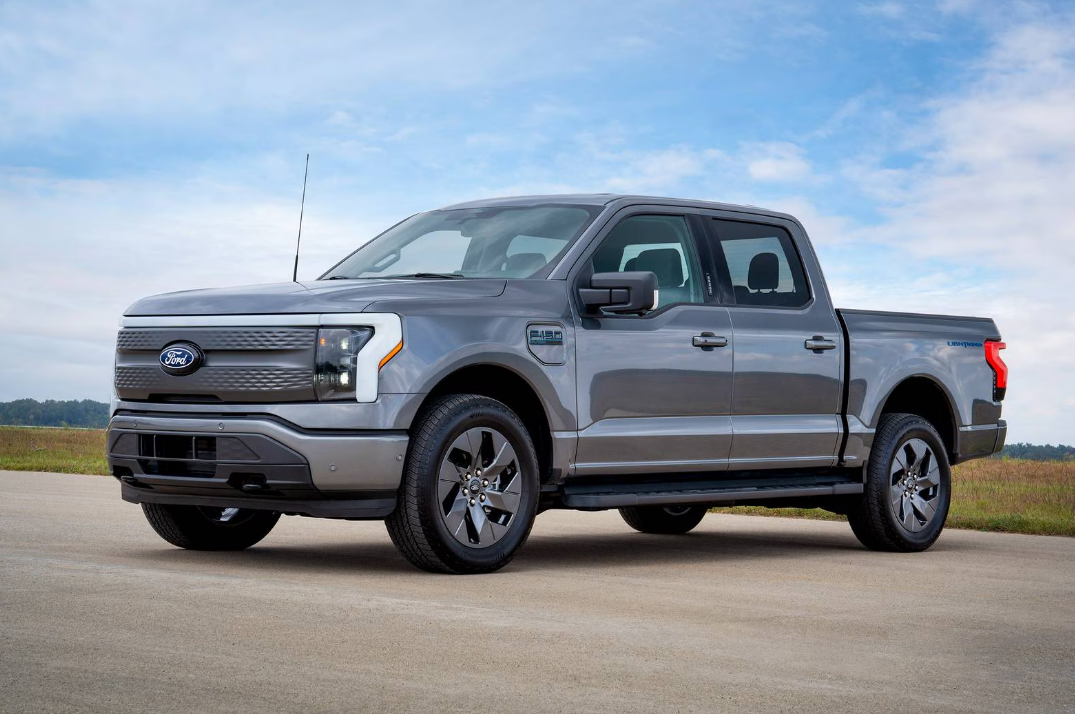

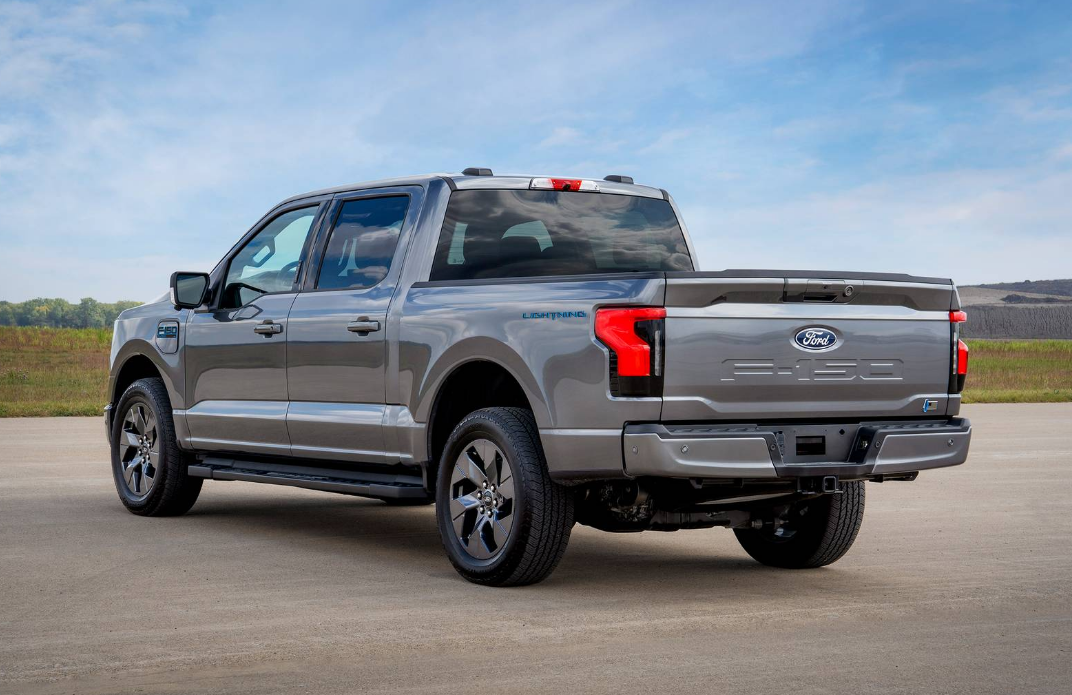

Exterior Dimensions
| Feature | Dimension |
| Wheelbase | 145.5 |
| Overall length | 232.7 |
| Cab height | 78.5 |
| Width – excluding mirrors1 | 80.02 |
| Width – including standard mirrors3 | 96.04 |
| Width – standard mirrors folded5 | 83.66 |
| Track width – front (curb)7 | 68.18 |
| Track width – rear (curb)9 | 68.310 |
| Overhang – front11 | 37.812 |
| Overhang – rear13 | 49.414 |
| Angle of approach (degrees)15 | 24.3 |
| Angle of departure (degrees) | 24.0 |
| Ramp breakover angle (degrees) | 17.6 |
| Ground clearance | 8.5 |
| Open tailgate to ground | 37.1 |
| Front bumper to back of cab | 155.9 |
| Front trunk liftover height | 34.5 |

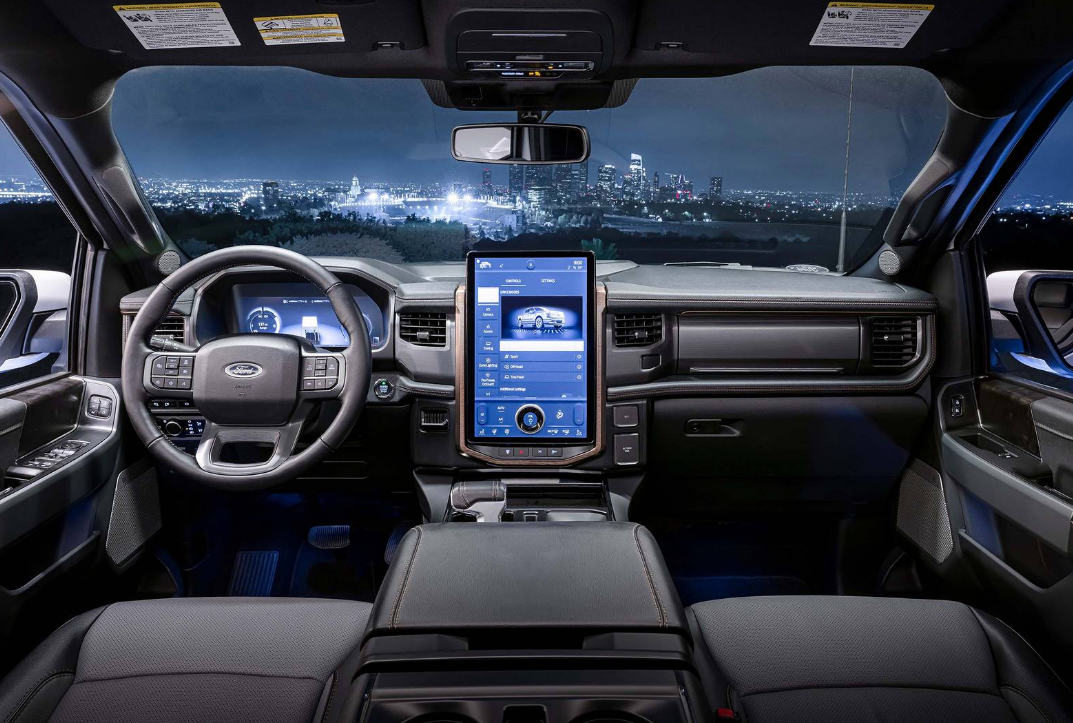

INTERIOR DIMENSIONS
| Feature | Dimension |
| Seating (occupants) | 5 |
| Front headroom | 40.8 |
| Front legroom SAE (maximum) | 43.9 |
| Front shoulder room | 66.7 |
| Front hip room | 62.5 |
| Rear headroom | 40.4 |
| Rear legroom SAE (maximum) | 43.6 |
| Rear shoulder room | 66.0 |
| Rear hip room | 62.6 |
BODY
| Feature | Details |
| Construction/materials1 | High-strength steel frame, high-strength, military-grade aluminum alloy body and bed2 |
| Body style3 | SuperCrew® four-door with 5.5-foot bed4 |
| Final assembly location5 | Rouge Electric Vehicle Cen6ter, Michigan, USA |
POWERTRAIN/DRIVETRAIN
| Feature | 98 kWh Standard-Range | 123 kWh Extended-Range | 131 kWh Extended-Range |
| Drivetrain Layout | – | Dual eMotor, front/rear transverse mounted, four-wheel drive | – |
| Motors/configuration | – | Two inboard three-phase fixed magnet AC motors | – |
| Peak Power (hp/kW) | 452/337 | 536/400 | 580/433 |
| Peak Torque (lb.-ft./Nm) | 775/1050 | 775/1050 | 775/1050 |
| Motor assembly location | – | Van Dyke Transmission Plant, Michigan, USA | – |
BATTERY/ENERGY STORAGE
| Feature | 98 kWh Standard-Range | 123 kWh Extended-Range | 131 kWh Extended-Range |
| Battery type | – | Lithium-ion pouch with internal battery management, liquid cooled | – |
| Battery size | 98 kWh of usable energy | 123 kWh of usable energy | 131 kWh of usable energy |
| Onboard charger power (input/output) | 11.3 kW/10.5 kW (48A) | 11.3 kW/10.5 kW (48A) | 11.3kW/10.5kW (Standard) / 19.2/17.6kW (Fleet only) |
ESTIMATED CHARGE TIMES5
| Charging Level | 98 kWh Standard-Range | 123 kWh Extended-Range | 131 kWh Extended-Range |
| Level 3: 15-80% DCFC (150kW+) | 32 minutes | 38 minutes | 38 minutes |
| Level 2: 48A Connected Station 15-100% | 10 hours | 12 hours | 13 hours |
| Level 2: 80A Ford Charge Station Pro 15-100% | – | – | 8 hours at 80A (Fleet) |
| Level 2: 30A/240V Mobile Charger 15-100% | 15 hours | 18 hours | 20 hours |
APPROXIMATE MILES/CHARGE6
| Charging Method | 98 kWh Standard-Range | 123 kWh Extended-Range | 131 kWh Extended-Range |
| 10 minutes, 150kW DC Fast Charge | 62 miles | 65 miles | 65 miles |
| 1 hour, 80A Ford Charge Station Pro | 20 miles | 20 miles | 20 miles (48A) / 30 miles (80A) |
| 1 hour, 48A Ford Connected Charge Station | 20 miles | 20 miles | 20 miles |
| 1 hour, 30A/240V Mobile Charger | 13 miles | 13 miles | 13 miles |
EPA-ESTIMATED RANGE
| Battery Configuration | Estimated Range (Miles) |
| 98 kWh Standard-Range Battery | 240 |
| 123 kWh Extended-Range Battery | 300 (Pro, Flash) |
| 131 kWh Extended-Range Battery | 320 (Pro, Lariat) / 300 (Platinum) |
Charging Unit
| Charging Unit | 98 kWh Standard-Range Battery | 123 kWh Extended-Range Battery | 131 kWh Extended-Range Battery |
| 30A Ford Mobile Charger (120V/240V) | Optional/Available Ford Accessory | Optional/Available Ford Accessory | Optional/Available Ford Accessory |
| 48A Ford Connected Charge Station | Available Ford Accessory | Available Ford Accessory | Available Ford Accessory |
| Ford Charge Station Pro with Ford Intelligent Backup Power Capability¹ | Available Ford Accessory | Available Ford Accessory | Available Ford Accessory |
BED & FRONT TRUNK CAPACITIES
| Feature | Capacity |
| Inside length (at floor) | 67.1 |
| Width between wheelhouses | 50.6 |
| Inside height | 21.4 |
| Cargo box volume | 52.8 cubic feet |
| Front trunk volume | 14.1 cubic feet (400 liters) |
CAPABILITY²
| Capability | 98 kWh Standard-Range Battery | 123 kWh Extended-Range Battery | 131 kWh Extended-Range Battery |
| Maximum Payload (lbs.) | 2,329² | 2,246³ | 1,879⁴ |
| Maximum Towing (lbs.) | 5,000⁵ | 7,700⁵ | 7,700⁵ |
| Maximum Towing with Max Trailer Tow Package (lbs.) | 7,700⁵ (Pro⁶/XLT) | 10,000⁵ (Pro⁶/Flash) | 10,000⁵ (Pro⁶/Lariat) 8,600⁵ (Platinum⁷) |
SUSPENSION
| Configuration | Details |
| Front configuration | Independent double-wishbone with coil-over shocks, stabilizer bar with heavy-duty gas pressurized monotube shocks12 |
| Rear configuration34 | Independent semi trailing arms, coil springs, stabilizer bar with heavy-dut5y gas pressurized twin tube shock6s |
SELECT STANDARD/OPTIONAL FEATURES
| FEATURE | Pro | XLT | Flash | Lariat | Platinum |
| BATTERY/CHARGING | |||||
| 98 kWh Standard Range Battery | S | S | – | – | – |
| 123 kWh Extended Range Battery | O (Fleet only) | – | S | – | – |
| 131 kWh Extended Range Battery | O (Fleet only) | – | – | S | S |
| EXTERIOR FEATURES | |||||
| Power up/down hood | S | S | S | S | S |
| Front trunk | S | S | S | S | S |
| Tailgate with lift assist | S | S | S | – | – |
| Power up/down tailgate | – | – | – | S | S |
| Carbon Black fixed extended running boards | O (Fleet only) | S | S | S | S |
| Power deployable running boards | – | – | – | – | O |
| EXTERIOR LIGHTING | |||||
| LED projector headlamps with dynamic bending and LED signature lighting | S | S | S | S | S |
| LED taillamps | S | S | S | S | S |
| Signature front light bar | – | S | S | S | S |
| Signature tailgate lighting | – | – | – | S | S |
| LED box lighting with Enhanced Zone Lighting | – | – | S | S | S |

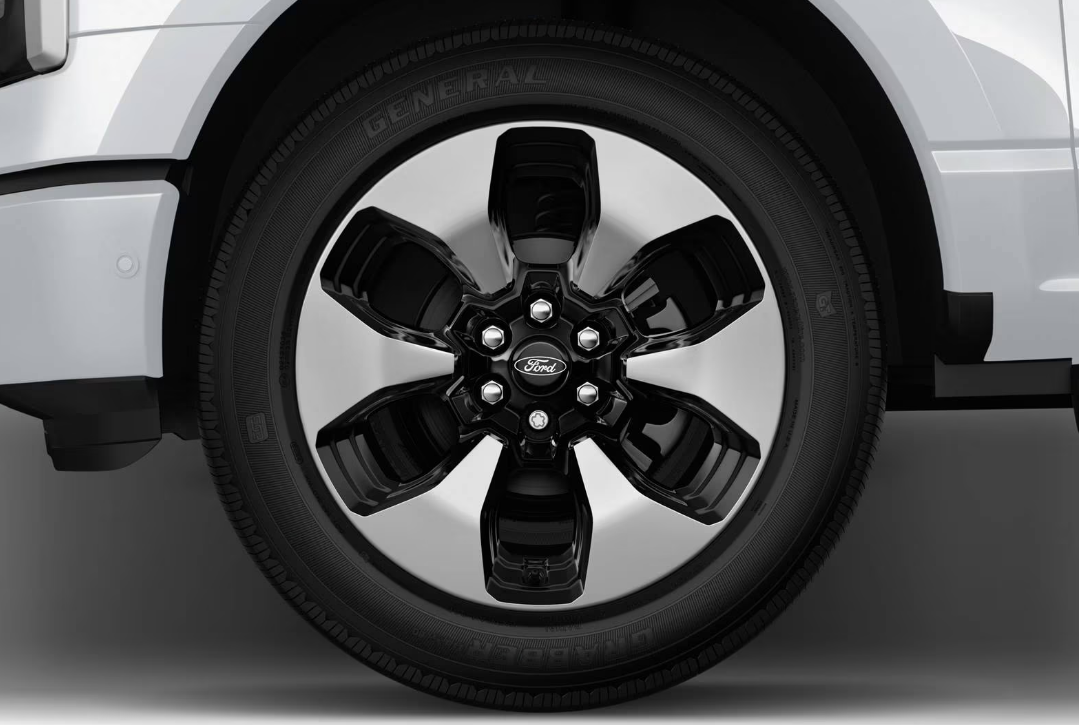

| WHEELS | |||||
| 18-inch high gloss black painted alloy | S | S | – | – | – |
| 20-inch Dark Carbonized Gray alloy | – | – | S | S | – |
| 22-inch bright machined face alloy with Ebony Black painted pockets | – | – | – | – | S |
| TECHNOLOGY | |||||
| SYNC® 4 with Enhanced Voice Recognition, 12-inch landscape LCD capacitive touch screen | S | S | – | – | – |
| SYNC® 4A with Enhanced Voice Recognition, 15.5-inch portrait orientation LCD capacitive touch screen | – | – | S | S | S |
| B&O® Sound System by Bang & Olufsen® with HD Radio™ (8 speakers including subwoofer) | – | – | S | S | – |
| B&O® Unleashed Sound System by Bang & Olufsen® with HD Radio™ (14 speakers including subwoofer) | – | – | – | – | S |
| Wireless Apple CarPlay® and Android Auto™ compatibility | S | S | S | S | S |
| Over-The-Air Software Updates | S | S | S | S | S |
| Connected Built-In Navigation¹ (3-year trial) | S | S | S | S | S |
| 12-inch Digital Instrument Cluster | S | S | S | S | S |
SELECT STANDARD/OPTIONAL FEATURES (CONTINUED)
| Feature | Pro | XLT | Flash | Lariat | Platinum |
| TECHNOLOGY (CONTINUED) | |||||
| Intelligent Access | – | – | S | S | S |
| Push button start | S | S | S | S | S |
| 360-degree camera | O | S | S | S | S |
| FordPass® Connect with 4G LTE Wi-Fi hotspot | S | S | S | S | S |
| Phone As A Key functionality | – | – | – | S | S |
| FORD CO-PILOT360™ TECHNOLOGY | |||||
| Ford Co-Pilot360™ 2.0 | S | S | S | S | S |
| Ford Co-Pilot360™ Assist 2.0 | – | – | S | S | S |
| Rain-Sensing Wipers | – | – | – | S | S |
| FORD BLUECRUISE: HANDS-FREE HIGHWAY DRIVING | |||||
| Ford BlueCruise Equipped (1 Year Plan) | – | – | O | O | S |
| Ford BlueCruise Equipped (90 Day Trial) | – | – | S | S | S |

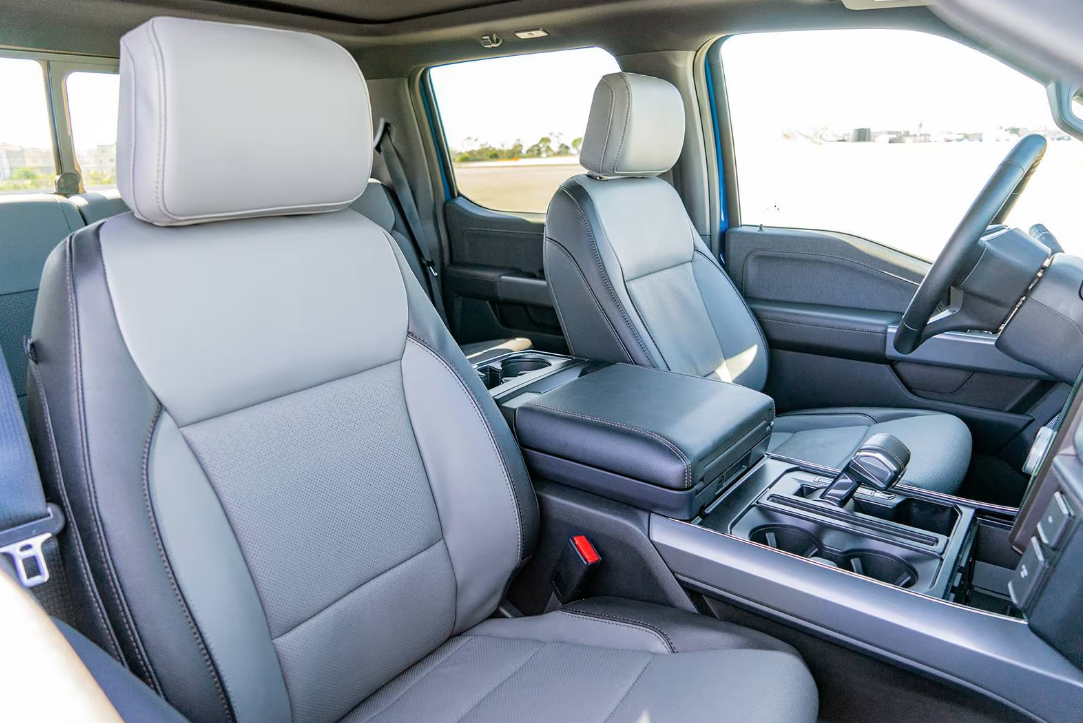

Seating
| Feature | Pro | XLT | Flash | Lariat | Platinum |
| Vinyl heated front bucket seats, 4-way manual | S | – | – | – | – |
| Cloth heated front bucket seats, 8-way power | – | S | – | – | – |
| ActiveX-trimmed heated front bucket seats, 10-way power | – | – | S | – | – |
| ActiveX-trimmed, heated and ventilated front seats, 10-way power, memory | – | – | – | S | – |
| Premium Nirvana leather seating surfaces, heated and ventilated, 10-way power, memory | – | – | – | – | S |
| Flow-through console with stowable floor shifter | S | S | S | S | S |
SELECT STANDARD/OPTIONAL FEATURES (CONTINUED)
PRODUCTIVITY/CAPABILITY
| Feature | Pro | XLT | Flash | Lariat | Platinum |
| 2.4kW Pro Power Onboard – 120V outlets | S | S | S | S | – |
| 9.6kW Pro Power Onboard – 120V & 240V outlets | O | O | O | O | S |
| Interior work surface | – | – | – | S | S |
| Tailgate step (includes Tailgate Work Surface) | O | O | O | S | S |
| Class IV trailer hitch | S | S | S | S | S |
SAFETY/SECURITY
| Feature | Pro | XLT | Flash | Lariat | Platinum |
| AdvanceTrac® with RSC® (Roll Stability Control™) | S | S | S | S | S |
| Airbags (Front, Side-mounted, Safety Canopy®) | S | S | S | S | S |
| Curve Control | S | S | S | S | S |
| Perimeter anti-theft alarm | S | S | S | S | S |
| SOS Post-Crash Alert System | S | S | S | S | S |
| Tire pressure monitoring system | S | S | S | S | S |
| Advanced Security Pack | – | – | – | S | S |
| SecuriCode® keyless entry keypad | O | O | O | S | S |
PACKAGES
| Feature | Pro | XLT | Flash | Lariat | Platinum |
| Tow Technology Package | O | S | S | S | S |
| E-Locker, Hill Descent Control, Increased Tow Capability | O | O | O | O | S |
WARRANTY
| Type | Coverage |
| Bumper-to-Bumper | 3 years/36,000 miles |
| Electric vehicle unique component | 8 years/100,000 miles |
| Aluminum body panel | 5 years/unlimited miles |
| Paint adhesion | 5 years/unlimited miles |
| Roadside assistance | 5 years/60,000 miles |
FREQUENTLY ASKED QUESTION
What is the starting price of the Ford F-150 Lightning 2025?
The Ford F-150 Lightning 2025 starts at $52,375 for the Pro trim, with higher trims reaching up to $87,590 depending on configuration and features.
What is the maximum driving range of the Ford F-150 Lightning 2025?
The Ford F-150 Lightning 2025 offers an EPA-estimated range of up to 320 miles when equipped with the 131 kWh extended-range battery, depending on the trim.
How fast can the Ford F-150 Lightning 2025 charge?
Using a 150 kW DC fast charger, the Ford F-150 Lightning 2025 can charge from 15% to 80% in about 38 minutes, making it convenient for long trips.
What is the towing capacity of the Ford F-150 Lightning 2025?
The Ford F-150 Lightning 2025 can tow up to 10,000 lbs when properly equipped with the Max Trailer Tow Package, depending on battery and trim level.
