Ford F-150 (2024 – 2026) Fuse Box Location and Diagrams
Struggling with electrical issues in your truck? This comprehensive guide provides accurate fuse box locations and detailed wiring diagrams for the 2024–2026 Ford F-150. Quickly identify and replace faulty fuses to keep your vehicle’s advanced systems and essential components running reliably every time you hit the road.
Fuse Box Location

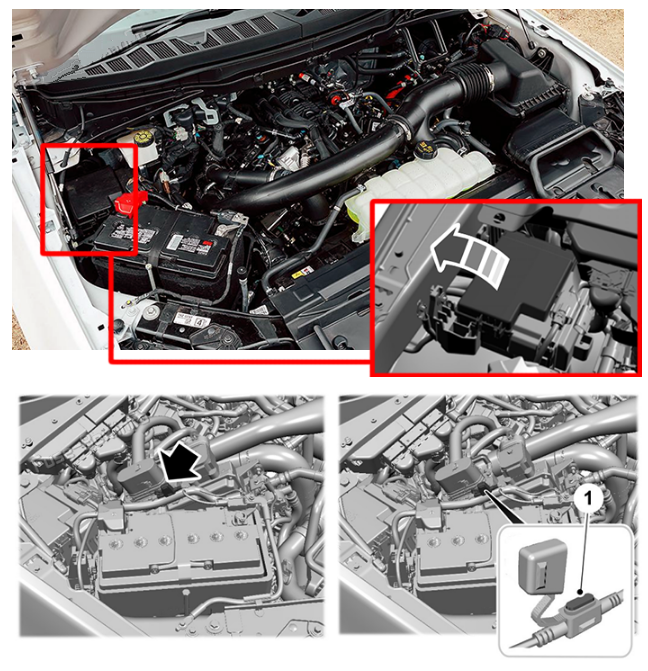

Engine Compartment Fuse Box

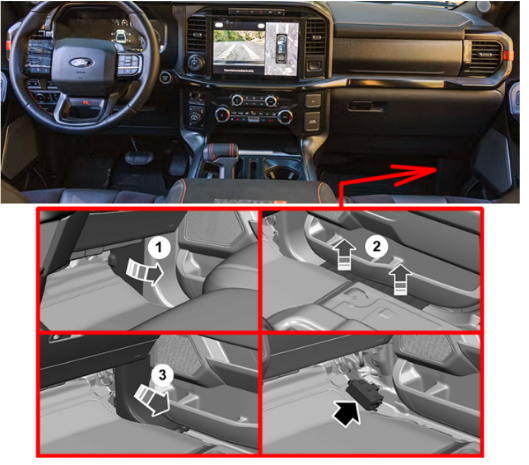

Passenger Compartment Fuse Box
Fuse Box Diagrams

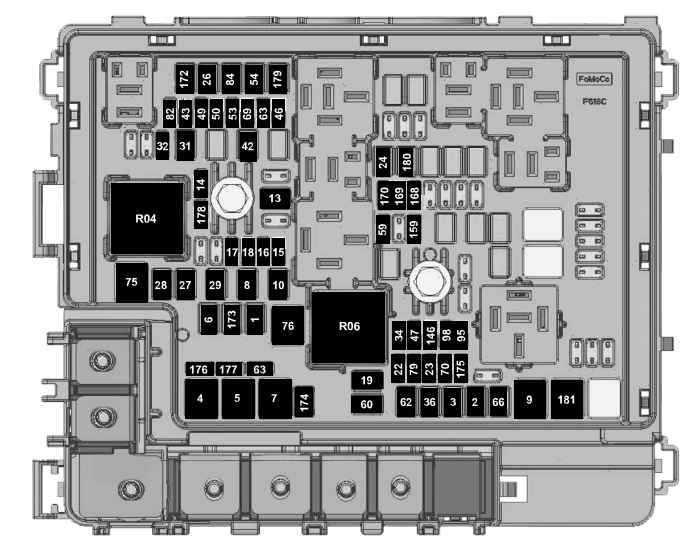

Engine Compartment Fuse Box

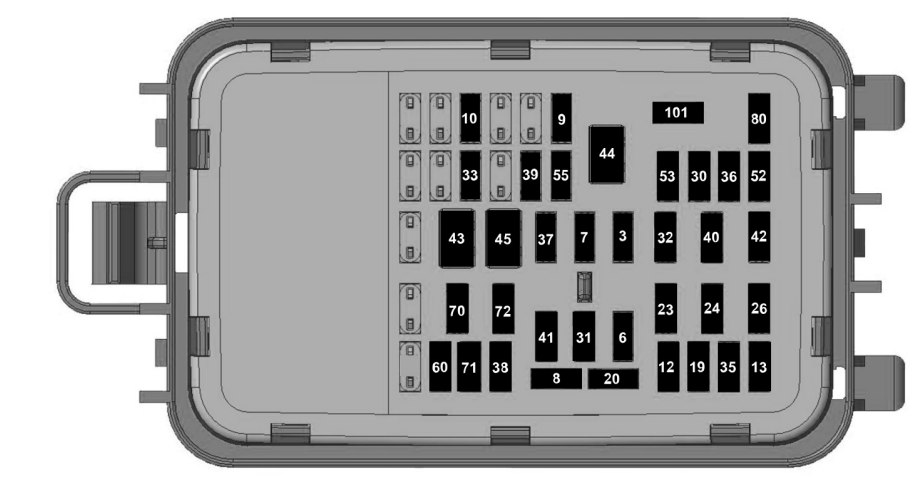

Passenger Compartment Fuse Box
| Fuse Location | Fuse Rating | Protected Component |
| 3 | 7.5 A | Wireless charger. |
| 6 | 10 A | Driver power window switch. |
| 7 | 10 A | Gear shift module. |
| 8 | 7.5 A | Cell phone passport module. |
| 9 | 5 A | Overhead console combined sensing module. |
| 10 | 25 A | Multi-contour seat module. |
| 12 | 5 A | Climate control. |
| 13 | 7.5 A | Steering column control module. |
| 19 | 5 A | Head up display. |
| 20 | 5 A | Ignition switch. |
| 23 | 30 A | Driver door control module. |
| 24 | 30 A | 2024:Moonroof. 2025:Glass roof. |
| 26 | 30 A | Passenger door control module. |
| 30 | 10 A | USB charging port 1. |
| 31 | 10 A | Terrain management switch. |
| 32 | 20 A | Audio control module. |
| 33 | 5 A | Instrument cluster display. |
| 35 | 5 A | Electronic toll collection. |
| 36 | 5 A | 2025: Interior temperature sensor. 2026: Air particulate matter sensor. Electronic toll collection. |
| 37 | 15 A | Adjustable pedals. |
| 38 | 5 A | 2024: Exterior mirrors. 2025: Spare |
| 39 | 5 A | Driver monitor. |
| 40 | 30 A | Amplifier. |
| 41 | 10 A | Navigation. |
| 42 | 15 A | Voice control module. |
| 43 | 30 A | Tailgate. |
| 44 | 40 A | Driver seat. |
| 45 | 30 A | Passenger seat. |
| 52 | 5 A | 2024: Tailgate brake lamp. 2025: Trailer brake switch. |
| 53 | 5 A | 2024: Climate controlled rear seats. 2025: Rear seat module – run feed. |
| 55 | 5 A | Electrochromatic rear view mirror. |
| 60 | 10 A | 2024: Rear sliding window, Moonroof, Driver power window. 2025: Rear sliding window. Glass roof. Driver power window. |
| 61 | 30 A | Rear power window switch. |
| 70 | 20 A | 2024 :Adaptive driver assistance systems. 2025: Advanced driver assistance systems. |
| 71 | 5 A | High mounted camera. |
| 72 | 15 A | Towing trailer connector. |
| 80 | 15 A | Steering column control, Heated steering wheel. |
| 101 | 10 A | USB charge port 3. |
