Ford F-150 (2021 – 2023) Fuse Box Location and Diagrams
Easily locate and identify every fuse in your 2021–2023 Ford F-150 with our comprehensive guide. We provide clear, simplified diagrams and detailed component lists to help you troubleshoot electrical issues quickly, ensuring your truck stays powered and performing at its best on the road.
Fuse Box Location

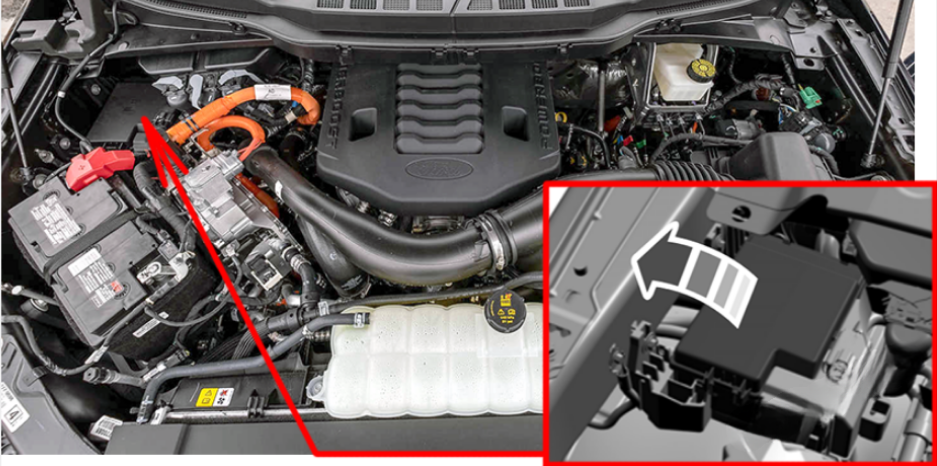

Engine Compartment Fuse Box
Passenger Compartment Fuse Box

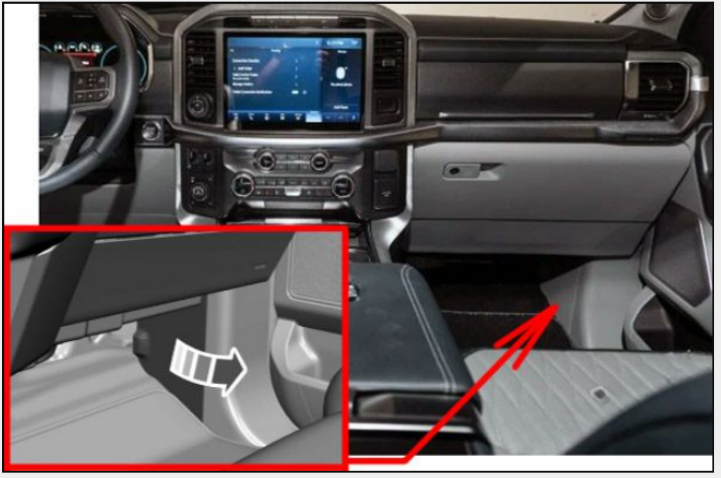

The fuse panel is on the right-hand side of the passenger footwell behind a trim panel.
Fuse Box Diagrams

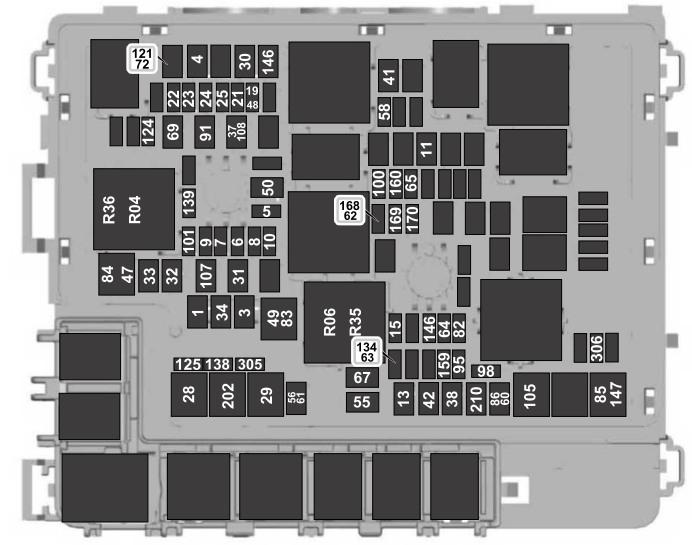

Engine Compartment Fuse Box

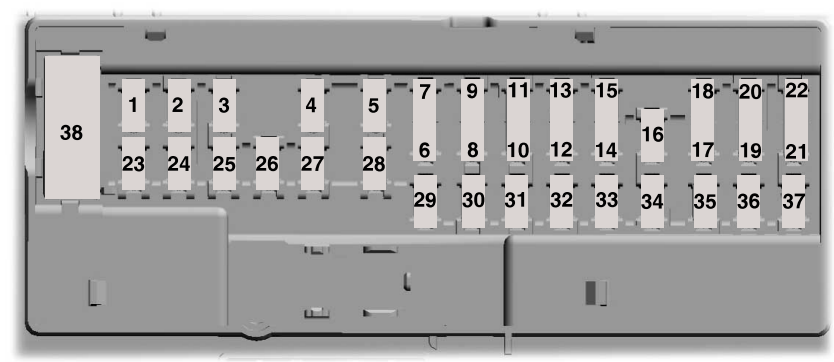

Passenger Compartment Fuse Box
| Fuse Location | Rating | Protected Component |
| 1–5 | – | Not used |
| 2 | 10 A | Delayed accessory feed |
| 3 | 7.5 A | Wireless charger |
| 4 | 20 A | Not used |
| 6 | 10 A | Driver power window switch |
| 7 | 10 A | Gear shift module |
| 8 | 5 A | Cell phone passport module |
| 9 | 5 A | Combined sensor module |
| 10–11 | – | Not used |
| 12 | 7.5 A | Enhanced central gateway; Climate control |
| 13 | 7.5 A | Instrument cluster; Steering column control module |
| 14 | 15 A | Not used (spare) |
| 15 | 15 A | Integrated control panel; SYNC |
| 16 | – | Not used |
| 17 | 7.5 A | Headlamp control module |
| 18 | 7.5 A | Not used |
| 19 | 5 A | Headlamp switch |
| 20 | 5 A | Passive start; Ignition switch; Key inhibit solenoid |
| 21 | 5 A | Trailer brake switch |
| 22 | 5 A | Not used |
| 23 | 30 A | Driver door control module |
| 24 | 30 A | Moonroof |
| 25 | 20 A | Not used |
| 26 | 30 A | Passenger door control module |
| 27 | 30 A | Not used |
| 28 | 30 A | Amplifier |
| 29 | 15 A | 12 inch display; Adjustable pedals |
| 30 | 5 A | Not used |
| 31 | 10 A | RF receiver; Driver monitor; Terrain management switch |
| 32 | 20 A | Audio control module |
| 33 | – | Not used |
| 34 | 30 A | Run/start relay |
| 35 | 5 A | 400 watt inverter run/start |
| 36 | 15 A | Auto-dimming interior mirror; Rear heat seat run/start; Adaptive front steering run/start; Heated wheel |
| 37 | 20 A | Advanced driver-assistance systems |
| 38 | 30 A CB | Rear power windows |
