Ford Explorer (2020 – 2024) Fuse Box Location and Diagrams

Ford Explorer (2020 – 2024) Fuse Box Location and Diagrams

Struggling with electrical issues? Our comprehensive manual provides clear, accurate layouts for the Fuse Box Location and Diagrams User Guide: Ford Explorer (2020 – 2024). Easily identify every fuse and relay to diagnose and repair your vehicle’s electrical system with confidence and ease today.

Fuse Box Location

Engine Compartment Fuse Box

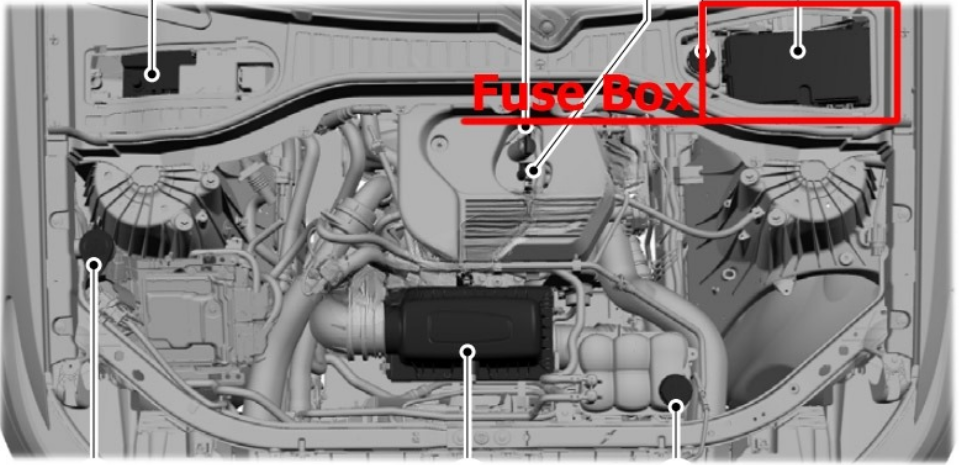

Ford Explorer (2020 – 2024) engine compartment fues box location
Passenger Compartment Fuse Box

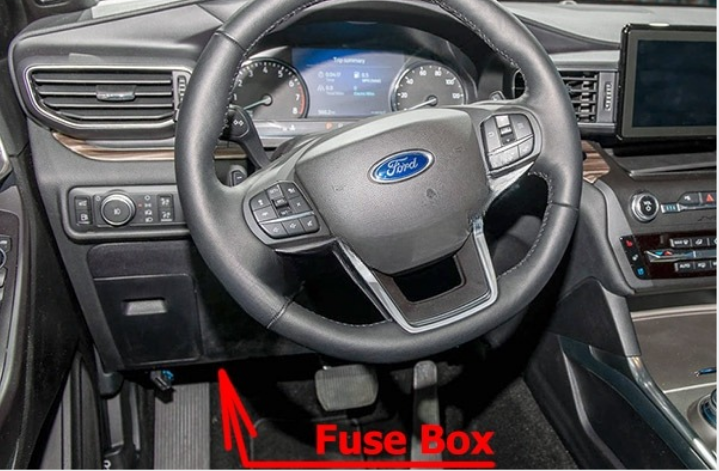

It is located under the instrument panel to the left of the steering column.

Ford Explorer (2020 – 2024) passenger compartment fues box location

Fuse Box Diagrams

Engine Compartment Fuse Box

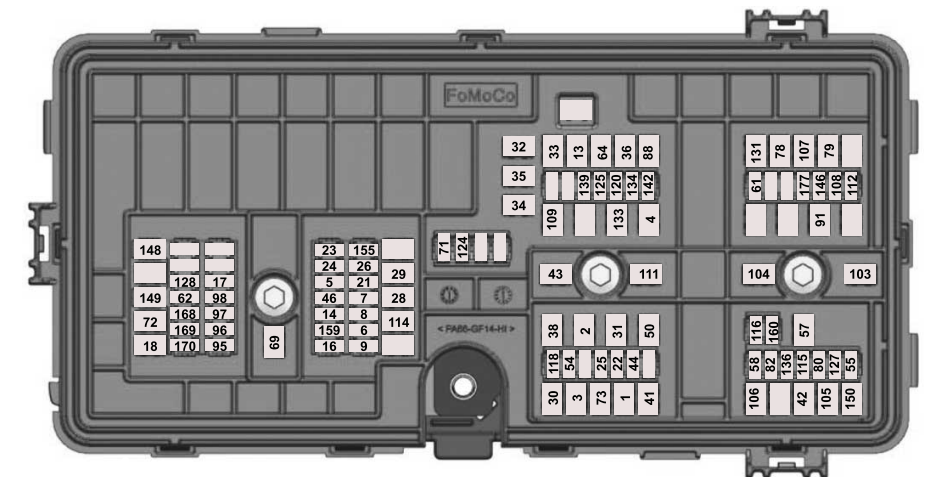

Ford Explorer (2020 – 2024) engine compartment diagrams

Fuse/Relay #RatingProtected Component
140ABody control module – battery power in feed 1.
220APower outlet main console bin.
340ABody control module – battery power in feed 2.
430AFuel pump.
55APowertrain control module keep alive power.
620APowertrain control module power.
720ACanister vent solenoid; Evaporative leak control module; Exhaust gas heat recovery (HEV); Tank pressure control valve (HEV); Refueling valve (PHEV); Vapor blocking valve; Universal exhaust gas oxygen 11 & 21; Catalyst monitor sensor 12 & 22; Canister purge valve.
820ACooling fan relay coil; Battery interrupt box; Transmission oil pump; Auxiliary coolant pump; Fuel flap door (HEV); Engine coolant bypass valve; Active grille shutters.
920AIgnition coils.
1340AFront blower motor relay.
1415ATransmission oil pump; A/C compressor variable clutch; Auxiliary pumps (HEV).
1615AWindshield and rear window washer pump relay power.
175ACharge status indicator (HEV).
1830AStarter motor.
2110AHeadlamp leveling motors; Adaptive headlamps.
2210AElectric power assisted steering module.
2310AAnti-lock brake system module with integrated park brake.
2410APowertrain control module; Hybrid powertrain control module.
2510AAir quality sensor; 360 camera with park aid; Rear view camera; Blind spot information system; Adaptive cruise control module.
2615ATransmission control module.
2840AAnti-lock brake system valves with integrated park brake.
2960AAnti-lock brake system pump with integrated park brake.
3030ADriver seat module.
3130APassenger seat motor.
3220AFront media bin power point.
3320ARear cargo area power point.
3420AConsole end cap power point.
3520APower point 4.
3640APower inverter.
3830AClimate controlled seat module.
4130APower liftgate module.
4230ATrailer brake control module.
4360ABody control module.
4410ABrake on and off switch.
4615ABattery charger control module (HEV).
5040AHeated backlite.
5420AHeated steering wheel.
5520ATrailer tow park lamps.
5730ATrailer tow battery charge.
5810ATrailer tow backup lamps.
6115AMulti-contour seat module.
6215AHeadlamp washer pump.
6440AFour-wheel drive module.
6930AFront window wiper motor.
7115ARear window wiper motor.
7220ANot used (spare).
7330ADriver door module.
7850ALeft-hand heated windshield.
7950ARight-hand heated windshield.
8020ATrailer tow.
8220ANot used (spare).
8820ARear blower motor.
9120ATrailer tow lighting module.
9515AIntegrated spark control (HEV).
9615ANot used (spare).
9710AElectric AC (HEV); High voltage positive temperature coefficient heater (HEV).
9810ATraction battery coolant proportional valve (HEV).
10350ANot used (spare).
10450ANot used (spare).
10540ANot used (spare).
10640ANot used (spare).
10740ANot used (spare).
10820ANot used (spare).
10930APassenger door module.
11130ABody control module voltage quality monitor feed.
11220ANot used (spare).
11450ANot used (spare).
11520AAmplifier.
1165ANot used (spare).
11830ASecond row heated seats.
12015APort fuel injectors.
1245ARain sensor.
1255AUSB smart charger 1.
12720AAmplifier.
12815ANot used (spare).
13140APower folding seat module.
13315AHeated wiper park.
13410AFamily entertainment system.
13620ANot used (spare).
1395AUSB smart charger 2.
1425ATraffic cam.
14615ABattery electronic control module.
14830ALeft-hand headlamp module.
14930ARight-hand headlamp module.
15040ANot used (spare).
15525ATransmission control module (HEV).
15915ADC/DC converter (HEV).
16010ANot used (spare).
16820ALow voltage service disconnect.
16910ACoolant pump (HEV).
17010ATraction battery coolant pump (HEV); Pedestrian sounder (HEV).
17710ANot used (spare).
Passenger Compartment Fuse Box

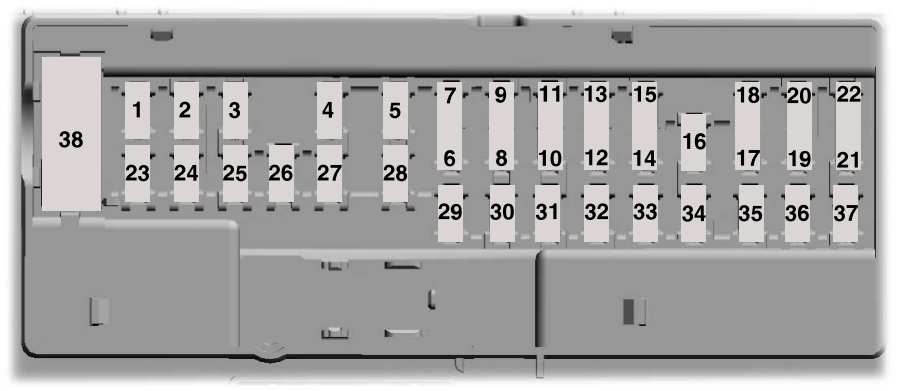

Ford Explorer (2020 – 2024) passenger compartment diagrams

Fuse/Relay #RatingProtected Component
1—Not used.
210AMoonroof; ERA-GLONAS; eCall; Telematics control unit module; Inverter; Driver door switch pack.
37.5AMemory seat switch; Wireless accessory charger module; Seat switches.
420ANot used (spare).
5—Not used.
610ANot used.
710ASmart data link connector power.
85ATelematics control unit modem; Hands-free liftgate actuation module; Power liftgate module.
95AKeypad switch; Rear climate control.
10—Not used.
11—Not used.
127.5AClimate control head; Gear shift module.
137.5ASteering column control module; Smart datalink connector; Instrument cluster.
1415ANot used (spare).
1515ASYNC; Integrated control panel.
16—Not used.
177.5AHeadlamp control module.
187.5ANot used (spare).
195AHeadlamp switch; Push button ignition switch.
205AIgnition switch; Telematics control unit module; Key inhibit solenoid lock.
215ANot used.
225ANot used (spare).
2330ANot used (spare).
2430AMoonroof.
2520ANot used (spare).
2630ANot used (spare).
2730ANot used (spare).
2830ANot used (spare).
2915ANot used (spare).
305ATrailer brake connector.
3110ATerrain management switch; Selectable drive mode switch; Transceiver module.
3220AAudio control module.
33—Not used.
3430ARun/start relay.
355ANot used (spare).
3615APark assist module; Image processing module A.
3720ANot used (spare).
3830ALeft-hand rear power window; Right-hand rear power window.
