Ford Explorer (2025 – 2026) Fuse Box Location and Diagrams
Need to find a fuse or relay for your 2025 –2026 Ford Explorer? Our comprehensive user guide simplifies the process, providing detailed diagrams and clear location instructions for every electrical component. Quickly identify, troubleshoot, and maintain your vehicle’s power systems with ease.
Fuse Box Location

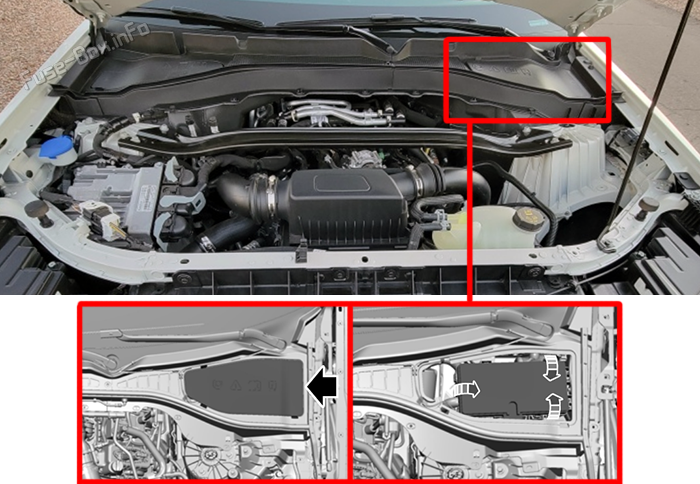

Engine Compartment Fuse Box
Remove the top cover to get to the fuse box and then remove the fuse box cover to access the fuses.

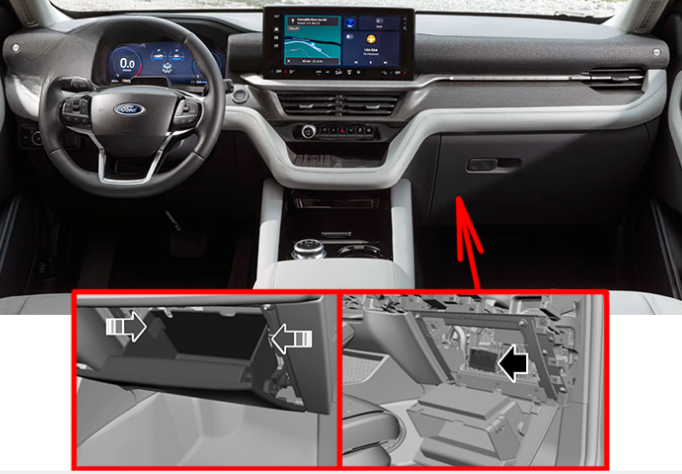

Passenger Compartment Fuse Box
Open the glove compartment, push the tabs inward to release the detent and fully lower the glove compartment.
Fuse Box Diagrams

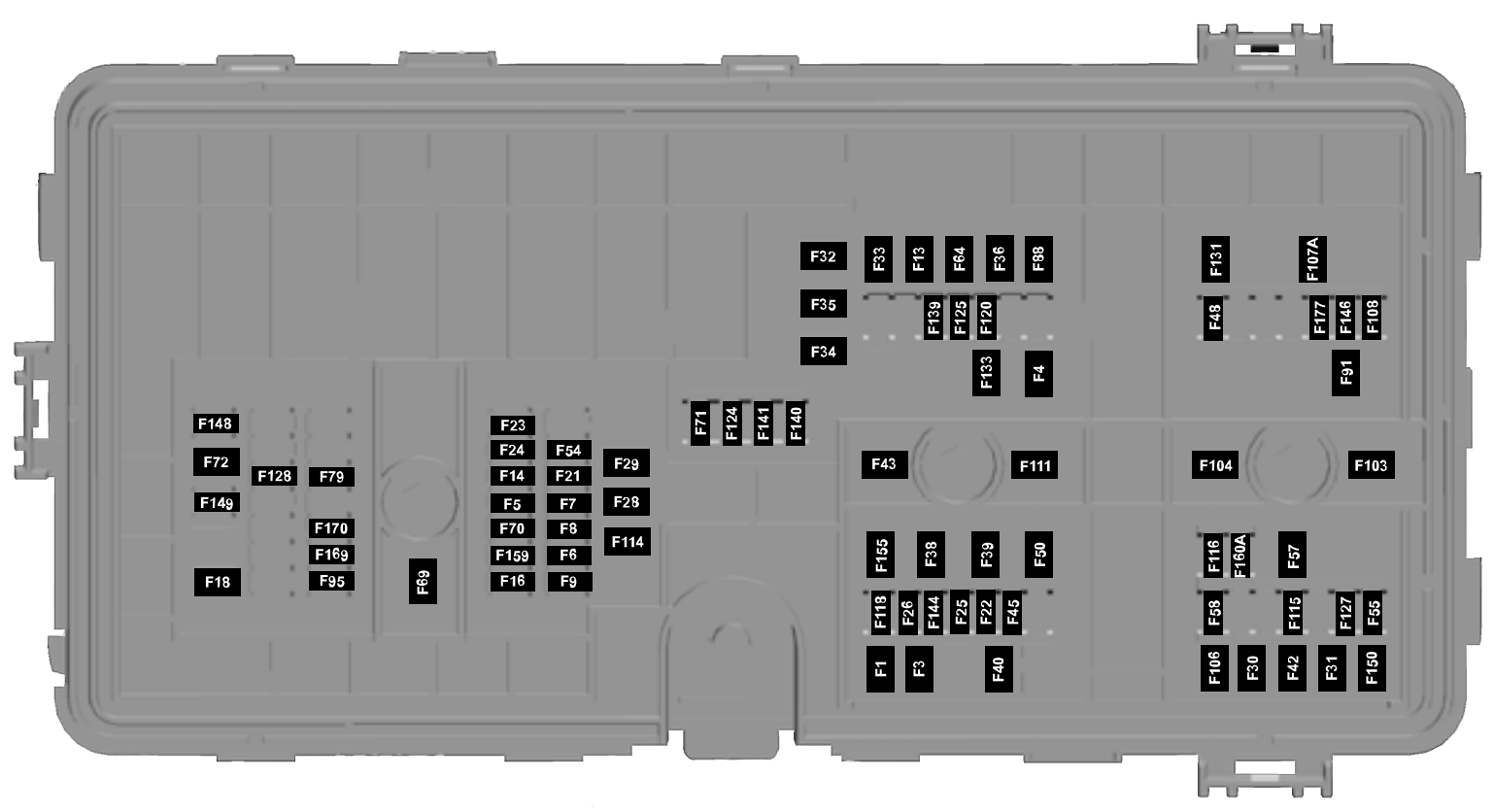

Engine Compartment Fuse Box
| Fuse / Relay Number | Fuse Rating | Protected Components |
| 1 | 30 A | Body control module feed 1 |
| 3 | 30 A | Body control module feed 2 |
| 4 | 30 A | Fuel pump feed |
| 5 | 5 A | Live power |
| 6 | 20 A | Powertrain control module – vehicle power 1 |
| 7 | 20 A | Powertrain control module – vehicle power 2 |
| 8 | 20 A | Powertrain control module – vehicle power 3 |
| 9 | 20 A | Powertrain control module – vehicle power 4 |
| 13 | 40 A | Blower motor |
| 14 | 15 A | Powertrain control module – auxiliary vehicle power 3 |
| 16 | 15 A | Rear windshield washer |
| 18 | 30 A | Starter motor solenoid |
| 21 | 10 A | 2026 : Not used (spare) |
| 22 | 5 A | Run-start signal – electronic power assist steering |
| 23 | 5 A | Run-start signal – anti-lock brake system |
| 24 | 5 A | Run-start signal – powertrain control module |
| 25 | 10 A | Air quality sensor |
| 26 | 15 A | Run-start power – transmission oil pump |
| 28 | 40 A | Anti-lock brake system valves |
| 29 | 60 A | Anti-lock brake system pump |
| 30 | 50 A | Upfitter interface module power feed 1 (police) |
| 31 | 50 A | Upfitter interface module power feed 2 (police) |
| 32 | 20 A | Power outlet 1 – front bin |
| 33 | 20 A | Power outlet 2 – cargo area |
| 34 | 20 A | Power outlet 3 – main bin (police) |
| 35 | 20 A | Power outlet 4 – back of console |
| 36 | 40 A | 110 V inverter |
| 38 | 30 A | Climate controlled front seats |
| 39 | 30 A | 2026: Not used (spare) |
| 40 | 60 A | 2026: Not used (spare) |
| 42 | 30 A | Trailer tow brake control |
| 43 | 40 A | Body control module feed 3 |
| 45 | 15 A | Run-start power – interior power distribution box |
| 48 | 5 A | Police accessory independent timed-release output |
| 50 | 40 A | Heated rear window |
| 54 | 20 A | Run-start power – heated steering wheel. Run-start power 1 – police tap-in (police). Run-start power – visor control module (police) |
| 55 | 20 A | Trailer tow park lamps |
| 57 | 30 A | Trailer tow battery charge |
| 58 | 10 A | Trailer tow back up lamps |
| 64 | 40 A | Driveline control module |
| 69 | 30 A | Front wiper motor |
| 70 | 10 A | Onboard diagnostics connector |
| 71 | 15 A | Rear wiper motor |
| 72 | 20 A | 2026: Not used (spare) |
| 79 | 5 A | Headlamp control module |
| 88 | 20 A | Rear blower motor |
| 91 | 20 A | Trailer tow lighting module |
| 95 | 15 A | Hybrid powertrain control module (FHEV only) |
| 103 | 50 A | Cargo area power feed 2 (police) |
| 104 | 50 A | Cargo area power feed 1 (police) |
| 106 | 40 A | Police 6-way inline power feed 2 |
| 107 | 40 A | Police 6-way inline power feed 1 |
| 108 | 20 A | Police spot lamps |
| 111 | 30 A | Body control module feed 4 |
| 114 | 50 A | 2026: Not used (spare) |
| 115 | 20 A | Audio amplifier power feed 1. Police tap-in power feed 2 |
| 116 | 5 A | Start signal – police tap-in |
| 118 | 30 A / 20 A | 2026: Rear heated seats / Run-start power 2 – police tap-in |
| 120 | 15 A | Fuel injectors |
| 124 | 5 A | Rain sensors |
| 125 | 5 A | 2026: Not used (spare) |
| 127 | 20 A | Audio amplifier power feed 2. Police tap-in power feed 1 |
| 128 | 5 A | 2026: Not used (spare) |
| 131 | 40 A | Power folding seats |
| 133 | 15 A | 2026: Not used (spare) |
| 139 | 5 A | USB power outlet – back of console |
| 140 | 5 A | USB power outlet – main bin |
| 141 | 5 A | USB power outlet – third row. USB power outlet – cargo area (police) |
| 144 | 15 A | 2026: Not used (spare) |
| 146 | 5 A | Hybrid battery energy control module (FHEV only) |
| 148 | 30 A | Left LED headlamp |
| 149 | 30 A | Right LED headlamp |
| 150 | 40 A | Police 6-way inline power feed 3 |
| 155 | 25 A | Transmission oil pump (FHEV only) |
| 159 | 15 A | DC/DC converter (police) |
| 160 | 10 A | Police tap-in power feed 3 |
| 169 | 10 A | Motor electric cooling pump (FHEV only) |
| 170 | 10 A | Traction battery cooling pump (FHEV only) |
| 177 | 10 A | 2026: Not used (spare) |

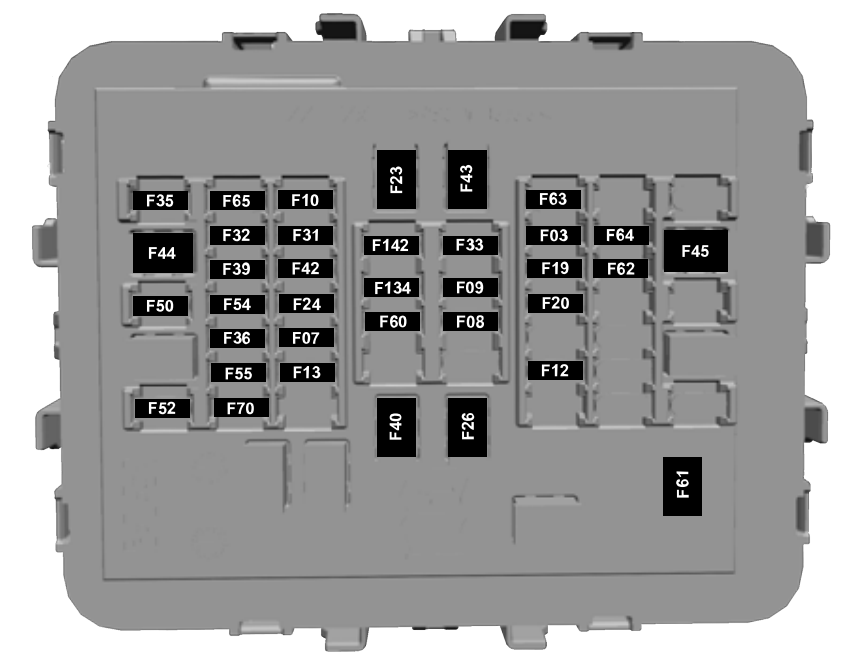

Passenger Compartment Fuse Box
| Fuse / Item | Fuse Rating | Protected Components |
| 3 | 7.5 A | Wireless accessory charging module, Driver seat switch, Lumbar motor |
| 7 | 7.5 A | Gear shift module, Not used (police) |
| 8 | 7.5 A | Embedded modem |
| 9 | 5 A | Driver keypad, Rear climate control module |
| 10 | 15 A | Driver multi-contour seat module, Passenger multi-contour seat module, Not used (police) |
| 12 | 5 A | Climate control module |
| 13 | 7.5 A | Steering column control module |
| 19 | 7.5 A | 2026: Not used (spare) |
| 20 | 5 A | Headlamp switch, Ignition switch (police), Key inhibit solenoid (police) |
| 23 | 60 A | Driver door module |
| 24 | 30 A | Glass roof, Not used (police) |
| 26 | 60 A | Passenger door module |
| 31 | 10 A | Terrain management switch, Enhanced central gateway, Radio transceiver module |
| 32 | 20 A | Radio |
| 33 | 7.5 A | Instrument cluster |
| 35 | 10 A (2025) / 15 A (2026) | Center display, Integrated computer screen (police) |
| 36 | 5 A | 2026: Not used (spare) |
| 39 | 5 A | Power liftgate module, Driver status monitor camera, Not used (police) |
| 40 | 60 A | 2026: Not used (spare) |
| 42 | 15 A | Phoenix module, Integrated control panel 2026: Phoenix module, Not used (spare), Integrated control panel |
| 43 | 30 A | Power liftgate module, Not used (police) |
| 44 | 30 A | Driver seat motors |
| 45 | 30 A | Passenger seat motors |
| 50 | 10 A | Rear wig-wag module (police) |
| 52 | 5 A | All wheel drive module |
| 54 | 5 A | Low gear select (police) |
| 55 | 5 A | Auto dimming rear view mirror, Not used (police) |
| 60 | 10 A | 2025: Glass roof, Driver door switch pack / 2026: Power inverter, Police tap-in |
| 61 | 30 A | Rear power windows |
| 62 | 20 A | 2026: Not used (spare) |
| 63 | 20 A | 2026: Not used (spare) |
| 64 | 20 A | 2026: Not used (spare) |
| 65 | 20 A | 2026: Not used (spare) |
| 70 | 20 A | Advanced driver assistance system |
| 134 | 10 A | 2025: Power inverter, Police tap-in (delayed accessory) |
| 142 | 5 A | 2026: Not used (spare) |
