Ford Transit (2019 – 2026) Fuse Box Location and Diagrams
Easily locate and understand the fuse box layout for your Ford Transit (2019-2026). This comprehensive guide provides clear diagrams and specifications to help you troubleshoot electrical issues quickly and safely. Ensure your vehicle remains in top condition with these essential maintenance resources.
Fuse Box Location

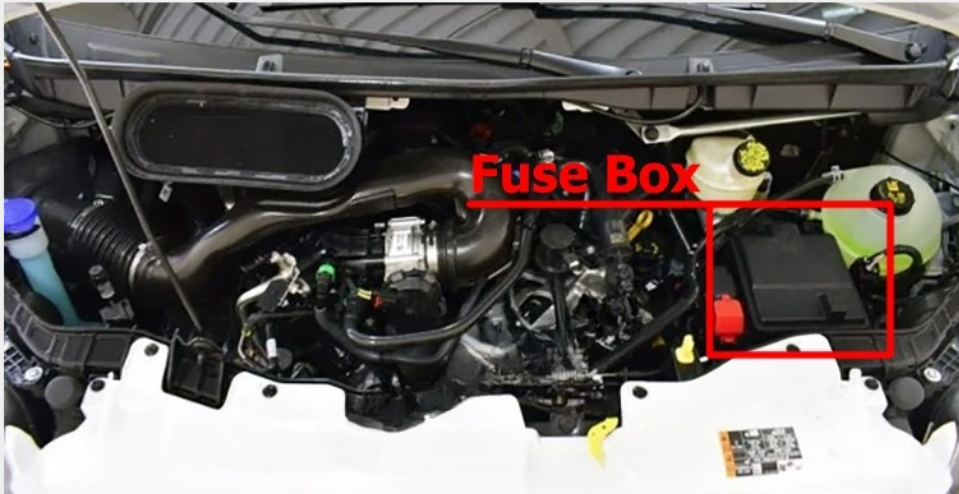

Engine Compartment Fuse Box

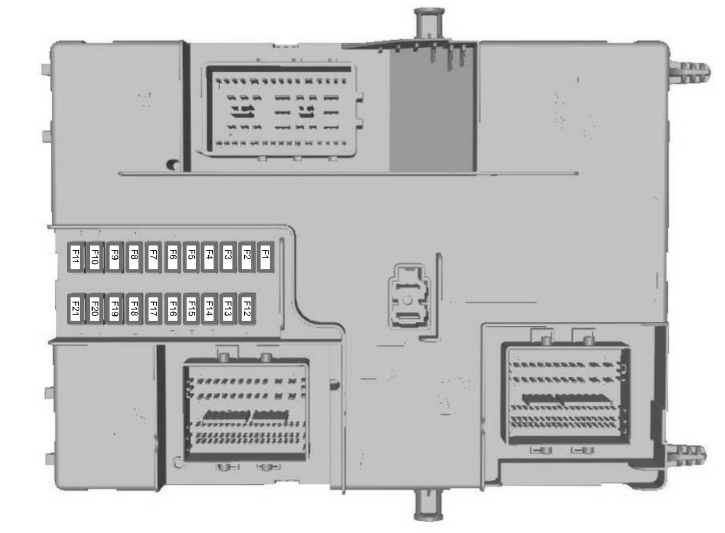

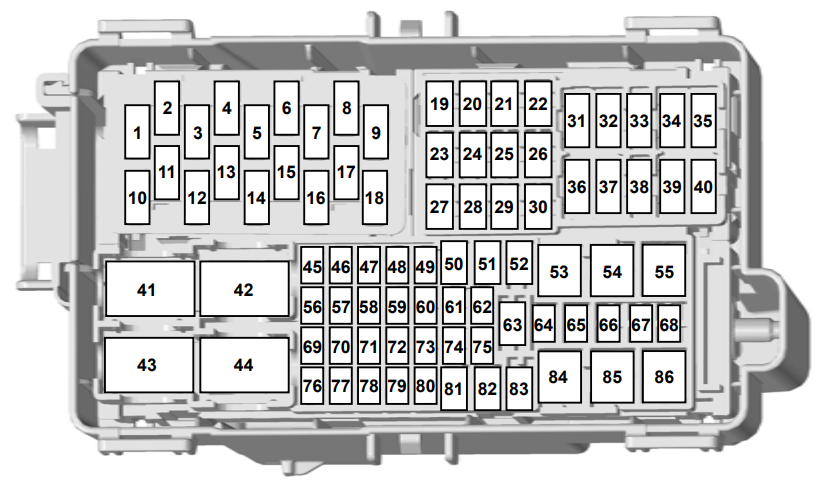

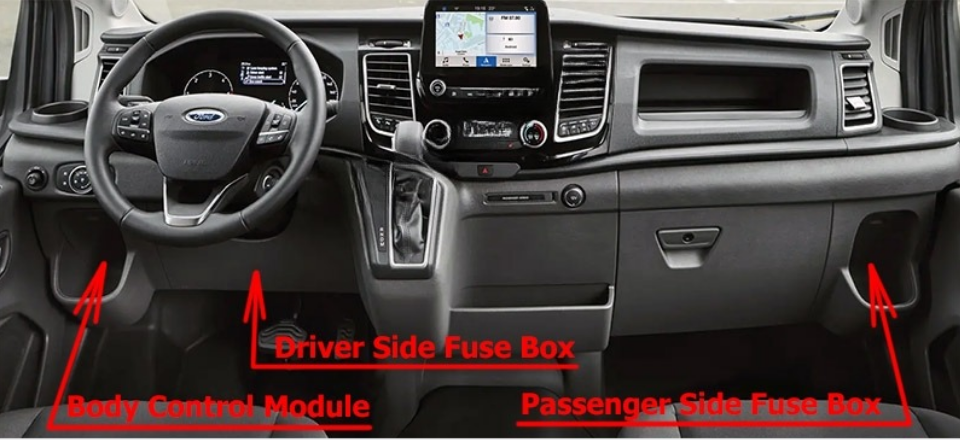

Driver Side Fuse Box, Passenger Side Fuse Box & Body Control Module

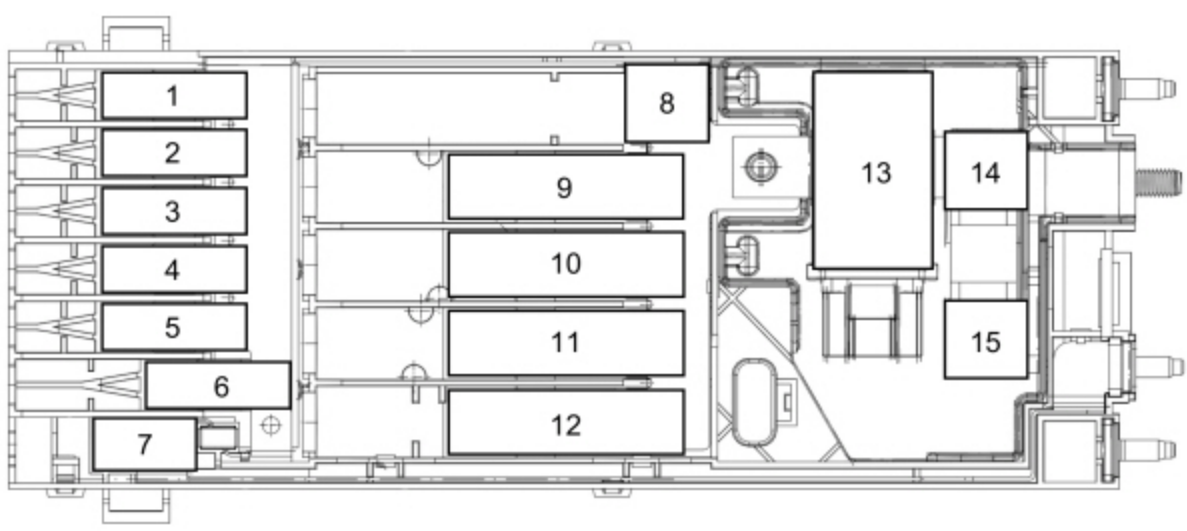

Pre-fuse Box
This is located under the driver seat.
Fuse Box Diagrams
Engine Compartment Fuse box

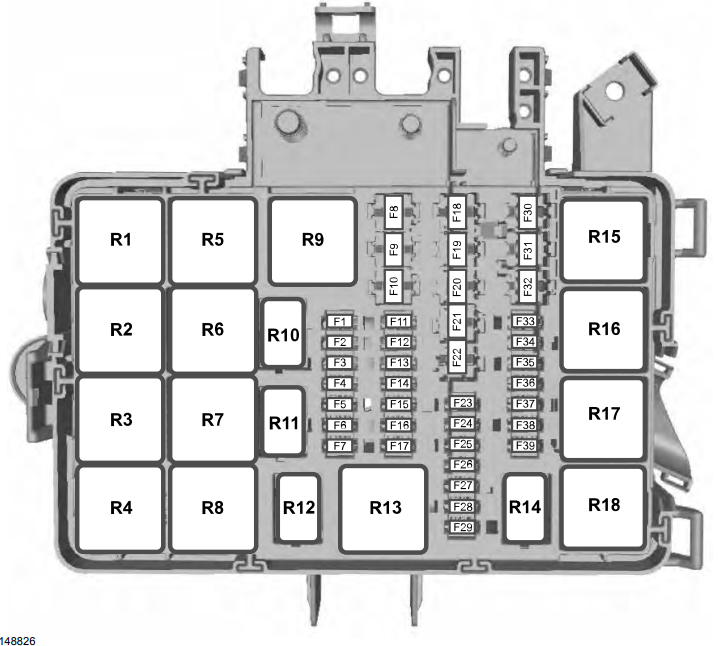

Ford Transit (2019)
| Fuse Number | Fuse Rating | Protected Component |
| F1 | 10 A | Selective catalytic reduction system. |
| F2 | 15 A | Selective catalytic reduction system. |
| F3 | 15 A | Selective catalytic reduction system. |
| F4 | 10 A | Selective catalytic reduction system. |
| F5 | 3 A | Diesel particulate filter vaporizer. Glow plug monitor. |
| F6 | – | Not used. |
| F7 | 7.5 A | Automatic transmission module. |
| F8 | – | Not used. |
| F9 | – | Not used. |
| F10 | 30 A | Power step. Heated seats. |
| F11 | 10 A | Air conditioning clutch. |
| F12 | 20 A | Diesel particulate filter vaporizer glow plug. |
| F13 | – | Not used. |
| F14 | 3 A | Selective catalytic reduction system. |
| F15 | – | Not used. |
| F16 | 10 A | Fuel pump relay. |
| F17 | 15 A | Automatic transmission module. |
| F18 | 30 A | Fuel pump relay. Automatic transmission module. |
| F19 | 30 A | Starter motor solenoid. |
| F20 | 60 A | Glow plugs. |
| F21 | 60 A | Ignition relay 3. |
| F22 | 40 A / – | Selective catalytic reduction system. / Not used. |
| F23 | 10 A | Spare. |
| F24 | – | Not used. |
| F25 | 10 A | Spare. |
| F26 | 20 A | Spare. |
| F27 | – | Not used. |
| F28 | 7.5 A | Crankcase pressure sensor. |
| F29 | – / 7.5 A | Not used. / Positive crankcase ventilation valve heater element. |
| F30 | 60 A / – | Cooling fan. / Not used. |
| F31 | – | Not used. |
| F32 | 30 A | Windshield wiper motor. |
| F33 | – | Not used. |
| F34 | – | Not used. |
| F35 | 15 A | Powertrain control module. |
| F36 | 15 A | Particulate matter sensor. Selective catalytic reduction system. Nitrogen oxides sensor. |
| F37 | 7.5 A | Fuel volume control valve. |
| F38 | – / 7.5 A | Not used. / Air conditioning clutch. |
| F39 | 15 A | Exhaust gas temperature sensor. Fuel vaporizer system fuel pump. Coolant bypass solenoid valve. Low-speed cooling fan. High-speed cooling fan. |

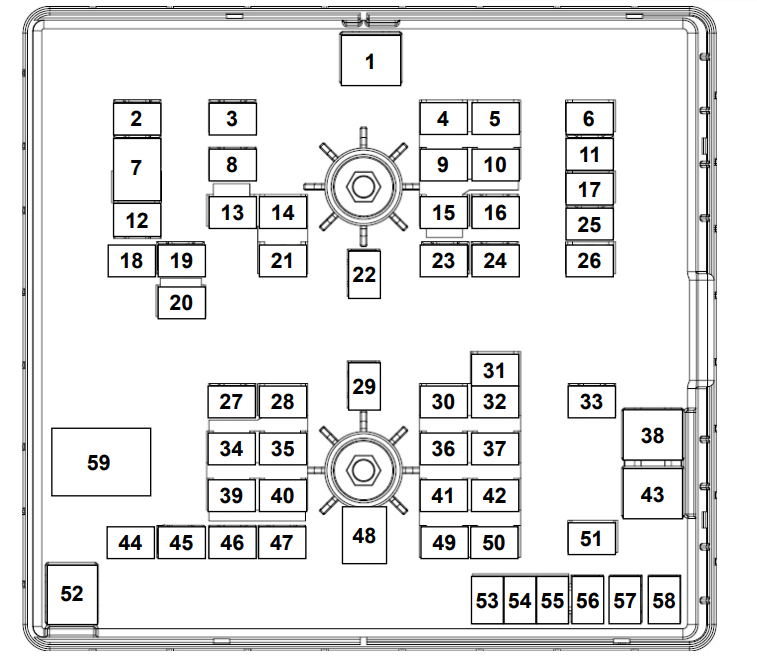

Ford Transit (2020 to 2023)
| Item | Fuse Rating | Protected Component |
| 1 | 50 A | Wipers. |
| 2 | 40 A (2020) | 2020: All-Wheel Drive 2021: Not used. |
| 3 | 40 A | 2020: Right-hand heated windshield element. 2021: All-wheel drive – gasoline. 2022: Not used (Spare). |
| 4 | 30 A | Parking lamps. |
| 5 | 10 A | Reversing lamp. |
| 6 | – 15 A | 2021: NOT USED 2022: Electric steering column lock. |
| 7 | 40 A | Front blower motor. |
| 8 | 40 A | 2020: Left-hand heated windshield element. 2021,2022: Not used. 2023: Brake vacuum pump – gasoline. |
| 9 | 15 A | Not used (Spare). |
| 10 | 5 A – | 2023: Hybrid powertrain control module – battery electric vehicle. 2022:Not used. |
| 11 | 40 A | Auxiliary power point. USB port. |
| 12 | 20 A | Horn. |
| 13 | 10 A | 2020,2022: Selective catalytic reduction system. 2021: Not used (Spare). |
| 14 | 15 A | 2021, 2023: Vehicle power. (Excluding 510 series) |
| 2023: All-wheel drive vehicle power. (510 series) 2022: Not used (Spare). | ||
| 15 | 5 A | 2022: Charge port – battery electric vehicle. 2021: not used |
| 16 | 40 A | 2022: Not used. 2023: Brake vacuum pump – battery electric vehicle. |
| 17 | 10 A | Right-hand high-intensity discharge headlamps. |
| 18 | 40 A | Rear window defroster. |
| 19 | 20 A 20 A | 2022: Not used (Spare). 2021: Front fog lamp. |
| 20 | 10 A | Power folding mirrors. |
| 21 | 15 A | Vehicle power 4 – gasoline. |
| 22 | 40 A | Rear blower motor. |
| 23 | 20 A 20 A | 2021: Fuel pump 2023: Fuel pump motor – gasoline. 2022: Not used |
| 24 | 40 A | Run/Start relay. |
| 25 | 40 A | Auxiliary power points. |
| 26 | 10 A | Left-hand high-intensity discharge headlamps. |
| 27 | – | Not used. |
| 28 | 20 A / 5A (2022) 20 A(2023) | 2021, 2022: Vehicle power 1. 2023:” Vehicle power 1 – gasoline. |
| 5 A (2023) | 2023: Powertrain control module – battery electric vehicle. | |
| 29 | 40 A (2020) – | 2020: Fuel filter heater 2021: Not used. |
| 30 | 15 A 10 A (2022) 15 A | 2021: Coolant pump 2022: Not used (Spare). 2023: Water pump – gasoline. |
| 31 | 5 A | Not used (Spare). |
| 32 | 15 A | Transmission control module. |
| 5 A | Run/Start powertrain control module – battery electric vehicle. | |
| 33 | 30 A
30 A | 2021: Starter motor. 2022: Not used 2023: Starter motor – gasoline. |
| 34 | 15 A / 5A (2022)
5A (2023) | 2020, 2022 : Selective catalytic reduction system 2021: Not used (Spare). 2023: Not used (Spare). |
| 35 | 15 A 15 A 15 A | 2021: Vehicle power 2 2022: Not used (Spare). 2023: Vehicle power 2 – gasoline. |
| 36 | 5 A 5 A 5 A | 2021: Engine coolant bypass valve. 2022: Run/Start power distribution box 2023: Electric compression bypass valve. |
| 2023: Run/Start power distribution box – battery electric vehicle. | ||
| 37 | 5 A 5 A 5 A 5 A | 2021: Glow plugs, Powertrain control module. 2022: Run/Start power control module. 2023: Glow plug. |
| 2023: Run/Start power control module – battery electric vehicle. | ||
| 38 | 40 aA /60 A (2021)
60 A (2020) 60 A (2023) | 2021 Anti-lock brake system with electronic stability control (excluding 510 series), Cooling fan (510 series).2022: Power distribution box.2023:Power distribution box – battery electric vehicle, Cooling fan (510 series). |
| 2020: Cooling fan (510 series). | ||
| 39 | 15 A (2020) | 2020: Selective catalytic reduction system. 2021,2022,2023 : Not used (Spare). |
| 40 | 10 A | Vehicle power 3 – gasoline. |
| 15 A | Heater pump – battery electric vehicle. AC compressor – battery electric vehicle. | |
| 41 | 10 A
10 A | 2020: Controller glow plug. 2021: Not used 2022: Glow plugs. 2023: Onboard generator inverter – battery electric vehicle. |
| 42 | 15 A (2020) | 2020: Transmission control unit |
| – 15 A | 2021: Not used (excluding 510 series) 2021: Cooling fan (510 series). | |
| 43 | 60 A | Anti-lock brake system pump. |
| 44 | 25 A 25 A – | 2020: Cooling fan. 2021: Cooling fan (excluding 510 series), 2021: Not used (510 series). 2022: Not used 2023: Series fan (Excluding 510 series). |
| 45 | 30 A | Trailer socket. |
| 46 | 40 A 20 A | 2020: Glow plugs. 2021: Not used (Spare). |
| 47 | 40 A – | 2020: Glow plugs. 2021: Not used (Spare). |
| 48 | 50 A 50 A 40 A 50 A | 2020: Cooling fan. 2021,2023: Cooling fan (Excluding 510 series), 2021: Anti-lock brake system with electronic stability 2022: Not used (Spare). |
| 49 | 15 A
5 A | 2020,2022: Nitrogen oxides sensor. 2021: Not used. 2023: Electric fan relay coil – battery electric vehicle. |
| 50 | 5 A | 2020: Closed crankcase ventilation heater. 2021: Not used. Secondary battery charger. |
| 51 | 10 A – 10 A | 2021: Air conditioning clutch. 2022: Not used 2023: AC clutch – gasoline. |
| 52 | 50 A (2020) 50 A 60 A | 2020: Cooling fan. 2023: Cooling fan (Excluding 510 series). 2022: Not used (Spare). |
| 60 A | 2023: Cooling fan (510 series). | |
| 53 | – 5 A 5 A | 2021: Not used. 2022: Battery electronic control module 2023: Battery electronic control module – battery electric vehicle. |
| 54 | 20 A | Battery back-up sounder. |
| 55 | 25 A 5 A | 2021: Transmission fluid pump 2022: DC/DC converter |
| 25 A 5 A | 2023: Transmission fluid pump – gasoline. 2023: DC/DC converter – battery electric vehicle. | |
| 56 | 20 A | 2020: Fuel fired booster heater. 2021 Not used (Spare). |
| 57 | 25 A – 40 A | 2020: Anti-lock brake system with electronic stabilitycontrol. 2021 :Not used 2022,2023 : Anti-lock brake system valves. |
| 58 | 30 A | Trailer socket. |
| 59 | – | 2021, 2023 : Cooling fan relay – gasoline. 2022: Not used |

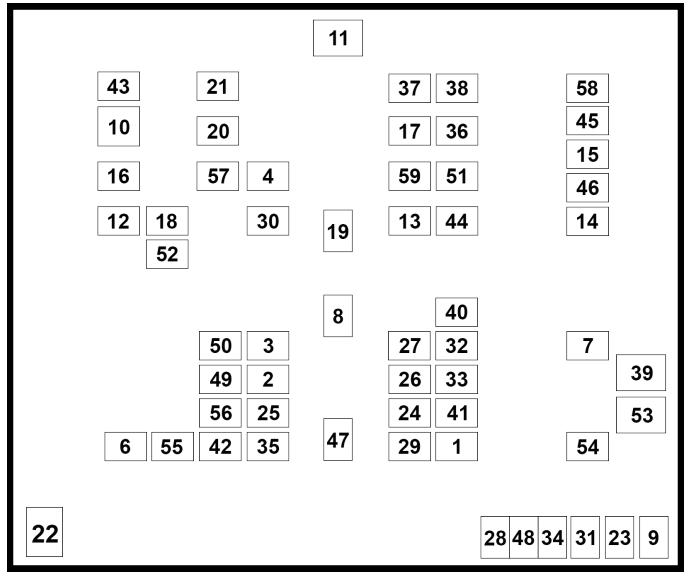

Ford Transit (2024 and 2025)
| Item | Fuse Rating | Protected Component |
| 1 | – | Not used (Spare). |
| 2 | 15 A | Reduction pump – Gasoline. Exhaust gas recirculation cooler bypass valve – Gasoline. Universal Exhaust Gas Oxygen Sensor – Gasoline. |
| 3 | 15 A | Powertrain control module – Battery Electric Vehicle. |
| 20 A | Powertrain control module – Gasoline. | |
| 4 | 15 A | Powertrain control module – Gasoline. |
| 5 | – | Not used (Spare). |
| 6 | 25 A | Cooling fan – Gasoline. |
| 7 | 30 A | Starter motor – Gasoline. |
| 8 | – | Not used (Spare). |
| 9 | – | Not used (Spare). |
| 10 | 40 A | Control module heater blower – Battery Electric Vehicle. |
| Blower motor – Gasoline. | ||
| 11 | 50 A | Windshield wipers. |
| 12 | 40 A | Rear window defroster. |
| 13 | 20 A | Fuel pump – Gasoline. |
| 14 | 10 A | Left-hand headlamp. |
| 15 | 10 A | Right-hand headlamp. |
| 16 | 20 A | Horn. |
| 17 | – | Not used (Spare). |
| 18 | – | Not used (Spare). |
| 19 | 40 A | Rear heater blower – Gasoline. |
| 20 | 40 A | Not used (Spare). |
| 21 | 40 A | All-wheel drive – Gasoline. |
| 22 | 50 A | Cooling fan 2 – Gasoline. High-speed cooling fan -Gasoline. Resistor – Gasoline. |
| 60 A | ||
| 23 | 40 A | ABS/ESP control module. |
| 24 | 10 A 10 A | 2024: Power inverter – Battery Electric Vehicle. On board generator inverter – Battery Electric Vehicle. 2024: Power inverter – Battery Electric Vehicle |
| 25 | 15 A (2025) (2024 ) | 2025: Positive temperature coefficient heater pump – Gasoline. Positive temperature coefficient heater valve – Gasoline. Air conditioning compressor. 2024: Positive temperature coefficient heater pump – Gasoline 2024: Positive temperature coefficient heater valve – Gasoline. Air conditioning compressor. |
| 10 A (2025) (2024 ) | ||
| 26 | 5 A | Micro module power – Battery Electric Vehicle. |
| Exhaust gas recirculation cooler bypass valve – Gasoline. | ||
| 27 | – | Not used (Spare). |
| 28 | 5 A | Traction control module battery control – Battery Electric Vehicle. |
| 29 | 5 A | Cooling fan – Battery Electric Vehicle. |
| 30 | 15 A | Reductant tank – Gasoline. Particulate matter sensor – Gasoline. |
| 31 | – | Not used (Spare). |
| 32 | 10 A | Powertrain control module – Battery Electric Vehicle. |
| 15 A | Automatic transmission module – Gasoline. | |
| 33 | 5 A | Powertrain control module – Gasoline. |
| 34 | 5 A | Direct Current to Direct Current converter – Battery Electric Vehicle. |
| 35 | – | Not used (Spare). |
| 36 | 5 A | Powertrain control module – Battery Electric Vehicle. |
| 37 | 30 A | Trailer tow park – Gasoline. |
| 38 | 10 A | Trailer tow backup – Gasoline. |
| 39 | 60 A | Power distribution box – Battery Electric Vehicle. |
| High-speed cooling fan – Gasoline. | ||
| 40 | 5 A | Anti-lock Braking System. |
| 41 | 10 A | Body control module battery charger – Battery Electric Vehicle. |
| 42 | – | Not used (Spare). |
| 43 | – | Not used (Spare). |
| 44 | 40 A | Upfitter connector power – Battery Electric Vehicle. |
| Run/Start relay 2 – Gasoline. | ||
| 45 | 40 A | USB port. |
| 46 | 40 A | USB port. |
| 47 | 60 A | Cooling fan – Battery Electric Vehicle. |
| 50 A | Cooling fan – Gasoline. | |
| 48 | – | Not used (Spare). |
| 49 | – | Not used (Spare). |
| 50 | – | Not used (Spare). |
| 51 | 40 A | Electric vacuum pump – Battery Electric Vehicle. |
| 52 | 10 A | Power folding mirrors. |
| 53 | 60 A | ABS/ESP control module – Battery Electric Vehicle. |
| ABS pump – Gasoline. | ||
| 54 | 10 A | Air conditioning clutch – Gasoline. |
| 55 | 30 A | Trailer tow socket – Gasoline. |
| 56 | – | Not used (Spare). |
| 57 | – | Not used (Spare). |
| 58 | 15 A | Not used (Spare). |
| 59 | 5 A | Body control module AC charger – Battery Electric Vehicle. |

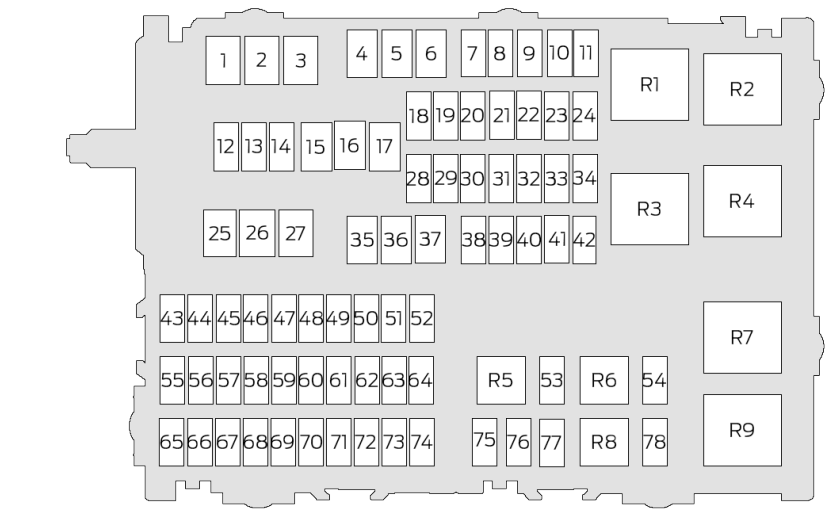

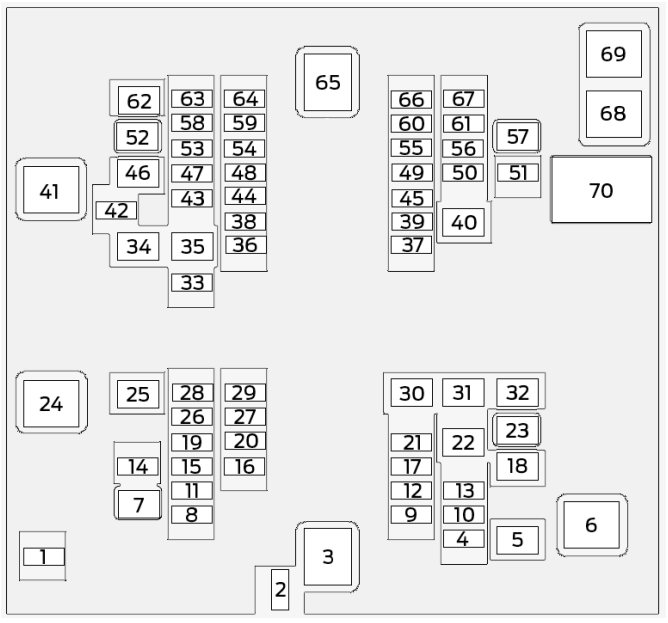

Ford Transit (2026)
Ford Transit (2019)

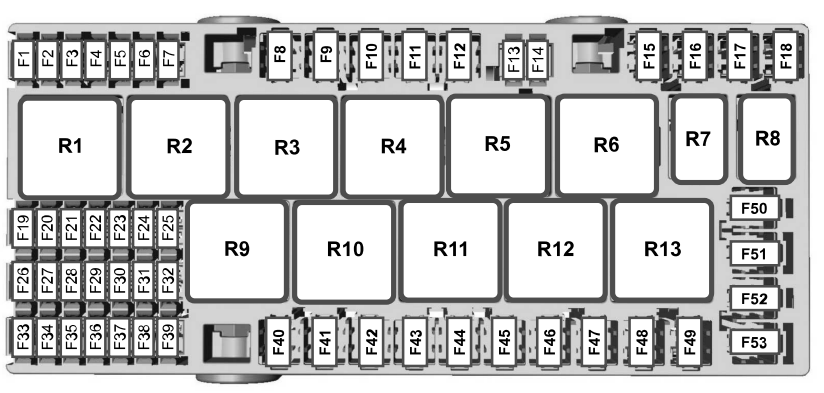

Passenger Compartment Fuse box
| Fuse Number | Fuse Rating | Protected Component |
| F1 | 10 A | Restraints control module. |
| F2 | 4 A | Anti-lock brake system with electronic stability control; Parking brake. |
| F3 | 7.5 A | Interior lighting; Power point relay control. |
| F4 | 10 A | Trailer tow reversing lamp relay. |
| F5 | 20 A | Modified vehicle connections. |
| F6 | – | Not used. |
| F7 | 10 A | Battery saver relay. |
| F8 | 40 A | Direct current/alternating current inverter. |
| F9 | 30 A | Trailer brake control module. |
| F10 | 30 A | Driver power seat. |
| F11 | 30 A | Passenger power seat. |
| F12 | 30 A | Trailer lamps. |
| F13 | 25 A | Anti-lock brake system with electronic stability control. |
| F14 | 5 A | Powertrain control module. |
| F15 | 40 A | Powertrain control module relay. |
| F16 | 40 A | Body control module. |
| F17 | 40 A | Anti-lock brake system. |
| F18 | 40 A | Modified vehicle connections. |
| F19 | 5 A | Trailer module. |
| F20 | 5 A | Heated exterior mirror relay; Heated rear window; Direct current/alternating current inverter. |
| F21 | 10 A | Modified vehicle connections. |
| F22 | – | Not used. |
| F23 | 7.5 A | Air conditioning control module. |
| F24 | 10 A | Modified vehicle connections. |
| F25 | 15 A | Body control module. |
| F26 | 10 A | Heated exterior mirrors. |
| F27 | 20 A | Heated rear window. |
| F28 | 20 A | Heated rear window. |
| F29 | 10 A | Rear parking aid camera; Lane keeping system; Interior rear view mirror. |
| F30 | – | Not used. |
| F31 | 10 A | Trailer brake ignition feed. |
| F32 | 10 A | Interior lighting. |
| F33 | 10 A | Driver heated seat. |
| F34 | 10 A | Passenger heated seat. |
| F35 | 5 A | Exterior mirrors; Driver door window control switch. |
| F36 | 20 A | Horn. |
| F37 | 7.5 A | SYNC module; Global positioning system module. |
| F38 | 5 A | Blower motor relay; Horn relay; Windshield wiper relay. |
| F39 | 7.5 A | Remote keyless entry; Rear heating, ventilation and air conditioning; Trailer tow backup relay coil; Parking lamp. |
| F40 | 40 A | Front blower motor. |
| F41 | 40 A | Rear blower motor. |
| F42 | 40 A | Heated rear window. |
| F43 | 30 A | Trailer socket; Trailer tow module. |
| F44 | 60 A | Auxiliary power points. |
| F45 | 40 A | Trailer tow module. |
| F46 | 30 A | Power windows. |
| F47 | 20 A | Cigar lighter socket. |
| F48 | 20 A | Rear auxiliary power points. |
| F49 | 20 A | Front auxiliary power points. |
| F50 | 60 A | Ignition relay 1. |
| F51 | 60 A | Power step; Heated seats. |
| F52 | 40 A | Modified vehicle connections. |
| F53 | 40 A | Modified vehicle connections. |
| Relay Number | Protected Component |
| R1 | Spare. |
| R2 | Auxiliary power points. |
| R3 | Trailer lamps. |
| R4 | Not used. |
| R5 | Power windows. |
| R6 | Ignition relay 1. |
| R7 | Horn. |
| R8 | Trailer tow reversing lamp. |
| R9 | Front blower motor. |
| R10 | Rear blower motor. |
| R11 | Heated rear window; Heated exterior mirrors. |
| R12 | Heated seats. |
| R13 | Modified vehicle connections. |
Ford Transit (2020 to 2023)
Driver Side Fuse box
| Item | Fuse Rating | Protected Component |
| 1 | 5 A | USB port. |
| 2 | – | Not used. |
| 3 | 5 A | USB port. |
| 4 | – | Not used. |
| 5 | – | Not used. |
| 6 | – | Not used. |
| 7 | – | Not used. |
| 8 | – | Not used. |
| 9 | 10 A | Heated exterior mirrors. |
| 10 | 5 A | Cooling fan. |
| 11 | – | Not used. |
| 12 | – | Not used. |
| 13 | – | Not used. |
| 14 | – | Not used. |
| 15 | – | Not used. |
| 16 | 5 A | Rain sensor. |
| 17 | – | Not used. |
| 18 | 20 A | 2021: Relay. 2020: Not used. |
| 19 | – | Not used. |
| 20 | – | Not used. |
| 21 | 20 A | Heated rear window. |
| 22 | 20 A | Heated rear window. |
| 23 | 20 A | Auxiliary power point. |
| 24 | 20 A | Auxiliary power point. |
| 25 | – | Not used. |
| 26 | 25 A | Windshield wiper motor. |
| 27 | – | Not used. |
| 28 | 30 A | Modified vehicle connections. |
| 29 | 20 A | Fuel fired heater. |
| 30 | 30 A | Power running boards. |
| 31 | – | Not used. |
| 32 | – | Not used. |
| 33 | – | Not used. |
| 34 | – | Not used. |
| 35 | – | Not used. |
| 36 | – | Not used. |
| 37 | – | Not used. |
| 38 | – | Not used. |
| 39 | – | Not used. |
| 40 | – | Not used. |
| 41 | 25 A | Load shed relay. |
| 42 | 40 A | Starter relay. |
| 43 | 40 A | Upfitter relay. |
| 44 | 40 A | Starter relay. |
| 45 | 10 A | Upfitter interface module. |
| 46 | – | Not used. |
| 47 | – | Not used. |
| 48 | 5 A | Modified vehicle connections. |
| 49 | 10 A | Brake pedal switch. |
| 50 | 30 A | Passenger power seat. |
| 51 | 40 A | Modified vehicle connections. |
| 52 | 30 A | Driver power seat. |
| 53 | 60 A | Battery. |
| 54 | 60 A | Power inverter. |
| 55 | 50 A | Body control module. |
| 56 | 10 A | Modified vehicle connections. |
| 57 | – | Not used. |
| 58 | 10 A | 2020, 2021, 2022, 2023 : Connector camper body interface. Upfitter interface. Secondary junction box. |
| 59 | 10 A | Rear climate control. Front view camera. Rear view camera. Adaptive cruise control module. Blind spot information system. |
| 60 | 10 A | Trailer brake control module. |
| 61 | – | Not used. |
| 62 | 15 A | Enhanced cut off relay system module. |
| 63 | 20 A | Auxiliary power point. |
| 64 | 30 A (2021) / 40 A (2020) | 2020: Modified vehicle connections. |
| 65 | – | Not used. |
| 66 | 10 A | Enhanced cut off relay system. Camper. Load shed relay. |
| 67 | – | Not used. |
| 68 | 5 A | Trailer tow module. |
| 69 | 5 A | Steering wheel module. |
| 70 | 5 A – | Swivel seats. 2020: Not used |
| 71 | 10 A | Passenger heated seat. |
| 72 | 10 A | Driver heated seat. |
| 73 | 20 A 20 A | 2022,2023 : Headlamp leveling. 2020, 2021: Adaptive front lighting module. A Headlamp leveling. |
| 74 | 5 A | Temperature sensor. |
| 75 | 20 A | Engine compartment fuse box. |
| 76 | 10 A | Power sliding door control switch. |
| 77 | 5 A | Headlamp switch. |
| 78 | 7.5 A | Modified vehicle connections. |
| 79 | 5 A | Driver compartment fuse box relay. |
| 80 | 10 A | 2021,2020: Not used 2022,2023: Diagnostic connector |
| 81 | 40 A | Trailer tow module. |
| 82 | 30 A | Power sliding door. |
| 83 | 30 A | Trailer brake control module. |
| 84 | 50 A | Body control module. |
| 85 | 30 A | Power sliding door. |
| 86 | 50 A | Body control module. |
Passenger Compartment Fuse box
| Item | Fuse Rating | Protected Component |
| 1 | 40 A – (2020) | Relay 2. |
| 2 | 40 A – (2020) | Relay 3. |
| 3 | 20 A – (2020) | Relay 1. |
| 4 | 20 A – (2020) | Relay 4. |
| 5 | 20 A – (2020) | Relay 5. |
| 6 | – | Not used. |
| 7 | – | Not used. |
| 8 | 20 A – (2020) | Relay 7. |
| 9 | 20 A – (2020) | Relay 8. |
| 10 | – | Not used. |
| 11 | – | Not used. |
| 12 | 20 A – (2020) | Relay 9. |
| 13 | 5 A – (2020) | Relay 6. |
| 14 | 5 A | Ignition. |
| 15 | 5 A | Power supply. |
| 16 | 20 A – (2020) | Auxiliary switch 3 relay. |
| 17 | 40 A – (2020) | Auxiliary switch 3 relay. |
| 18 | 40 A – (2020) | Auxiliary switch 3 relay. |
| 19 | 20 A – (2020) | Auxiliary switch 4 relay. |
| 20 | 20 A – (2020) | Auxiliary switch 5 relay. |
| 21 | 20 A – (2020) | Auxiliary fuse box relay. |
| 22 | 20 A – (2020) | Auxiliary switch 7 relay. |
| 23 | 20 A – (2020) | Auxiliary switch 8 relay. |
| 24 | 20 A – (2020) | Auxiliary switch 9 relay. |
Ford Transit (2024 and 2025)
Driver Side Fuse box
| Item | Fuse Rating | Protected Component |
| 1 | 5 A | USB port. |
| 2 | – | Not used. |
| 3 | 5 A | USB port. |
| 4 | – | Not used. |
| 5 | – | Not used. |
| 6 | – | Not used. |
| 7 | – | Not used. |
| 8 | – | Not used. |
| 9 | 10 A | Heated exterior mirrors. |
| 10 | 5 A | Cooling fan. |
| 11 | – | Not used. |
| 12 | – | Not used. |
| 13 | – | Not used. |
| 14 | – | Not used. |
| 15 | – | Not used. |
| 16 | 5 A | Rain sensor. |
| 17 | – | Not used. |
| 18 | 20 A | Relay. |
| 19 | – | Not used. |
| 20 | – | Not used. |
| 21 | 20 A | Heated rear window. |
| 22 | 20 A | Heated rear window. |
| 23 | 20 A | Auxiliary power point. |
| 24 | 20 A | Auxiliary power point. |
| 25 | – | Not used. |
| 26 | 25 A | Windshield wiper motor. |
| 27 | – | Not used. |
| 28 | 30 A | Modified vehicle connections. |
| 29 | 20 A | Not used (Spare). |
| 30 | 30 A | Not used (Spare). |
| 31 | – | Not used. |
| 32 | – | Not used. |
| 33 | – | Not used. |
| 34 | – | Not used. |
| 35 | – | Not used. |
| 36 | – | Not used. |
| 37 | – | Not used. |
| 38 | – | Not used. |
| 39 | – | Not used. |
| 40 | – | Not used. |
| 41 | 25 A | Load shed relay. |
| 42 | 40 A | Starter relay. |
| 43 | 40 A | Upfitter relay. |
| 44 | 40 A | Starter relay. |
| 45 | 10 A | Upfitter interface module. |
| 46 | – | Not used. |
| 47 | – | Not used. |
| 48 | 5 A | Modified vehicle connections. |
| 49 | 10 A | Brake pedal switch. |
| 50 | 30 A | Passenger power seat. |
| 51 | 40 A | Modified vehicle connections. |
| 52 | 30 A | Driver power seat. |
| 53 | 60 A | Battery. |
| 54 | 60 A | Power inverter. |
| 55 | 50 A | Body control module. |
| 56 | 10 A | Modified vehicle connections. |
| 57 | – | Not used. |
| 58 | 10 A | Upfitter interface. Secondary junction box. |
| 59 | 10 A | Rear climate control. Front view camera. Rear view camera. Adaptive cruise control module. Blind spot information system. |
| 60 | 10 A | Trailer brake control module. |
| 61 | – | Not used. |
| 62 | 15 A | Upfitter interface module. |
| 63 | 20 A | Auxiliary power point. |
| 64 | 30 A | Modified vehicle connections. |
| 65 | – | Not used. |
| 66 | 10 A | Load shed relay. |
| 67 | – | Not used. |
| 68 | 5 A | Trailer tow module. |
| 69 | 5 A | Steering wheel module. |
| 70 | 5 A | Swivel seats. |
| 71 | 10 A | Passenger heated seat. |
| 72 | 10 A | Driver heated seat. |
| 73 | 20 A | Not used (Spare). |
| 74 | 5 A | Temperature sensor. |
| 75 | 20 A | Engine compartment fuse box. |
| 76 | 10 A | Not used (Spare). |
| 77 | 5 A | Headlamp switch. |
| 78 | 7.5 A | Modified vehicle connections. |
| 79 | 5 A | Driver compartment fuse box relay. |
| 80 | 10 A | Diagnostic connector. |
| 81 | 40 A | Trailer tow module. |
| 82 | 30 A | Not used (Spare). |
| 83 | 30 A | Trailer brake control module. |
| 84 | 50 A | Body control module. |
| 85 | 30 A | Not used (Spare). |
| 86 | 50 A | Body control module. |
Passenger Compartment Fuse box
| Item | Fuse Rating | Protected Component |
| 1 | 40 A | Relay 2. |
| 2 | 40 A | Relay 3. |
| 3 | 20 A | Relay 1. |
| 4 | 20 A | Relay 4. |
| 5 | 20 A | Relay 5. |
| 6 | – | Not used. |
| 7 | – | Not used. |
| 8 | 20 A | Relay 7. |
| 9 | 20 A | Relay 8. |
| 10 | – | Not used. |
| 11 | – | Not used. |
| 12 | 20 A | Relay 9. |
| 13 | 5 A | Relay 6. |
| 14 | 5 A | Ignition. |
| 15 | 5 A | Power supply. |
| 16 | 20 A | Auxiliary switch 3 relay. |
| 17 | 40 A | Auxiliary switch 3 relay. |
| 18 | 40 A | Auxiliary switch 3 relay. |
| 19 | 20 A | Auxiliary switch 4 relay. |
| 20 | 20 A | Auxiliary switch 5 relay. |
| 21 | 20 A | Auxiliary fuse box relay. |
| 22 | 20 A | Auxiliary switch 7 relay. |
| 23 | 20 A | Auxiliary switch 8 relay. |
| 24 | 20 A | Auxiliary switch 9 relay. |
Ford Transit (2026)
Passenger Compartment Fuse box
| Item | Fuse Rating | Protected Component |
| 1 | 60 A | Main power supply. |
| 2 | 40 A | Body control module 1. |
| 3 | 40 A | Body control module 2. |
| 4 | 30 A | Power seats. |
| 5 | 30 A | Driver power seat. |
| 6 | 30 A | Customer Connection Run/Start. |
| 7 | – | Spare. |
| 8 | 10 A | Upfitter switched ground relay coil. |
| 9 | 20 A | Advanced driver assistance system. |
| 10 | 7.5 A | Climate control module. |
| 11 | 5 A | Customer Connection Relay Coil. |
| 12 | – | Not used. |
| 13 | 40 A | Customer Connection C33-C Battery Power. |
| 14 | 30 A | Trailer tow module – Gasoline. |
| 15 | 30 A | Customization interface module 1. |
| 16 | 30 A | Customization interface module 2. |
| 17 | 30 A | Customization interface module 3. |
| 18 | 7.5 A | Swivel seat. |
| 19 | 10 A | Trailer brake module – Gasoline. |
| 20 | – | Not used. |
| 21 | – | Not used. |
| 22 | – | Spare. |
| 23 | 5 A | Interior temperature sensor. |
| 24 | 10 A | Auxiliary blower. |
| 25 | 40 A | Body control module battery 1. |
| 26 | 40 A | Body control module battery 2. |
| 27 | 60 A | Inverter – Gasoline. |
| 28 | 5 A | Positive temperature coefficient heater – Battery Electric Vehicle. |
| 29 | – | Not used. |
| 30 | 10 A | Customer Connection 12-way C33-E. |
| 31 | 5 A | Electric power assisted steering control module. |
| 32 | 10 A | Customer Connection Relay Coil. |
| 33 | – | Not used. |
| 34 | – | Not used. |
| 35 | 30 A | Customer Connection Battery Power. |
| 36 | 20 A | Trailer tow module lighting – Gasoline. |
| 37 | 30 A | Customization interface module 4. |
| 38 | 5 A | Driver Window Switch. |
| 39 | 10 A | Brake on/off switch. |
| 40 | 15 A | 12 way customer connection. |
| 41 | 10 A | Diagnostics. |
| 42 | – | Not used. |
| 43 | 20 A | Radio. |
| 44 | – | Not used. |
| 45 | 15 A | Rear right-hand power slide load door. |
| 46 | – | Not used. |
| 47 | – | Not used. |
| 48 | 10 A | Enhanced central gateway. |
| 49 | – | Not used. |
| 50 | – | Not used. |
| 51 | 7.5 A | Cutaway Body C33-D Fuse Feed. |
| 52 | 10 A | Telematics control unit module. |
| 53 | – | Not used. |
| 54 | 10 A | Upfitter switched ground. |
| 55 | 7.5 A | Steering column control module; Instrument cluster. |
| 56 | 5 A | Delay accessory feature relay coil. |
| 57 | – | Not used (Spare). |
| 58 | – | Not used. |
| 59 | 5 A | Secondary relay box run/start 2 relay; Secondary relay box advanced driver assistance system relay. |
| 60 | 10 A | Center display screen. |
| 61 | 5 A | Switch ignition start; Headlamp switch. |
| 62 | 5 A | Upfitter relay. |
| 63 | – | Not used. |
| 64 | 10 A | Wireless buckle monitoring. |
| 65 | – | Not used. |
| 66 | 15 A | Right-hand heated seat. |
| 67 | 5 A | Interior scan; Rear climate control. |
| 68 | 15 A | Left-hand heated seat. |
| 69 | 15 A | SYNC module; Mini integrated control panel. |
| 70 | – | Not used. |
| 71 | – | Not used. |
| 72 | – | Not used (spare). |
| 73 | – | Not used (spare). |
| 74 | – | Not used (spare). |
| 75 | 30 A | Power windows. |
| 76 | 10 A | Power windows switch; Power mirrors. |
| 77 | – | Not used. |
| 78 | – | Not used. |
Ford Transit (2019)
| Item | Fuse Rating | Protected Component |
| 1 | – | Not used. |
| 2 | 10 A | Power inverter. |
| 3 | 7.5 A | Power window switch. Power exterior mirrors. |
| 4 | 20 A | Not used. |
| 5 | – | Not used. |
| 6 | 10 A 10 A | 2023: Telematics control unit module. Embedded modem. 2022: Not used |
| 7 | 10 A | Not used. |
| 8 | 5 A | 2020: Anti-theft alarm horn. 2021: Telematics control unit module. |
| 9 | 5 A 5 A | 2020: Intrusion sensor. Rear air conditioning. 2021: Rear air conditioning. |
| 10 | – | Not used. |
| 11 | – | Not used. |
| 12 | 7.5 A | Climate control. |
| 13 | 7.5 A | 2021: Data link connector. Steering column. Instrument cluster. 2022: Data link connecto |
| 14 | 15 A 15 A | 2021: Not used. 2020: Battery energy control module – MHEV |
| 15 | 15 A 15 A | 2021: SYNC 3 module. Integrated control panel. 2020: SYNC 3 module. |
| 16 | – | Not used. |
| 17 | 7.5 A | 2023: Tachograph. 2022: Not used |
| 18 | 7.5 A | Not used. |
| 19 | 5 A | 2023: Anti-theft alarm horn. 2022: Not use |
| 20 | 5 A | Ignition switch. |
| 21 | 5 A | 2020,2023: Positive temperature coefficient heater control. 2021,2022 : Not used |
| 22 | 5 A 5 A | 2020,2023: Pedestrian alert control module. 2021,2022: Not used |
| 23 | 30 A | Not used. |
| 24 | 30 A | Not used. |
| 25 | 20 A | 2023: Driver door module. 2022: Not used. |
| 26 | 30 A | 2023: Passenger door module. 2022: Not used |
| 27 | 30 A | Not used. |
| 28 | 30 A | Not used. |
| 29 | 15 A | Not used. |
| 30 | 5 A | Not used. |
| 31 | 10 A | Data link connector. Remote key receiver. |
| 32 | 20 A | 2021: Radio. 2020: Radio.A Telematics module |
| 33 | – | Not used. |
| 34 | 30 A | 2021: Run/Start relay. Parking aid. Steering column. 2020: Message center. Positive temperature coefficient heater. Direct current/Alternating current inverter. Lane keeping system camera. Parking aid. Steering column. |
| 35 | 5 A | Not used. |
| 36 | 15 A | 2021,2022: Parking aid. |
| 2021: Steering column control module. 2020: Parking aid. Lane keeping system camera. Steering column control module. | ||
| 37 | 20 A | Not used. |
| 38 | 30 A | Power windows. |
Ford Transit (2024 and 2025)
| Item | Fuse Rating | Protected Component |
| 1 | – | Not used. |
| 2 | 10 A | Power inverter. |
| 3 | 7.5 A | Power window switch. Power exterior mirrors. |
| 4 | 20 A | Not used. |
| 5 | – | Not used. |
| 6 | 10 A | Security horn relay. |
| 7 | 10 A | Not used. |
| 8 | 5 A | Telematics control unit module. |
| 9 | 5 A | Rear air conditioning. Interior scan. |
| 10 | – | Not used. |
| 11 | – | Not used. |
| 12 | 7.5 A | Climate control. |
| 13 | 7.5 A | Data link connector. Steering column. Instrument cluster. |
| 14 | 15 A | Not used. |
| 15 | 15 A | SYNC 3 module. Integrated control panel. |
| 16 | – | Not used. |
| 17 | 7.5 A | Not used. |
| 18 | 7.5 A | Not used. |
| 19 | 5 A | Anti-theft alarm horn. |
| 20 | 5 A | Ignition switch. |
| 21 | 5 A | Positive temperature coefficient heater control. |
| 22 | 5 A | Not used. |
| 23 | 30 A | Not used. |
| 24 | 30 A | Not used. |
| 25 | 20 A | Driver door module. |
| 26 | 30 A | Passenger door module. |
| 27 | 30 A | Not used. |
| 28 | 30 A | Not used. |
| 29 | 15 A | Not used. |
| 30 | 5 A | Not used. |
| 31 | 10 A | Data link connector. Remote key receiver. Instrument cluster. |
| 32 | 20 A | Radio. |
| 33 | – | Not used. |
| 34 | 30 A | Run/Start relay. |
| 35 | 5 A | Not used. |
| 36 | 15 A | Parking aid. Steering column control module. Lane departure. |
| 37 | 20 A | Not used. |
| 38 | 30 A | Power windows. |
HIGH CURRENT FUSE BOX
Ford Transit (2020 to 2023)
| Item | Fuse Rating | Protected Component |
| 1 | 125 A | Body control module. |
| 2 | 80 A | Electronic power assist steering. |
| 3 | 150 A | 2020,2022: Positive temperature coefficient heater. 2021: Not used. |
| 4 | – | Not used. |
| 5 | 60 A – 60 A | 2023: Cooling fan – Battery Electric Vehicle. 2021: Not used. 2022: Cooling fan |
| 6 | 150 A | Passenger compartment fuse box. |
| 7 | 60 A 60 A | 2023: Upfitter. 2022: Camper. |
| 8 | – | Not used. |
| 9 | 500 A 500 A | 2022: Starter motor. Alternator. 2023: Starter motor – Gasoline. Alternator – Gasoline. |
| 300 A | 2023: Direct Current to Direct Current converter – Battry Electric Vehicle. | |
| 10 | 300 A | Engine compartment fuse box. |
| 11 | 250 A | Dual generators. |
| 12 | 150 A | Driver compartment fuse box. |
| 13 | 190 A | Load shed relay. |
| 14 | 175 A | Auxiliary power point 1. |
| 15 | 60 A | Auxiliary power point 2. |
Ford Transit (2024 and 2025)
| Item | Fuse Rating | Protected Component |
| 1 | 125 A | Body control module. |
| 2 | 80 A | Electronic power assist steering. |
| 3 | 150 A | Positive temperature coefficient heater. |
| 4 | – | Not used. |
| 5 | 60 A | Cooling fan – Battery Electric Vehicle. |
| 6 | 150 A | Passenger compartment fuse box. |
| 7 | 60 A | Upfitter. |
| 8 | – | Not used. |
| 9 | 500 A | Starter motor – Gasoline. Alternator – Gasoline. |
| 300 A | Direct Current to Direct Current converter – Battery Electric Vehicle. | |
| 10 | 300 A | Engine compartment fuse box. |
| 11 | 250 A | Dual generators. |
| 12 | 150 A | Driver compartment fuse box. |
| 13 | 190 A | Load shed relay. |
| 14 | 175 A | Auxiliary power point 1. |
| 15 | 60 A | Auxiliary power point 2. |
Ford Transit (2026)
| Item | Fuse Rating | Protected Component |
| 1 | 80 A | Electric power assisted steering. |
| 2 | 80 A | Electric power assisted steering. |
| 3 | 150 A | Auxiliary heater. |
| 4 | 80 A | Spare. |
| 5 | 60 A | Cooling fan. |
| 6 | 150 A | Fuse for Customer Connection. |
| 7 | 60 A | Camper. |
| 8 | – | Battery. |
| 9 | 500 A | Starter motor; Alternator; Direct current/Direct current converter. |
| 10 | 300 A | Engine compartment fuse box. |
| 11 | 250 A | Twin alternator. |
| 12 | 175 A | Driver compartment fuse box. |
| 13 | – | Load shed relay. |
| 14 | – | Auxiliary power point 1. |
| 15 | 175 A | Auxiliary power point 2. |
