Acura RDX (2013 – 2018) Fuse Box Location & Diagrams

Acura RDX (2013 – 2018) Fuse Box Location & Diagrams

The Acura RDX (2013 – 2018) features several fuse boxes that protect its advanced electrical systems. This guide provides precise fuse box diagrams and exact locations, allowing you to easily identify and replace fuses to ensure all your vehicle’s components function perfectly.

Fuse Box Locations

Engine Compartment

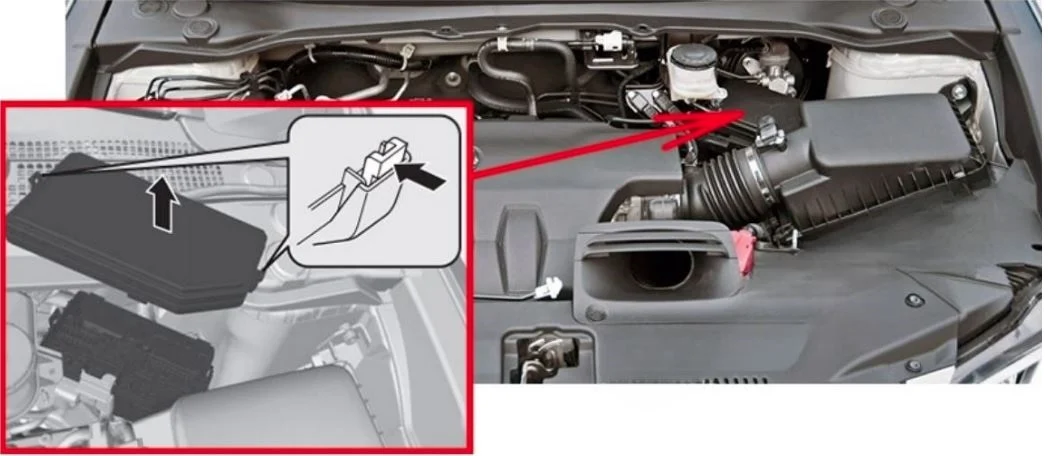

Located near the brake fluid reservoir. Push the tabs to open the box.

Acura RDX (2013 - 2018) ENGINE COMPARTMENT

Passenger compartment

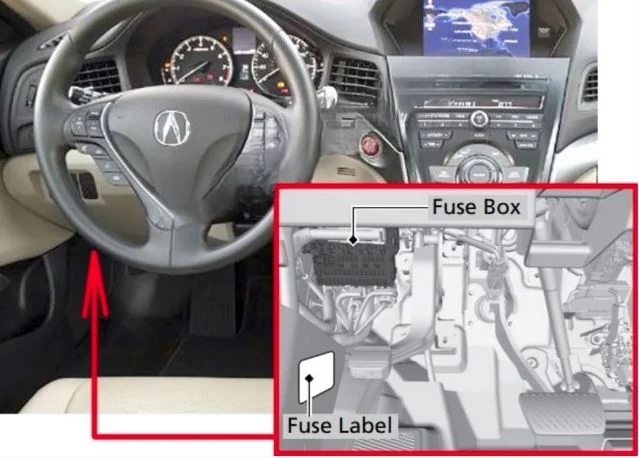

Located under the dashboard.

Acura RDX (2013 - 2018) PASSENGER COMPARTMENT

Engine Compartment Fuse Box Diagram

Acura RDX ( 2013,2014 and 2015)

Acura RDX (2013 - 2014, 2015) ENGINE COMPARTMENT DIAGRAMS

#Circuit ProtectedAmps
1EPS70 A
Power Tailgate Motor*(40 A)
ABS/VSA FSR20 A
ABS/VSA Motor40 A
E-DPS30 A
Main Fuse120 A
2ST CUT50 A
Fuse Box Main 160 A
Fuse Box Main 260 A
IG Main50 A
Headlight Washer(30 A)
Sub Fan Motor30 A
Rear Defogger40 A
Main Fan Motor30 A
Headlight Main30 A
Blower40 A
3Driver’s Power Seat Sliding20 A
Driver’s Power Seat Reclining20 A
Passenger’s Power Seat Sliding20 A
Passenger’s Power Seat Reclining20 A
4——
5STR Diagnosis Fuse7.5 A
6——
7——
8——
9——
10——
11Oil Level7.5 A
12Fog Lights*(20 A)
13Power Tailgate Closer*(20 A)
14Hazard10 A
15IGP215 A
16IG Coil15 A
17Stop10 A
18Horn10 A
19ACM10 A
20Right Headlight Low Beam10 A / 15 A
21MG Clutch7.5 A
22DBW15 A
23Left Headlight Low Beam10 A / 15 A
24ACC10 A
25FI Main(15 A)
26Trailer(20 A)
27Small20 A
28Interior Lights7.5 A
29Back Up10 A
Acura RDX ( 2016,2017 and 2018)

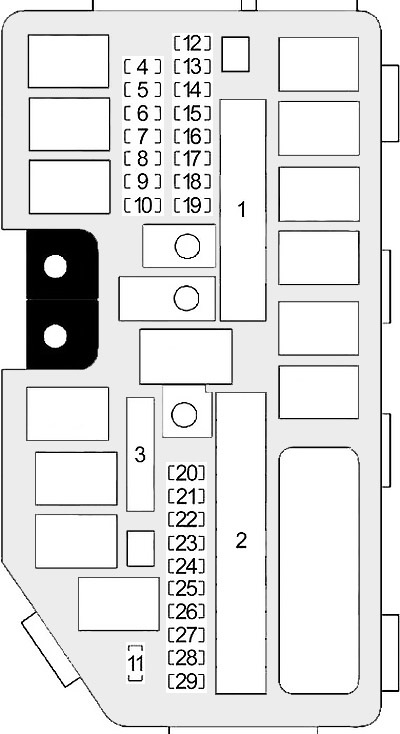

Acura RDX 2016 - 2017,2018) ENGINE COMPARTMENT DIAGRAMS - Copy

NumberCircuit ProtectedAmps
1EPS (Electronic Power Steering)70 A
Power Tailgate Motor(40 A)
ABS/VSA FSR20 A
ABS/VSA Motor40 A
E-DPS (Electronic Dual Pump System)(30 A)
Main Fuse120 A
2—50 A
Fuse Box Main 160 A
Fuse Box Main 260 A
IG Main (Ignition Main)50 A
Headlight Washer*(30 A)
Sub Fan Motor30 A
Rear Defogger40 A
Main Fan Motor30 A
Headlight Main30 A
Blower40 A
3ST CUT1 (Starter Cut)40 A
IG Main 130 A
Sub Fuse Main(40 A)
IG Main 230 A
4Rear Seat Heaters*(20 A)
5STR Diagnosis Fuse (Steering)7.5 A
6Audio (ODMD)*(15 A)
7——
8——
9——
10——
11Oil Level7.5 A
12Fog Lights*(20 A)
13Power Tailgate Closer(20 A)
14Hazard10 A
15IGP2 (Ignition Power)15 A
16IG Coil (Ignition Coil)15 A
17Stop (Brake Lights)10 A
18Horn10 A
19ACM (Active Control Mount)20 A
20Right Headlight Low Beam15 A
21MG Clutch (A/C Magnetic Clutch)7.5 A
22DBW (Drive By Wire)15 A
23Left Headlight Low Beam15 A
24DRL (Daytime Running Lights)(10 A)
25FI Main (Fuel Injection Main)15 A
26Trailer(20 A)
27Small (Parking Lights/License Plate)20 A
28Interior Lights7.5 A
29Back Up10 A

Passenger Compartment Fuse Box Diagram

Acura RDX ( 2013,2014 and 2015)

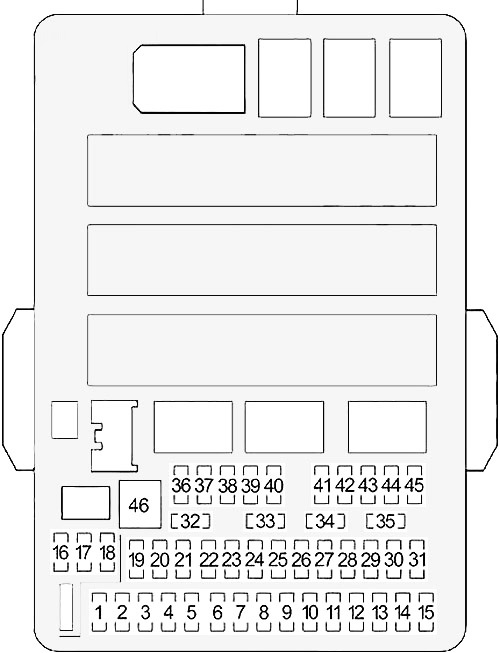

Acura RDX 2013 to 2015 PASSENGER COMPARTMENT DIAGRAMS

Fuse #Circuit ProtectedAmps
1——
2ACG15 A
3SRS10 A
4Fuel Pump15 A
5Meter7.5 A
6Option7.5 A
7VB SOL10 A
8Front Right Side Door Lock Motor (Unlock)15 A
9Rear Left Side Door Lock Motor (Unlock)15 A
10Power Lumbar7.5 A
11Moonroof20 A
12Accessory Power Socket (Center Console)15 A
13Washer Main15 A
14Seat Heaters15 A
15Driver’s Door Lock Motor (Unlock)10 A
16——
17——
18——
19ACC7.5 A
20ACC Key Lock7.5 A
21Daytime Running Lights7.5 A
22A/C7.5 A
23Rear Wiper10 A
24ABS/VSA7.5 A
25——
26Audio Amp20 A
27Accessory Power Socket (Front)15 A
28——
29ODS7.5 A
30Driver’s Door Lock Motor (Lock)10 A
31Smart10 A
32Front Right Side Door Lock Motor (Lock)15 A
33Rear Left Side Door Lock Motor (Lock)15 A
34Small Lights7.5 A
35Illumination7.5 A
36Rear Wiper Main10 A
37——
38Left Headlight High Beam10 A
39Right Headlight High Beam10 A
40TPMS7.5 A
41Door Lock20 A
42Driver’s Power Window20 A
43Rear Right Side Power Window20 A
44Front Right Side Power Window20 A
45Rear Left Side Power Window20 A
46Wiper30 A
Acura RDX ( 2016,2017 and 2018)

Acura RDX 2016 - 2017,2018 PASSENGER COMPARTMENT DIAGRAMS - Copy

Fuse #Circuit ProtectedAmps
1——
2ACG15 A
3ODS7.5 A
4Fuel Pump15 A
5Meter7.5 A
6Rear Wiper10 A
7VB SOL10 A
8Front Right Side Door Lock Motor (Unlock)15 A
9Rear Left Side Door Lock Motor (Unlock)15 A
10Power Lumbar7.5 A
11Moonroof20 A
12Accessory Power Socket (Center Console)20 A
13Washer Main15 A
14Seat Heaters20 A
15Driver’s Door Lock Motor (Unlock)10 A
16Driver’s Power Seat Sliding20 A
17Driver’s Power Seat Reclining20 A
18Passenger’s Power Seat Sliding20 A
19ACC7.5 A
20ACC Key Lock7.5 A
21Daytime Running Lights7.5 A
22A/C7.5 A
23Option10 A
24ABS/VSA7.5 A
25IDAS(10 A)
26Audio Amp20 A¹ / 30 A²
27Accessory Power Socket (Front)20 A
28——
29SRS10 A
30Driver’s Door Lock Motor (Lock)10 A
31Smart10 A
32Front Right Side Door Lock Motor (Lock)15 A
33Rear Left Side Door Lock Motor (Lock)15 A
34Small Lights7.5 A
35Illumination7.5 A
36Rear Wiper Main10 A
37Passenger’s Power Seat Reclining20 A
38Left Headlight High Beam10 A
39Right Headlight High Beam10 A
40——
41Door Lock20 A
42Driver’s Power Window20 A
43Rear Right Side Power Window20 A
44Front Right Side Power Window20 A
45Rear Left Side Power Window20 A
46Wiper30 A
