Acura RDX (2019 – 2026) Fuse Box Location & Diagrams

Easily locate and understand the fuse box layout for your Acura RDX (2019–2026). This comprehensive guide provides clear diagrams, essential pin assignments, and troubleshooting tips to help you safely manage your vehicle’s electrical system, ensuring your SUV remains in peak operating condition at all times.

Fuse Box Location

Engine Compartment Fuse Boxes

Passenger Compartment Fuse Boxes

Located under the dashboard.

Engine Compartment Fuse Boxes

Acura RDX (2019 – 2026)

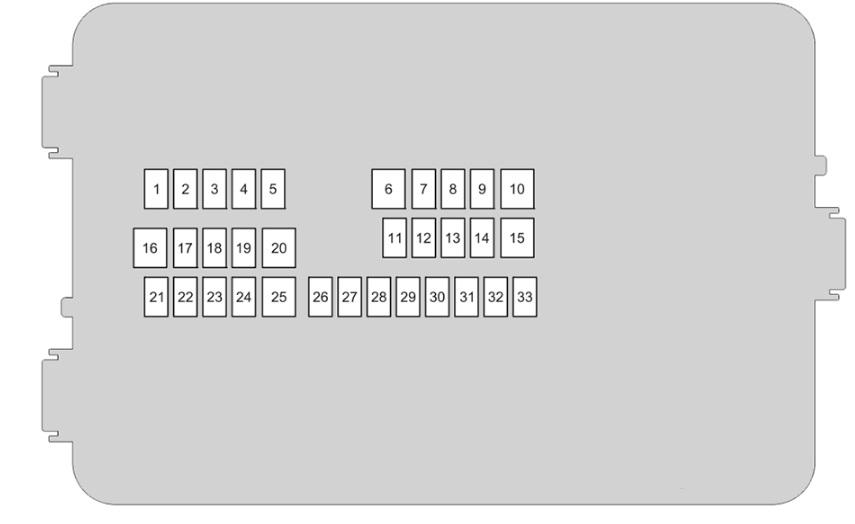

Engine Compartment Fuse Box Type A

№	Circuit Protected	Amps
1	–	–
2	–	–
3	IG1 VB SOL2	10 A
4	IG1 RR WIPER	10 A
5	IG1 VSA	10 A
6	HTR MTR	40 A
7	DBW	15 A
8	TCU	15 A
9	FI MAIN	15 A
10	STARTER CUT	30 A
11	INJ	20 A
12	HAZARD	15 A
13	TCU 2	10 A
14	TCU 3	10 A
15	FET MODULE	30 A
16	SUB FAN	30 A
17	HORN	10 A
18	BACK UP	10 A
19	STOP	7.5 A
20	FET MODULE	30 A
21	VBU	10 A
22	FRT DEICER (Not available on all models)	15 A
23	IG COIL	15 A
24	WASHER	15 A
25	MAIN FAN	30 A
26	STRLD	7.5 A
27	IGPS	10 A
28	–	–
29	R H/L LO	10 A
30	L H/L LO	10 A
31	VBACT	10 A
32	IGPS (LAF)	10 A
33	–	–

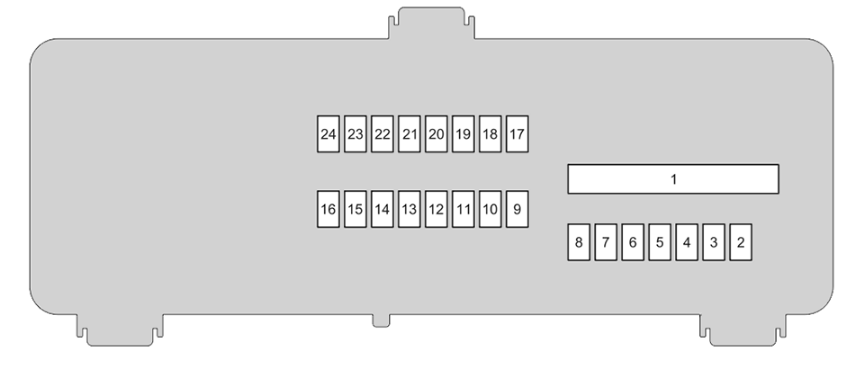

Engine Compartment Fuse Box Type B

№	Circuit Protected	Amps
1	–	(50 A)
1	ABS/VSA MTR	40 A
1	F/B MAIN 2	50 A
1	F/B MAIN	60 A
1	ABS VSA FSR	40 A
1	WIPER	30 A
1	IDLE STOP	30 A
1	IDLE STOP	30 A
2	–	–
3	–	–
4	4WD (Not available on all models)	(30 A)
5	IG MAIN 2	30 A
6	IG MAIN	30 A
7	2019-2021: H/L WASHER (Not available on all models)	(30 A)
8	DR P/SEAT 3	30 A
9	EBB	40 A
10	TRL SMALL (Not available on all models)	7.5 A
11	PTG CLOSER MTR	20 A
12	2022-2025: RR ACC SOCKET (Not available on all models)	20 A
13	DR P/SEAT 1	30 A
14	AS P/SEAT 2	30 A
15	AS P/SEAT 1	30 A
16	RR DEF	40 A
17	AMP (Models without seat ventilation)	30 A
17	AMP (Models with seat ventilation)	40 A
18	SUNSHADE	20 A
19	DR P/SEAT 2	30 A
20	AS P/SEAT 3	30 A
21	SBW	10 A
22	TRL HAZARD (Not available on all models)	7.5 A
23	BMS	10 A
24	PTG MTR	40 A

Engine Compartment Fuse Box Type C

№	Circuit Protected	Amps
a	2019-2021: MAIN	120 A
a	2022-2025: MAIN	150 A
b	–	70 A
c	R/B 1	70 A
d	R/B 2	70 A
e	EPS	70 A
f	FET	60 A

Passenger Compartment Fuse Boxes

Acura RDX (2019 – 2026)

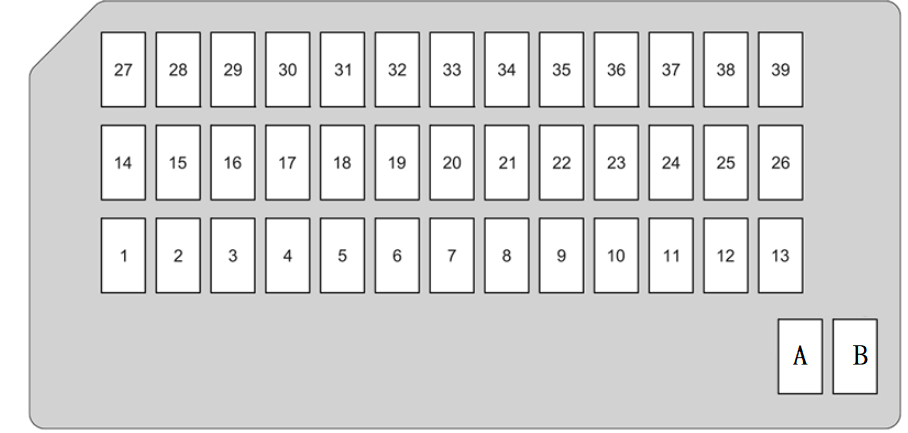

Interior Fuse Box Type A

№	Circuit Protected	Amps
1	BACK-UP LIGHT	10 A
2	STARTER MOTOR	10 A
3	OPTION	10 A
4	–	–
5	–	–
6	–	(10 A)
7	–	–
8	–
9	IG1 R/B	15 A
10	DR REAR DOOR LOCK	10 A
11	DR DOOR LOCK	10 A
12	AS SIDE DOOR LOCK	10 A
13	AS SIDE DOOR UNLOCK	10 A
14	DR DOOR UNLOCK	10 A
15	OPTION 2	10 A
16	SMART	10 A
17	SUNROOF	20 A
18	HEATED STRG WHEEL (Not available on all models)	(10 A)
19	REAR LEFT P/W	20 A
20	SRS	10 A
21	FUEL PUMP	20 A
22	FRONT ACC SOCKET	20 A
23	LEFT H/L HI	10 A
24	RIGHT H/L HI	10 A
25	DRIVER P/W	20 A
26	DR REAR DOOR UNLOCK	10 A
27	ACCESSORY	10 A
28	PASS SRS IND	(10 A)
29	PDM	10 A
30	ADS (Not available on all models)	(15 A)
31	REAR RIGHT P/W	20 A
32	–	–
33	TRANSMISSION	10 A
34	ACG	10 A
35	DRL	10 A
36	A/C	10 A
37	AUDIO	15 A
38	DOOR LOCK	20 A
39	AS P/W	20 A
A	REAR SEAT HEATER (Not available on all models)	20 A
B	–	–

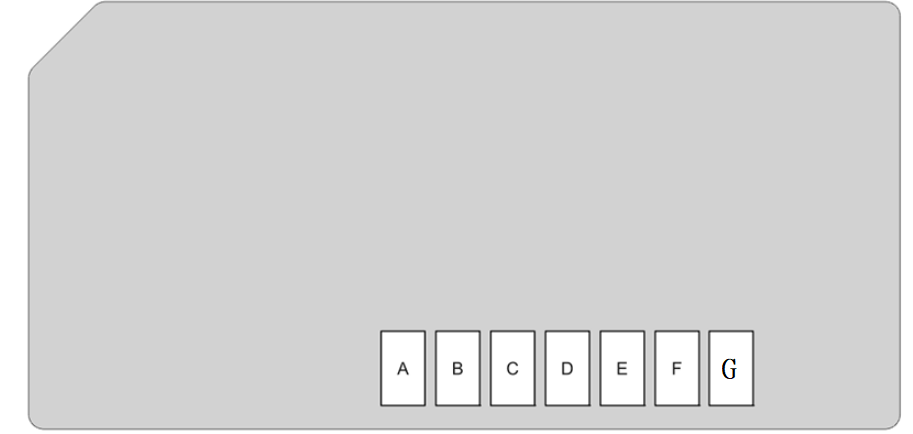

Interior Fuse Box Type B

№	Circuit Protected	Amps
A	METER	10 A
B	VSA	10 A
C	OPTION	10 A
D	BCM	10 A
E	AUDIO	20 A
F	BACKUP	10 A
G	ACCESSORY	(10 A)

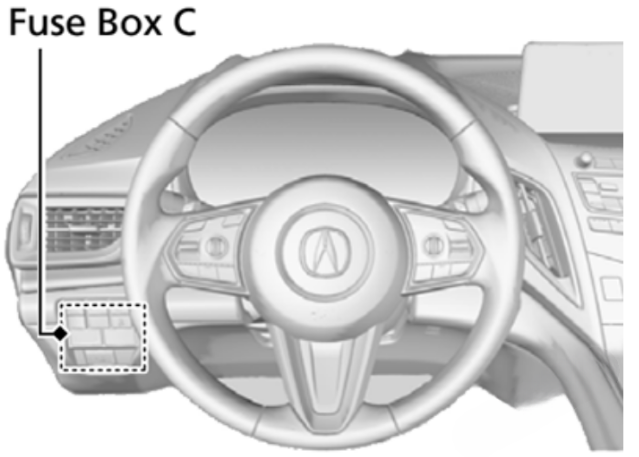

Interior Fuse Box Type C

Located inside the driver’s side outer panel.

№	Circuit Protected	Amps
1	–	–
2	–	–
3	A/C MG GL	10 A
4	–	–
5	FR H/SEAT	20 A
