Ford Ranger (2019 – 2023) Fuse Box Location & Diagrams
Discover detailed fuse box location and diagrams for Ford Ranger models 2019 to 2023. This guide helps you quickly identify interior, engine, and battery fuse boxes, understand layouts, and troubleshoot electrical issues with ease, ensuring safe maintenance and accurate component access for all users here.
Fuse Box Location

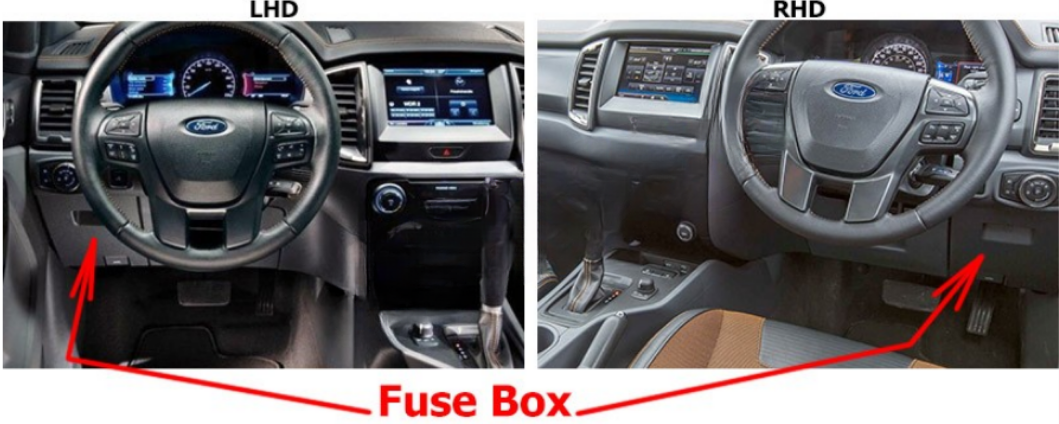

Passenger Compartment Fuse Box
The fuse panel is located below and outboard of the steering column, behind the access cover.

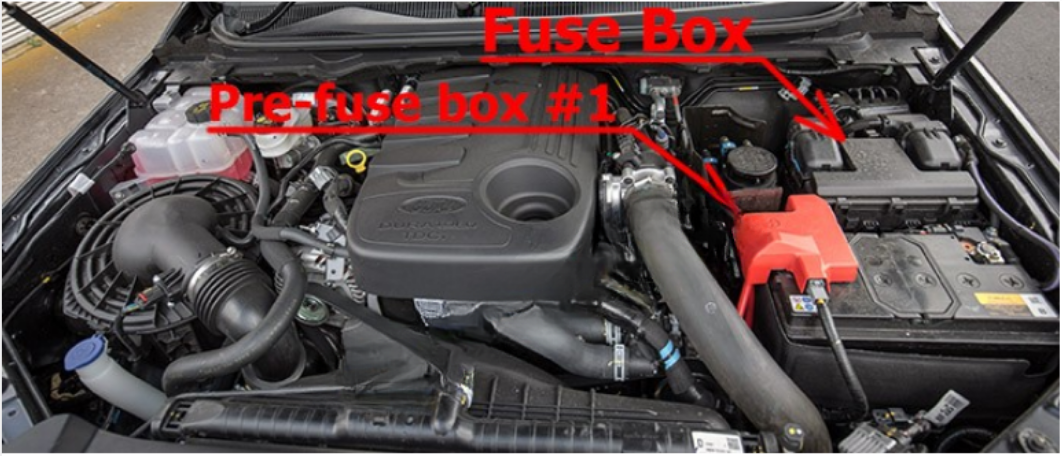

Engine Compartment Fuse Box
The power distribution box is located in the engine compartment (left-side).

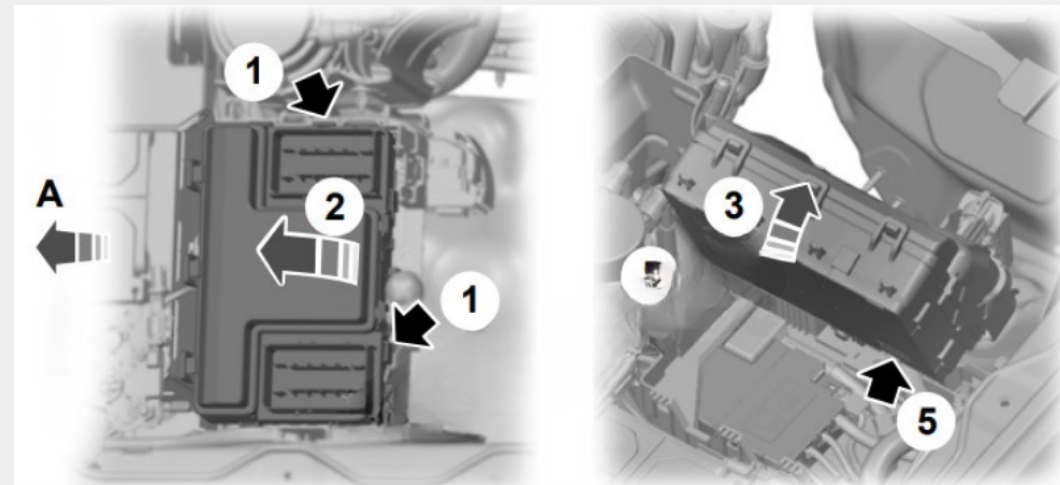

Power Distribution Box – Bottom
There are fuses located on the bottom of the fuse box.
To access, do the following:
- Release the two latches, located on both sides of the fusebox;
- Raise the rear side of the fusebox from the cradle.
- Move the fusebox toward the rear side of the engine compartment and rotate as shown.
- Pivot the rear side of the fusebox to access the bottom side.
- Release the two latches to open the cover.

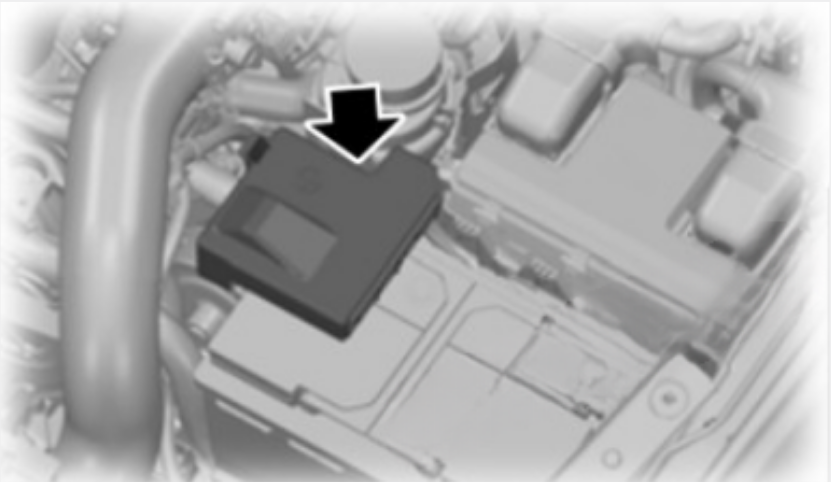

Battery Mounted Fuse Link
It is attached to the positive battery terminal.

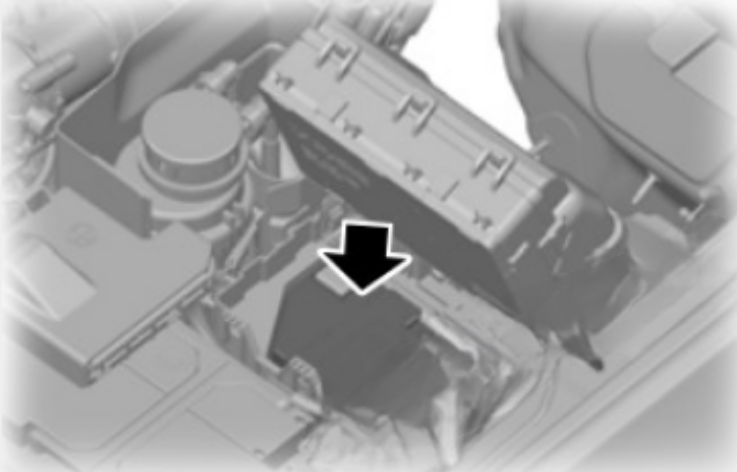

High Current Fuse Box
It is located below the engine compartment fuse box.
Fuse Box Diagrams

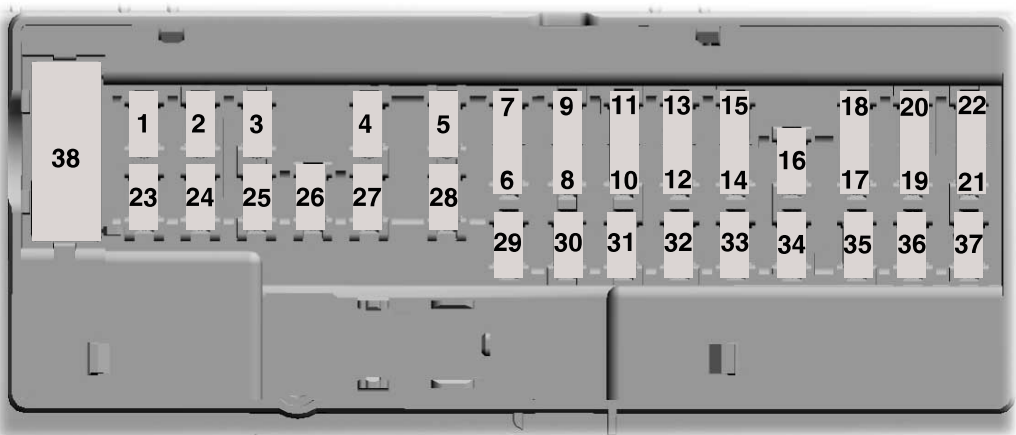

Passenger Compartment Fuse Box
Ford Ranger (2019 – 2023)
| Item | Rating | Protected Component |
| 1 | – | Not used. |
| 2 | 7.5 A¹ | Not used (spare). |
| 3 | 20 A¹ | Driver door lock. |
| 4 | 5 A¹ | Not used (spare). |
| 5 | 20 A¹ | Branded audio amplifier. |
| 6 | 10 A² | Not used (spare). |
| 7 | 10 A² | Not used (spare). |
| 8 | 10 A² | Anti-theft alarm horn. |
| 9 | 10 A² | Telematics. |
| 10 | 5 A² | Not used (spare). |
| 11 | 5 A² | Not used (spare). |
| 12 | 7.5 A² | Electronic control panel. Climate control. |
| 13 | 7.5 A² | Instrument cluster. Steering column control module. Data link connector. |
| 14 | 10 A² | Extended power module (for restraints module and occupant module). |
| 15 | 10 A² | (2022) SYNC Module. Data link connector. Data link module. Data link connector. |
| 16 | 15 A¹ | Not used (spare). |
| 17 | 5 A² | Not used (spare). |
| 18 | 5 A² | Ignition switch. Lock solenoid. Push button start. |
| 19 | 7.5 A² | Extended power module (for restraints module and occupant module). |
| 20 | 7.5 A² | (2020) Not used (spare) Auxiliary switches. |
| 21 | 5 A² | Humidity and in-car temperature sensor. |
| 22 | 5 A² | Not used (spare). |
| 23 | 10 A¹ | Inverter. Door lock switch. |
| 24 | 20 A¹ | Central locking system. |
| 25 | 30 A¹ | Driver door power window. |
| 26 | 30 A¹ | Not used (spare). |
| 27 | 30 A¹ | Not used (spare). |
| 28 | 20 A¹ | Branded audio amplifier. |
| 29 | 30 A¹ | Not used (spare). |
| 30 | 30 A¹ | Not used (spare). |
| 31 | 15 A¹ | (2019) Not used (spare) SYNC. |
| 32 | 10 A¹ | (2019) Radio transceiver module. Door entry remote. SYNC. Radio transceiver module. Door entry remote. |
| 33 | 20 A¹ | Audio unit. |
| 34 | 30 A¹ | Run/start relay. |
| 35 | 5 A¹ | Not used (spare). |
| 36 | 15 A¹ | Auto-dimming interior mirror. Mirror adjustment control. |
| 37 | 20 A¹ | Not used (spare). |
| 38 | 30 A³ | Power windows. |

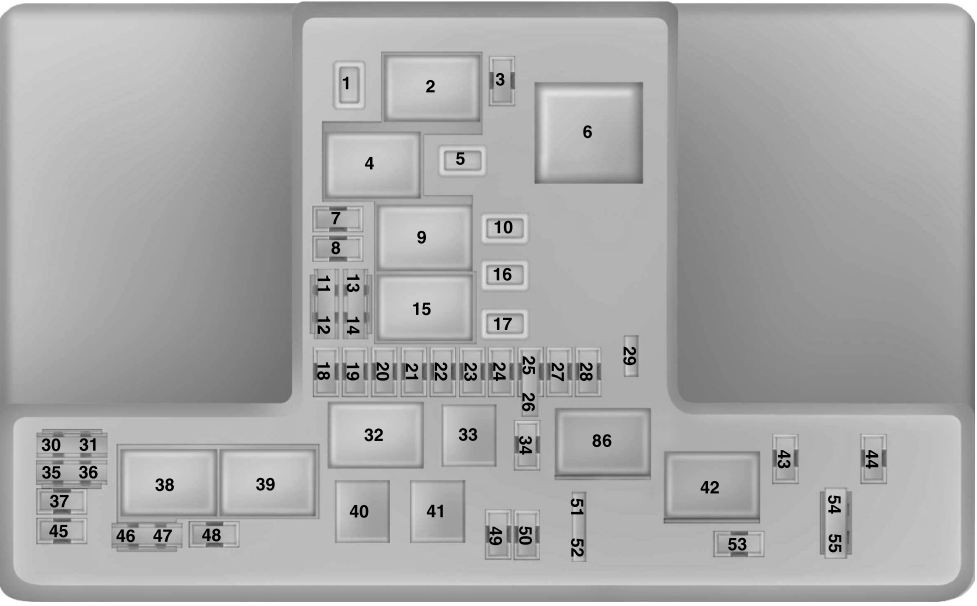

Engine Compartment Fuse Box
Ford Ranger (2019 – 2023)
| Item | Rating | Protected Component |
| 1 | – | Not used. |
| 2 | – | Starter motor solenoid relay. |
| 3 | 5 A² | Rain sensor. |
| 4 | – | Blower motor relay. |
| 5 | 20 A¹ | Auxiliary power point 3 – console rear. |
| 6 | – | Trailer park lamp relay. |
| 7 | 20 A² | Powertrain control module. |
| 8 | 20 A² | Canister vent solenoid, Fuel vapor shutoff valve, Canister purge valve, Variable cam timing valve 1 and 2, Heated oxygen sensors. |
| 9 | – | Powertrain control module relay. |
| 10 | 20 A¹ | Auxiliary power point 1 – instrument panel. |
| 11 | 15 A³ | Ignition coils. |
| 12 | 15 A³ | A/C control drive, Transaxle warmer, Auxiliary water pump, Aspirator valve control, Fan clutch, Oil pump, Turbo bypass. |
| 13 | 15 A¹ | Not used. |
| 14 | 15 A¹ | Not used. |
| 15 | – | Run/start relay. |
| 16 | 20 A¹ | Auxiliary power point 2 – instrument panel. |
| 17 | 20 A¹ | Auxiliary power point – rear cargo area. |
| 18 | 10A | Not used. |
| 19 | 10 A² | Electric power assist steering. |
| 20 | 10 A¹ | Not used. |
| 21 | 5 A² | Transmission run/start relay. |
| 22 | 10 A² | A/C compressor. |
| 23 | (2021) 7.5A 5 A² | Voltage quality module. |
| 24 | 10 A¹ | Not used. |
| 25 | 10 A³ | Anti-lock brake system. |
| 26 | 10 A³ | Not used (spare). |
| 27 | – | Not used. |
| 28 | 10 A² | Powertrain control module. |
| 29 | 7.5 A² | USB charge port. |
| 30 | – | Not used. |
| 31 | – | Not used. |
| 32 | – | Fuel pump relay. |
| 33 | – | A/C clutch relay. |
| 34 | 10 A² | Trailer reverse lamp. |
| 35 | 15 A¹ | Not used. |
| 36 | – | Not used. |
| 37 | 10 A² | Heated exterior mirror. |
| 38 | – | Trailer right-hand turn and stop lamp relay. |
| 39 | – | Trailer left-hand turn and stop lamp relay. |
| 40 | – | Trailer reverse lamp relay. |
| 41 | – | Horn relay. |
| 42 | – | Four wheel drive motor no. 2 relay. |
| 43 | – | Not used. |
| 44 | – | Not used. |
| 45 | 5 A¹ | Not used. |
| 46 | 10 A³ | Not used (spare). |
| 47 | 10 A³ | Brake pedal switch. |
| 48 | 20 A² | Horn. |
| 49 | 15 A² | Transmission control module oil pump. |
| 50 | 10 A² | (2021) Wiper park heater Not used (spare). |
| 51 | – | Not used. |
| 52 | – | Not used. |
| 53 | 15 A² | Rear differential lock. |
| 54 | – | Not used. |
| 55 | – | Not used. |
| 86 | – | Four wheel drive motor no. 1 relay. |

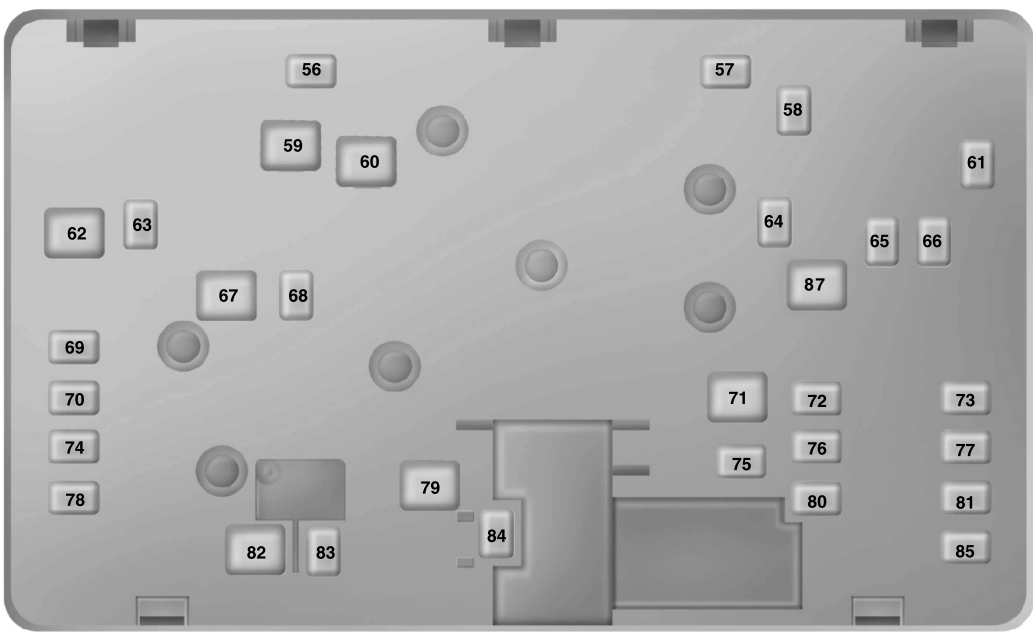

Power Distribution Box – Bottom
Ford Ranger (2019 – 2023)
| Item | Rating | Protected Component |
| 56 | 15 A¹ | Trailer left-hand turn and stop lamp. |
| 57 | – | Not used. |
| 58 | – | Not used. |
| 59 | – | Not used. |
| 60 | 30 A² | Fuel pump control module. |
| 61 | – | Not used. |
| 62 | 50 A² | Body control module 1 – lighting. |
| 63 | 15 A¹ | Trailer right-hand turn and stop lamp. |
| 64 | 30 A¹ | Trailer brakes. |
| 65 | 20 A¹ | Heated driver seat. |
| 66 | 25 A¹ | Four-wheel drive. |
| 67 | 50 A² | Body control module 2 – lighting. |
| 68 | 30 A¹ | Rear window defroster. |
| 69 | 30 A¹ | Anti-lock brake system valves. |
| 70 | 30 A¹ | Passenger power seat. |
| 71 | 25 A² | Trailer park lamps. |
| 72 | – | Not used. |
| 73 | 30 A¹ | Trailer module. |
| 74 | 30 A¹ | Driver power seat. |
| 75 | – | Not used. |
| 76 | – | Not used. |
| 77 | – | Not used. |
| 78 | – | Not used. |
| 79 | 40 A² | Blower motor. |
| 80 | 20 A¹ | Heated passenger seat. |
| 81 | 40 A¹ | Inverter. |
| 82 | 60 A² | Anti-lock brake system pump. |
| 83 | 30 A¹ | Windshield wiper motor. |
| 84 | 30 A¹ | Starter motor solenoid. |
| 85 | – | Not used. |
| 87 | 40 A² | Trailer module. |
Battery Mounted Fuse Link
Ford Ranger (2019 – 2023)
| Item | Rating | Protected Component |
| 1 | (2021,2022,2023) 300 A | Alternator (with auxiliary fuse and relay box). |
| 225 A | Alternator (without auxiliary fuse and relay box). | |
| 2 | 125 A | Electronic power assist steering. |
High Current Fuse Box
Ford Ranger (2019 – 2023)
| Item | Rating | Protected Component |
| 1 | – | Not used. |
| 2 | 125 A | Body control module. |
| 3 | 50 A | Voltage quality module (supplies rear lamp blind spot, rear view camera, head up display, 4×4 switch, image processing module and adaptive cruise control radar). |
| 4 | – | Busbar through to power distribution box. |
| 5 | 100 A | Auxiliary fuse and relay box. |
