Ford Ranger (2024 – 2026) Fuse Box Location & Diagrams

Ford Ranger (2024 – 2026) Fuse Box Location & Diagrams

Explore the complete fuse box location and diagrams for Ford Ranger models 2024 to 2026. This guide helps identify under-hood, interior, and battery fuse boxes, explains their functions, and assists in troubleshooting electrical issues quickly, ensuring safe maintenance and reliable vehicle performance for easy repair.

Fuse Box Location

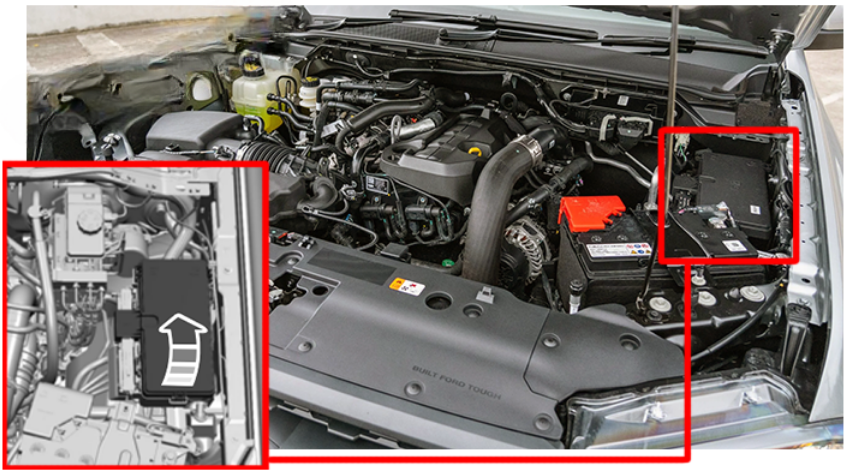

Engine Compartment Fuse BoxFuse Box Location User Guide Ford Ranger Engine Compartment Fuse Box fig 1

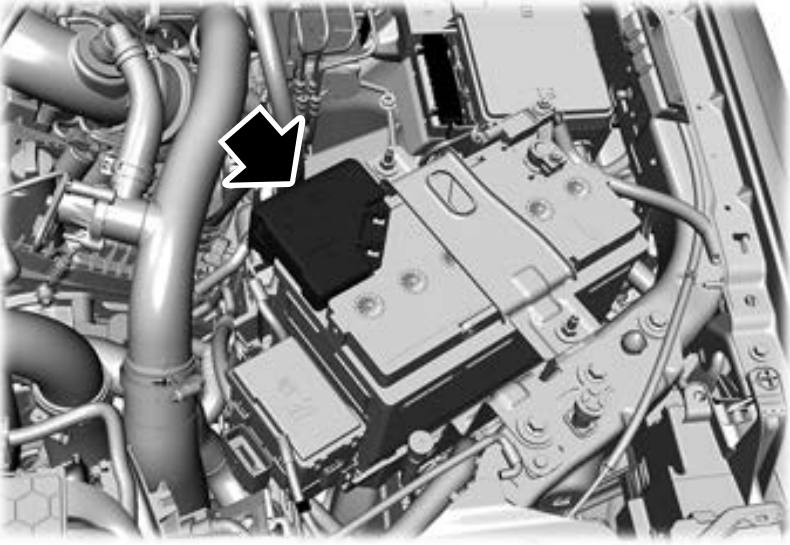

BATTERY FUSE BOXFuse Box Location & Diagrams User Guide Ford Ranger Battery fuse box fig 2

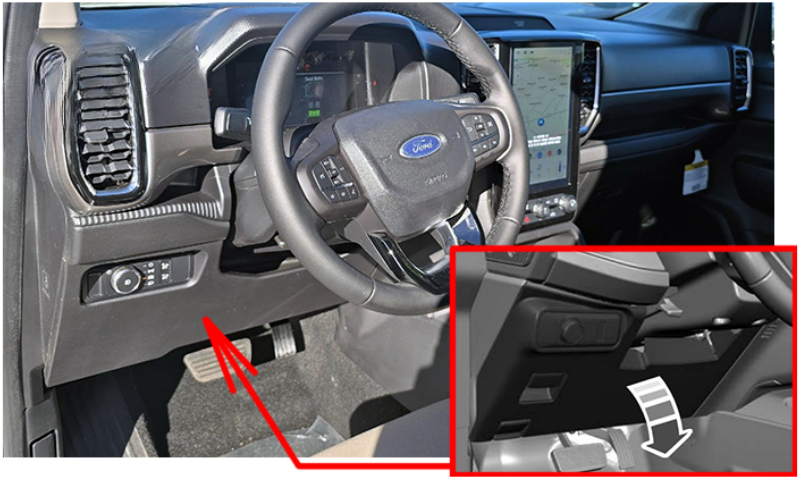

Passenger Compartment Fuse BoxFuse Box Location User Guide Ford Ranger Passenger Compartment Fuse Box fig 1

Engine Compartment Fuse Box

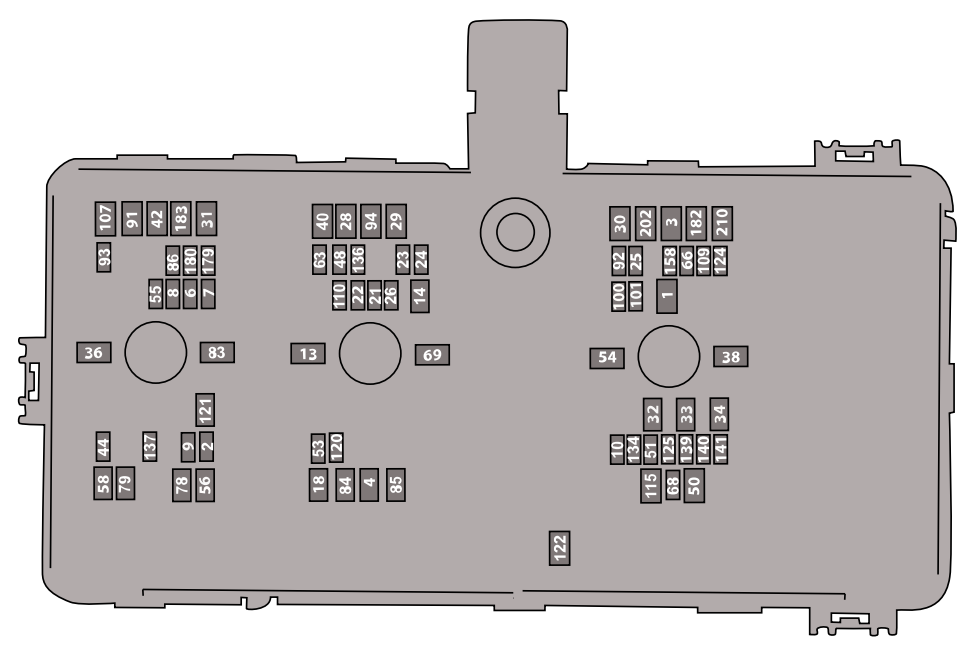

Ford Ranger (2024 – 2026)Fuse Box Diagrams User Guide Ford Ranger engine compartment fig 1
ItemRatingProtected Component
130 ABody control module 1.
220 ANot used (spare).
330 ABody control module 2.
430 AFuel pump.
5—Not used.
625 APowertrain control module power.
730 AExhaust gas recirculation bypass valve (3.0L diesel). Vacuum solenoid valve (2.0L).
820 AHeater positive crankcase ventilation valve (3.0L diesel). Variable oil pump (3.0L diesel). Active grille shutter motor. Cooling fan relays. A/C clutch solenoid. Auxiliary water pump. Aspirate valve control.
920 AGlow plug control module (diesel). Particulate matter sensor (diesel). Nitrogen oxide sensor (diesel). 4×4 relay coil.
1020 AFuel volume control valve (3.0L diesel). Transmission control module.
11—Not used.
12—Not used.
1340 AFront blower motor.
1420 AAutomatic transmission fluid pump (diesel).
15—Not used.
16—Not used.
17—Not used.
1830 AStarter motor.
19—Not used.
20—Not used.
2110 AAutomatic headlamp leveling.
22—Not used.
2310 AAnti-lock brake system module.
2410 APowertrain control module. Glow plug control module (2.0L, 3.0L diesel). Electronic power assist steering.
2520 ADriveline control module. Rear camera.
2615 ATransmission control module. Transmission oil pump. Automatic transmission fluid pump (diesel).
27—Not used.
2860 AAnti-lock brake system valves.
2960 AAnti-lock brake system pump.
3040 ALeft-hand power seat.
3140 ARight-hand power seat.
3220 APower point – first row.
3320 APower point – rear console.
3420 ARear cargo power outlet – bedliner power point.
35—Not used.
3660 AInverter.
37—Not used.
3840 AHeated seats control module.
39—Not used.
4030 APower running boards.
41—Not used.
4230 ATrailer brake module.
43—Not used.
4410 ABrake switch.
45—Not used.
46—Not used.
47—Not used.
4830 ANot used (spare).
49—Not used.
5040 AHeated backlite.
5115 AHeated mirrors.
52—Not used.
5315 ANot used (spare).
5440 ADriveline control module.
5530 ATrailer tow park lamp.
5620 ATrailer tow right side stop/turn lamp.
57—Not used.
5815 ATrailer tow backup lamp.
59—Not used.
60—Not used.
61—Not used.
62—Not used.
6320 ATrailer tow left side stop/turn lamp.
64—Not used.
65—Not used.
6610 ANot used (spare).
67—Not used.
6820 ASteering column lock.
6930 AWiper motor.
70—Not used.
71—Not used.
72—Not used.
73—Not used.
74—Not used.
75—Not used.
76—Not used.
77—Not used.
78—Not used.
79—Not used.
80—Not used.
81—Not used.
82—Not used.
8350 ANot used (spare).
8450 ANot used (spare).
8550 ANot used (spare).
8615 ANot used (spare).
87—Not used.
88—Not used.
89—Not used.
90—Not used.
9140 ATrailer tow module.
9210 AAccessory.
935 ANot used (spare).
9420 ANot used (spare).
95—Not used.
96—Not used.
97—Not used.
98—Not used.
99—Not used.
10020 ALeft-hand headlamps.
10120 ARight-hand headlamps.
102—Not used.
103—Not used.
104—Not used.
105—Not used.
106—Not used.
10730 ATrailer tow module – battery charger.
108—Not used.
10920 AAmplifier.
11030 ATrailer tow auxiliary.
111—Not used.
112—Not used.
113—Not used.
114—Not used.
11530 APower roller shutter.
116—Not used.
117—Not used.
118—Not used.
119—Not used.
12010 AFuel injectors (2.7L).
12140 ANot used (spare).
12230 ATransfer case control module.
123—Not used.
1245 ARain sensor.
12510 AUSB 1.
126—Not used.
127—Not used.
128—Not used.
129—Not used.
130—Not used.
131—Not used.
132—Not used.
133—Not used.
13425 ANot used (spare).
135—Not used.
136—Not used.
13720 AAdvanced driver assistance system.
138—Not used.
1395 AUSB 2.
1405 AUSB smart charge port – rear console.
1415 AUSB smart charge port – top.
142—Not used.
143—Not used.
145—Not used.
146—Not used.
147—Not used.
148—Not used.
149—Not used.
150—Not used.
151—Not used.
152—Not used.
153—Not used.
154—Not used.
155—Not used.
156—Not used.
157—Not used.
158(2026) —

10 A

Not used.
159—Not used.
160—Not used.
161—Not used.
162—Not used.
163—Not used.
164—Not used.
165—Not used.
166—Not used.
167—Not used.
168—Not used.
169—Not used.
170—Not used.
171—Not used.
172—Not used.
173—Not used.
174—Not used.
175—Not used.
176—Not used.
177—Not used.
178—Not used.
17915 ANot used (spare).
180(2025) 10 A

15 A

Selective catalytic reduction system heater 3 (diesel).

Not used (spare).

181—Not used.
18260 ADrive door module.
18360 APassenger door module.
192—Not used.
20260 ABody control module B+.
21030 ABody control module start-stop.

BATTERY FUSE BOX

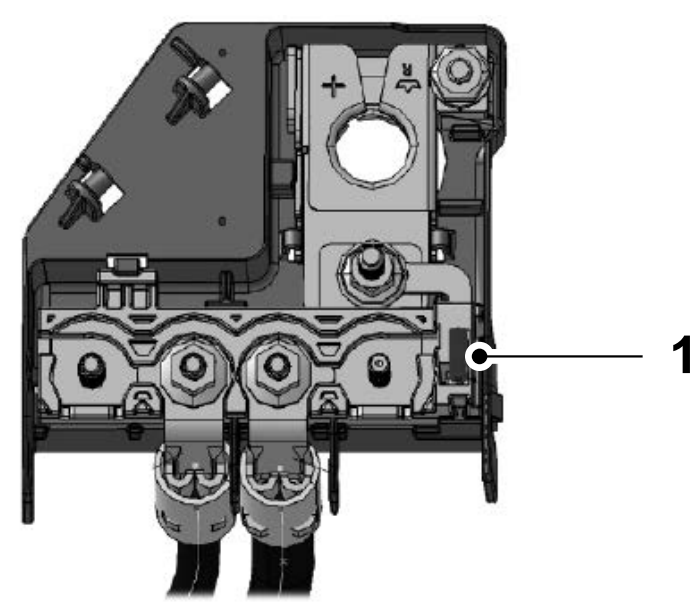

Ford Ranger (2024 – 2026)Fuse Box Diagrams User Guide Ford Ranger eBATTERY FUSE BOX fig 2
ItemRatingProtected Component
13 ABattery Monitoring System.

Passenger Compartment Fuse Box

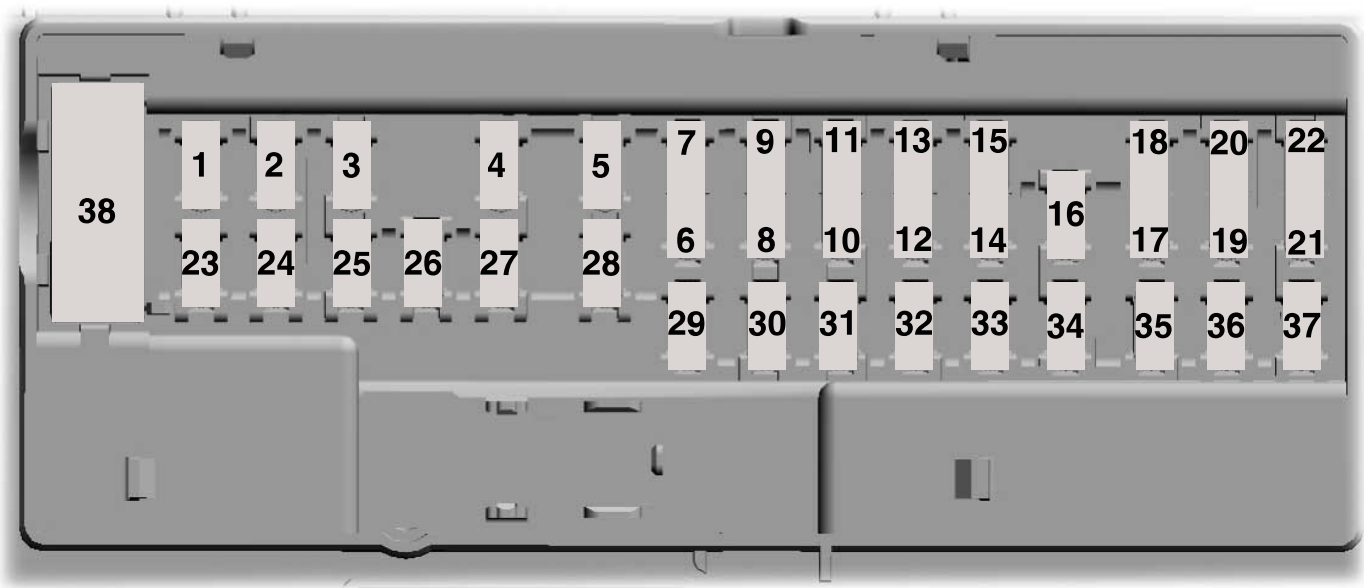

Ford Ranger (2024 – 2026)Fuse Box Diagrams User Guide Ford Ranger Passenger compartment fig 3
ItemRatingProtected Component
1—Not used.
210 AInverter. Door lock switch. Power window switch.
37.5 AWireless accessory charging module.
4—Not used.
5—Not used.
610 AAlarm horn. Battery backup sounder.
710 ANot used (spare).
85 ATelematics modem.
9—Not used.
10—Not used.
11—Not used.
127.5 AClimate control module. Gear shift module. Enhanced central gateway module.
137.5 ASteering column control module. Instrument panel.
14–

(2026) 15 A

Not used (spare).
1515 AOn board diagnostic connector. SYNC.
16—Not used.
177.5 AAdaptive front lighting module.

(2026) Adaptive front lighting module. Integrated trailer brake switch.

187.5 AAuxiliary switch.
195 AHeadlamp switch pack.
205 AIgnition switch. Push button switch.
21(2026) —

5 A

Not used.
22(2026) —

5 A

Not used.
23(2026) —

30 A

Not used.
24(2026) —

30 A

Not used.

(2026,2025) Moonroof.

25(2026) —

20 A

Not used.
26(2026) —

30 A

Not used.
27(2026) —

30 A

Not used.
28(2026) —

30 A

Not used.
2915 ADisplay.
30—Not used.
3110 ATerrain management switch. Integrated control module. Radio frequency receiver module.
3220 AAudio control module.
33—Not used.
34=

(2026) 30 A

Not used.

(2026) Run/start relay.

35—Not used.
3615 AParking aid module.
3720 AElectrochromatic mirror. Steering wheel control module.
38–

(2026) 30 A

Not used

(2026) One touch power windows.
