Ford Expedition (2025 – 2026) Fuse Box Location & Diagrams
Easily locate and troubleshoot electrical issues in your Ford Expedition with our comprehensive 2025–2026 fuse box guide. This essential resource provides clear, accurate diagrams to help you quickly identify circuits and resolve problems, ensuring your SUV remains in top condition for every journey you take.
Fuse Box Location
Engine Compartment Fuse Box
The under-hood fuse box is in the engine compartment. Remove the cover to access the fuses.
Passenger Compartment Fuse Box
The interior fuse box is in the passenger footwell. To access the fuses, contact an authorized dealer.
Fuse Box Diagrams
Engine Compartment Fuse Box
Ford Expedition (2025 – 2026)
| № | Amp | Protected Component |
|---|---|---|
| 1 | 30A | Body control module ignition 1 supply line. |
| 2 | 30A | Body control module ignition 2 supply line. |
| 3 | 30A | Body control module permanent power supply line. |
| 4 | 60A | Brake booster module. |
| 6 | 30A | Driver heated seat module. |
| 7 | 60A | Brake booster module. |
| 8 | 30A | Trailer brake control module. |
| 10 | 25A | Trailer tow module. |
| 13 | 40A | Four wheel drive control module. |
| 14 | 5A | Powertrain control module relay. |
| 15 | 20A | Powertrain control module ignition. |
| 16 | 25A | Vehicle power supply 2. |
| 17 | 20A | Vehicle power supply 3. |
| 18 | 20A | Vehicle power supply 4. |
| 19 | 15A | Transmission control module. |
| 22 | 30A | Right headlamp. |
| 23 | 30A | Left headlamp. |
| 24 | 30A | Starter motor. |
| 26 | 30A | Fuel pump control module. |
| 27 | 20A | Power outlet 1. |
| 28 | 20A | Power outlet 2. |
| 29 | 10A | Cargo USB charging port. Media bin USB charging port. |
| 31 | 30A | Front wiper motor. |
| 32 | 5A | Rain sensor module. |
| 36 | 30A | Body control module permanent power supply line. |
| 42 | 20A | Trailer brake control module. Trailer tow module. |
| 43 | 30A | Interior power distribution box. |
| 47 | 15A | Police spot lamps. |
| 48 | 30A | Digital sound processor. Amplifier. |
| 49 | 5A | Brake booster module. |
| 50 | 10A | Powertrain control module. |
| 51 | 10A | Air quality sensor module. |
| 53 | 20A | Rear seat control module. |
| 54 | 40A | Rear window heater module. |
| 59 | 20A | Horn. |
| 60 | 30A | Trailer parking lamp. |
| 62 | 40A | Blower motor. |
| 63 | 10A | Trailer backup lamp. |
| 69 | 5A | Power steering. |
| 70 | 10A | Smart data link connector. |
| 73 | 20A | Rear wiper motor. |
| 75 | 50A | Electric cooling fan 1. |
| 76 | 50A | Electric cooling fan 2. |
| 79 | 5A | Smart headlamp control module. |
| 81 | 10A | In-vehicle cooler. |
| 82 | 5A | Interior power distribution box run/start. |
| 84 | 15A | Fuel injectors. |
| 88 | 40A | Rear blower motor. |
| 90 | 20A | Windshield washer motor. |
| 104 | 5A | Brand logo lamp. |
| 112 | 30A | Second row seat motor -left. |
| 113 | 30A | Second row seat motor -right. |
| 147 | 40A | Intercooler fan. |
| 172 | 5A | Ambient lighting. |
| 173 | 15A | Driver seat USB charging port. Passenger seat USB charging port. |
| 174 | 15A | Rear entertainment system. |
| 175 | 5A | Left roof marker light. |
| 176 | 5A | Right roof marker light. |
| 178 | 60A | Driver door module. |
| 179 | 60A | Passenger door module. |
| 180 | 30A | Passenger heated seat module. |

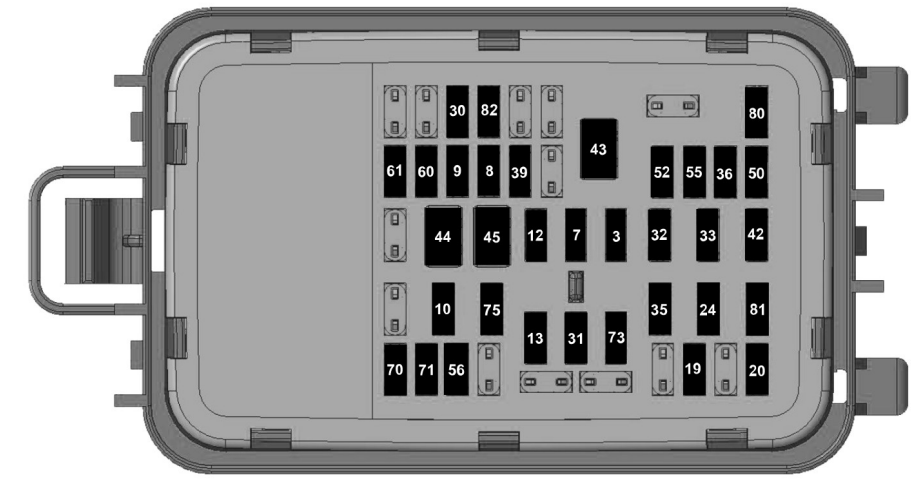

Passenger Compartment Fuse Box
Ford Expedition (2025 – 2026)
| № | Amp | Protected Component |
|---|---|---|
| 3 | 7.5A | Wireless charger control module. |
| 7 | 10A | Gear shift module. |
| 8 | 7.5A | Telematics control module. |
| 9 | 5A | Rear climate control module. Keypad. |
| 10 | 20A | Front multi-contour seat module. |
| 12 | 15A | Climate control module. |
| 13 | 7.5A | Steering wheel control module. |
| 19 | 5A | Bluetooth low energy module. |
| 20 | 5A | Headlamp module. |
| 24 | 30A | Glass roof control module. |
| 30 | 15A | USB charging port 3. USB charging port 4. |
| 31 | 10A | Central gateway module. Terrain management gateway module. Roof mounted remote receiver. |
| 32 | 20A | Audio control module. |
| 33 | 20A | Instrument cluster control module. |
| 35 | 10A | Center console control module. Center stack display. |
| 36 | 5A | Interior air particulate sensor. |
| 39 | 5A | Driver state monitor control module. |
| 42 | 20A | Integrated control panel. Voice control module. |
| 43 | 50A | Power splitgate control module. |
| 44 | 30A | Front driver seat motor. |
| 45 | 30A | Front passenger seat motor. |
| 50 | 7.5A | Splitgate assembly. |
| 52 | 5A | Trailer brake switch. |
| 55 | 15A | Electrochromatic rear view mirror. |
| 56 | 10A | Driver power window switch. |
| 60 | 10A | Glass roof. Rear seat entertainment. |
| 61 | 5A | Center console slide switch. |
| 70 | 20A | Driver assistance system control module. |
| 73 | 7.5A | Wireless charger control module. |
| 75 | 20A | Not used (spare). |
| 80 | 15A | Steering wheel control module. |
| 81 | 30A | Center console slide motor. |
| 82 | 10A | Media connector. |
