Ford Escape (2020 – 2026) Fuse Box Location and Diagrams
Struggling to locate a specific fuse in your vehicle? This comprehensive guide provides clear, accurate fuse box location diagrams for all Ford Escape models manufactured from 2020 to 2026. Effortlessly identify and troubleshoot your electrical system with our detailed, easy-to-follow layout charts designed for quick and reliable repairs.
Fuse Box Location
Engine Compartment Fuse Box

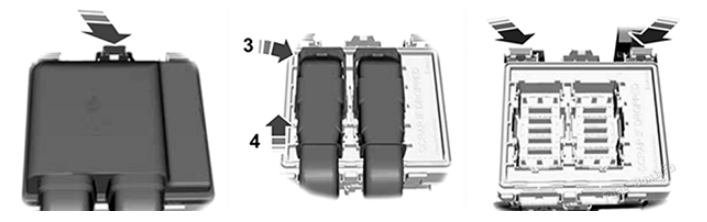

Accessing the Under Hood Fuse Box
- Pull the latch toward you and remove the top cover.
- Pull the connector lever upward.
- Pull the connector upward to remove it.
- Pull both latches toward you and remove the fuse box.
- Turn the fuse box over and open the lid.
Passenger Compartment Fuse Box
The fuse box is located in the passenger compartment below the glove box.
Fuse Box Diagrams
Engine Compartment Fuse Box
Ford Escape (2020 to 2024)
| Fuse Location | Fuse Rating | Protected Component |
| 1 | — | Not used. |
| 2 | — | Not used. |
| 3 | — | Not used. |
| 4 | 60 A | Supplemental heater (gas). |
| 5 | 40 A | Supplemental heater (gas). |
| 6 | 40 A | Supplemental heater (gas). |
| 7 | — | Not used. |
| 8 | — | Not used. |
| 9 | — | Not used. |
| 10 | 30 A | Starter motor. |
| 11 | 15 A | Powertrain control module. |
| 12 | 15 A | Powertrain control module. |
| 13 | 15 A | Powertrain control module. |
| 14 | 15 A | Powertrain control module. |
| 15 | — | Not used. |
| 16 | — | Not used. |
| 17 | — | Not used. |
| 18 | 10 A | Powertrain control module. |
| 19 | 10 A | Anti-lock brake system module. |
| 20 | — | Not used. |
| 21 | 5 A | Not used (spare). |
| 22 | 5 A | 2021,2022,2023, 2024:Battery electronic control module (hybrid electric vehicle). 2020: Battery electronic control module (hybrid) |
| 23 | 5 A | 2021,2022,2023,2024: Charge port light ring (plug-in hybrid electric vehicle). 2020: Charge port light ring (hybrid). |
| 24 | 20 A | Amplifier. |
| 25 | — | Not used. |
| 26 | — | Not used. |
| 27 | — | Not used. |
| 28 | 10 A | Brake on-off switch. |
| 29 | 5 A | Powertrain control module (hybrid electric vehicle). 2020: Powertrain control module (hybrid). |
| 30 | 10 A | Electronic stability control (gas). Transmission oil pump (hybrid electric vehicle). 2020: Electronic stability control (gas). Transmission oil pump (hybrid). |
| 31 | 5 A | Electronic power assist steering. |
| 32 | 30 A | Body control module. |
| 33 | 20 A 10 A (2022) | Front parking aid camera. Rear view camera. Blind spot information system. Adaptive cruise control. |
| 34 | 10 A | Not used (spare). |
| 35 | 15 A | Heated steering wheel. |
| 36 | 10 A | Powertrain control module (hybrid electric vehicle). 2020: Powertrain control module (hybrid) |
| 37 | 20 A | Horn. |
| 38 | 40 A | Blower motor. |
| 39 | — | Not used. |
| 40 | — 15 A (2021) | Not used. 2021: Heated wiper park. |
| 41 | 20 A | Amplifier. |
| 42 | 30 A | Driver power seat. |
| 43 | 50 A | Electric water pump (hybrid electric vehicle). 2020: Electric water pump (hybrid). |
| 44 | 40 A | Trailer tow module. |
| 45 | 30 A | Passenger power seat. |
| 46 | 20 A | Not used (spare). |
| 47 | 20 A | Heated seats. |
| 48 | 40 A | Anti-lock brake control valves. |
| 49 | 60 A | Anti-lock brake control pump. |
| 50 | 60 A | Cooling fan. |
| 51 | 30 A | Moonroof. |
| 52 | 5 A | DC/DC converter (hybrid electric vehicle). 2020: DC/DC converter (hybrid). |
| 53 | 10 A | Battery charge control module (hybrid electric vehicle). 2020: Battery charge control module (hybrid). |
| 54 | — | Not used. |
| 55 | — | Not used. |
| 56 | — | Not used. |
| 57 | 10 A | Data link connector. |
| 58 | 40 A | Auxiliary power distribution box (hybrid electric vehicle). 2020: Auxiliary power distribution box (hybrid) |
| 59 | 40 A | Body control module. |
| 60 | 5 A | USB smart charger. |
| 61 | 20 A | Rear cargo power point. |
| 62 | — | Not used. |
| 63 | 30 A | Not used (spare). |
| 64 | 30 A | Power liftgate. |
| 65 | — | Not used. |
| 66 | — | Not used. |
| 67 | — | Not used. |
| 68 | 5 A | Mass air flow and intake air temperature sensor (gas). |
| 69 | 15 A | Port fuel injectors. |
| 70 | 20 A | Rear console power point. |
| 71 | 20 A | Media bin power point. |
| 72 | 20 A | Rear window wiper. 2024: Rear window wiper. Rear window washer pump. |
| 73 | — | Not used. |
| 74 | 30 A | Windshield wiper motor. |
| 75 | 10 A | Heated exterior mirrors. |
| 76 | 30 A | Heated backlight. |
| 77 | — | Not used. |
| 78 | 10 A | Air conditioning clutch. |
| 79 | — 10 A (2021) | Not used. 2021: Not used (spare). |
| 80 | 20 A | Fuel pump. |
| 81 | 20 A 10 A (2022) – | Rear window washer pump.
2024 : Not used. |
| 82 | 40 A – | Power inverter. 2022: Not used. |
| 83 | — | Not used. |
| 84 | 40 A | Driveline control module. |
| 85 | 5 A | Rain sensor. |
| 86 | — | Not used. |
| 87 | — | Not used. |
| 88 | — | Not used. |

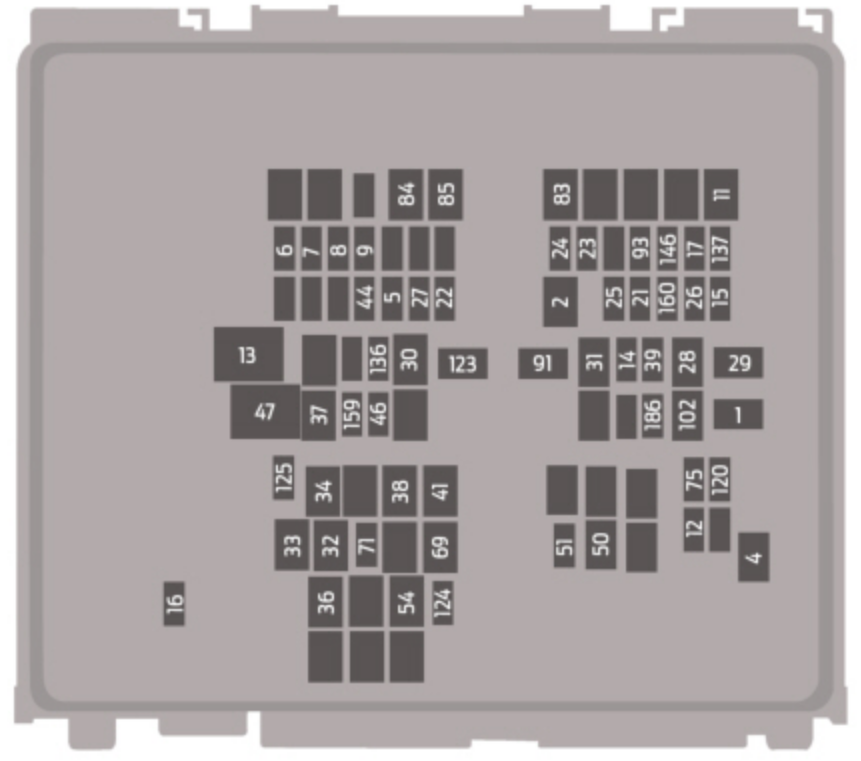

Ford Escape (2025 and 2026)
| Fuse Location | Fuse Rating | Protected Component |
| 1 | 40 A | Body control module. |
| 2 | 30 A | Body control module. |
| 4 | 20 A | Fuel pump. |
| 5 | 5 A | Powertrain control module (hybrid electric vehicle). |
| 6 | 15 A | Powertrain control module. |
| 7 | 15 A | Powertrain control module. |
| 8 | 15 A | Powertrain control module. |
| 9 | 15 A | Powertrain control module. |
| 11 | 30 A | Starter motor. |
| 12 | 10 A | Air conditioning clutch. |
| 13 | 40 A | Blower motor. |
| 14 | 20 A | Transmission oil temperature sensor |
| 15 | 20 A | Horn. |
| 16 | 10 A | Rear window wiper. Rear window washer pump. |
| 17 | 5 A | Charge port (hybrid electric vehicle). |
| 21 | 10 A | Headlamp leveling. |
| 22 | 5 A | Electronic power assist steering. |
| 23 | 10 A | Anti-lock brake system module. |
| 24 | 10 A | Powertrain control module. |
| 25 | 20 A | Front parking aid camera. Rear view camera. Blind spot information system. Adaptive cruise control. |
| 26 | 10 A | Powertrain control module (hybrid electric vehicle). |
| 27 | 10 A | Electronic stability control (gas). Transmission oil pump (hybrid electric vehicle). |
| 28 | 40 A | Anti-lock brake control valves. |
| 29 | 60 A | Anti-lock brake control pump. |
| 30 | 30 A | Driver power seat. |
| 31 | 30 A | Passenger power seat. |
| 32 | 20 A | Media bin power point. |
| 33 | 20 A | Rear console power point. |
| 34 | 20 A | Trunk power port. |
| 36 | 40 A | Power inverter. |
| 37 | 30 A | Glassroof. |
| 38 | 30 A | Climate control. |
| 39 | 20 A | Heated seats. |
| 41 | 30 A | Power liftgate. |
| 44 | 10 A | Brake on-off switch. |
| 46 | 10 A | Battery charge control module (hybrid electric vehicle). |
| 47 | 60 A | Cooling fan. |
| 50 | 30 A | Rear window defroster. |
| 51 | 10 A | Heated exterior mirrors. |
| 54 | 40 A | Driveline control module. |
| 69 | 30 A | Windshield wiper motor. |
| 71 | 20 A | Rear window wiper. Rear window washer pump. |
| 75 | 5 A | Port fuel injectors (gas). |
| 83 | 40 A | Supplemental heater (gas). |
| 84 | 60 A | Supplemental heater (gas). |
| 85 | 40 A | Supplemental heater (gas). |
| 91 | 40 A | Trailer tow module. |
| 93 | 5 A | Adaptive cruise control. |
| 102 | 40 A | Auxiliary power distribution box (hybrid electric vehicle). |
| 120 | 15 A | Port fuel injectors. |
| 123 | 50 A | Electric water pump (hybrid electric vehicle). |
| 124 | 5 A | Rain sensor. |
| 125 | 5 A | USB smart charger. |
| 136 | 20 A | Amplifier. |
| 137 | 20 A | Amplifier. |
| 146 | 5 A | Battery electronic control module (hybrid electric vehicle). |
| 159 | 5 A | DC/DC converter (hybrid electric vehicle). |
| 160 | 15 A | Heated steering wheel. |
| 186 | 10 A | Data link connector. |
Passenger Compartment Fuse Box
Ford Escape (2020 to 2024)
| Fuse Location | Fuse Rating | Protected Component |
| 1 | 5 A | Not used (spare). |
| 2 | 5 A | Not used (spare). |
| 3 | 10 A | Not used (spare). |
| 4 | 10 A | Integrated control panel. Gateway module. 2022: Ignition switch. |
| 5 | 20 A | Lock. Unlock. |
| 6 | 10 A | Moonroof. |
| 7 | 30 A | Passenger door module. |
| 8 | 5 A | All-Wheel Drive module. 2022: Parking assist control module. |
| 9 | 5 A | Electrochromatic mirror. 2022: Electrochromatic mirror. Image processing module A. |
| 10 | 10 A | Extended power module. |
| 11 | 5 A | Power liftgate. Telematics control unit module. 2022: Power liftgate. Hands-free liftgate actuation module. Telematics control unit module |
| 12 | 5 A | Keyless keypad switch. 2022: Head up display module. Keyless keypad switch. |
| 13 | 15 A | Driver door unlock. |
| 14 | 30 A | Driver door module. |
| 15 | 15 A | Extended power module. |
| 16 | 15 A | Not used (spare). |
| 17 | 15 A | SYNC. Radio transceiver module. 2022: SYNC. Receiver transceiver module. Integrated control panel. |
| 18 | 7.5 A | Wireless accessory charging module. |
| 19 | 7.5 A | Headlamp switch pack. |
| 20 | 10 A | Not used (spare). |
| 21 | 7.5 A | Climate control. E-shifter module. Ignition switch. 2022: Climate control. E-shifter module. |
| 22 | 7.5 A | Instrument cluster. Steering column control module. 2022: Instrument cluster. Gateway module Steering column control module. |
| 23 | 20 A | Audio unit. |
| 24 | 20 A | Not used (spare). |
| 25 | 30 A | Power windows. Exterior mirrors. |

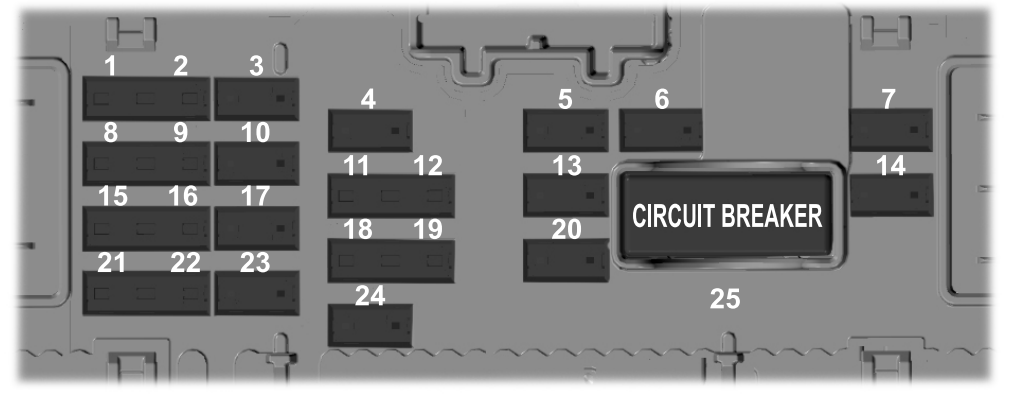

Ford Escape (2025 and 2026)
| Fuse Location | Fuse Rating | Protected Component |
| 1 | 5 A | Not used (spare). |
| 2 | 5 A | Not used (spare). |
| 3 | 10 A | Not used (spare). |
| 4 | 10 A | Integrated control panel. Gateway module. |
| 5 | 20 A | Lock. Unlock. |
| 6 | 10 A | Moonroof. |
| 7 | 30 A | Passenger door module. |
| 8 | 5 A | All-Wheel Drive module. |
| 9 | 5 A | Electrochromatic mirror. |
| 10 | 10 A | Extended power module. |
| 11 | 5 A | Power liftgate. Telematics control unit module. |
| 12 | 5 A | Keyless keypad switch. |
| 13 | 15 A | Driver door unlock. |
| 14 | 30 A | Driver door module. |
| 15 | 15 A | Extended power module. |
| 16 | 15 A | Not used (spare). |
| 17 | 15 A | SYNC. Radio transceiver module. |
| 18 | 7.5 A | Wireless accessory charging module. |
| 19 | 7.5 A | Headlamp switch pack. |
| 20 | 10 A | Not used (spare). |
| 21 | 7.5 A | Climate control. E-shifter module. Ignition switch. |
| 22 | 7.5 A | Instrument cluster. Steering column control module. |
| 23 | 20 A | Audio unit. |
| 24 | 20 A | Not used (spare). |
| 25 | 30 A | Power windows. Exterior mirrors. |
