Ford Ranger (2012 – 2015) Fuse Box Location & Diagrams
Discover the complete Fuse Box Location & Diagrams User Guide for Ford Ranger (2012–2015). This blog helps you identify interior and engine fuse boxes, understand layouts, and quickly troubleshoot electrical issues, making vehicle maintenance easier, safer, and more efficient for everyday driving with ease today.
Fuse Box Location

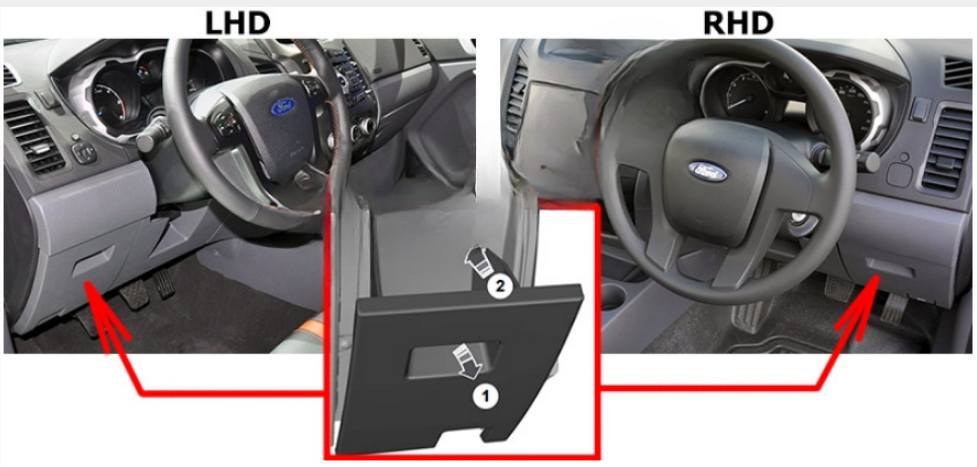

Passenger Compartment Fuse Box
It is located behind the cover on the instrument panel.

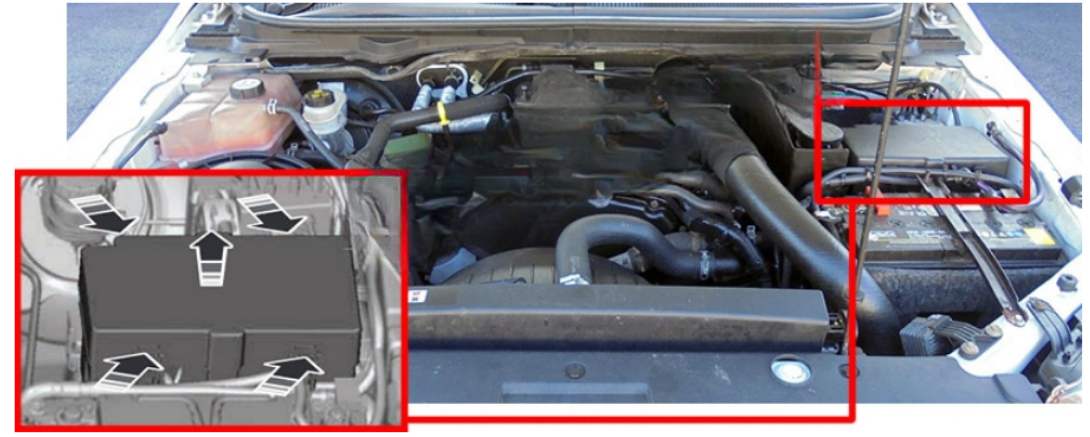

Engine Compartment Fuse Box

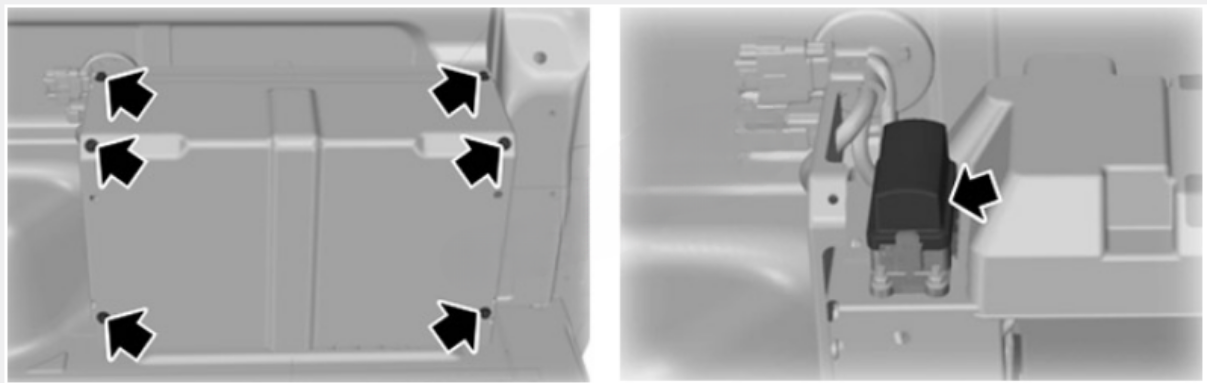

Auxiliary Fuse Box (if equipped) (2015)
Release the catches and remove the cover.
Fuse Box Diagrams

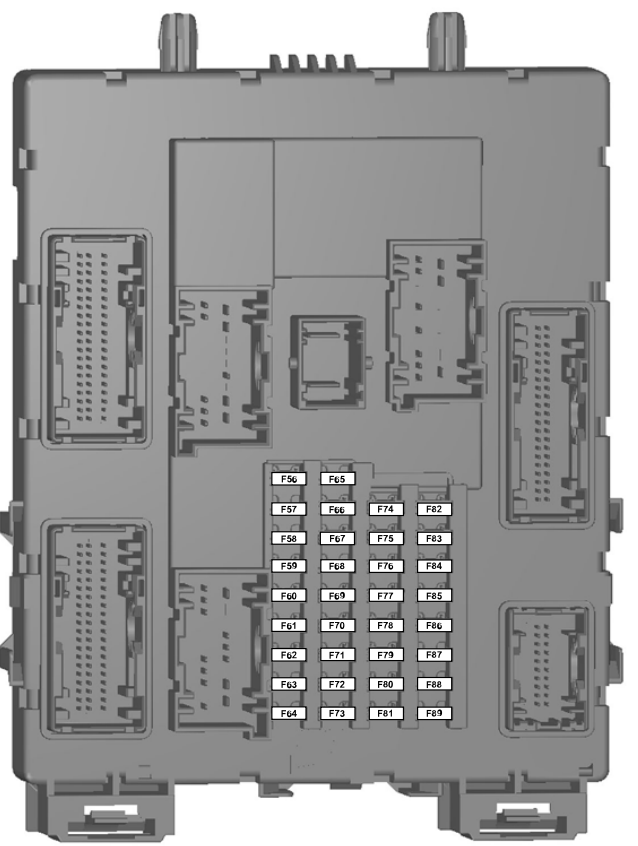

Passenger Compartment Fuse Box
Ford Ranger (2012 – 2015)
| № | Ampere rating | Circuits protected |
| 56 | 20 | Fuel pump |
| 57 | – | Not used |
| 58 | – | Not used |
| 59 | 5 | Passive anti-theft system (PATS) |
| 60 | 10 | Interior lamp, driver’s door switch pack, mood lights, puddle lights, Automatic shifter, footwell lamp |
| 61 | – | Not used |
| 62 | 5 | Rain sensor module |
| 63 | 5 | Tachograph (2012,2014,2015) Not used |
| 64 | – | Not used |
| 65 | – | Not used |
| 66 | 20 | Driver’s door lock, central double locking (2012,2014,2015) Driver’s door unlock, central double locking |
| 67 | 5 | Stop lamp switch |
| 68 | – | Not used |
| 69 | 5 | Instrument cluster, Integrated control module (ICP), Tracking and blocking module |
| 70 | 20 | Central locking |
| 71 | 5 | Air conditioning |
| 72 | 7.5 | Alarm horn |
| 73 | 5 | On-board diagnostics II |
| 74 | 20 | Main beam |
| 75 | 15 | Front fog lamps |
| 76 | 10 | Reversing lamp, rear view mirror |
| 77 | 20 | Washer pump |
| 78 | 5 | Ignition switch |
| 79 | 15 | Radio, multi-function display (2012,2014,2015) Audio signal DIN, FSAO audio, multi-function display |
| 80 | 20 | Multi-function display, Hi audio, brake valve closing (BVC) module |
| 81 | 5 | Interior motion sensor (2013) Multi-function display, Hi audio, Brake Valve Closing (BVC) module |
| 82 | 20 | Washer pump ground |
| 83 | 20 | Central locking ground (2013) Washer pump ground |
| 84 | 20 | Driver’s door unlock, central double locking ground (2013) Central locking ground double locking ground |
| 85 | 7.5 | Instrument cluster, parking aid module, rear view camera, manual air conditioning, rear view mirror, tracking and blocking module |
| 86 | 10 | Restraint system, passenger air-bag deactivation indicator |
| 87 | 5 | Tachograph |
| 88 | – | Not used |
| 89 | – | Not used |

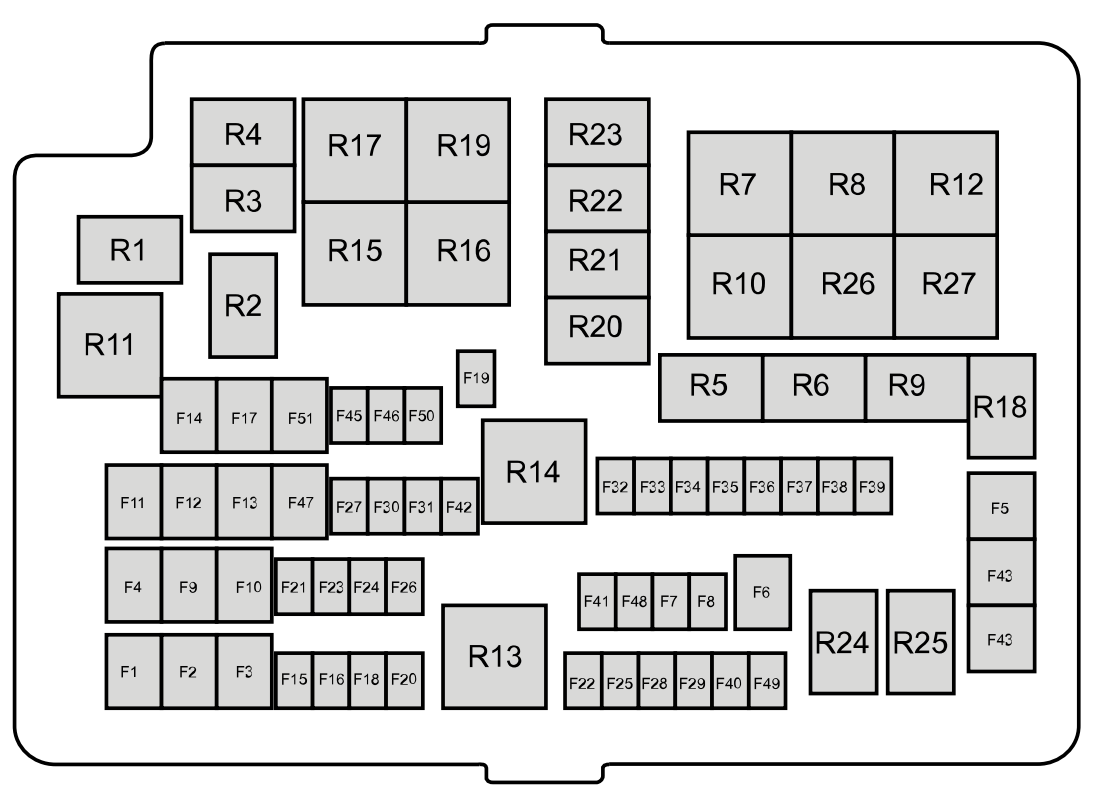

Engine Compartment Fuse Box
Ford Ranger (2012 – 2015)
| № | Ampere rating | Circuits protected |
| 1 | 60 | Passenger compartment fuse box supply (battery) |
| 2 | 60 | Passenger compartment fuse box supply (battery) |
| 3 (Petrol) | 50 | Engine cooling fan |
| 3 (Diesel) | 60 | Glow plug control module |
| 4 | 40 | ABS module |
| 5 | 30 | Electric windows (front and rear) |
| 6 | 25 | Four wheel drive (4WD) motor ground |
| 7 | – | Not used |
| 8 | – | Not used |
| 9 | 20 | Electric seat |
| 10 | 25 | Electric windows (front) |
| 11 | 30 | Blower motor |
| 12 | 25 | Four wheel drive (4WD) motor power |
| 13 | 20 | Starter solenoid |
| 14 | 20 | Heated rear window |
| 15 (Petrol) | 10 | Flex-fuel pump |
| 15 (Diesel) | 15 20 (2012,2014,2015) | Vapouriser glow plug |
| 16 | 10 | Air conditioning Clutch |
| 17 | 25 | Power windows (front) |
| 18 | 25 | Windscreen wiper motor |
| 19 | 25 | Wndscreen wiper motor ground |
| 20 | 20 | Cigar lighter |
| 21 | 15 | Horn |
| 22 | 15 | Fuel injectors or flex-fuel valve |
| 23 | 10 | Differential lock solenoid |
| 24 | 20 | Auxiliary power socket (front console) (2012,2014.2015) Auxillary power socket instrument panel, console top |
| 25 | 15 | Ignition coils, Temperature and Mass Air Flow sensor, Glow plug module, Vacuum Control Valve (VCV), Electronic Vacuum Regulator Valve (EVRV) |
| 26 | 7.5 | Electronic control module (ECM) |
| 27 | 10 | Transmission control module (TCM) |
| 28 | 10 | Heated exhaust gas oxygen, Universal Heated Exhaust Gas Oxygen-sensor, Relay coils |
| 29 | 15 | Electronic control module (ECM) |
| 30 | 15 | Battery monitoring sensor |
| 31 | 20 | Auxiliary power socket (rear console) |
| 32 | 5 | A/C pressure switch |
| 33 | 10 | Transmission control module (TCM) |
| 34 | 5 | PTC heater (where fitted) / Crew chief module / Spare (2015) Crew chief module, Spare |
| 35 | 20 | Passenger compartment fuse box supply (Ignition) |
| 36 | 5 | ABS module |
| 37 | 10 | Headlamp levelling |
| 38 | 20 | Heated seat |
| 39 | 10 | Power mirrors |
| 40 | 10 | Vapouriser pump (2012,2014,2015) Not used |
| 41 | 10 | Heated mirrors |
| 42 | 10 | Alarm horn |
| 43 | 30 | Heated windscreen (right) |
| 44 | 30 | Heated windscreen (left) |
| 45 | 25 | ABS module |
| 46 | 20 | Auxiliary power socket (floor console) |
| 47 | 20 40 (2013 ) | Trailer tow module |
| 48 | – | Not used |
| 49 | – | Not used |
| 50 | 5 | Ignition relay, Relay coils |
| 51 (Brazil only) | 30 | Electric windows (rear) |
| 51 | 20 | (2013) Trailer tow (12 or 13 pin battery feed, Permanent live) |
| Relays | ||
| R1 | Key interlock | |
| R2 | Wiper on or off | |
| R3 | Horn | |
| R4 | A/C clutch | |
| R5 | Differential lock | |
| R6 | Wper Hi or Lo | |
| R7 | Engine cooling fan low | |
| R8 | Engine cooling fan high | |
| R9 | Flex-fuel pump, Vapouriser glow plug | |
| R10 | Heated rear window | |
| R11 | Heated windscreen | |
| R12 | Not used | |
| R13 | Electronic control module (ECM) power hold | |
| R14 | Ignition | |
| R15 | 4WD motor 2 (Clockwise) | |
| R16 | 4WD motor 1 (Counter clockwise) | |
| R17 | 4WD motor | |
| R18 | Security horn | |
| R19 | Starter motor | |
| R20 | Not used | |
| R21 | Not used | |
| R22 | Not used | |
| R23 | Not used | |
| R24 | Not used | |
| R25 | Not used | |
| R26 | Blower motor | |
| R27 | Electric seat |

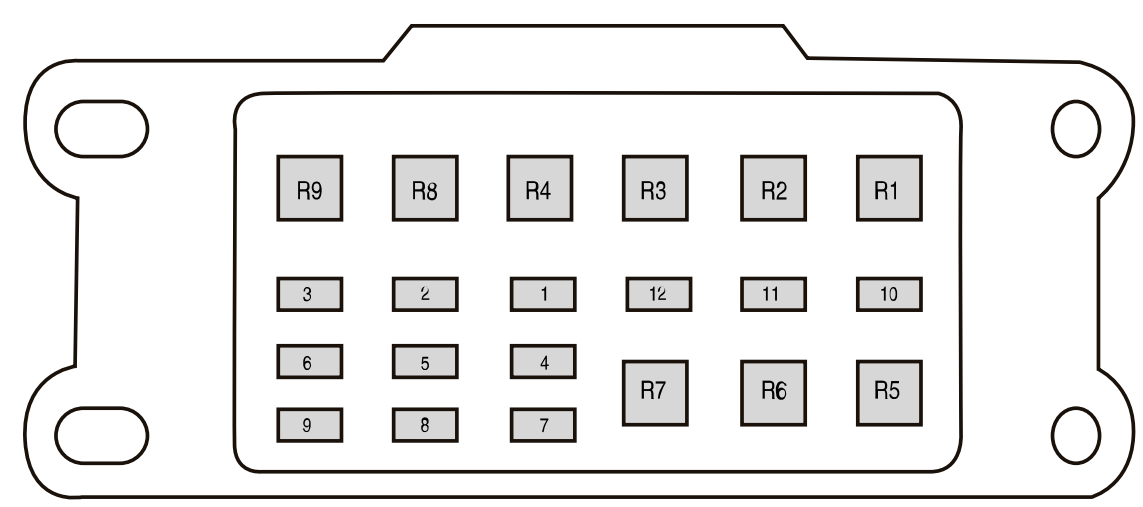

Auxiliary Fuse Box (if equipped)
Ford Ranger (2015)
| № | Amp Rating | Protected Components |
| 1 | 25 | Driving Light |
| 2 | 15 | Position lamp |
| 3 | 10 | LED beacon |
| 4 | 15 | Work lights |
| 5 | 20 | Spare |
| 6 | 20 | Power point |
| 7 | 15 | Reversing lamp |
| 8 | 15 | Direction indicators, stop lamp |
| 9 | 5 | Crew chief |
| 10 | 5 | Disable fuse (isolator ground) |
| 11 | – | Not used |
| 12 | – | Not used |
| Relays | ||
| R1 | Work lights | |
| R2 | LED beacon | |
| R3 | Spare | |
| R4 | Position lamp | |
| R5 | Direction indicator (left) | |
| R6 | Direction indicator (right) | |
| R7 | Stop lamp | |
| R8 | Not used | |
| R9 | Not used |
