Honda Pilot (2023 – 2026) Fuse Box Location & Diagrams
Find the fuse box locations and detailed fuse diagrams for the Honda Pilot (2023–2026). This user guide helps owners quickly identify fuse assignments, troubleshoot electrical issues, and understand the vehicle’s fuse layout for easier maintenance, repairs, and component replacement with confidence and convenience.
Fuse Box Location
Engine Compartment Fuse Box

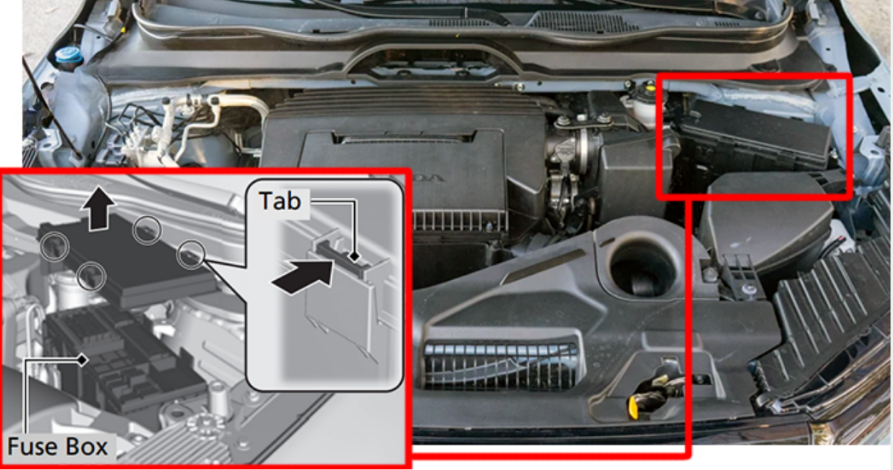

Located near the brake fluid reservoir. Push the tabs to open the box. Fuse locations are shown on the fuse box cover.
Passenger Compartment Fuse Box

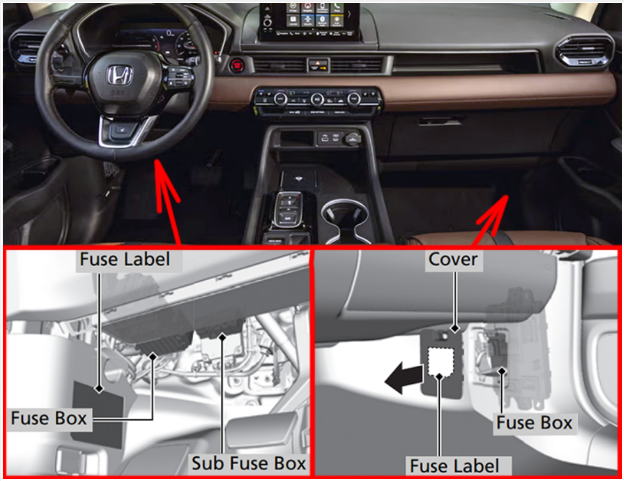

- Driver’s Side Interior Fuse Box is located under the dashboard. Fuse locations are shown on the label on the side panel.
- Passenger’s Side Interior Fuse Box is located on the lower side panel. Take off the cover to open. Fuse locations are shown on the fuse box cover.
Fuse Box Diagrams
Engine Compartment Fuse Box
Honda Pilot (2023 – 2026)

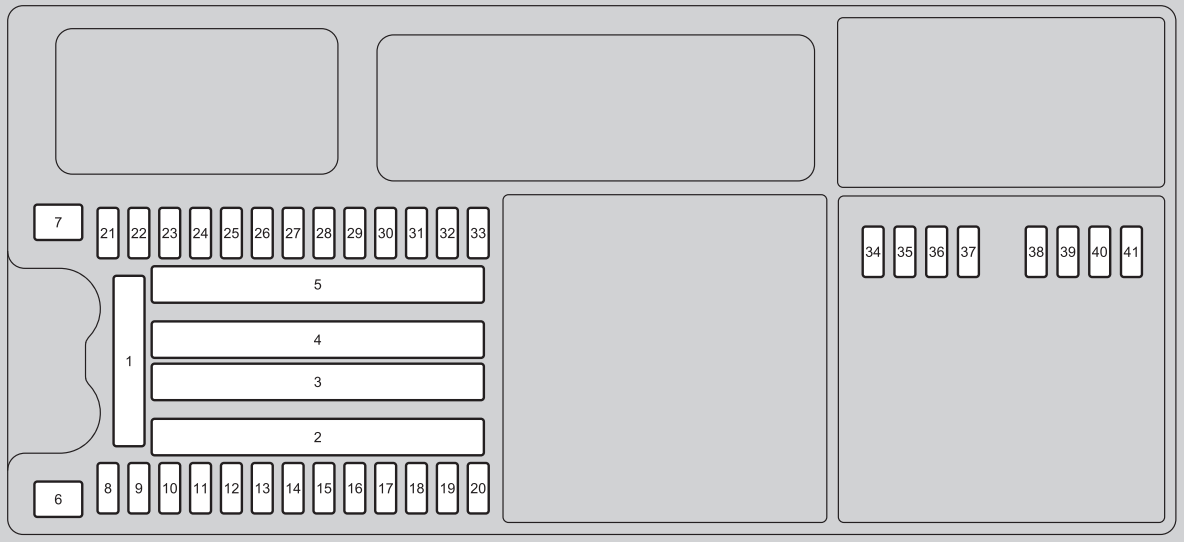

| No. | Circuit Protected | Amps |
| 1 | BATTERY | 225 A |
| 2 | Idle Stop 1 | (30 A) |
| Idle Stop 2 | (30 A) | |
| EPS | 80 A | |
| FET Main 1 | 70 A | |
| Fuse Box Main 1 | 60 A | |
| Fuse Box Option 1 | 60 A | |
| Rear Blower | 30 A | |
| 3 | ACM | 30 A |
| Starter Cut | 30 A | |
| Sub Fan Motor | 30 A | |
| Heater Motor | 40 A | |
| Accessory Power Socket Main* | (40 A) | |
| Rear Defogger | 40 A | |
| Fuse Box Option 2 | 60 A | |
| 4 | AC Power Outlet* | (30 A) |
| EBB | 40 A | |
| Power Tailgate | (40 A) | |
| ABS/VSA FSR | 40 A | |
| – | 60 A | |
| Wiper Motor | 30 A | |
| Fuse Box Main 2 | 60 A | |
| 5 | FET Main 2 | 30 A |
| ABS/VSA Motor | 40 A | |
| IG Main 2 | 30 A | |
| SRM 2 | 30 A | |
| SRM 1 | 30 A | |
| AWD* | (30 A) | |
| IG Main 1 | 30 A | |
| 6 | Condenser Fan | 30 A |
| 7 | Trailer Main* | (30 A) |
| 8 | Power Tailgate | (20 A) |
| 9 | Back Up Audio (2026) – | (15 A) |
| 10 | – | – |
| 11 | Back Up | 10 A |
| 12 | Trailer Charge* | (20 A) |
| 13 | Trailer Brake* | (20 A) |
| 14 | Horn | 15 A |
| 15 | – | – |
| 16 | VBU | 10 A |
| 17 | – | – |
| 18 | – | – |
| 19 | FI Main | 20 A |
| 20 | Injector | 20 A |
| 21 | TCU 1 | 15 A |
| 22 | IG Coil | 15 A |
| 23 | Hazard | 15 A |
| 24 | Right H/L | 15 A |
| 25 | Stop | 5 A |
| 26 | Left H/L | 15 A |
| 27 | TCU 3 | 10 A |
| 28 | TCU 2 | 10 A |
| 29 | – | – |
| 30 | – | – |
| 31 | Front Washer | 15 A |
| 32 | Battery Sensor | 10 A |
| 33 | Shutter Grille | 10 A |
| 34 | IG1 START | 5 A |
| 35 | Battery Fan | 5 A |
| 36 | FI ECU | 5 A |
| 37 | – | – |
| 38 | IG1 PCS | 5 A |
| 39 | IGPS RAD | 10 A |
| 40 | IGPS VSSV | (10 A) |
| 41 | – | – |
Driver’s Side Interior Fuse Box
Honda Pilot (2023 – 2026)

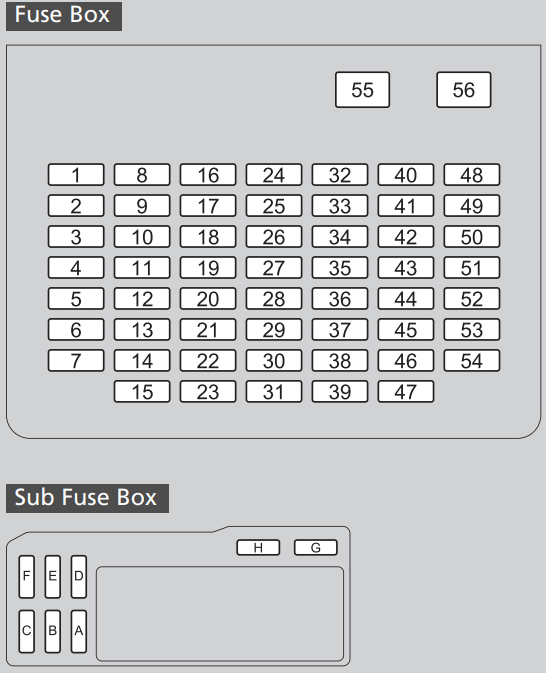

| Fuse/Circuit | Circuit Protected | Amps |
| 1 | Driver’s Power Window | 30 A |
| 2 | Front Passenger’s Power Window | 30 A |
| 3 | Rear Right Side Power Window | 30 A |
| 4 | Rear Left Side Power Window | 30 A |
| 5 | Option | 10 A |
| 6 | SRS | 10 A |
| 7 | Tailgate Motor (2026) – | (10 A) |
| 8 | – | – |
| 9 | Rear Accessory Power Socket* | (20 A) |
| 10 | Door Lock Main | 20 A |
| 11 | Meter | 10 A |
| 12 | Transmission (2026) MISS SOL | 10 A |
| 13 | Rear Wiper | 10 A |
| 14 | – | – |
| 15 | Driver’s Door Unlock | (10 A) |
| 16 | Panoramic Roof* | (20 A) |
| 17 | – | – |
| 18 | HAC ACCESSORY (2026) – | (20 A) – |
| 19 | AWD* | (10 A) |
| 20 | – (2026) Center Display | – 10 A |
| 21 | – | – |
| 22 | Keyless Access System | 10 A |
| 23 | Driver’s Door Lock | (10 A) |
| 24 | – | – |
| 25 | Shifter | 10 A |
| 26 | SRS | 10 A |
| 27 | ACG | 15 A |
| 28 | ABS/VSA | 10 A |
| 29 | FUEL PUMP | 20 A |
| 30 | Left Side Door Unlock | 10 A |
| 31 | Right Side Door Unlock | 10 A |
| 32 | Sunshade* | (20 A) |
| 33 | IMG (2026) CGW | 10 A |
| 34 | – | – |
| 35 | USB Charger (2026) Front USB | 10 A |
| 36 | – (2026) Rear USB | – 15 A |
| 37 | Audio Amp (2026) – | (10 A) – |
| 38 | Rear Seat Act | 20 A |
| 39 | Right Side Door Lock | 10 A |
| 40 | Driver’s Power Seat Slide | (20 A) |
| 41 | Driver’s Power Seat Recline | (20 A) |
| 42 | Starter | 10 A |
| 43 | AIRCON (2026) A/C | 10 A |
| 44 | DRL | 10 A |
| 45 | Accessory | 10 A |
| 46 | – | – |
| 47 | Left Side Door Lock | 10 A |
| 48 | – | – |
| 49 | Front Passenger’s Power Seat Slide | (20 A) |
| 50 | Driver’s Power Seat Lumbar | (10 A) |
| 51 | – | – |
| 52 | – | – |
| 53 | Front Passenger’s Power Seat Recline | (20 A) |
| 54 | – | – |
| 55 | Audio Amp* | (30 A) |
| 56 | – | – |
| A | Option (2026) Option VST | (10 A) |
| B | Accessory (2026) Accessory VST | (10 A) |
| C | Audio (2026) Back Up 2 Main | (15 A) |
| D | Surround View Camera System (2026) Surround View Camera System VST* | (10 A) |
| E | Audio (2026) Audio VST | (20 A) |
| F | – | – |
| G | Meter (2026) Meter VST | (15 A) |
| H | MICU (2026) MICU VST | (10 A) |
Passenger Side Interior Fuse Box
Honda Pilot (2023 – 2026)

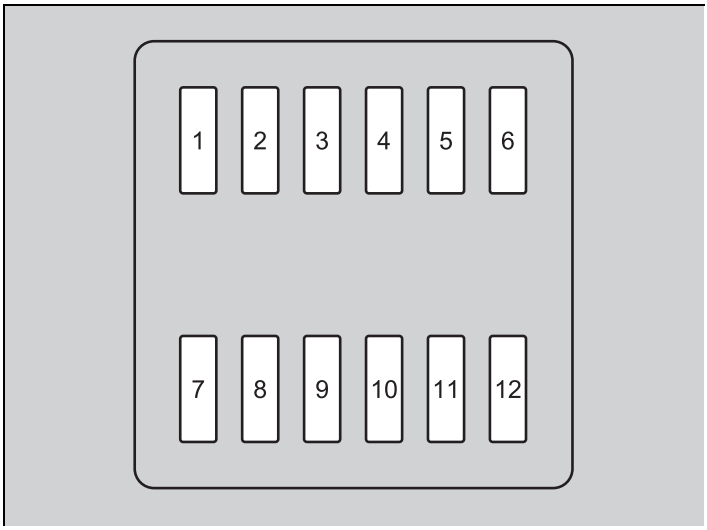

| Circuit Number | Circuit Protected | Amps |
| 1 | — | — |
| 2 | A/C Compressor | 10 A |
| 3 | Heated Steering Wheel* | (10 A) |
| 4 | Heated Windshield* | (15 A) |
| 5 | Fog Lights | (10 A) |
| 6 | FI Sub | 15 A |
| 7 | Front Seat Heaters | 20 A |
| 8 | — | — |
| 9 | — | — |
| 10 | Second Row Seat Heaters* | (20 A) |
| 11 | — | — |
| 12 | Front Accessory Power Socket | 20 A |
