Honda CR-V (2023 – 2026) Fuse Box Location & Diagrams

Looking for your Honda CR-V (2023–2026) fuse box location or a complete wiring diagram? Our expert user guide provides clear, easy-to-follow instructions and technical charts to help you quickly identify, troubleshoot, and replace fuses, keeping your vehicle’s electrical systems running smoothly and safely.

Fuse Box Location

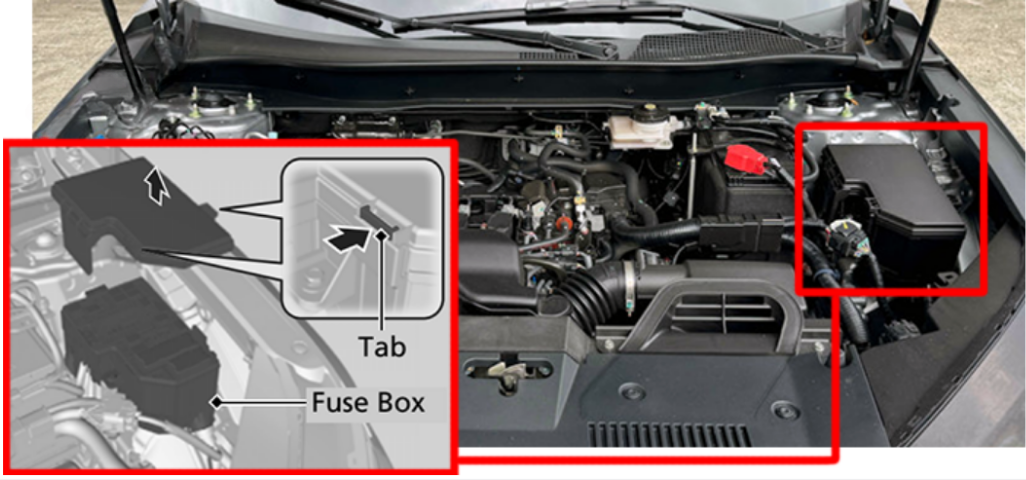

Engine Compartment Fuse Box
Located near the battery. Push the tabs to open the box. Fuse locations are shown on the fuse box cover.

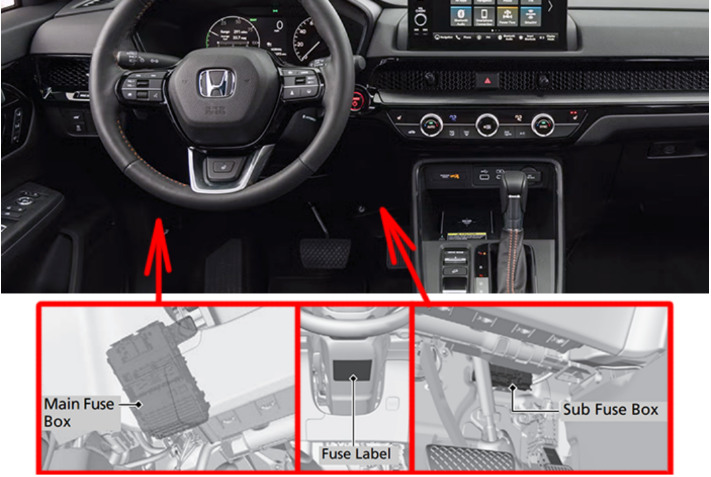

Passenger Compartment Fuse Box
Located under the dashboard. Fuse locations are shown on the label under the steering column.

Fuse Box Diagrams

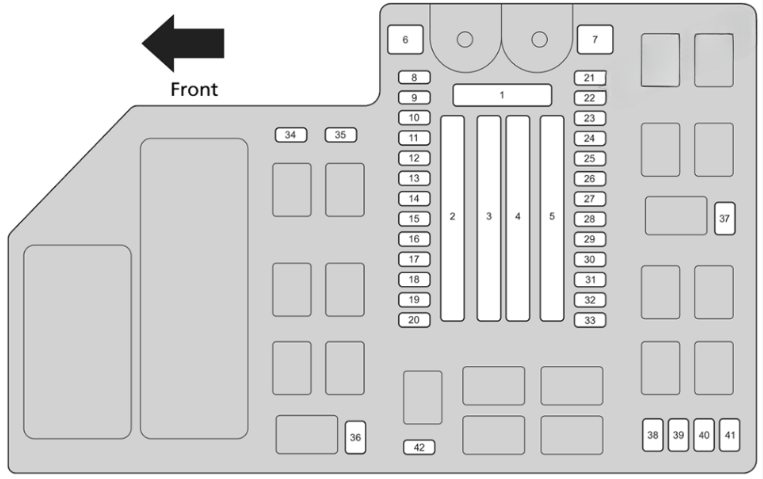

Engine Compartment Fuse Box

Honda CR-V (2023 – 2026)

No.	Circuit Protected	Amps
1	MAIN FUSE	125 A (2026) 150 A
2	I/S2	(30 A)
	–	40 A
	F/BOX OPTION1	60 A
	PTC HTR1*	(40 A)
	F/BOX OPTION2	60 A
	–	60 A
	F/BOX MAIN1	60 A
3	AUDIO AMP* (2026) –	(30 A)
	ST MAGNETIC SW	30 A
	PTC HTR3*	(40 A)
	RR DEF	30 A
	–	50 A
	HTR MTR	40 A
	PTG MTR*	(40 A)
4	ABS/VSA FSR	40 A
	ABS/VSA MTR	40 A
	–	40 A
	E BOOSTER	40 A
	IG1 MAIN1 (2026) IG MAIN1	30 A
	–	40 A
	IG1 MAIN2 (2026) IG MAIN2	30 A
5	I/S1	(30 A)
	WIPER	30 A
	EPS	70 A
	–	30 A
	–	40 A
	MAIN FAN	30 A
	F/BOX MAIN2	60 A
6	SUB FAN	30 A
7	SRM2	20 A
8	–	–
9	BACK UP	10 A
10	FR WIPER DEICER*	(15 A)
11	–	–
12	–	–
13	–	–
14	–	–
15	FR FOG	(10 A)
16	–	–
17	A/C MG CLUTCH	10 A
18	HORN	15 A
19	FR WASHER	15 A
20	AUDIO*	15 A
21	SRM1	20 A
22	DBW	15 A
23	HAZARD	10 A
24	VBU	10 A
25	IGP	15 A
26	TCU	10 A
27	LCM L	20 A
28	INJ	20 A
29	STOP	10 A
30	LCM R	20 A
31	IG COIL	15 A
32	–	–
33	–	–
34	–	–
35	–	–
36	AUDIO MAIN VST	(15 A)
37	AUDIO SUB VST* (2026) –	(7.5 A) (2026) –
38	–	–
39	IGPS VBACT	7.5 A
40	IGPS FAN	7.5 A
41	IGPS LAF	7.5 A
42	IG1 MON2 (2026) MON2	5 A

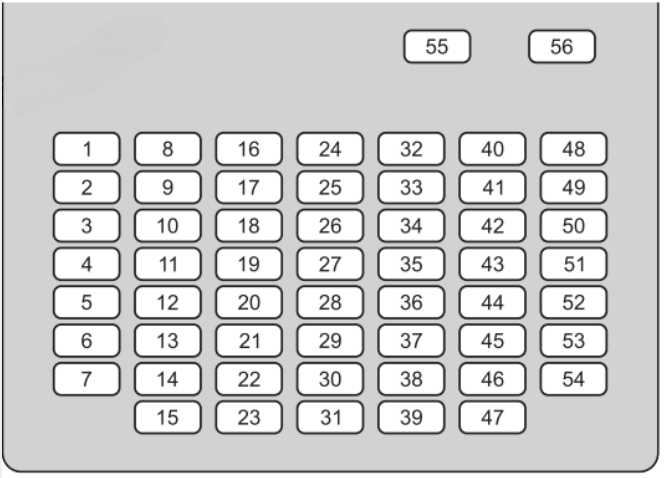

Passenger Compartment Fuse Box

Honda CR-V (2023 – 2026)

No.	Circuit Protected	Amps
1	P/W DR	20 A
2	P/W AS	20 A
3	P/W RR R	20 A
4	P/W RR L	20 A
5	OPTION	10 A
6	SRS	10 A
7	T/G MTR / TRUNK ACT*	(10 A)
8	RVU*	10 A
9	FR ACC SOCKET	20 A
10	DOOR LOCK	20 A
11	METER	10 A
12	OPTION 3 (ST CUT)	10 A
13	OPTION 2	10 A
14	OPTION 6 (VB SOL)	10 A
15	DR DOOR UNLOCK	(10 A)
16	IMG	10 A
17	YOP TRAILER*	(20 A)
18	HAC OP*	(20 A)
19	–	–
20	USB CHG*	10 A
21	CARGO ACC SOCKET	20 A
22	SMART	10 A
23	DR DOOR LOCK	(10 A)
24	E-DPS*	20 A
25	–	–
26	SRS	10 A
27	ACG	10 A
28	OPTION 5 (ABS)	10 A
29	FUEL PUMP	20 A
30	L SIDE DOOR UNLOCK	10 A
31	R SIDE DOOR UNLOCK	10 A
32	SUN ROOF*	20 A
33	– (2026) USB CHG PD	– (2026) 10 A
34	–	–
35	SUN SHADE*	20 A
36	RR H/SEAT*	(20 A)
37	–	–
38	RR BLOWER*	20 A
39	R SIDE DOOR LOCK	10 A
40	DR P/SEAT SLIDE*	20 A
41	DR P/SEAT REC*	20 A
42	–	–
43	A/C (2026) OPTION	10 A
44	DRL	5 A
45	ACC	10 A
46	–	–
47	L SIDE DOOR LOCK	10 A
48	H/SEAT*	(20 A)
49	AS P/SEAT REC*	20 A
50	P/LUMBAR DR/AS*	10 A
51	–	–
52	PTG CLOSER*	(20 A)
53	AS P/SEAT SLI*	20 A
54	OPTION1	10 A
55	–	–
56	–	–

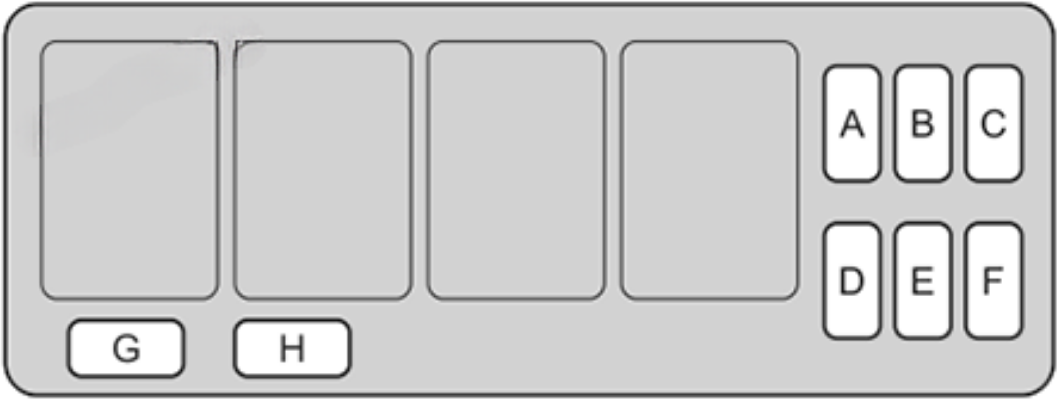

Interior Sub Fuse Box

Honda CR-V (2023 – 2026)

No.	Circuit Protected	Amps
A	ACC	(5 A)
B	EOP	(10 A)
C	–	–
D	METER	(10 A)
E	OPTION	(10 A)
F	–	–
G	–	–
H	–	–
