Toyota Camry (2018 – 2024) Fuse Box Location & Diagrams
Need to troubleshoot your 2018–2024 Toyota Camry’s electrical system? Our expert guide provides precise fuse box locations and easy-to-read diagrams to help you identify faults fast. Whether you are dealing with a blown fuse or a malfunctioning accessory, find the essential technical details required to restore your vehicle’s performance safely.
Fuse Box Location

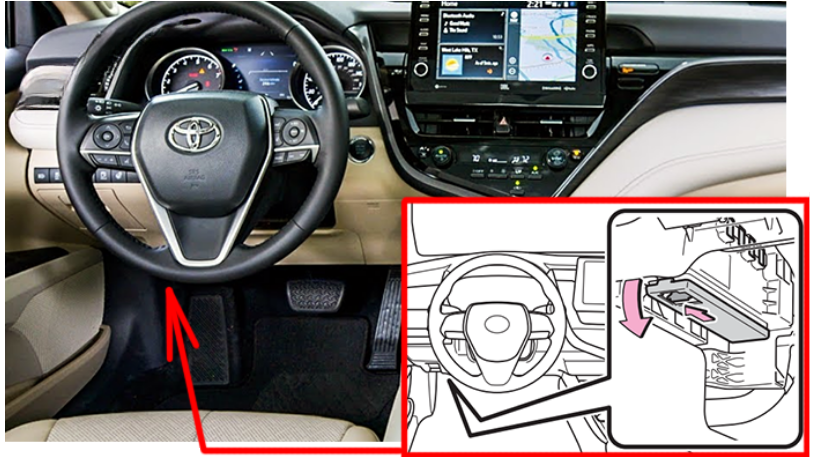

Passenger Compartment Fuse Box
The fuse panel is located below the dashboard.

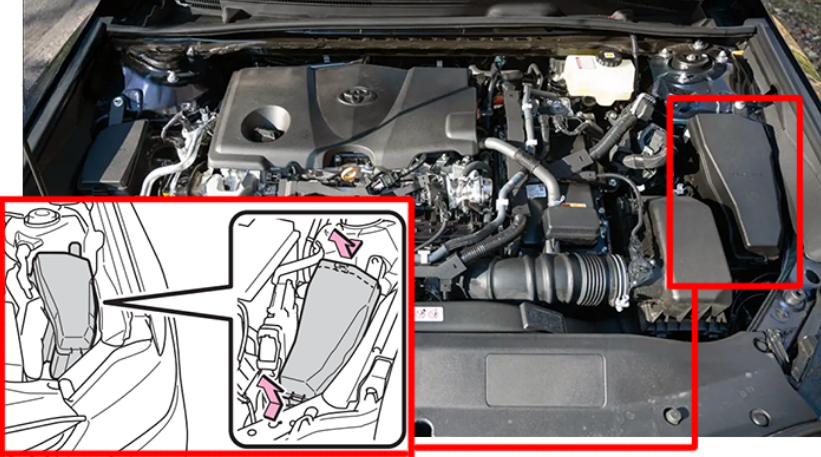

Engine Compartment Fuse Box
Push the tabs in and lift the lid off.
Fuse Box Diagrams

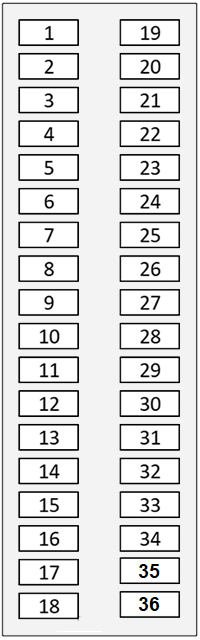

Passenger Compartment Fuse Box
Toyota Camry (2018 – 2024)
| № | Amps | Name | Description |
|---|---|---|---|
| 2 | 7.5A | OBD | On-board diagnostics |
| 3 | 7.5A | DOME | Dome light and interior light |
| 4 | 7.5A | TRUNK OPEN | Power trunk lid opener |
| 6 | 10A | ECU-DCC NO.2 | Engine control unit |
| 7 | 5A | ECU-DCC NO.1 | Engine control unit |
| 8 | 15A | RADIO | Radio and audio system |
| 9 | 20A | DOOR R/R | Rear right door |
| 10 | 7.5A | S-HORN | Horn / anti-theft deterrent |
| 11 | 10A | STRG LOCK | Steering lock |
| 12 | 7.5A | DCM | Data communication module (telematics system) |
| 13 | 5A | ECU-ACC | Engine control unit |
| 14 | 7.5A | ECU-IG1 NO.3 | Engine control unit |
| 15 | 5A | EPS-IG1 | Electric power steering |
| 16 | 10A | A/BAG-IG2 | Airbag |
| 17 | 5A | METER-IG2 | Instrument cluster |
| 18 | 5A | ECU-IG2 NO.3 | Engine control unit |
| 19 | 10A | ECU-B NO.2 | Engine control unit |
| 20 | 5A | ECU-B NO.1 | Engine control unit |
| 21 | 15A | D/L | Power door lock system |
| 22 | 7.5A | STOP | Stop lights |
| 23 | 7.5A | AM2 | Starter system |
| 24 | 10A | HAZ | Hazard light |
| 25 | 5A | PANEL | Instrument panel lights |
| 26 | 10A | TAIL | Tail lights |
| 27 | 20A | DOOR F/L | Front left door lock |
| 28 | 20A | DOOR F/R | Front right door |
| 29 | 15A | P/OUTLET NO.1 | Cigar lighter / power outlet |
| 30 | 5A | SFT LOCK-ACC | AT Shift lock control system |
| 31 | 20A | WASHER | Windshield washer |
| 33 | 10A | ECU-IG1 NO.4 | Engine control unit |
| 34 | 7.5A | BKUP LP | Backup lights |
| 35 | 5A | ECU-IG1 NO.2 | Engine control unit |
| 36 | 5A | ECU-IG1 NO.1 | Engine control unit |

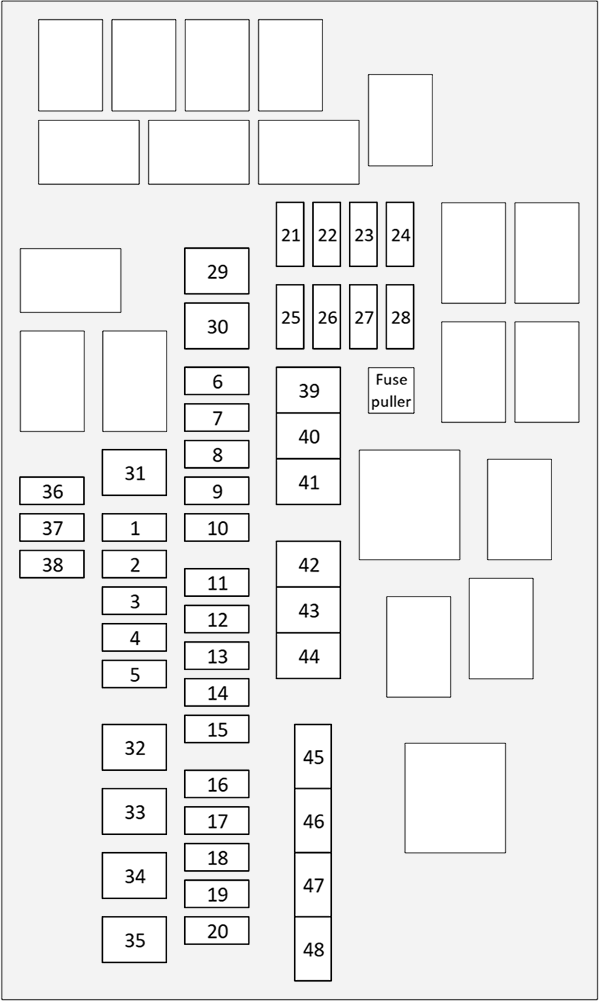

Engine Compartment Fuse Box
Toyota Camry (2018 – 2024)
| № | Amps | Name | Description |
|---|---|---|---|
| 1 | 10A | FOG FR | Front fog lights |
| 2 | 10A | DLR | DLR |
| 3 | 20A | TI&TE | Power tilt and power telescopic |
| 4 | 10A | STRG HTR | Heated steering wheel |
| 5 | 20A/25A | S/HTR MAIN | Seat heater |
| 6 | 15A | H-LP RH | Right-hand headlight |
| 7 | 10A | EFI-MAIN NO.4 | Multiport fuel injection system |
| 8 | 5A | BATT-S | Battery and charging system |
| 7.5A | ABS NO.2 | Hybrid: Anti-lock braking system | |
| 9 | 15A | H-LP LH | Left-hand headlight |
| 10 | 10A | FUEL OPN | Fuel lid opener |
| 11 | 20A | D INJ | D INJ |
| 12 | 7.5A/30A | ST NO.2 | Starter system |
| 7.5A | ABS NO.3 | Hybrid: Anti-lock braking system | |
| 13 | 20A | EFI MAIN NO.2 | Multiport fuel injection system |
| 14 | 10A | HORN | Horn |
| 15 | 20A | EFI MAIN NO.1 | Multiport fuel injection system |
| 16 | 15A | TV | TV |
| 17 | 25A | D/C CUT | D/C CUT |
| 18 | 20A | IG2 MAIN | Protects several circuits |
| 19 | 30A | EFI MAIN NO.3 | Multiport fuel injection system |
| 20 | 20A | VTT | VTT |
| 21 | 10A | EFI NO.1 | Multiport fuel injection system |
| 22 | 7.5A | EFI NO.2 | Multiport fuel injection system |
| 23 | 10A | MIR HTR | Mirror heater |
| 24 | 7.5A/30A | BBC NO.4 | Stop & Start system |
| G/SHUTTER | G/SHUTTER | ||
| 25 | 10A | ECU-IG2 NO.1 | Engine control unit |
| 26 | 10A | ECU-IG2 NO.2 | Engine control unit |
| 27 | 10A | INJ | Fuel injectors |
| 28 | 10A | EFI2 NO.2 | Multiport fuel injection system |
| 29 | 30A | WIPER | Wipers |
| 30 | 30A | ST NO.1 | Starter system |
| 31 | 50A | DEF | Rear window defogger |
| 32 | 30A | POWER SEAT RR | Power seats |
| 33 | 50A | FAN NO.2 | Electric cooling fan |
| 34 | 30A | H-LP CLN | Headlight cleaner |
| 35 | 50A | HEATER | Air conditioning system |
| 36 | 7.5A | P/OUTLET NO.2 | Cigar lighter / power outlet |
| 37 | 7.5A | H-LP HI | H-LP HI |
| 39 | 30A | BBC NO.1 | Stop & Start system (Some models) |
| 30A | ABS MAIN NO.1 | Hybrid: Anti-lock braking system | |
| 40 | 30A | BBC NO.2 | Stop & Start system (Some models) |
| 30A | ABS MTR NO.3 | Hybrid: Anti-lock braking system | |
| 41 | 50A | BBC NO.3 | Stop & Start system (Some models) |
| 50A | EPB NO.1 | Hybrid: Electronic Parking Brake | |
| 42 | 50A | ABS 1 | Anti-lock braking system |
| 50A | ABS MTR NO.1 | Hybrid: Anti-lock braking system | |
| 43 | 30A | ABS 2 | Anti-lock braking system |
| 50A | ABS MTR NO.2 | Hybrid: Anti-lock braking system | |
| 44 | 50A | J/B B | Junction box bus |
| 45 | 80A | EPS | Electric power steering |
| 46 | 60A | RB 1 | RB 1 |
| 47 | 120A | ALT | Battery and charging system |
| 120A | DC/DC | Hybrid: DC to DC transformer 400 watts | |
| 48 | 100A | FAN NO.1 | Electric cooling fan (Some models) |
